Humidity refers to the amount of moisture or water vapor present in the air. It plays a significant role in the weather and has a substantial influence on the overall comfort experienced within a specific surrounding.
Humidity levels are influenced by factors such as temperature, geographical location, and proximity to bodies of water. Understanding and managing humidity is crucial, as it can have both positive and negative effects on our well-being and the spaces we inhabit.

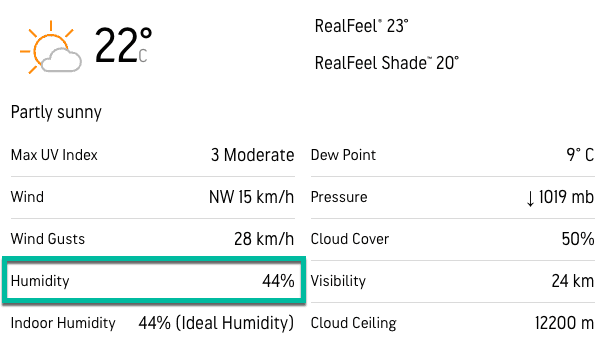

Humidity is typically expressed as a percentage and is measured using a device called a hygrometer. The two primary types of humidity measurements are absolute humidity and relative humidity.
Absolute humidity refers to the actual amount of water vapor present in a given volume of air. It is usually measured in grams of water vapor per cubic meter of air \((g/m^3)\). Absolute humidity is directly affected by temperature. Warmer air has the ability to hold more moisture, so as the temperature rises, the absolute humidity can increase even if the actual moisture content remains the same. Conversely, as the temperature drops, the absolute humidity can decrease, assuming no additional moisture is added or removed from the air.
Here are some common units used for measuring absolute humidity:

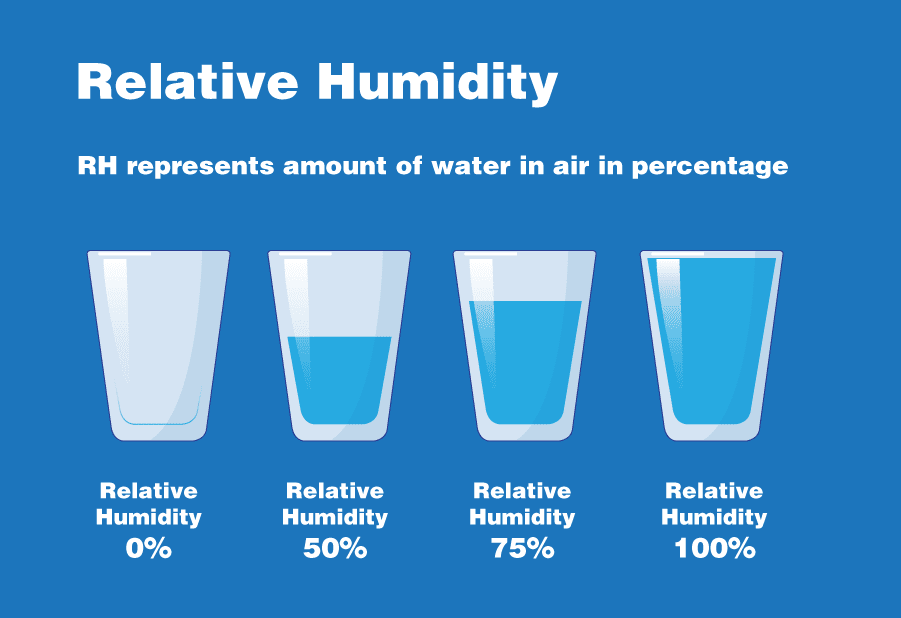

Relative humidity (RH) is a measure of the amount of water vapor present in the air relative to the maximum amount the air can hold at a specific temperature. It is expressed as a percentage and is a key indicator of the moisture content in the atmosphere.
The formula for relative humidity in percentage is:
$$ Relative\ Humidity\ = \frac{Actual\ Humidity}{Saturation\ Humidity} \times 100 $$
For example, when the air is at the given temperature and exhibits a relative humidity of 50 %, it means that the moisture content in the air is exactly half of its saturation point.
By dividing the absolute humidity by the saturation humidity and multiplying by 100, you can determine the relative humidity as a percentage.
It’s important to note that saturation humidity is temperature-dependent, so accurate measurements of temperature and humidity are required for precise calculations of relative humidity. The table shows “Absolute humidity” (AH) in \(g/m^3\) and the “Dew point temperature” (Td) of the air in \(°C\) for certain air temperatures as a function of “Relative humidity”.
Example: At an air temperature of 50 \(°C\) and a relative humidity of 70 %, the absolute humidity is 58.1 \(g/m^3\), and the dew point temperature is 43 \(°C\).
Tair \([°C]\) | Relative Humidity [%] | ||||||||||
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| +50 | AH | 8.3 | 16.6 | 24.9 | 33.2 | 41.5 | 49.8 | 58.1 | 66.4 | 74.7 | 83.0 |
| Td | +8 | +19 | +26 | +32 | +36 | +40 | +43 | +45 | +48 | +50 | |
| +45 | AH | 6.5 | 13.1 | 19.6 | 26.2 | 32.7 | 39.3 | 45.8 | 52.4 | 58.9 | 65.4 |
| Td | +4 | +15 | +22 | +27 | +32 | +36 | +38 | +41 | +43 | +45 | |
| +40 | AH | 5.1 | 10.2 | 15.3 | 20.5 | 25.6 | 30.7 | 35.8 | 40.9 | 46.0 | 51.1 |
| Td | +1 | +11 | +18 | +23 | +27 | +30 | +33 | +36 | +38 | +40 | |
| +35 | AH | 4.0 | 7.9 | 11.9 | 15.8 | 19.8 | 23.8 | 27.7 | 31.7 | 35.6 | 39.6 |
| Td | -2 | +8 | +14 | +18 | +21 | +25 | +28 | +31 | +33 | +35 | |
| +30 | AH | 3.0 | 6.1 | 9.1 | 12.1 | 15.2 | 18.2 | 21.3 | 24.3 | 27.3 | 30.4 |
| Td | -6 | +3 | +10 | +14 | +18 | +21 | +24 | +26 | +28 | +30 | |
| +25 | AH | 2.3 | 4.6 | 6.9 | 9.2 | 11.5 | 13.8 | 16.1 | 18.4 | 20.7 | 23.0 |
| Td | -8 | 0 | +5 | +10 | +13 | +16 | +19 | +21 | +23 | +25 | |
| +20 | AH | 1.7 | 3.5 | 5.2 | 6.9 | 8.7 | 10.4 | 12.1 | 13.8 | 15.6 | 17.3 |
| Td | -12 | -4 | +1 | +5 | +9 | +12 | +14 | +16 | +18 | +20 | |
| +15 | AH | 1.3 | 2.6 | 3.9 | 5.1 | 6.4 | 7.7 | 9.0 | 10.3 | 11.5 | 12.8 |
| Td | -16 | -7 | -3 | +1 | +4 | +7 | +9 | +11 | +13 | +15 | |
| +10 | AH | 0.9 | 1.9 | 2.8 | 3.8 | 4.7 | 5.6 | 6.6 | 7.5 | 8.5 | 9.4 |
| Td | -19 | -11 | -7 | -3 | 0 | +1 | +4 | +6 | +8 | +10 | |
| +5 | AH | 0.7 | 1.4 | 2.0 | 2.7 | 3.4 | 4.1 | 4.8 | 5.4 | 6.1 | 6.8 |
| Td | -23 | -15 | -11 | -7 | -5 | -2 | 0 | +2 | +3 | +5 | |
| 0 | AH | 0.5 | 1.0 | 1.5 | 1.9 | 2.4 | 2.9 | 3.4 | 3.9 | 4.4 | 4.8 |
| Td | -26 | -19 | -14 | -11 | -8 | -6 | -4 | -3 | -2 | 0 | |
| -5 | AH | 0.3 | 0.7 | 1.0 | 1.4 | 1.7 | 2.1 | 2.4 | 2.7 | 3.1 | 3.4 |
| Td | -29 | -22 | -18 | -15 | -13 | -11 | -8 | -7 | -6 | -5 | |
| -10 | AH | 0.2 | 0.5 | 0.7 | 0.9 | 1.2 | 1.4 | 1.6 | 1.9 | 2.1 | 2.3 |
| Td | -34 | -26 | -22 | -19 | -17 | -15 | -13 | -11 | -11 | -10 | |
| -15 | AH | 0.2 | 0.3 | 0.5 | 0.6 | 0.8 | 1.0 | 1.1 | 1.3 | 1.5 | 1.6 |
| Td | -37 | -30 | -26 | -23 | -21 | -19 | -17 | -16 | -15 | -15 | |
| -20 | AH | 0.1 | 0.2 | 0.3 | 0.4 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 |
| Td | -42 | -35 | -32 | -29 | -27 | -25 | -24 | -22 | -21 | -20 | |
| -25 | AH | 0.1 | 0.1 | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.6 |
| Td | -45 | -40 | -36 | -34 | -32 | -30 | -29 | -27 | -26 | -25 | |
Indoor humidity refers to the moisture content or water vapor present in the air within enclosed spaces like restaurants, offices, classrooms, or warehouses.
The need for indoor ventilation arises from the critical role that ventilation plays in maintaining a healthy and comfortable indoor environment. Indoor spaces can accumulate various pollutants, allergens, and airborne contaminants. Adequate ventilation helps remove these pollutants, replenish oxygen levels, control moisture, and regulate temperature.
Furthermore, ventilation studies are essential to assess the efficiency and effectiveness of ventilation systems, identify potential issues such as inadequate airflow or indoor air quality problems, and develop strategies to optimize ventilation for energy efficiency and occupant well-being. By understanding and conducting comprehensive indoor ventilation studies, we can ensure optimal indoor air quality, promote occupant health, and create sustainable and comfortable living and working environments.
The comfort level of an indoor space is greatly influenced by humidity. High humidity can make the air feel muggy, sticky, and uncomfortable, particularly during hot weather. On the other hand, low humidity can cause dryness, leading to dry skin, irritated eyes, and respiratory discomfort.
Excessive humidity levels can create a favorable environment for the growth of mold and mildew. These fungi thrive in damp conditions and can cause structural damage to buildings, as well as contribute to allergies and respiratory problems in occupants.
High humidity levels can increase the concentration of airborne pollutants such as dust mites, mold spores, and bacteria. These pollutants can adversely affect indoor air quality, potentially leading to allergies, asthma, and other respiratory issues.
When warm, moist air comes into contact with cooler surfaces, condensation occurs. This can lead to moisture accumulation on windows, walls, and ceilings. Over time, persistent condensation can result in water damage, peeling paint, warped wood, and other structural issues.
Humidity in SimScale
With SimScale, users can determine areas where humidity is higher, thereby approximating the effects of moisture and condensation. Learn more.
Maintaining the right balance of indoor humidity through proper ventilation, use of humidifiers or dehumidifiers, and monitoring can enhance occupant well-being, preserve building integrity, and create a pleasant and healthy indoor environment.
To maintain a comfortable and healthy indoor environment, it is generally recommended to keep relative humidity levels between 30 % and 50 %. Proper ventilation, use of dehumidifiers or humidifiers, and regular maintenance can help regulate humidity and mitigate its potential negative effects.
The ideal humidity range for summer can vary depending on personal preference and regional climate conditions. However, a commonly recommended range for indoor humidity during the summer season is around 40 % to 60 % relative humidity.
Balancing humidity levels within the ideal range can also contribute to energy efficiency. Lower humidity levels (closer to 40 % RH) can help the air feel cooler during summer, allowing for slight adjustments to the temperature settings and potentially reducing the reliance on air conditioning systems.
A commonly recommended range for indoor humidity during the winter season is around 30 % to 50 % relative humidity.
Moderate humidity levels can make the air feel warmer, allowing you to set your thermostat at a slightly lower temperature without sacrificing comfort. This can result in energy savings and reduced heating costs.
The ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) standards provide guidance on indoor humidity levels for various environments. Here are some of the recommended ranges for indoor humidity according to ASHRAE for common spaces:
Simulating indoor humidity involves modeling and analyzing the moisture content and distribution within an indoor space. SimScale’s Conjugate Heat Transfer v2.0 now supports the participation of humidity characteristics in simulations. You can activate the humidity modeling by toggling on the “Relative Humidity” option under the global settings.
To find out more about the humidity model implemented in SimScale, refer to the Relative Humidity page.
Using advanced simulation capabilities, engineers and designers can better understand the significance of environmental and ventilation parameters prevailing within a considered space. This, in turn, can be used to determine and optimize the necessary ventilation strategies.

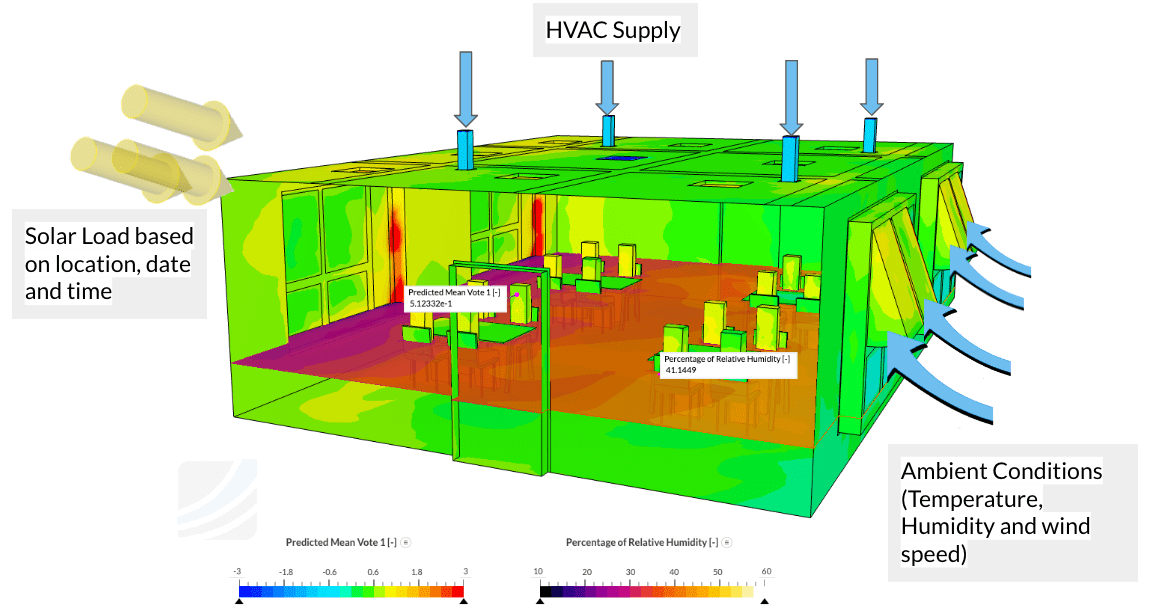

The above example shows the effect of the following parameters on thermal comfort inside a restaurant space:
With humidity modeled as a participating field in SimScale, thermal comfort parameters Predicted Mean Vote (PMV) and Predicted Percentage of Dissatisfied (PPD) can now include local humidity effects. The ideal humidity range for thermal comfort is not a fixed value but rather depends on several factors, including the activity levels of individuals, the insulation provided by their clothing, and their personal preferences.
Standards and guidelines, such as those provided by ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers), offer specific recommendations for indoor humidity levels to ensure optimal thermal comfort in different environments and seasons.
Computational Fluid Dynamics (CFD) can be used as a valuable tool to understand existing ventilation systems and focus on optimizing them according to the requirements. It’s important to note that conducting accurate and detailed indoor humidity simulations helps assess indoor comfort, evaluate the performance of HVAC systems, identify potential moisture-related issues, and optimize building designs for improved humidity control.
