    CAD Preparation and Upload

    Preparing, uploading, and adapting your CAD model for simulation is the first step in setting up a simulation. CAD models cannot be created in SimScale but they can certainly be uploaded, cleaned, and prepared to begin the simulation. Some tips for CAD preparation and its proper upload are outlined below:

    CAD Upload/Import

    To upload a CAD file onto the SimScale Workbench:

    1. Open an existing project or create a new one.
    2. To open the upload dialog, click the ‘+’ button next to Geometries in the simulation setup tree.
    3. Drag and drop your CAD file or click to open the file selection dialog.
    how to import directly from onshape to simscale
    Figure 1: SimScale CAD upload dialog. Either upload files directly from your machine or import via Onshape.

    Another option is to use the from Onshape button to directly pull a design from your Onshape library. Additionally, sample CAD models are available by selecting the from Sample Library button.

    Important

    When importing zip files to SimScale, the File format needs to be selected. For example, in the case of a Pack and Go file from SolidWorks, select SolidWorks (.sldprt / .sldasm) from the drop-down menu.

    pack and go file warning zip during import format

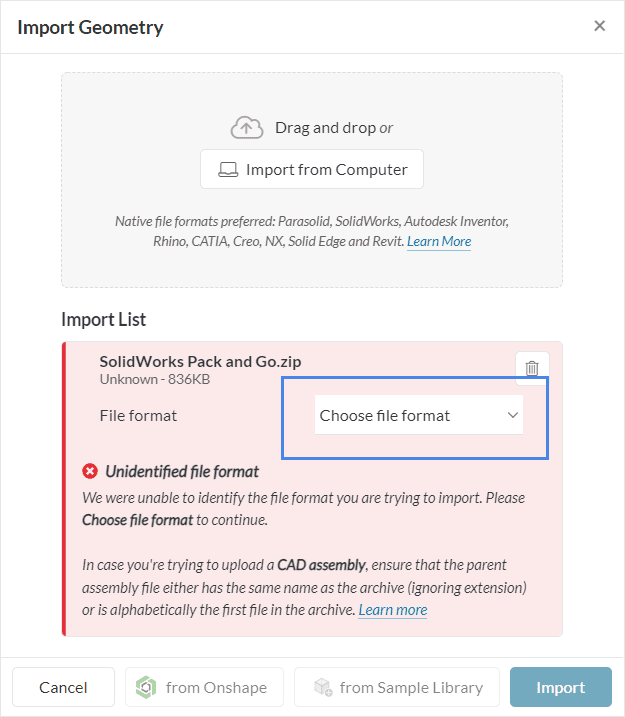

    Figure 2: For zip files, please select the correct file format from the drop-down menu.

    Did you know?

    SimScale also supports simulation using uploaded meshes. So if you already have a meshed geometry and simply want to get going with the setup we refer you to this page.

    Supported CAD Formats

    SimScale supports the following CAD formats:

    • Parasolid (.x_t, .x_b)
    • SolidWorks (.sldprt, .sldasm)
    • Autodesk Inventor (.iam, *.ipt)
    • Rhino 4, 5, 6, and 7 (.3dm)
    • CATIA (.CATPart, .CATProduct)
    • PTC Creo (.prt, .asm)
    • Siemens NX (.prt)
    • Solid Edge (.par, .asm, .psm)
    • ACIS (.sat, .sab)
    • STEP (.stp, .step)
    • IGES (.igs, .iges)
    • REVIT (.rvt)
    • STL (.stl)

    This list is sorted in the preferred order of formats. Generally, it is recommended to upload the model in the native format of the tool it was created with (e.g. as .sldprt if modeled in Solidworks). SimScale natively uses the Parasolid CAD kernel. In order to have all CAD manipulation functionality available within SimScale, the CAD model needs to be successfully translatable into the Parasolid format.

    CAD Upload Options

    While uploading the CAD model, it undergoes optimization steps automatically to best suit the simulation. These steps are explained in detail below. Although not advisable, the user can turn these off if needed or desired.

    CAD optimization options

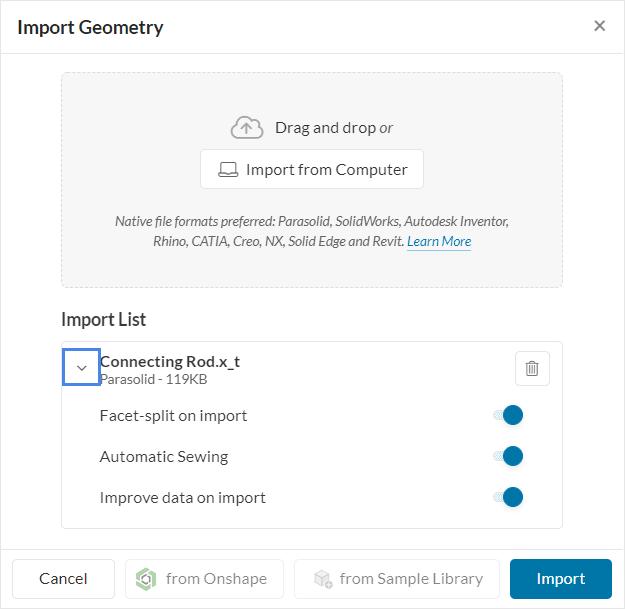

    Figure 3: CAD model upload optimization options recommended for simulations

    Facet-Split on Import

    Facet models contain geometry that is not described by parametric functions but by a surface mesh consisting usually of triangles. Often the whole faceted geometry is stored in one big surface part and can not be easily accessed to define e.g. boundary conditions on separate faces. In order to do that you can split the faceted parts of the models by a surface angle. For all angles that are higher than the given value, the algorithm tries to separate the geometry by introducing separate faces. Some formats contain only faceted data, for e.g., *.stl files; others like Parasolid, Step or Rhino can contain mixed parametric and faceted parts. For parametric geometry, this setting doesn’t take any effect.

    To control the facets fully…

    To control the facets fully, toggle off Facet split on import and split the STL outside of SimScale by putting it to different STL files and upload everything as a zip file. The files will be translated as solids and the STL-solids will be translated as faces.

    Automatic Sewing

    Automatic sewing tries to connect parts of the model that are stored separately but touch exactly. In case a closed shell can be achieved, it additionally creates a solid body bound by the original faces. As most simulations are carried out on three-dimensional domains and require solid regions as input it is recommended to use this option on import.

    Improve Data on Import

    This option tries to improve the topology (e.g. edges, vertices) and geometry of the model by adjusting tolerances, simplifying entities, etc. As this option should improve CAD operations and data handling for all downstream applications it is recommended to use it on import. For very complex models it can take a considerable amount of time though, therefore you can also opt-out and reconsider in case you face issues in geometry handling or meshing.

    Optimize for LBM / PWC

    This option allows you to import a *.stl file that is optimized for the Incompressible LBM and Wind Comfort analysis types. It leaves out complex import steps like sewing and cleanup that are not required by the LBM solver and therefore also allows to import big and complex models fast.

    Assembly Upload

    To upload an assembly file from a particular CAD tool please collect all the related parts and sub-assembly files along with the assembly file and create a *.zip file. Then upload this *.zip file using the upload dialog. Find a detailed guide on assembly upload here. Currently, SimScale supports the assembly upload feature for the following formats:

    CAD ToolNative Part formatNative Assembly format
    CATIA.CATPart.CATProduct
    Fusion 360 / Inventor.ipt.iam
    SolidWorks.sldprt.sldasm
    PTC Creo.prt.asm
    Table 1: CAD Tools and their respective part and assembly formats

    Keep in mind!

    If sub-assemblies exist, the software first checks if the archive name matches any assembly name in the archive – and we use this assembly as a root assembly of the import.
    If not, it then checks the first assembly file alphabetically and uses this file as a root (parent) assembly of the import.

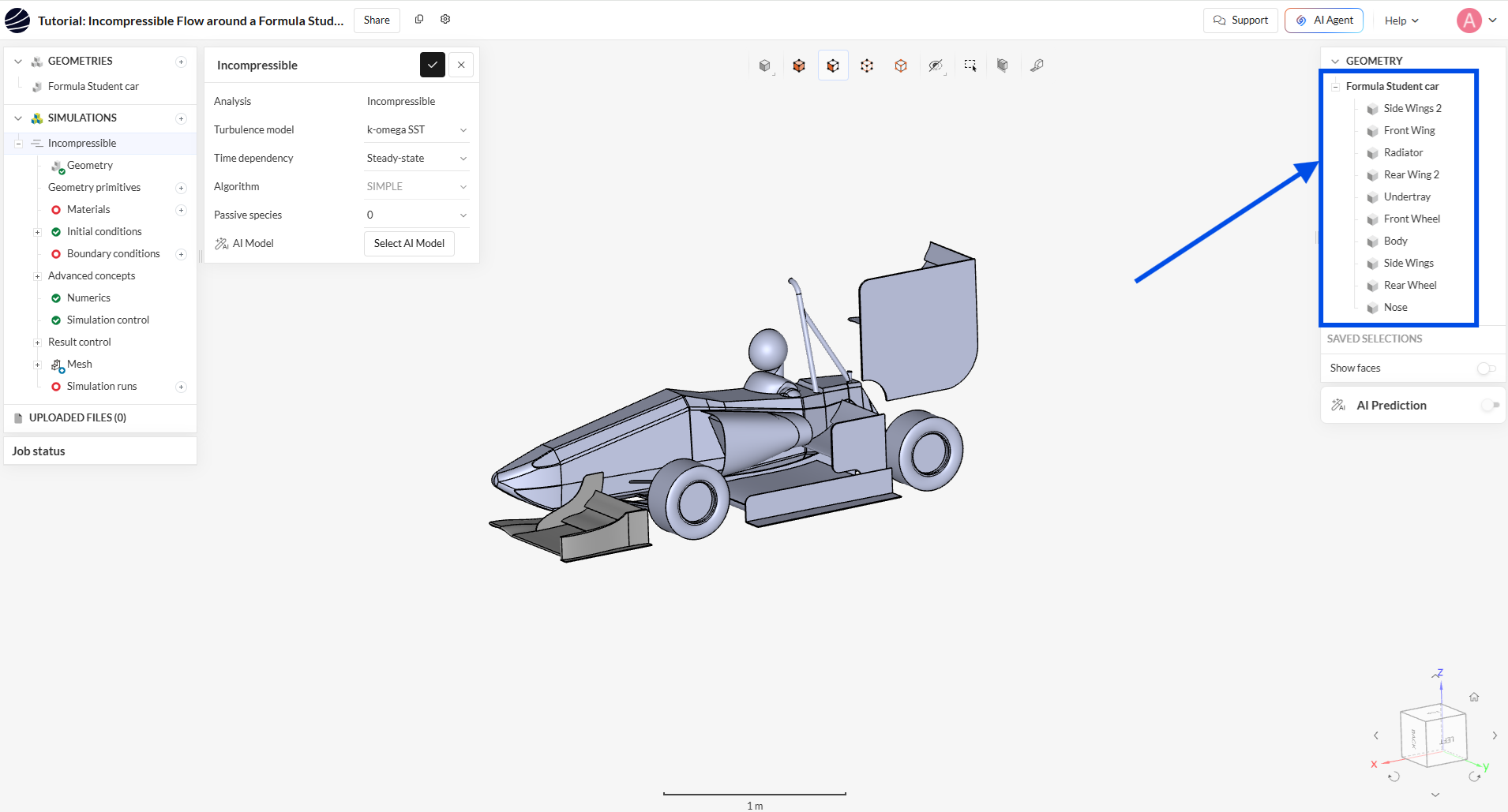

    example of cad model being shown within simscale platform
    Figure 4: Once uploaded and converted successfully, the model will be shown in the viewer and listed in the Geometries section of the navigation tree. Renaming the model is facilitated.

    Note

    In case round parts of your geometry appear to have corners, don’t worry: SimScale will automatically simplify your geometry for display purposes to make sure that you can fluently interact with the model. Internally, especially for the meshing process, SimScale uses the fully featured geometry.

    Pack and Go

    Some CAD tools, such as SolidWorks and Autodesk Inventor, have a Pack and Go functionality, which saves together all files related to a model design with correct references. This workflow is helpful when exporting complex assemblies (parent and child assembly) since it handles the structure of the export file automatically.

    The image below shows the steps to use the Pack and Go functionality on SolidWorks:

    solidworks pack and go export for assemblies
    Figure 5: Once the SolidWorks model is ready to export, you can navigate to File and select Pack and Go.

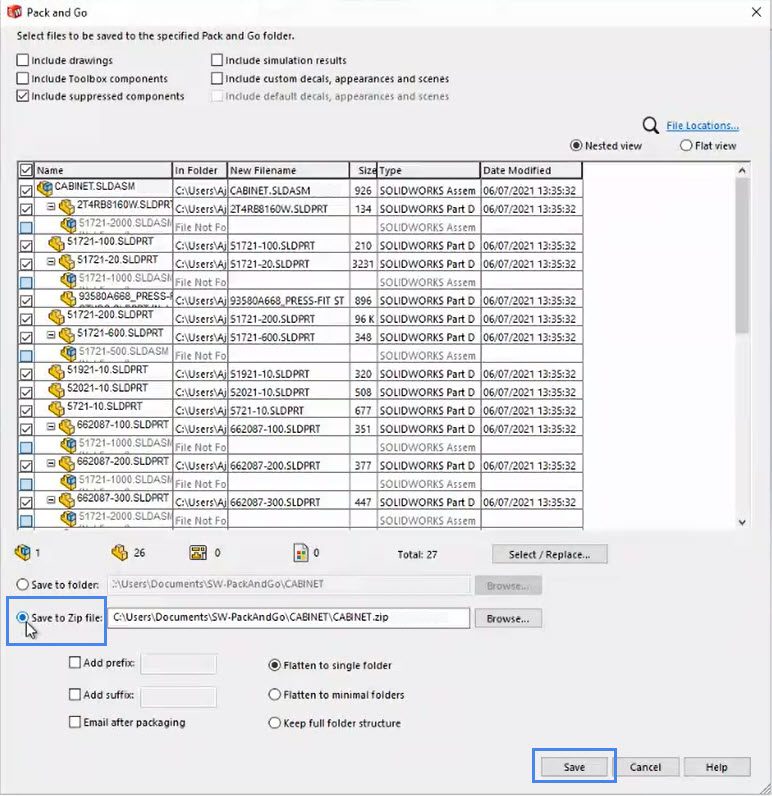

    After navigating to Pack and Go, a second window opens with more options. Here, enabling the Save to Zip file option is important:

    exporting a pack and go geometry as a zip file
    Figure 6: Pack and Go setup window, showing different options

    After saving, the Pack and Go zip file can be directly imported to the SimScale platform. Don’t forget to select the proper file format for the zip file to upload.

    Import Plugins

    To enable a seamless design workflow, SimScale offers direct integration with a couple of CAD modeling tools. These integrations allow the direct import (via push/pull) of your designs into SimScale.

    SimScale Connector App for Onshape

    The SimScale Connector App for Onshape allows you to quickly import your CAD models directly from your Onshape account into the SimScale simulation platform without the need of exporting and uploading files.

    onshape importer widget
    Figure 7: To import a model directly from Onshape, click ‘Import from Onshape‘ in the CAD upload widget (see above). A new window will open in which the model to be imported can be selected (shown here for Pump).

    SimScale Integration for Autodesk® Fusion 360™

    Create your model on Autodesk Fusion 360 and with a few clicks push your geometry to an existing project on SimScale without having to leave the application or do cumbersome format conversions when saving the models you want to use in your simulations.

    To download, visit the Fusion 360 app store:

    Supported CAD Operations

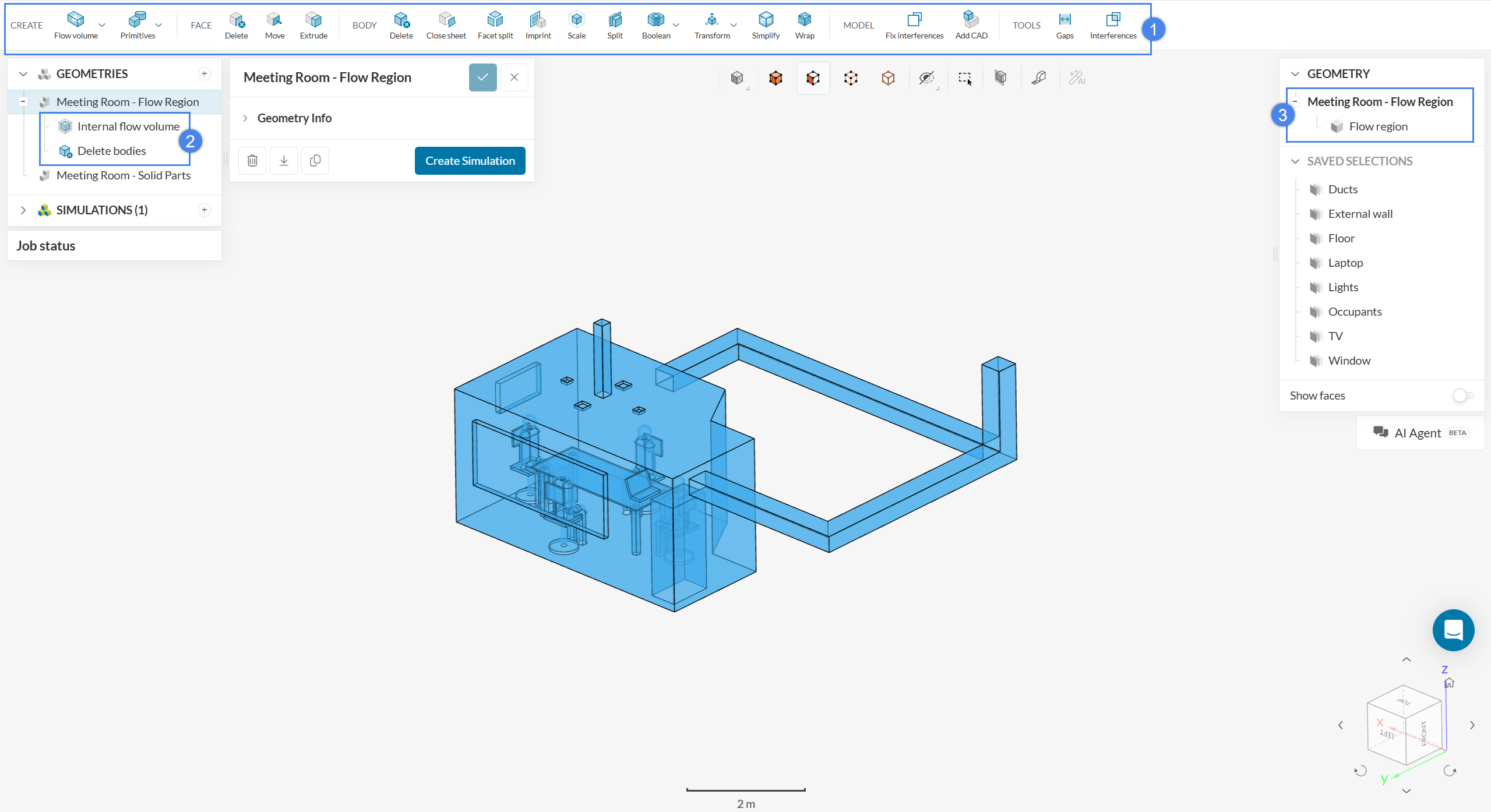

    After CAD upload, some additional preparation might be required. SimScale offers a dedicated environment to interact with your model called ‘Edit in CAD mode’ or simply ‘CAD mode’ that helps you optimize the model within SimScale without having to switch to other CAD software. Try this feature today.

    The CAD mode supports a ton of operations like scaling, extrude, body and face delete, surface splitting, flow volume extraction, etc. To access the CAD mode follow the steps outlined in the figure below:

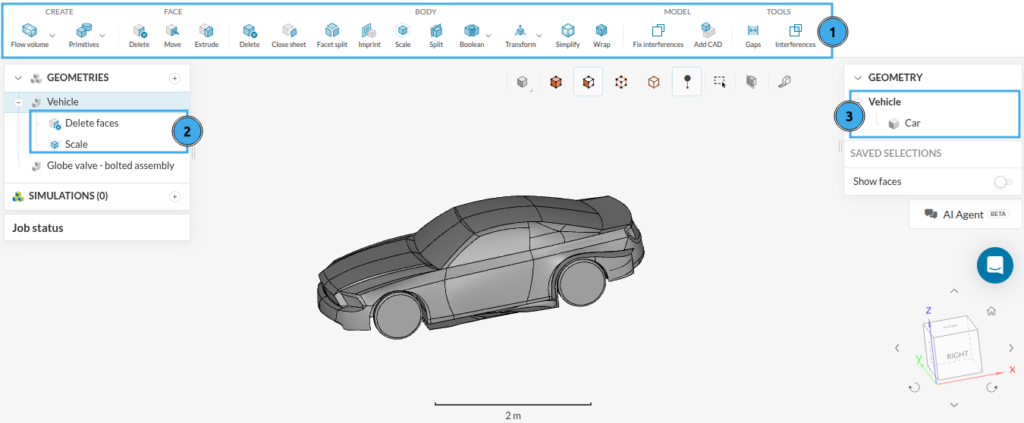

    access cad mode from workbench
    Figure 8: Access CAD mode from the SimScale Workbench by clicking on the imported geometry and then on Edit in CAD mode icon as shown.

    CAD Preparation

    Depending on the complexity and quality of your CAD model, some preparation and cleanup work might be required. Most of this cleanup work can be done within the CAD mode environment. The following general guidelines might help get you to the first successful iteration of your simulation.

    General Hints

    • Start simple and iterate
      A proven strategy for the simulation setup is to create it for a very simple version of the problem in order to see whether or not the simulation approach is viable.
    • Think the complete workflow through
      Having an idea about the mesh and the application of boundary conditions can help with CAD preparation.
    • Have a clear understanding of the problem
      This helps to decide whether certain effects can be neglected or not.

    Diving deeper, keep in mind the following requirements for a successful and accurate simulation:

    Model Dimension

    The dimension of the model is very important for the simulation. If there are any discrepancies between the model units and the SimScale units this can lead to unrealistic geometrical dimensions. In this case, it is crucial to perform a scaling operation.

    selecting units accordingly before uploading the cad model

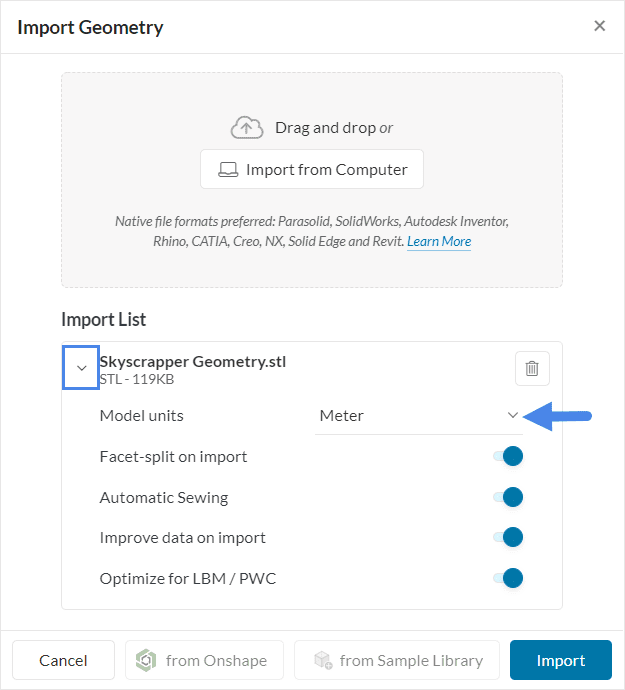

    Figure 9: While uploading a *.stl file, the model dimension can be selected.

    The default dimension used within the Workbench is Meter. The user can change it to other units from the dropdown as shown above although this option is only available for .stl files that do not contain unit information in the file.

    Complexity Reduction

    Very often the CAD model can be simplified to get more accurate simulation results in a shorter time. A few cases for potential optimization are listed below:

    Defeaturing

    CAD models often contain many detailed features because of manufacturing constraints or the installation. Good examples are small holes or windings. These detailed features might be relevant for the final manufacturing but they do not affect simulation results, rather only increase the meshing and computing time significantly. Therefore, such features should be removed.

    Remove Small Entities

    Small entities can be a problem when it comes to meshing. If there are very small faces with sharp angles the surface meshing might fail. An example is demonstrated below, where faces had to be merged before a surface mesh could be generated. Such small entities should also be removed during CAD preparation.

    example of small features that should be cleaned up before import
    Figure 10: Left: Very small face with very sharp angles. Causes the surface mesher to fail. Right: Problematic face was removed, meshing works fine.

    Use of Symmetry

    If the problem is symmetric, computation time can be significantly reduced by using symmetry boundary conditions and performing simulations on just a part of the whole CAD model. In such a case only one instance of the symmetric parts of the model should be imported.

    Divide and Conquer

    Analyzing smaller parts of the entire CAD one by one, rather than analyzing the entire CAD in a single simulation, can help reduce the complexity of the problem and speed up the simulation.

    For Rotating Zones

    When performing a simulation with rotating parts, such as pumps and turbines, rotating zones need to be created as a part of CAD preparation. This requires some additional steps including CAD mode before using the model for simulation. You can find a detailed approach to CAD preparation in the following article:

    CAD Faults

    In case your model could not be successfully translated into the SimScale-specific internal format, all entities that failed translation will be exposed after upload. In order to progress further, try fixing all faulty parts and upload the model once more.

    cad faults interface shown within the simscale platform
    Figure 11: Faulty topological entities will be listed in the scene tree (top right). Click on a fault to visualize it in the viewer. To progress further, all faults need to be resolved first and another instance of the cleaned geometry needs to be uploaded.

    Refer to our knowledge base article on how to find faults in your CAD model.

    CAD Topology

    In general, a CAD model consists of different types of topological entities such as solids, faces, edges, and vertices. It’s important to be aware of this topology since it will have an impact on mesh generation and simulation setup. Find an introduction to CAD topology here.

    Still not satisfied? Looking for case-specific information? Visit the CAD PREPARATION section of our Knowledge Base articles.
