Hyperelastic Planar Tension Test

Overview

The aim of this case is to validate the following functions:

  • Hyperelasticity for planar (pure shear) tension test

The simulation results of SimScale were compared to the results presented in [Tre44]. The mesh used in the study is a hexahedral mesh with only one element imported to SimScale platform.

Import planar (pure shear) tension test validation project into workspace

Geometry

Cube geometry

The cube (ABCDEFGH) has the dimension of:

Cube length 1 m
Cube width 1 m
Cube height 1 m

Analysis type and Domain

Tool Type : Calculix (CCX), Code_Aster (CA)

Analysis Type : Static

Mesh and Element types :

Mesh type Number of nodes Element type
linear hexahedral 8 3D isoparametric
Cube mesh

Simulation Setup

Important

All displacement and load components are referred to the coordinate system in the figure of the geometry section.

Important

All the material model values below are calculated through a curve fitting with Treloar test data presented in [Tre44].

Planar (pure shear) test:

Material:

Material model C10

C10



C01

C01



C20

C20



C11

C11



C02

C02



C30

C30



D1

D1



D2

D2



D3

D3



Neo Hookean(CCX/CA)

Neo Hookean(CCX/CA)



1.684244

1.684244



1e8 (CCX)1e6 (CA)

1e8 (CCX)1e6 (CA)



Mooney Rivlin(CCX/CA)

Mooney Rivlin(CCX/CA)



99.157878

99.157878



100.842122

100.842122



1e8 (CCX)1e6 (CA)

1e8 (CCX)1e6 (CA)



Yeoh(CCX)

Yeoh(CCX)



1.884809

1.884809



0.023045

0.023045



0.000951

0.000951



1e8

1e8



1e8

1e8



1e8

1e8



Red Poly 2(CCX)

Red Poly 2(CCX)



1.680890

1.680890



0.000119

0.000119



1e8

1e8



1e8

1e8



Poly 2(CCX)

Poly 2(CCX)



3342.294056

3342.294056



3343.974945

3343.974945



29.075454

29.075454



52.176771

52.176771



23.101198

23.101198



1e8

1e8



1e8

1e8



Signorini(CA)

Signorini(CA)



1

1



0.680889

0.680889



0.000119

0.000119



1e6

1e6



μ1

μ1



μ2

μ2



μ3

μ3



α1

α1



α2

α2



α3

α3



Ogden 1(CCX)

Ogden 1(CCX)



3.170002

3.170002



2.057305

2.057305



1e8

1e8



Ogden 2(CCX)

Ogden 2(CCX)



0.270802

0.270802



2.366077

2.366077



3.652417

3.652417



0.38567

0.38567



1e8

1e8



1e8

1e8



Ogden 3(CCX)

Ogden 3(CCX)



1.160174

1.160174



2.366074

2.366074



0.889366

0.889366



3.650165

3.650165



0.385663

0.385663



0.889366

0.889366



1e10

1e10



1e10

1e10



1e10

1e10



λm

λm



μ

μ



ArrudaBoyce(CCX)

ArrudaBoyce(CCX)



11.185037

11.185037



3.148984

3.148984



1e8

1e8



Constraints:

  • Face ABFE zero x-displacement
  • Face AEDH and BFGC zero y-displacement
  • Face ABCD zero z-displacement
  • Face DCGH 4m x-displacement

Results

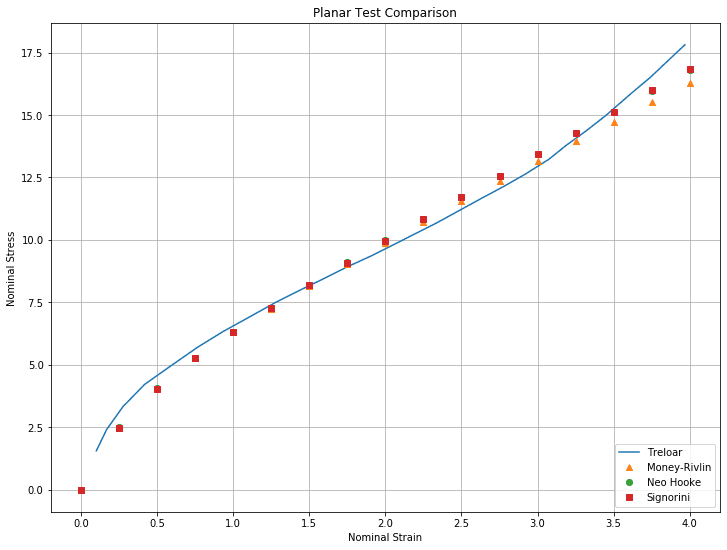

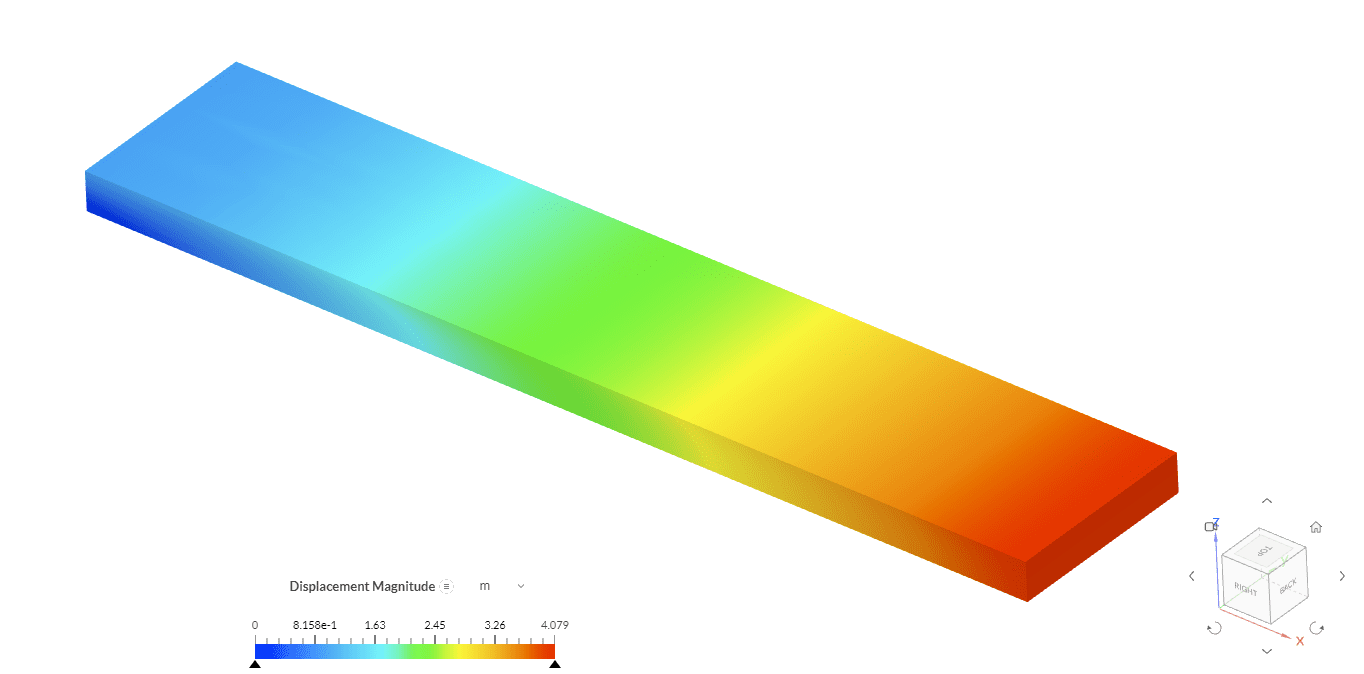

Comparison of the nominal stress vs. the nominal strain calculated on the node of edge AB and AE. The values of the reference [Tre44] in all figures were extracted with WebPlotDigitizer.

Comparison of the Planar (pure shear) results with Treloar test data using CCX and CA

References

[Tre44] (123) L. R. G. Treloar. Stress-strain data for vulcanised rubber under various types of deformation. Trans. Faraday Soc., 40:59–70, 1944.
