  • Rotating Zones

    Rotating zones can be used to model rotating systems such as turbines, fans, ventilators, and other similar systems. This documentation page shows how simulation with rotating zones can be set up.

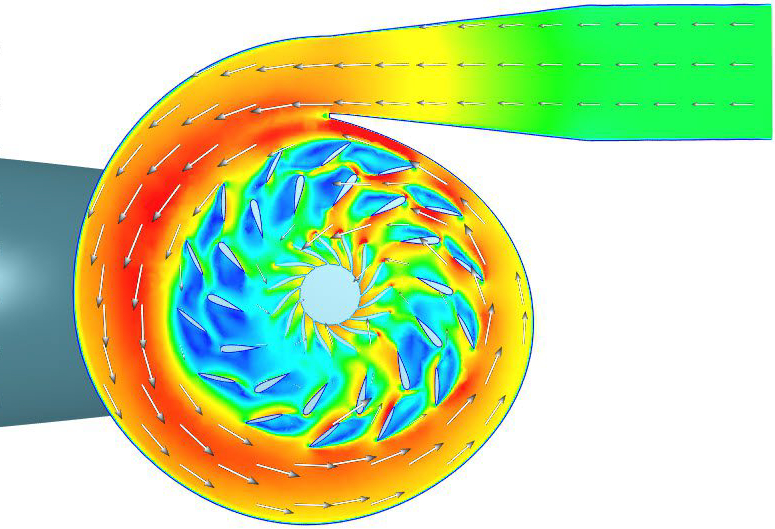

    francis turbine cfd with rotating zones
    Figure 1: Incompressible simulation of a Francis turbine, using rotating zones

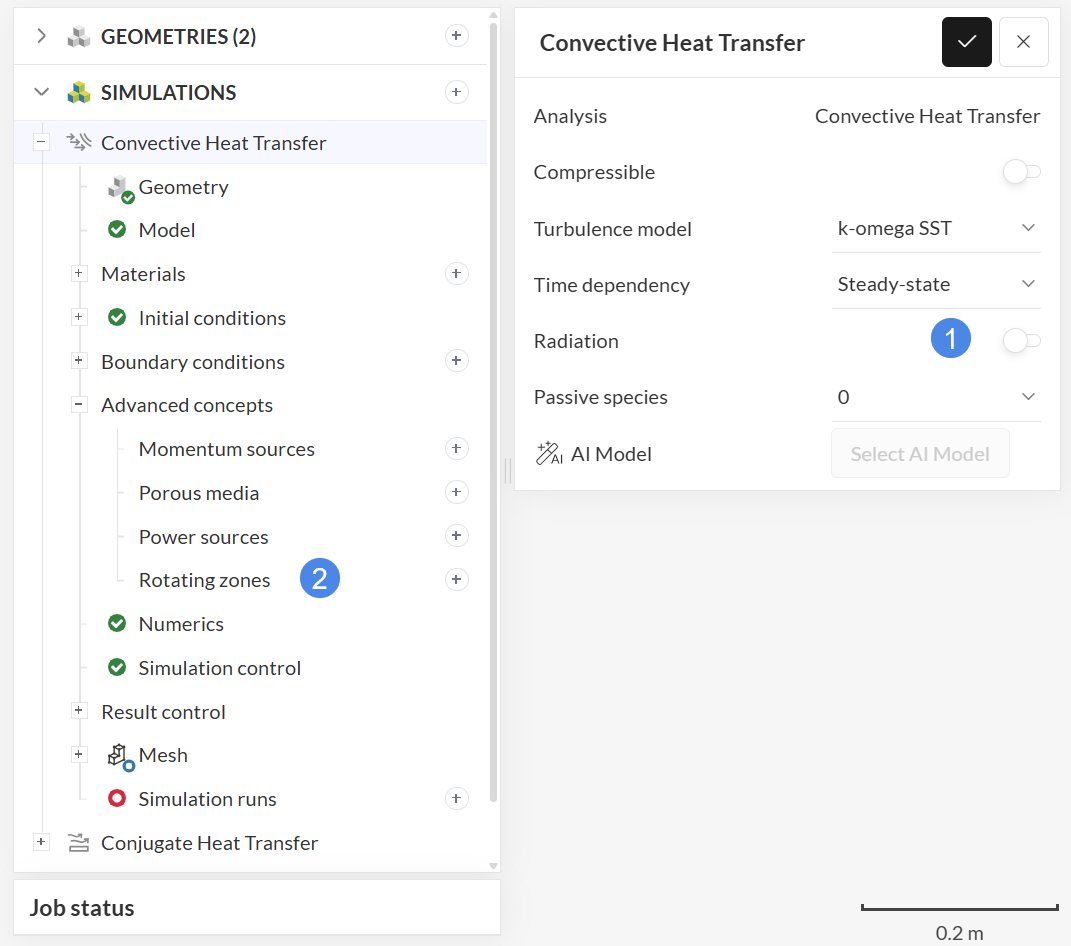

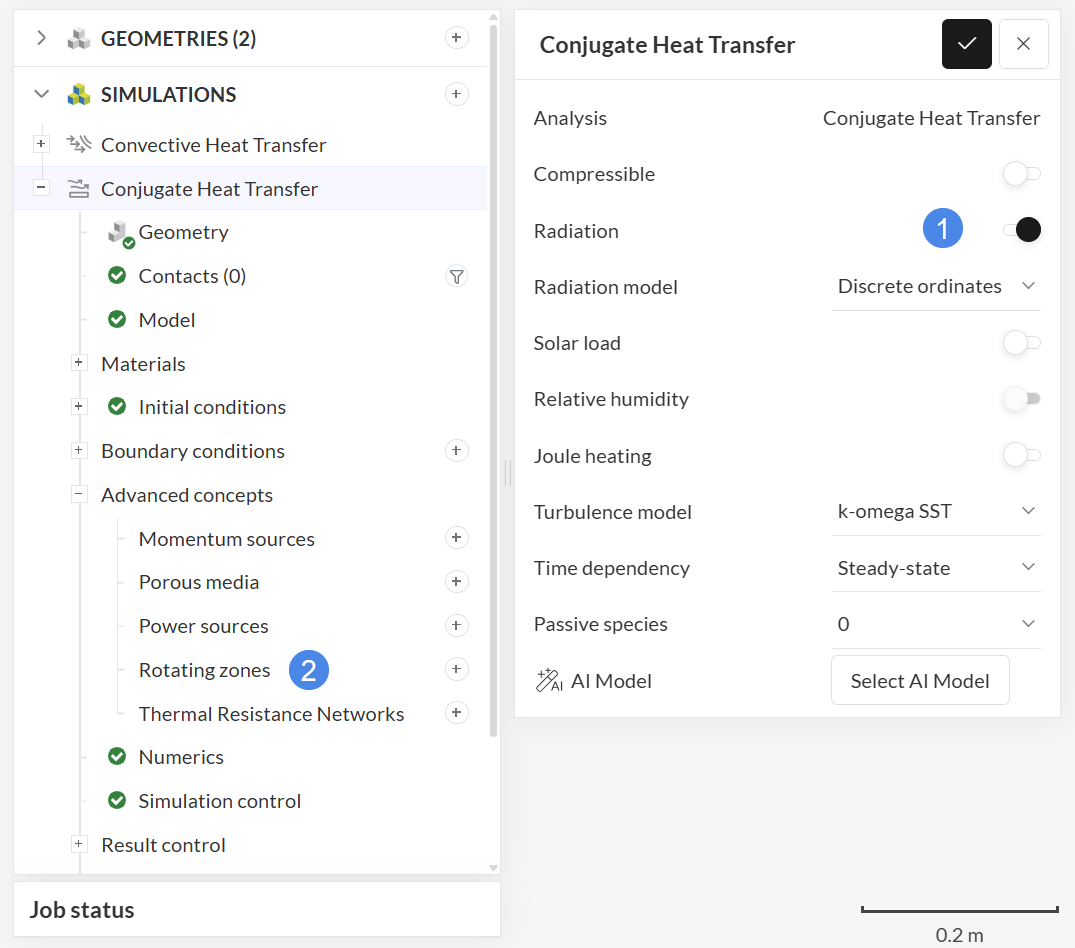

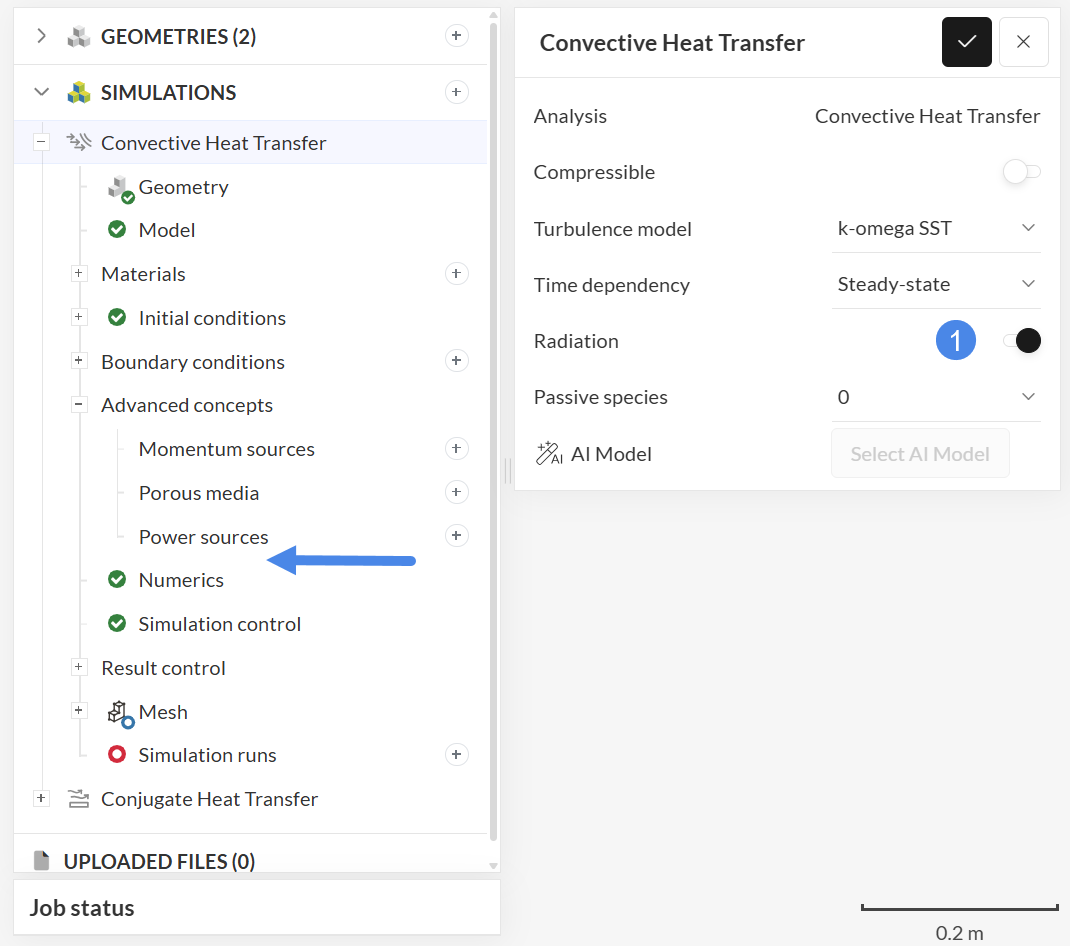

    Rotating zones are only available for the following analysis types:

    Convective heat transfer
    Conjugate heat transfer v2.0
    Multiphase, only if Local time stepping is disabled in the global settings

    CAD Requirements

    Simulations with rotating zones require special attention during CAD preparation. The requirements are described at length in the following knowledge base article:

    Simulation Setup

    In the simulation tree, navigate to Advanced concepts and click on the ‘+’ button next to Rotating zones. Two types of rotating zones are supported: Multiple Reference Frame (MRF) and Arbitrary Mesh Interface (AMI).

    finding rotating zones in simulation tree  in simscale

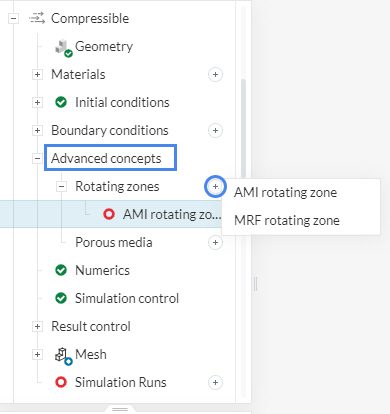

    Figure 2: Navigate to Advanced concepts > Rotating zones in the simulation tree to choose between AMI and MRF options.

    (MRF) Rotating Zones

    The MRF rotating zone is a steady-state approximation of the transient rotating motion at an “instance” of time. Therefore, the mesh/body is not physically rotated. One must make sure that the problem does not include large-scale transient phenomena.

    This approach uses a rotating frame of reference that modifies the governing equations in the rotating zone. Additional source terms that incorporate forces in the rotating reference frame are taken into account. These simulate a rotation effect in the flow.

    Performing MRF simulations is computationally much less demanding than transient modeling. Hence, if the problem is set up correctly, MRF provides good approximations with less computational effort and considerably less computation time.

    Setup of an MRF Rotating Zone

    Figure 3 shows the setup interface for a MRF rotating zone:

    mrf rotating zone setup

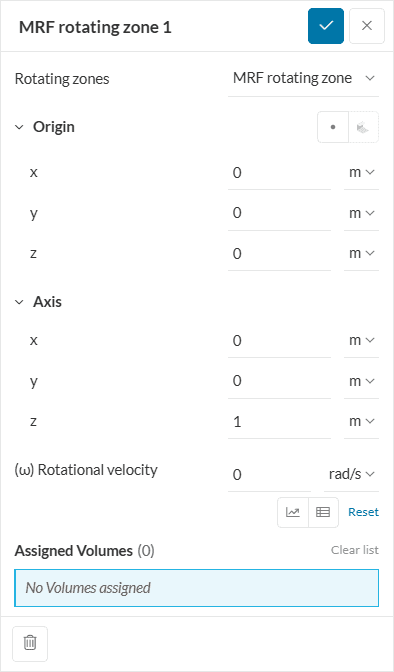

    Figure 3: Configuration parameters for an MRF rotating zone
    • Under Origin, the user should define the center point coordinates for the rotating zone;
    • The Axis entry defines around which axis the rotating zone will be spinning. The direction of rotation is given by the right-hand rule;
    • The final input is the Rotational velocity, given in \(rad/s\) or \(º/s\). Note that the rotational velocity can be parametrized in SimScale, as this article shows;
    • Lastly, assign the rotating zone to its corresponding volume.

    Did you know?

    In the right-hand rule, the rotation axis is represented by the right-hand thumb. The motion of the other four fingers indicates the direction of the rotation.

    right-hand rule rotating zones

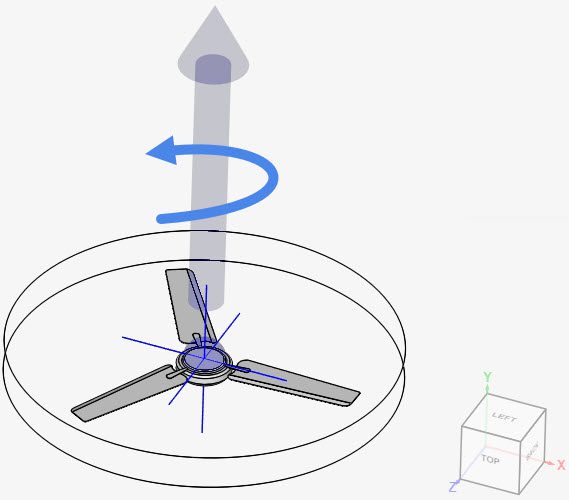

    Figure 4: Applying the right-hand rule to determine the direction of rotation

    In the figure above, the rotation axis was defined in the positive y-direction. The blue arrow indicates the resulting direction of the fan rotation.

    (AMI) Rotating Zones

    AMI rotating zone simulations are fully transient and, therefore, are computationally much more expensive than MRF. They take all transient effects into account and are usually sensitive to the time step length.

    In the AMI approach, a mesh interface is created between the moving and stationary parts of the mesh. At each time step, the rotating zone is physically rotated, and quantities are interpolated at this interface to allow realistic movement of the rotating parts.


    In cases where large-scale transient phenomena are not observed within the rotating zone, it’s still possible to use the MRF approach, even for transient simulations.

    Setup of an AMI Rotating Zone

    Figure 5 shows the setup window for an AMI rotating zone:

    ami rotating zone setup

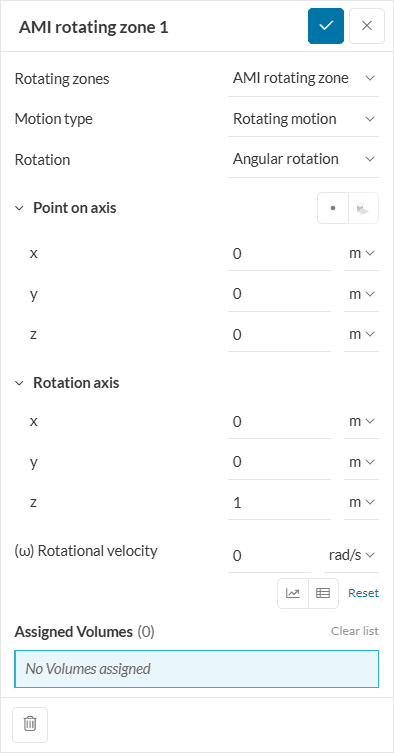

    Figure 5: Configuration parameters for an AMI rotating zone
    • Motion type can be specified as Oscillating or full Rotating motion. An oscillating motion also requires the definition of its Amplitude;
    • The Rotation can be defined as an Angular rotation or vector rotation;
    • A Point on the rotation axis should be provided for the rotating zone;
    • The Rotation axis needs to be defined. The right-hand rule also applies in this case;
    • Lastly, the Rotational velocity should be set, and a rotating volume should be assigned. Again, the rotational velocity supports a parametric definition.

    Mesh Preparation

    In the mesh set up, the rotating zone volume needs to be defined as a Cell zone. The workflows to define cell zones are different, depending on the meshing algorithm. Find below the steps for each of the cases.

    Standard Mesher

    When using the standard mesher with physics-based meshing enabled, the algorithm automatically creates cell zones for the regions selected for any of the entries in Advanced concepts.

    cell zone standard mesher

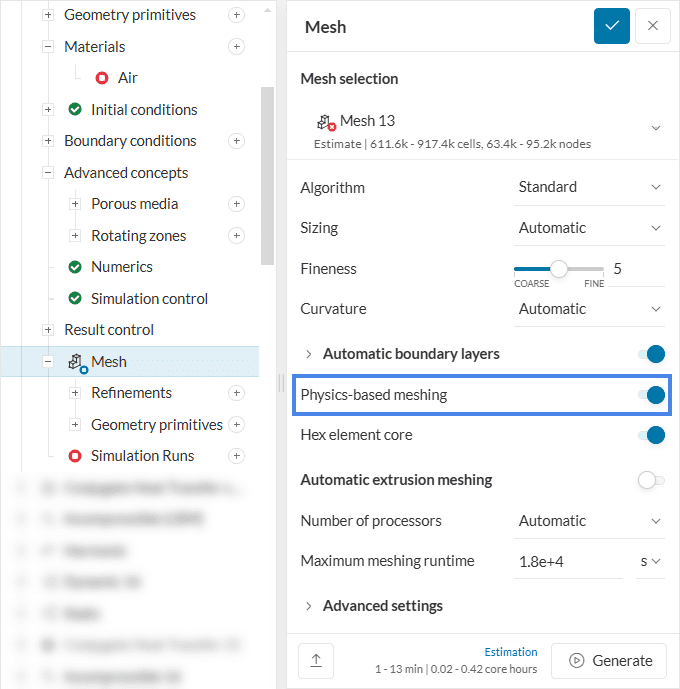

    Figure 6: When physics-based meshing is enabled, cell zones are created automatically

    When Physics-based meshing is disabled, the user needs to manually define the cell zones, as in Figure 7:

    cell zone standard mesher physics based mesher disabled

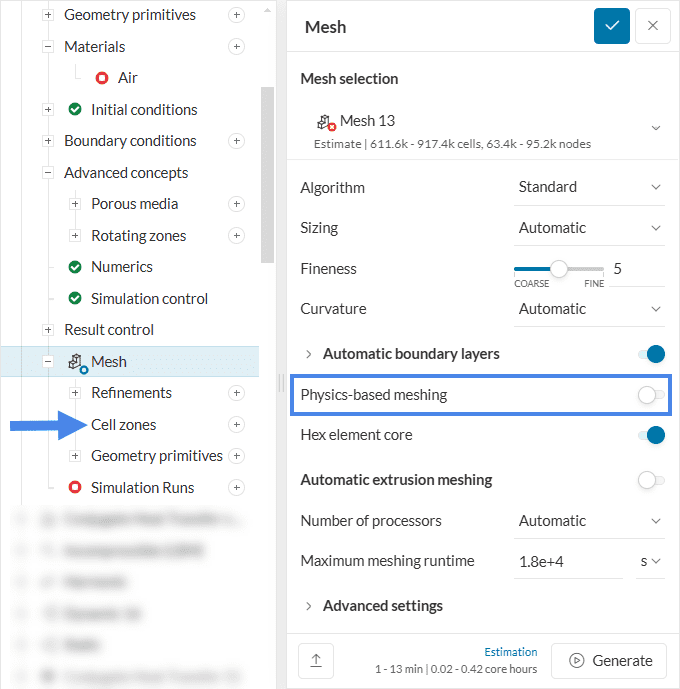

    Figure 7: Definition of cell zones when physics-based meshing is disabled

    Hex-Dominant Meshes

    For hex-dominant meshes, the creation of a cell zone is done by adding surface refinements. When adding additional refinements in a hex mesher choose the surface refinement option.

    In the settings panel, make sure Cell zone is set to ‘With cell zone’ and give a name accordingly to distinguish between multiple cell zones.

    surface refinement hex mesh

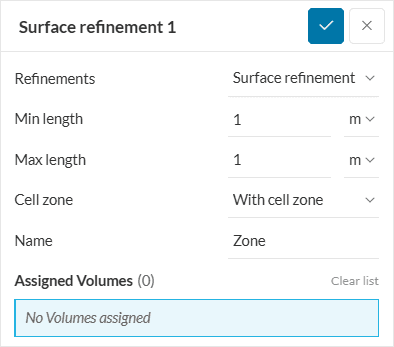

    Figure 8: Settings panel for surface refinements for hex-dominant meshes. For rotating zones a cell zone is mandatory.

    For a cell zone to be created, a closed volume (or all faces of the closed volume) needs to be assigned to the surface refinement. If successful, all cells enclosed by the assigned volume will be grouped together.

    Learn more about surface refinements in our hex-dominant mesh document:


    For a practical guide on how to set up and use rotating zones, take a look at the following tutorials:
