How to Model Wall Roughness in CFD?

Question

In CFD simulations, can users model wall roughness? If so, how is it done?

Solution

The surfaces of all materials used in engineering applications are rough. Levels of roughness can vary based on material, mechanical finishing and polishing, amongst others.

wall roughness in cfd applications

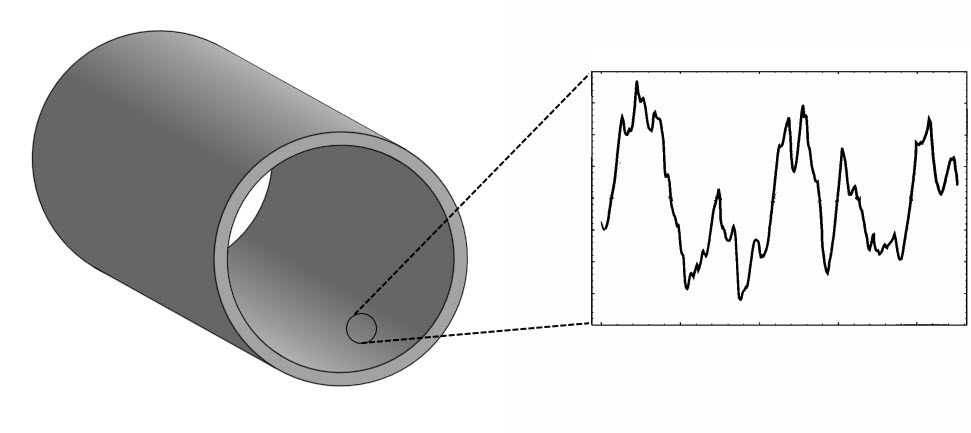

Figure 1: Representation of roughness on a pipe wall. Source: adapted from Ladouceur and Poladian.

By default, SimScale considers walls to be smooth. In applications where the wall roughness is considered important, it can be accounted for via custom boundary conditions.

modeling wall roughness in cfd simulations using custom boundary conditions

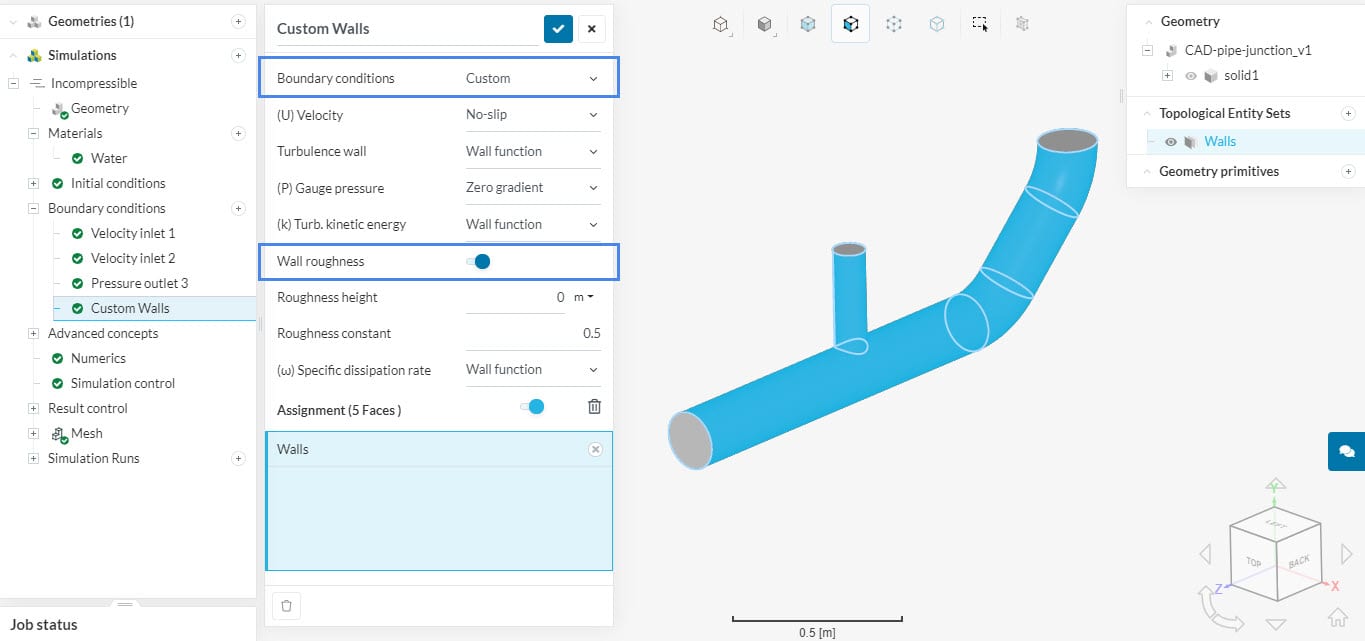

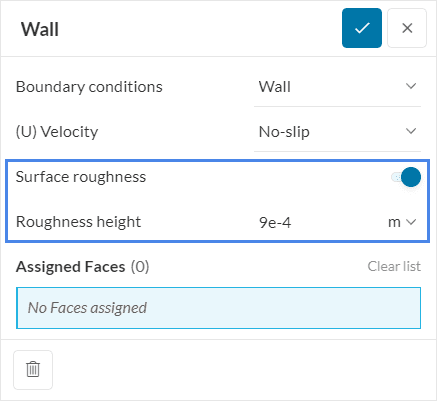

Figure 2: Custom boundary condition used to model wall roughness on pipe walls.

After enabling wall roughness, the user has to input two parameters: roughness height and roughness constant.

Roughness height (Ks)

This parameter is a representative distance to the wall. Therefore, a value of 0 results in smooth surfaces. A sand-grain type of roughness is assumed.

cfd modeling using walls with roughness height

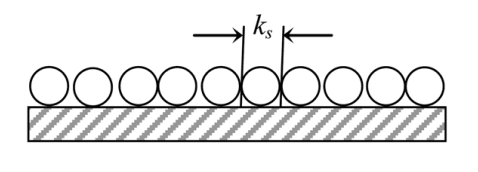

Figure 3: Sand-grain height for a uniform sand-grain roughness. Source: Hetsroni, et. al.

As shown above, when the sand-grain roughness is uniform, Ks is easy to obtain. For irregular grain sizes, the user can specify Ks based on average values.

In some cases, the wall roughness will be very irregular and won’t be similar to a sand-grain type. In this situation, users should estimate the equivalent sand-grain roughness.

Some authors explore correlations between measured surface roughness and equivalent sand grain roughness (Adams and Watson, 2012). It’s also possible to find estimates based on the material of the wall.

Roughness constant

Roughness constant is a parameter that measures how uniform the roughness is. Inputs may range from 0.5 to 1:

  • 0.5 indicates a uniform wall roughness;
  • 1 means that the roughness is strongly non-uniform, both in terms of spacing and height.

Note

When wall roughness is enabled, it causes changes in the near-wall velocity profiles. SimScale accounts for these changes by modifying the wall functions used in the simulation.

For this reason, wall roughness is only available for k-omega, k-epsilon and k-omega SST turbulence models. Furthermore, it’s not supported for the full resolution wall treatment.
