2D empty
In 2D cases, this boundary condition should be assigned to boundaries which are normal to the reduced coordinate. It applies an empty condition on such boundaries to indicate a twodimensional problem.
Cyclic
This boundary condition provides cyclic conditions between two boundaries. For example, it could be used in systems with transitional periodicity.
Fixed gradient
This boundary condition applies a prescribed gradient value at the boundary. Depending on the variable, it requires a scalar or vector value to be provided as input. The value at the boundary is then calculated using the fixed gradient and internal field values.
Fixed value boundary condition type
The fixed value boundary condition type prescribes the value of a field on a certain boundary of the domain. This value could be constant or dependent on time and/or space coordinates. Typical use cases are:

 Inlets and walls (of pipes etc.)

The flow velocity is normally set to a known value. At walls, the velocity is usually set to 0. Also, turbulent quantities such as turbulent kinetic energy and dissipation rate can be set to fixed values which have to be estimated first.

 Outlets (of pipes etc.)

The pressure is often set to a known value on outlets. In incompressible simulations, it is common to use a value of 0 for the Gauge pressure.

 Thermal walls and insulation

Temperature or heat transfer rate are often set to known values.
Fixed value boundary condition for OPENFOAM®
An example of a fixed value boundary condition for OPENFOAM® simulations where the flow velocity is set to zero.
The depicted boundary condition is a typical example for a wall which the fluid adheres to due to viscous effects. When converted to an OPENFOAM® input file, the relevant snippet will look similar to the following:
wall
{
type fixedValue;
value uniform (0 0 0);
}
Mathematically, the boundary condition can be formulated as
$${\overrightarrow{U}}_{\mathrm{\Gamma}}=0$$
where Γ represents the boundary. Additionally, the fixed value boundary condition allows to define the known value in form of a function:
The x value of the vector quantity is defined as a function of space coordinate X.
Alternatively, it is possible to set boundary values by uploading a CSV file. For this purpose, the user should choose File Upload as the Input Type. Correct dependencies should be chosen. In this case, the uploaded file contains values that are dependent on X, Y, and Z.
A secondary menu will appear to facilitate the uploading process:
It is very important to choose the correct set of variables. In OPENFOAM® cases, three type of dependencies are included:
 time only,
 X, Y, and Z,
 all four (time, X, Y, and Z)
The Column index of the value identifies the column number of value in the CSV file. For vector quantities, it is assumed that this value points to the first column (the rest of the columns are placed exactly after this column).

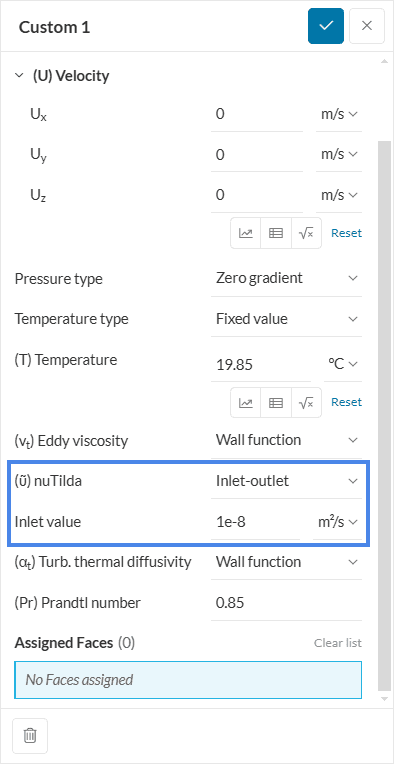

Inletoutlet
Inletoutlet is a generic outflow condition based on the flux: if flux points out of domain, Inletoutlet applies a zero gradient condition at the boundary. Otherwise, i.e. flux into of domain, it applies the value prescribed as user input. Depending on the variable, this value could be scalar or vector.
Outletinlet
Outletinlet is a generic inflow condition based on the flux: if flux points out of domain, it applies the value prescribed as user input at the boundary. Otherwise, i.e. flux into of domain, it applies a zero gradient condition. Depending on the variable, this value could be scalar or vector.
Set gradient to zero
This boundary condition applies a zero gradient condition at the boundary using the internal cells. It is a special case of the fixed gradient boundary condition.
Typical use cases include, velocity outlets (and other transport quantities, such as turbulent kinetic energy and dissipation rate), walls (pressure gradient is often set to 0), and adiabatic walls (zero gradient for temperature).
Symmetry
This boundary condition is used to specify domain symmetry. It is used to reduce computational effort by replacing symmetric redundancies in the interior.
Symmetry plane
This boundary condition is a special case of Symmetry boundary condition in that it is could be assigned to planes only.

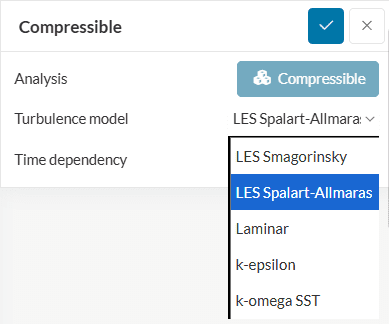

Wall function
This boundary condition provides wall condition for turbulent variables. It captures viscous effects near walls without using an overly fine mesh.
Furthermore, it is possible to activate wall roughness when setting wall function boundary condition for turbulent kinetic energy.
Wedge
This boundary condition operates in the same way as the Cyclic boundary condition. The difference is that is is applied to twodimensional geometries.
