    Why Do We Need to Inflate Boundary Layers on Walls?

    Walls have sub-layers that have a big influence on flow. In order to have an adequate numerical resolution of the solution, a very fine mesh is needed.

    Adding a very fine mesh will increase the total mesh count. Thus, making the simulation computationally expensive. Therefore, we need to inflate boundary layers for the efficient capturing of gradients on walls.

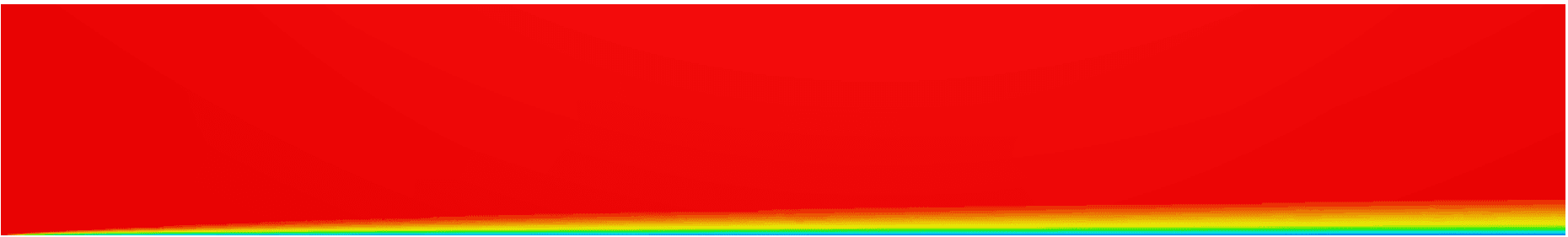

    The model below shows Flow on a flat surface.

    flow on a flat surface

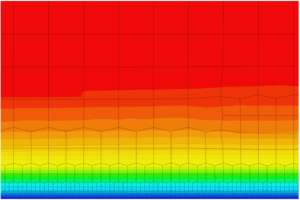

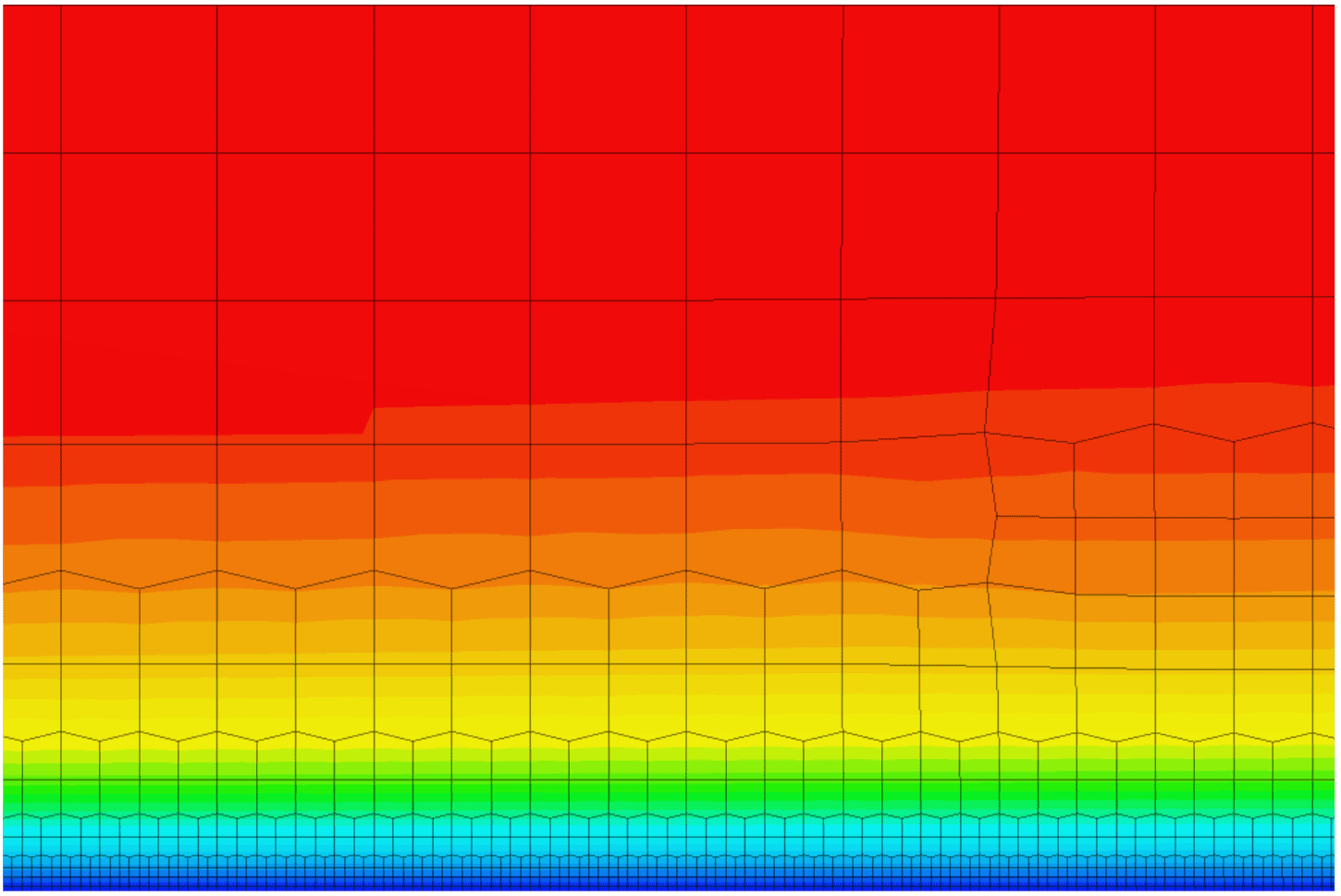

    The model below shows how smaller elements capture boundary layers, which in turn can result in a higher mesh count.

    no inflate boundary layer

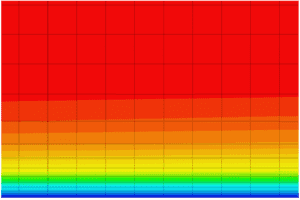

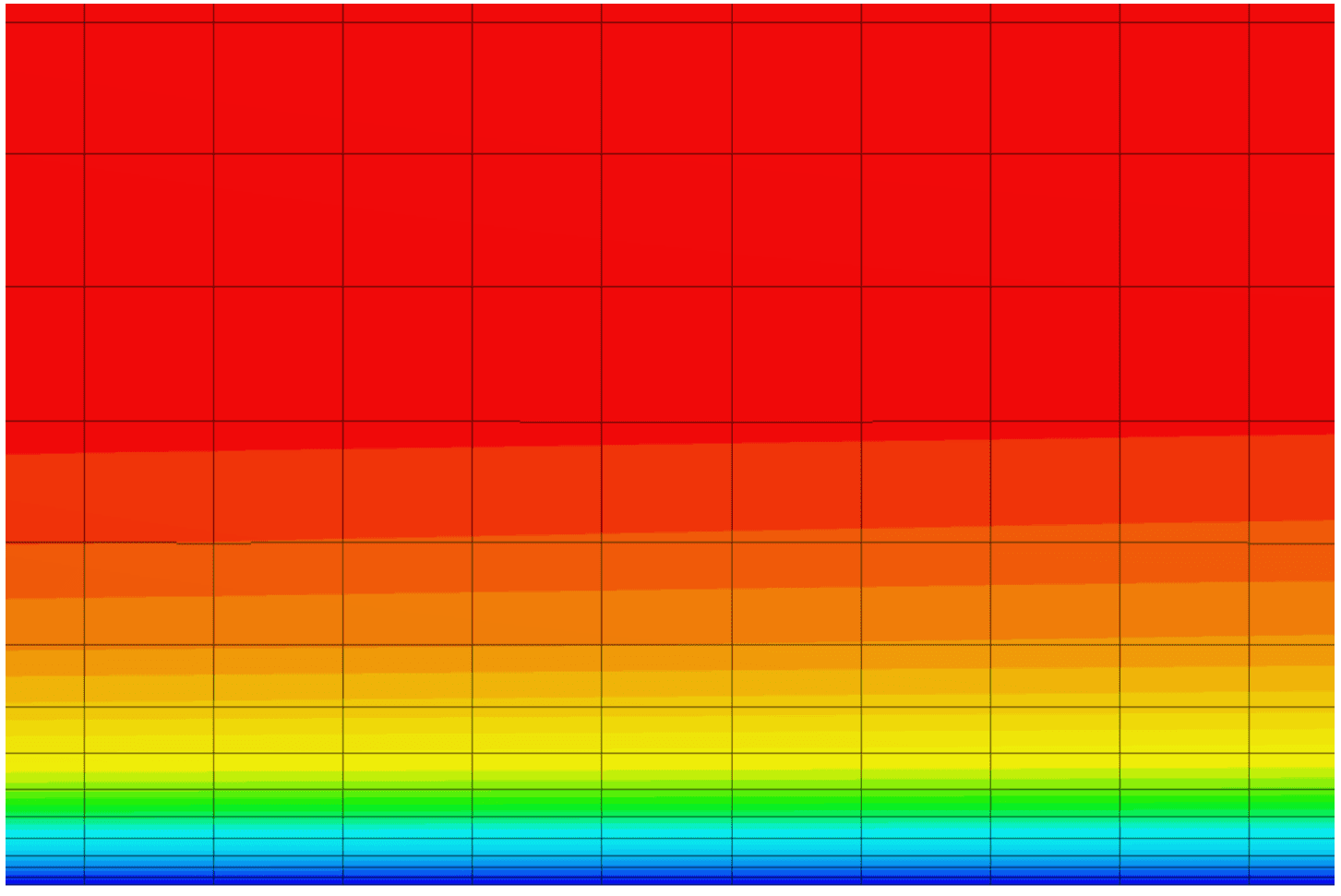

    Using “inflate boundary layers” feature can capture the boundary layer as shown below.

    inflate boundary layer

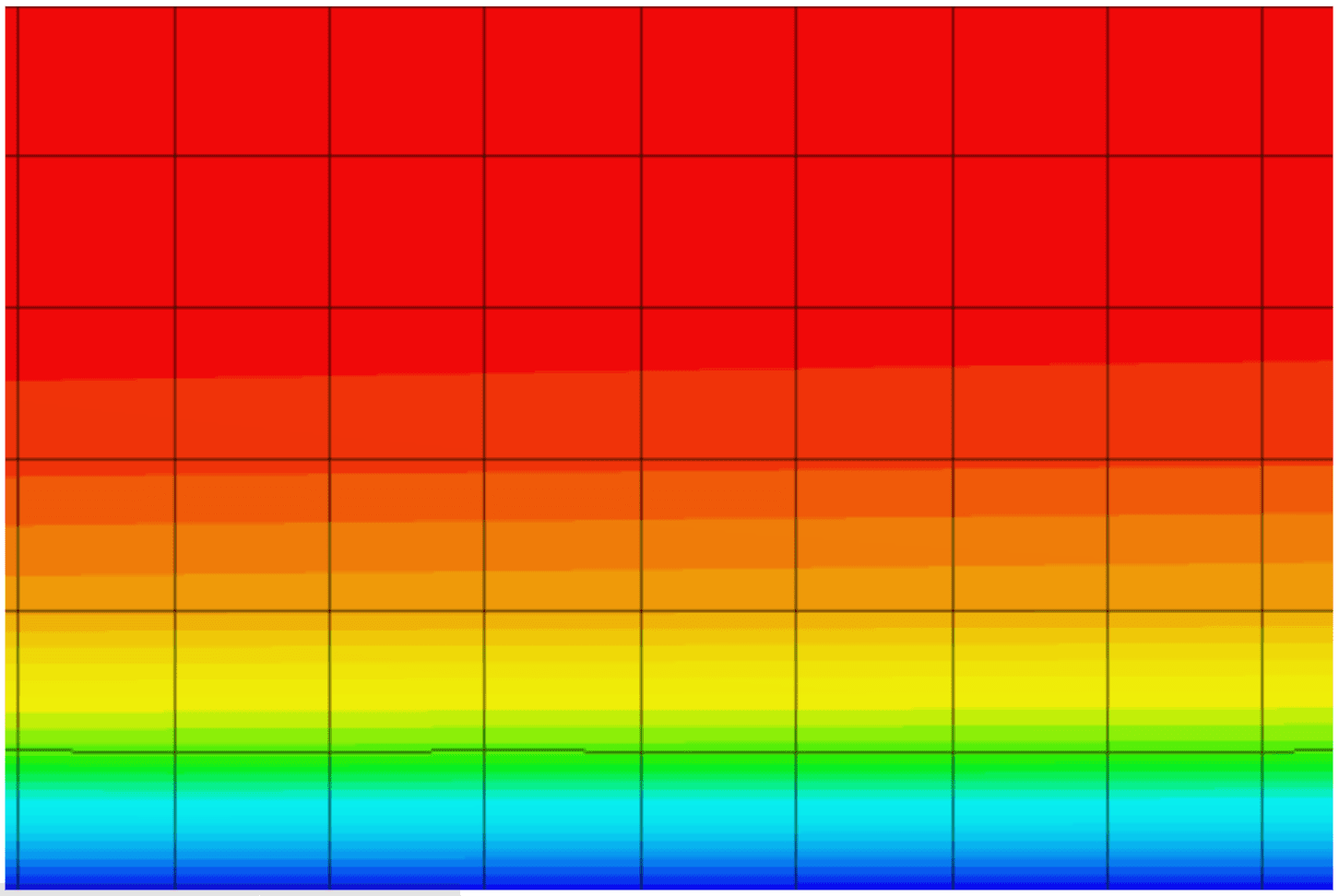

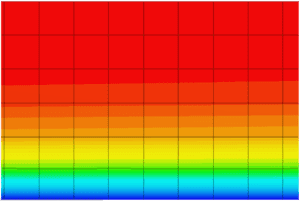

    And here, We see that without any wall refinements, boundary layers become thicker, which may result in inaccurate results.

    no wall refinenment
