Induction Heating: Basics, Advantages, & Applications

What is Induction Heating?

Induction heating is a highly efficient thermal process that uses electromagnetic fields to generate heat within conductive materials, such as metals, without direct contact. Operating on the principle of electromagnetic induction, it creates heat by inducing eddy currents within the material itself, making it a preferred choice for applications demanding precision and speed.

Unlike conventional heating methods, induction heating offers unique advantages such as precise temperature control, rapid heating, and minimal energy loss [1]. It is widely adopted across industries, including manufacturing, medical, and food processing, for its clean and repeatable heating performance. However, designing effective systems can be challenging, particularly when optimizing coil configurations and ensuring uniform heating. This is where SimScale’s cloud-native simulation platform comes into play, empowering engineers to analyze and optimize induction heating designs with high accuracy and scalability.

Advantages of Induction Heating

Induction heating stands out as a modern, efficient, and versatile heating technology. Its advantages over traditional methods like resistance heating, flames, or ovens include:

1. Energy Efficiency and Cost Savings

Induction heating minimizes energy wastage by directing heat only to the required areas of the material. This precise targeting reduces overall energy consumption and operational costs, offering a high return on investment for industrial applications.

2. Automation and Production Line Integration

Induction heating systems are well-suited for automation, enabling seamless integration into production lines. This adaptability allows for processes like hardening and brazing to occur directly alongside other operations, eliminating delays caused by material transport. As a result, manufacturing efficiency and throughput significantly improve.

3. Clean and Safe Operation

Induction heating systems operate without harmful emissions or excessive heat dissipation into the surrounding environment. Unlike traditional furnaces or flame-based methods, induction heating creates a clean and safe workplace, free of smoke, dirt, or other pollutants. These characteristics make it ideal for industries prioritizing sustainability and employee safety.

4. Precision and Repeatability

Once an induction heating system is properly configured, it delivers consistent and repeatable results, heating identical parts uniformly across production cycles. This precision ensures high-quality output, which is critical for applications in aerospace, automotive, and medical device manufacturing.

5. Fast and Localized Heating

Induction heating generates heat directly within the material, allowing for rapid temperature increases and localized heating. This capability ensures minimal impact on surrounding areas and makes it possible to perform intricate tasks, such as welding or bonding, with unparalleled accuracy.

How Does Induction Heating Work?

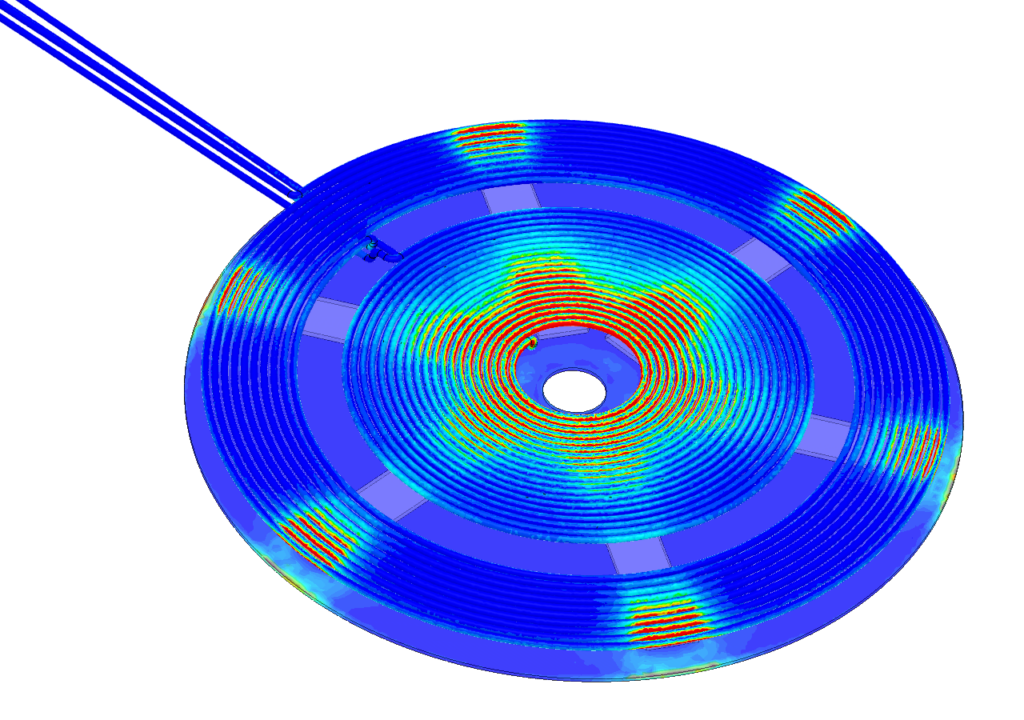

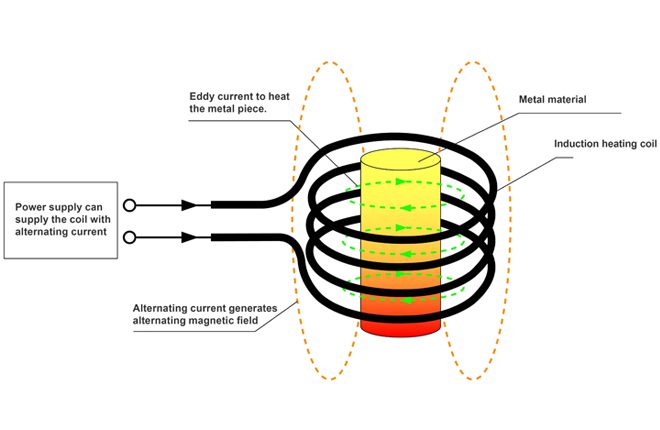

At its core, induction heating leverages electromagnetic induction to generate heat within a conductive material. The process involves creating a high-frequency alternating magnetic field, which interacts with the material to produce heat through two primary phenomena: eddy currents and, in magnetic materials, hysteresis losses.

1. The Mechanisms Behind Induction Heating

• Eddy Currents: When a conductive material is placed in an alternating magnetic field, electrical currents are induced within the material. These eddy currents flow in loops, encountering resistance as they pass through the material. The heat generated is governed by Joule’s law:
  $$ Q = I^2 Rt $$
  Where \(Q\) is the heat produced, \(I\) is the current, \(R\) is the material’s resistance, and \(t\) is the duration of exposure.
• Magnetic Hysteresis: For magnetic materials, heat is also generated due to the realignment of magnetic domains within the material as they respond to the alternating magnetic field. This frictional energy release contributes to the overall temperature increase.

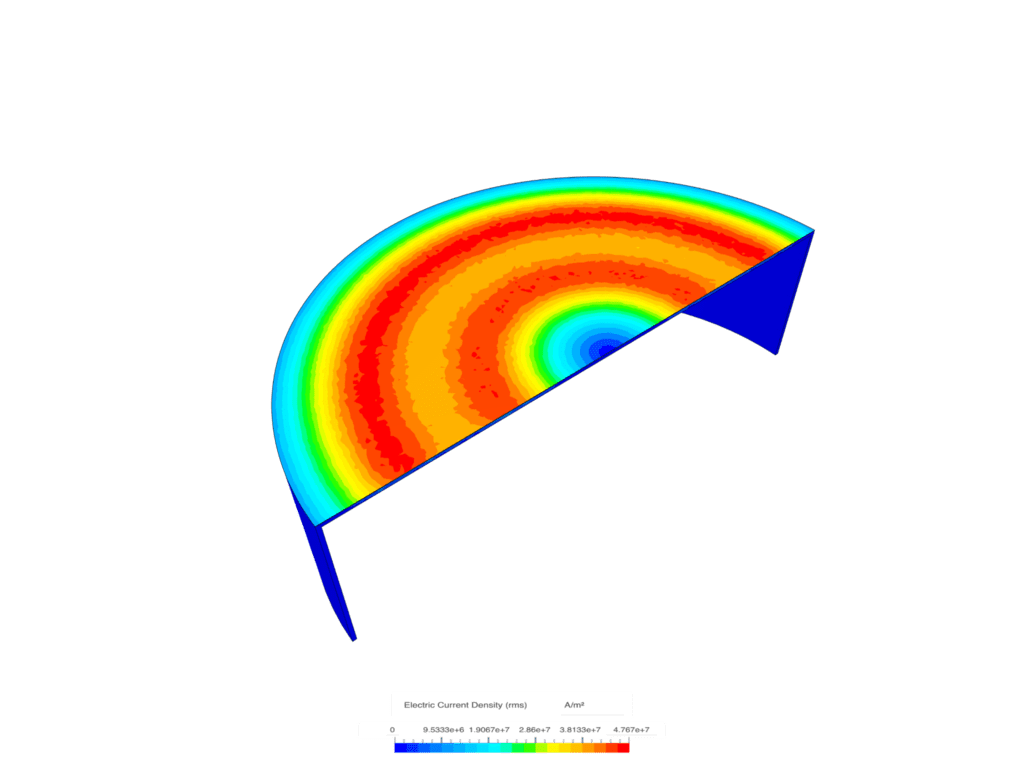

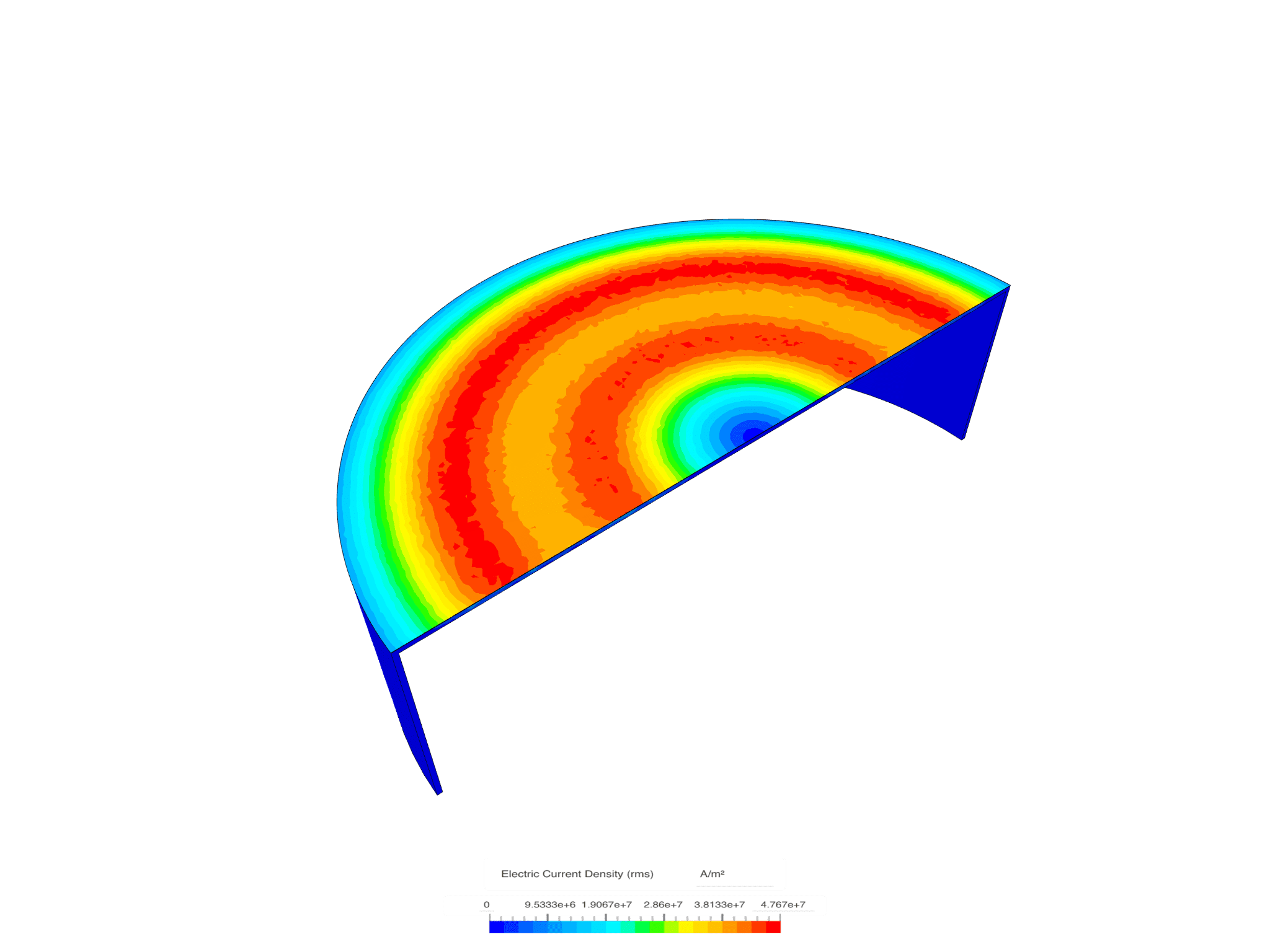

2. The Skin Effect

A unique characteristic of induction heating is the skin effect, where the alternating magnetic field concentrates eddy currents near the material’s surface. This phenomenon enables localized heating with minimal energy wastage. The depth of heat penetration depends on the frequency of the alternating current:

• High frequencies result in shallow heating, ideal for surface treatments.
• Low frequencies allow for deeper heating, suitable for bulk processing.

3. Tailoring the Electromagnetic Induction Process

Induction heating is a highly adaptable process with parameters that can be fine-tuned to meet specific application needs:

• Frequency Control: Adjusting the alternating current frequency allows for precise heat penetration.
• Coil Design: Customizing the coil’s geometry and placement affects the strength and uniformity of the magnetic field.
• Material Selection: The electrical and magnetic properties of the material determine how heat is generated and distributed.

This precise control makes induction heating a preferred choice for tasks demanding accuracy, efficiency, and repeatability.

Application of Induction Heating

Induction heating provides a contactless, rapid, and efficient heating method for conductive materials, making it an increasingly preferred heating method in various applications, including industrial, domestic, and medical applications. Its superiority in efficiency and performance over classical heating techniques, such as flame heating, resistance heating, or traditional ovens and furnaces, has led to its widespread adoption. The progression and expansion of induction heating applications have been significantly influenced by advancements in power electronics, modulation and control algorithms, and magnetic component design [2].

Industrial Applications

In the industrial sector, induction heating has been used since the early 1900s, initially for metal melting. Its applications have since expanded to include:

• Melting and Forging: Efficiently heats metals to their melting or forging temperatures, ensuring uniformity and reducing energy consumption.
• Brazing and Welding: Joins metal components with minimal heat-affected zones, preserving material integrity.
• Surface Hardening: Localized heating of specific areas enhances wear resistance, particularly in automotive and aerospace components.
• Shrink Fitting: Uses targeted heat to expand components temporarily for assembly, ensuring a perfect fit upon cooling.

Domestic and Food Industry Applications

In domestic uses, induction heating shines in cooking appliances [3], such as induction stoves, which offer improved heating times, precise temperature control, and lower surface temperatures. This results in enhanced safety and cleanliness, preventing food from burning.

The food industry also benefits from induction heating through:

• Packaging Processes: Induction sealing ensures airtight closures for food and pharmaceutical containers.
• Energy-Efficient Cooking: Induction cooktops are favored for their ability to cook food quickly while minimizing energy waste.

Medical Applications

The medical field has embraced induction heating for its clean and efficient nature. Initial applications focused on manufacturing and sterilizing surgical instruments. Recent advancements have enabled:

• Targeted Hyperthermia Treatments: Induction heating provides precise, localized heating for minimally invasive therapies [4], reducing damage to surrounding tissues.

Advancements Driving New Applications

Modern developments in power electronics, control algorithms, and magnetic component design have further expanded the scope of induction heating. Industries are exploring its potential for additive manufacturing, renewable energy technologies, and advanced material processing.

Challenges and Solutions in Induction Heating Systems

Induction heating systems offer numerous benefits, but they also present unique challenges that require innovative solutions. Achieving uniform temperature distribution, especially in complex geometries or materials with varying conductive properties, is one of the primary hurdles faced by engineers.

1. Challenges in Induction Heating

• Complex Geometries: Irregular shapes or intricate components can result in uneven heating, potentially compromising the quality of the final product.
• Material Variability: Differences in magnetic permeability and electrical conductivity among materials can affect the efficiency of heat generation, leading to hot spots or under-heated areas.
• Precision Requirements: Many applications demand strict temperature control to maintain material integrity, especially in industries like aerospace and medical manufacturing.

2. Simulation as a Solution

Engineering simulations provide a powerful approach to overcoming these challenges. By leveraging advanced tools like SimScale’s cloud-native simulation platform, engineers can design, analyze, and optimize induction heating systems with unparalleled accuracy.

Key benefits of simulation include:

• Electromagnetic Field Analysis: Simulations allow for a detailed understanding of how electromagnetic fields interact with the workpiece, enabling adjustments to coil design and power settings for uniform heating.
• Material and Geometry Insights: Simulations make it possible to explore how different materials and shapes respond to induction heating, identifying and mitigating inefficiencies early in the design phase.
• Optimized Coil Design: By testing various configurations virtually, engineers can refine coil geometry to achieve the desired heating pattern, even for complex geometries.

3. Enhanced Efficiency Through Cloud-Based Tools

SimScale’s platform offers several advantages:

• Accessibility: Complex analyses can be performed directly in a web browser, eliminating the need for expensive hardware.
• Collaboration: As a cloud-native tool, SimScale enables real-time sharing of simulation results, fostering cross-disciplinary teamwork.
• Multi-Physics Analysis: SimScale combines electromagnetic, thermal, and thermomechanical simulations in a single environment, allowing engineers to optimize designs holistically.

By integrating precise simulation techniques into the design process, engineers can overcome the inherent challenges of induction heating systems. These tools not only improve efficiency and uniformity but also accelerate time-to-market by reducing reliance on costly physical prototypes.

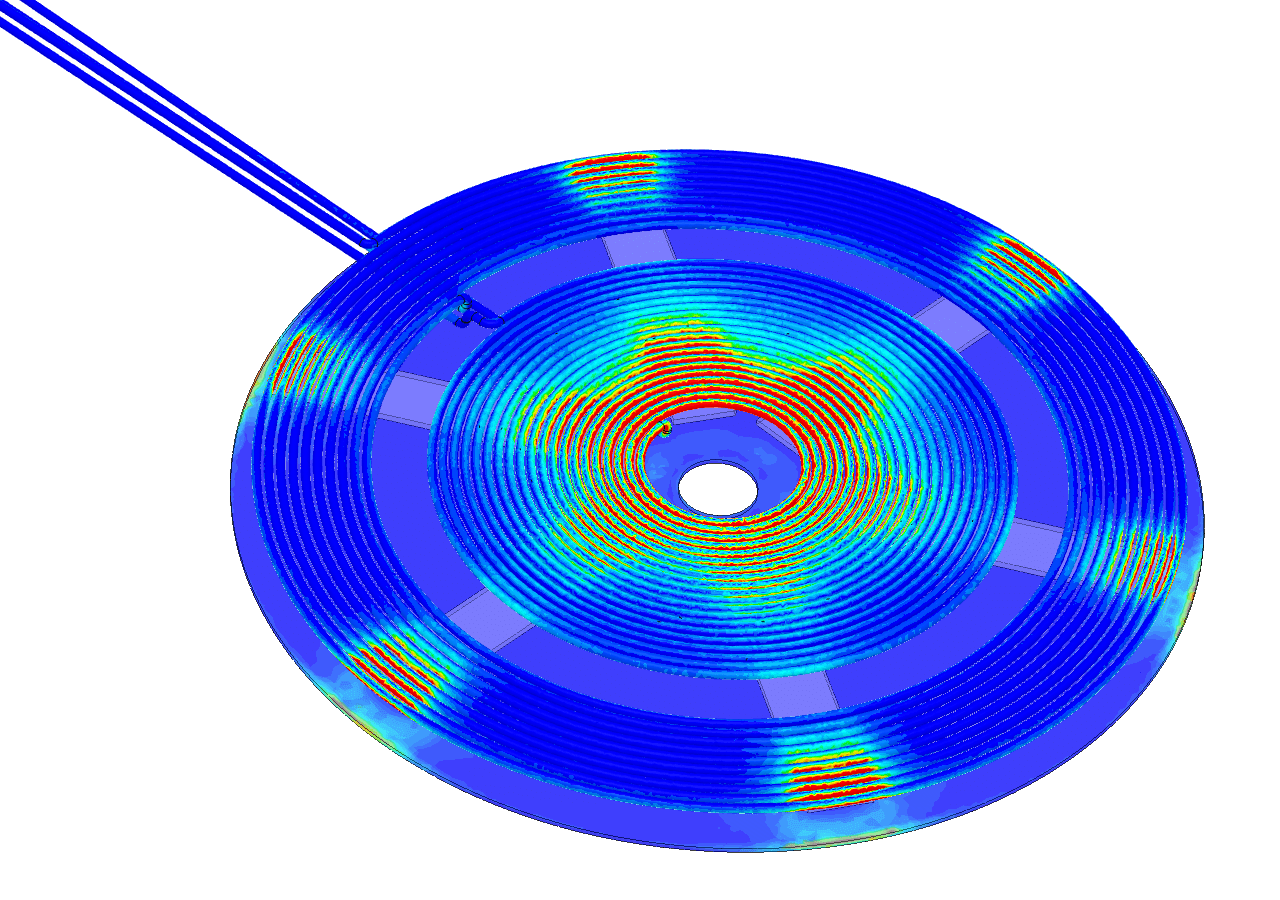

Induction Heating Simulation with SimScale

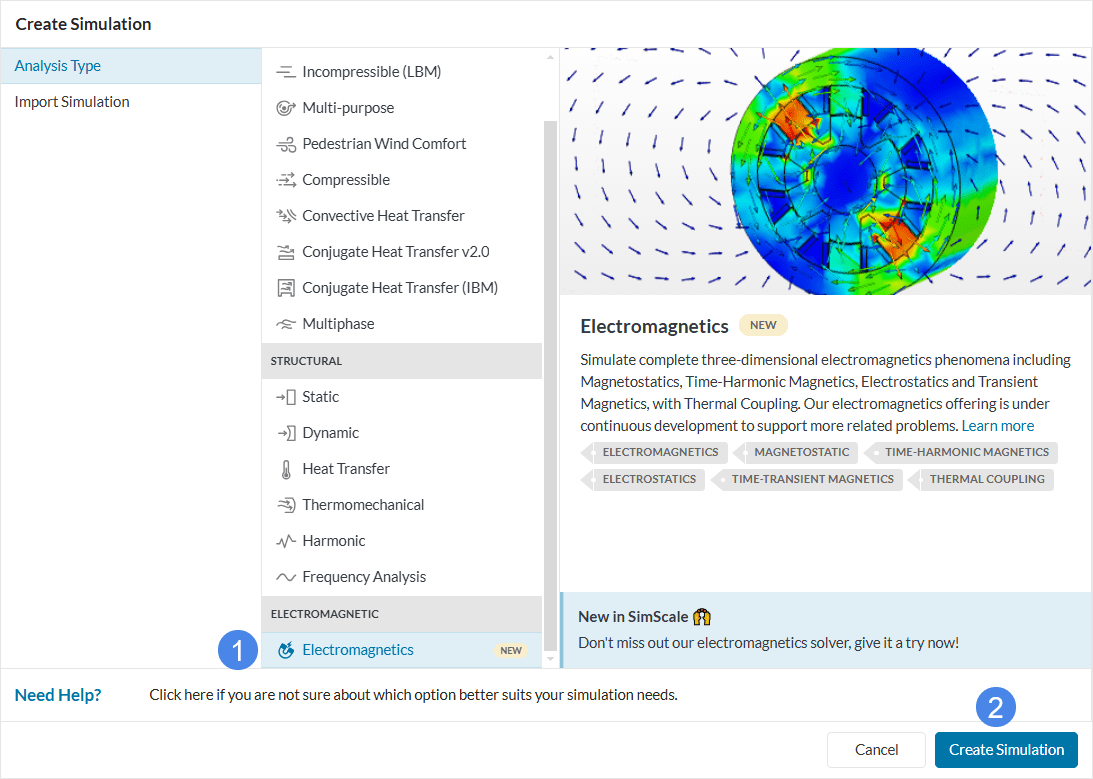

SimScale provides engineers with a cutting-edge, cloud-native simulation platform to revolutionize induction heating system design. At the core of its offering is the Time-Harmonic Magnetics Solver, which enables precise analysis of electromagnetic interactions between fields and induction coils. This solver helps engineers fine-tune coil configurations and system parameters to achieve optimized heating patterns tailored to the specific needs of diverse applications.

By incorporating multi-physics capabilities, SimScale goes beyond conventional electromagnetics simulation. Its integrated approach allows users to simultaneously perform thermal analysis and thermomechanical analysis, offering a holistic view of how heat generation affects material behavior and structural integrity. This comprehensive capability ensures engineers can simulate not only the electromagnetic aspects but also the downstream thermal and mechanical impacts, enabling more informed design decisions.

SimScale’s cloud-native architecture brings significant advantages to the simulation process. The platform eliminates the need for costly hardware by allowing simulations to run directly in a web browser. Its collaborative features enhance teamwork, enabling real-time sharing and discussion of results, which is particularly beneficial for cross-disciplinary projects. With an intuitive interface and accessible tools, SimScale allows engineers to quickly set up and iterate through multiple configurations, streamlining the design process and reducing reliance on physical prototyping.

This integration of precision, efficiency, and accessibility makes SimScale an invaluable resource for advancing induction heating technologies. Whether improving energy efficiency, ensuring uniform heating for complex geometries, or designing systems for automated production lines, SimScale empowers engineers to overcome design challenges and achieve innovative solutions. Its ability to handle the intricacies of induction heating simulation positions it as a key enabler for industries seeking to harness the full potential of this technology.
