    Power Electronics Simulation: An Overview

    Power electronics play a critical role in modern technology, supporting various applications, from renewable energy systems to electric vehicles and industrial machinery. These systems are essential for efficiently converting and controlling electric power, and their design and optimization are crucial for achieving high performance and reliability. In this context, simulation emerges as a powerful tool, allowing engineers to predict system behavior, optimize designs, and identify potential issues before they become costly problems.

    SimScale offers a comprehensive suite of simulation tools designed to address the complexities of power electronics. With features like Time-Harmonic Magnetics, its cloud-native platform enables detailed analysis of electromagnetic fields and power conversion efficiency, among other aspects. This capability is instrumental in developing power electronics, allowing for enhanced system design and a deeper understanding of the intricate interactions within these systems.

    Understanding Power Electronics

    What is Power Processing?

    The processing of electrical power through the use of electronic devices is the focus of power electronics [1]. The key element of this field is the switching converter, a sophisticated component that manipulates input power into a regulated output based on specific control signals. This conversion process is crucial for achieving a variety of electrical transformations—whether it’s adjusting the magnitude of a DC voltage, converting AC to DC (and vice versa), or modifying the magnitude and frequency of an AC voltage [2]. Control systems play a vital role in ensuring the output remains consistent despite fluctuations in input voltage and load current, emphasizing the necessity of well-regulated power output for reliability and performance.

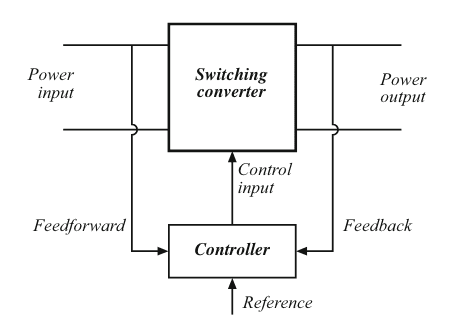

    Schematic showing a switching converter with a controller for power electronics
    Figure 1: A Switching Converter with a Controller

    Efficiency is paramount in power electronics, not merely for economic or environmental reasons but also because high efficiency is technically essential for constructing converters that generate significant output power. The efficiency of these systems is fundamentally about minimizing energy losses and is a critical consideration in the design and operation of power converters. The efficiency of a converter with output power (\(P_{out}\)) and input power (\(P_{in}\)) is defined by:

    $$ \eta = \frac{P_{out}}{P_{in}} $$

    The power loss (\(P_{loss}\)) in the converter can be related as follows:

    $$ Q = \frac{P_{out}}{P_{loss}} = \frac{\eta}{1 – \eta} $$

    In power electronics, it is also essential to take note of AC impedance, which represents a circuit’s resistance to alternating current. It influences aspects ranging from power conversion processes to the overall system stability. A fundamental comprehension of AC impedance is vital for engineers aiming to refine power electronics for peak efficiency and reliability.

    Applications of Power Electronics

    Power electronics applications span a broad spectrum of power levels, from the minuscule, such as battery-operated devices requiring less than one watt, to the massive, like rectifiers and inverters interfacing with the AC utility power system at gigawatt scales. This range encompasses everything from portable equipment and computer power supplies to motor drives and utility power systems. For example, a laptop computer’s power system might include multiple DC-DC converters to adapt battery voltage for various components, an inverter for the display’s backlight, and a charger for battery replenishment—all optimized for compactness and efficiency through high-frequency switching.

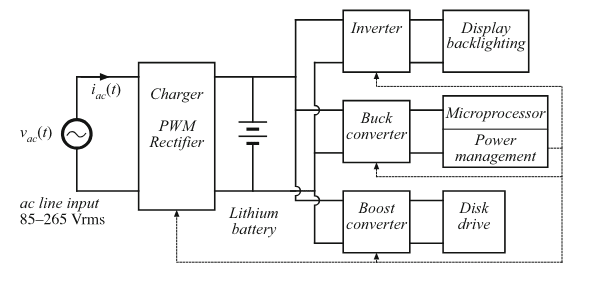

    Schematic showing the power supply system of a laptop
    Figure 2: A Laptop Computer Power Supply System

    Distributed power systems in computers, off-line power systems for office equipment, uninterruptible power supplies, and electronic ballasts for lighting are just a few examples of commercial applications. In the industrial sector, power electronics facilitate the speed control of motors in various processes, contributing significantly to the operational efficiency of compressors, fans, pumps, and more. The scope of power electronics extends into electric vehicles, renewable energy generation like wind and photovoltaic power systems, and even utility-scale applications such as high-voltage DC transmission and reactive power compensation.

    Elements of Power Electronics

    The interdisciplinary nature of power electronics, drawing from fields like analog circuits, control systems, power systems, and numerical simulation, makes it a dynamic and challenging domain. It integrates principles from electronic devices, magnetics, and electric machines, reflecting the complexity and diversity of applications that power electronics serve [3]. This comprehensive approach is essential for developing systems that can efficiently and reliably manage the conversion and control of electrical power across a vast array of applications. Simulating these intricate systems requires a deep understanding of the multiple domains that power electronics touches upon.

    Power Electronics Simulation

    Power electronics simulation aids in verifying the design’s functionality and ensuring the reliability and performance of electronic systems. Advanced simulation tools enable engineers to investigate the intricacies of power electronics designs, leading to optimized performance and innovation before physical prototypes are created. The significance of simulation in power electronics extends across various applications.

    Multi-level and Multi-physics Modelling

    One of the key aspects where simulation proves indispensable is in multi-level and multi-physics modeling. This approach combines electrical, thermal, and sometimes mechanical simulations to give a comprehensive view of a device’s operation. For power electronics, where the interplay between electrical performance and thermal behavior is critical, such detailed simulations ensure components not only meet electrical efficiency standards but also adhere to thermal and structural reliability requirements.

    Embedded Controls and Software

    Embedded controls and software form the backbone of many power electronics systems, regulating functions from power conversion to operational stability. Simulation allows engineers to test and optimize these controls across a spectrum of conditions, ensuring the system operates efficiently and reliably. This predictive modeling is crucial for refining control strategies, making it possible to adjust parameters for optimal performance before any physical system is built.

    Electromagnetic Interference (EMI) Management

    Managing EMI is a critical aspect of design and optimization, becoming more crucial as systems move toward higher switching frequencies for improved efficiency and performance. Simulations are indispensable for engineers to virtually analyze the behavior of converters and other components within these systems, offering insights into voltage and current behaviors under varied operational conditions. Simulations enable a safe and cost-effective avenue to validate design concepts, predict real-world operational responses, and address challenges such as semiconductor losses, thermal management under variable loads, surge currents, and voltages during switching.

    Component Reliability

    The durability and reliability of components under stressors such as thermal cycling, electrical surges, and mechanical strain can be assessed through simulation. This predictive analysis is essential for identifying potential failure modes and enhancing component longevity. Through detailed modeling, simulations provide insights into how components behave under extreme or prolonged operating conditions, guiding the design of more robust and reliable power electronics.

    Power Electronics Simulation Using SimScale

    SimScale’s cloud-based simulation platform provides an extensive suite of tools for analyzing power electronics systems. Equipped with advanced features like Time-Harmonic Magnetics and integrated thermal and electromagnetic simulation capabilities, SimScale enables the simulation of advanced power electronics systems.

    Harnessing Time-Harmonic Magnetics for Power Electronics

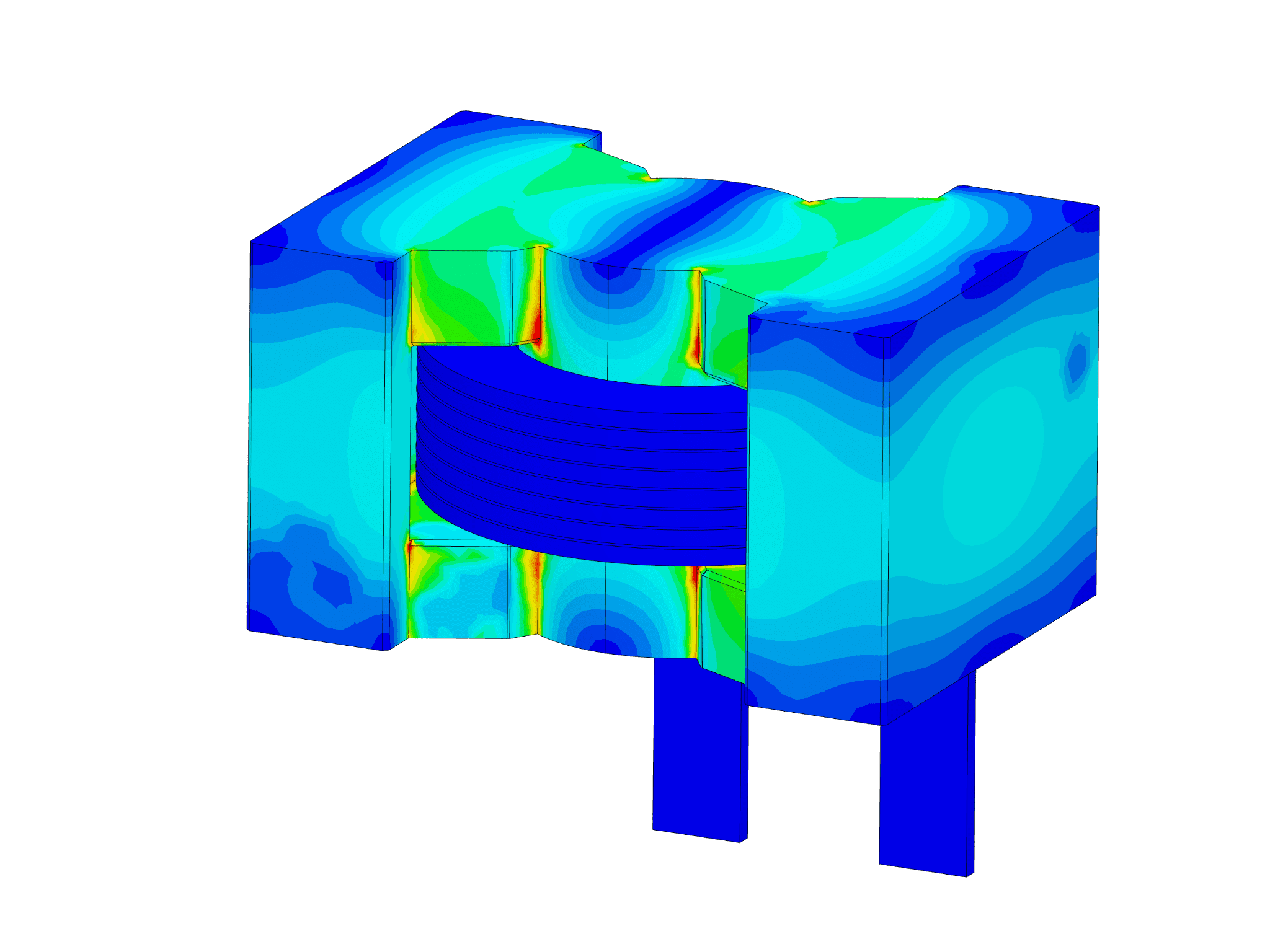

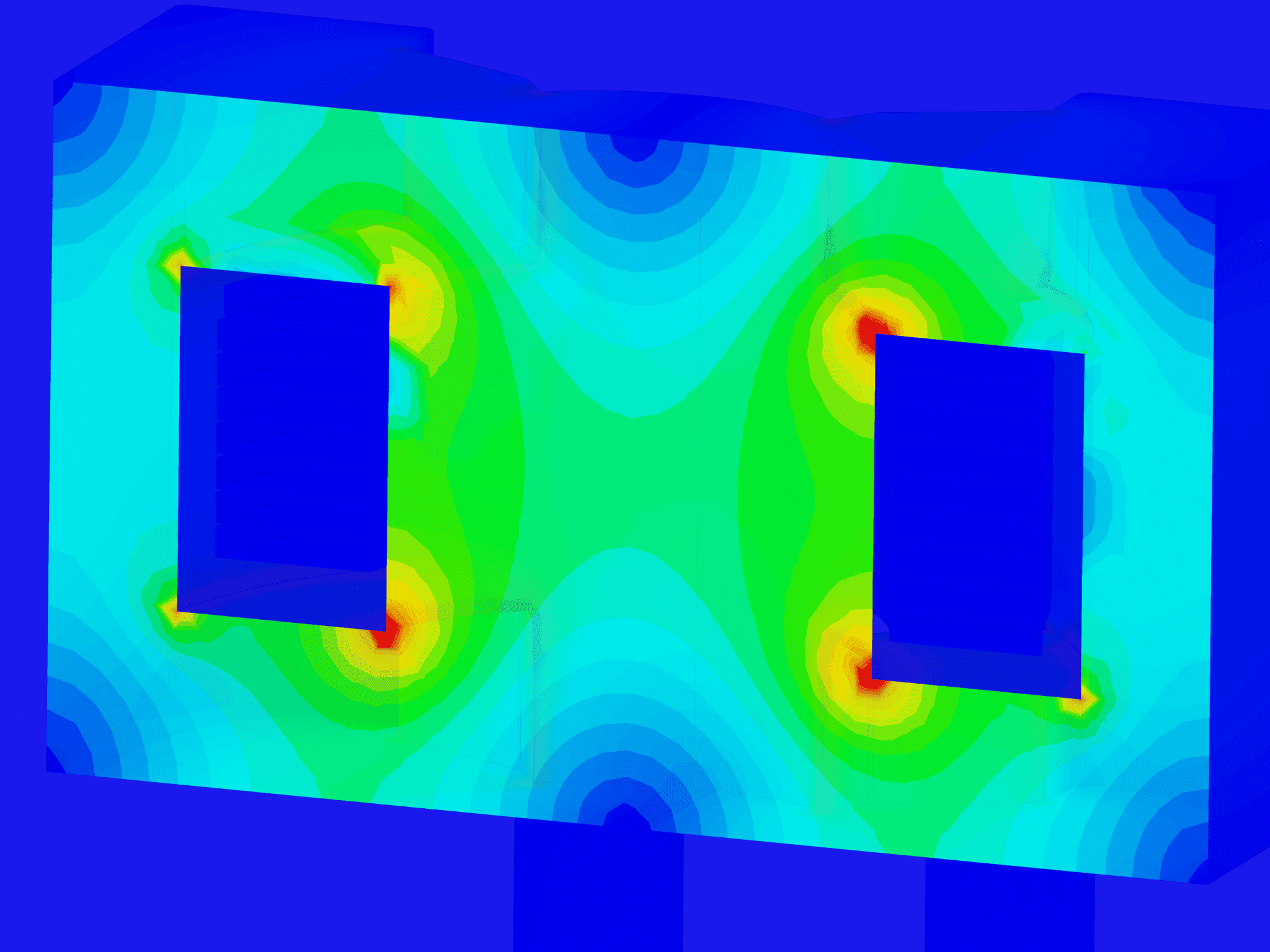

    The Time-Harmonic Magnetics feature in SimScale allows for exploring electromagnetic fields within power electronic systems. This feature employs the time-harmonic approximation of Maxwell’s equations to model the sinusoidal variations in the electromagnetic field, characteristic of power electronics systems operating at various frequencies. Thus, engineers can meticulously assess how these fields interact with different materials and geometries. This is essential for determining the optimal design of components such as inductors and transformers, which must be precisely aligned to ensure maximum efficiency and minimum energy loss.

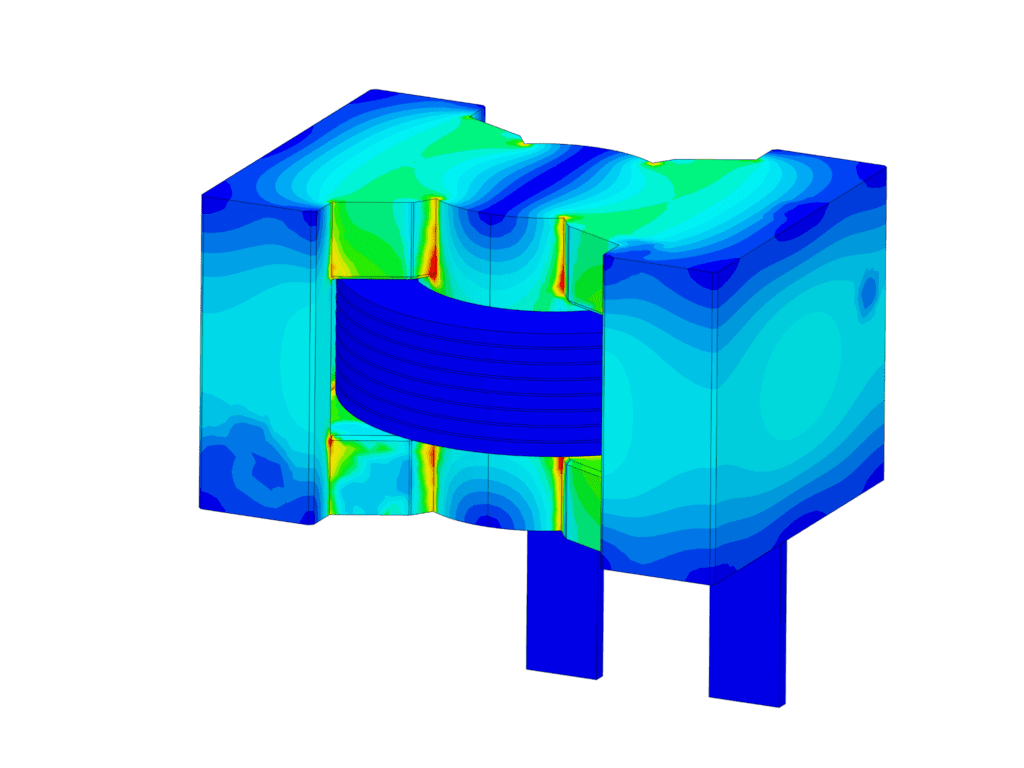

    Linear Pushing Solenoid Select Electromagnetics
    Figure 4: Electromagnetics simulation in SimScale allows for analysis of power electronics through its multiple simulation features, including time-harmonic magnetics.

    Addressing Thermal Management Challenges

    Effective thermal management is a decisive factor in the design and longevity of power electronics. With SimScale, engineers can perform detailed thermal simulations that run parallel to electromagnetic analyses. Such comprehensive simulations are crucial in devising efficient cooling strategies and preempting overheating issues, ultimately enhancing the reliability and performance of power electronics systems. A notable example of SimScale’s thermal management simulation playing a key role is in electric vehicle battery modules. These simulations help predict heat gain from current flow and test optimal cooling strategies, which are crucial for maintaining battery integrity and performance. For further details on how SimScale’s simulation platform can optimize such complex thermal scenarios in power electronics, check out our article on Joule heating simulation.

    Ensuring Structural Integrity in Power Electronics Packaging

    In power electronics, component packaging must withstand a variety of mechanical stresses induced by thermal cycles and operational vibrations. These stresses, caused by the expansion and contraction of materials and the environment’s inherent movements, can lead to premature failure of electronic components if not adequately accounted for in the design phase.

    Accurately predicting and managing these factors is crucial for ensuring power electronics systems’ long-term reliability and functionality. SimScale provides structural analysis capabilities that enable engineers to examine the mechanical integrity of power electronic packaging. By utilizing SimScale’s simulation tools, engineers can conduct thorough assessments of how components respond to thermal stresses and vibrational forces (i.e., through vibration analysis). Such simulations are instrumental in developing packaging designs that are not only resilient to mechanical challenges but also optimized for durability, safeguarding the internal electronics against the mechanical wear and tear of daily operations.

    Shaping the Future of Power Electronics with SimScale Simulation

    The progression of power electronics is vital for achieving a greener energy future, with simulation playing a central role. New semiconductor technologies and system designs call for robust EMI simulations, which SimScale provides, allowing for in-depth analysis and optimization. As power converters increase in number, ensuring grid stability becomes crucial.

    SimScale’s real-time simulation capabilities support the design and testing of advanced energy systems, from large-scale power grids to renewable integrations. Digitalization introduces Digital Twins and AI into the mix, offering predictive insights for maintenance and system efficiencies. SimScale’s simulation platform is at the forefront, helping engineers validate designs and foresee system performances in this evolving landscape. As power electronics advance, SimScale’s simulation tools are essential for engineers to create resilient and efficient systems for a sustainable energy future.

    SimScale’s cloud-native simulation platform offers a wide range of features tailored to meet the complex demands of power electronics simulation. It enables professionals to push the boundaries of what’s possible, transforming ideas into viable, efficient solutions.

    Set up your own cloud-native simulation via the web in minutes by creating an account on the SimScale platform. No installation, special hardware, or credit card is required.


    • Newell, W. E. (1973). Power electronics–emerging from limbo. In Proceedings of the IEEE Power Electronics Specialists Conference (pp. 6–12).
    • Middlebrook, R. (1981). Power electronics: An emerging discipline. In Proceedings of the IEEE International Symposium on Circuits and Systems (pp. 27–29).
    • Erickson, R. W., & Maksimovic, D. (2020). Fundamentals of Power Electronics. Springer Nature Switzerland AG.
