Outputs by Analysis Type

This document lists all the possible result outputs in terms of physical quantities/variables per analysis type after a simulation is performed in SimScale.

Analysis Types

Fluid Dynamics

Simulations carried out in the SimScale platform can be post-processed via our online integrated post-processing environment. In addition, OpenFoam and LBM Solver results can also be exported as an OpenFOAM case file that can be downloaded and stored locally, and post-processed in 3rd party applications such as the open-source ParaView post-processor.

To learn more about the result control feature for fluid flow analysis in SimScale please refer to this page.

Incompressible

Fields

Quantity	Symbol	Type	SI Unit	Availability
Pressure	\(p\)	Scalar	\(Pa\)	Default
Velocity	\(U_x\), \(U_y\), \(U_z\)	Vector	\(m/s\)	Default
Turbulent kinetic energy	\(k\)	Scalar	\(m^2/s^2\)	Default
Turbulent kinematic viscosity (nut)	\(\nu_{t}\)	Scalar	\(m^2/s\)	Default
Turbulent dissipation rate	\(\epsilon\)	Scalar	\(m^2/s^3\)	Default
Turbulent specific dissipation rate (omega)	\(\omega\)	Scalar	\(1/s\)	Default
Wall shear stress		Vector	\(N/m^2\)	Requested
Vorticity		Vector	\(1/s\)	Requested
Dimensionless wall distance	\(y+\)	Scalar		Requested
Reynolds stress tensor		Tensor	\(N/m^2\)	Requested
Total pressure	\(p_{t}\)	Scalar	\(Pa\)	Requested
Pressure Coefficient	\(C_{p}\)	Scalar		Requested
Mean age of fluid		Scalar		Requested

Data Plots

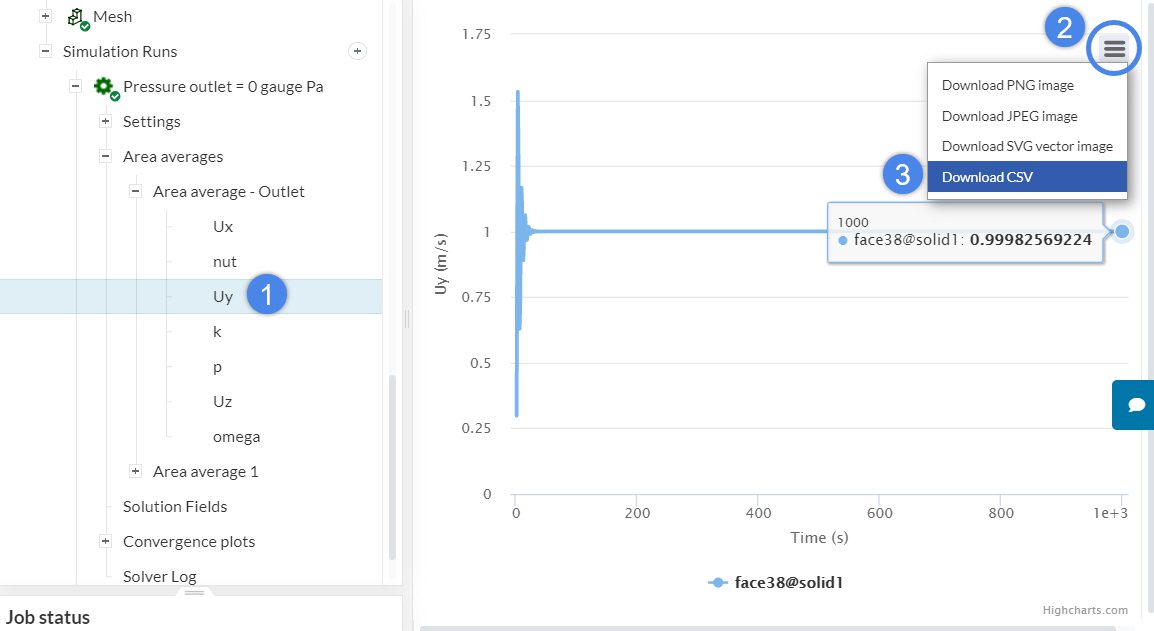

Data plots are displayed as 2D plots on the platform with the field against time in the x. The plots can be downloaded in many types of images, but importantly, they can be downloaded as CSV files for further processing.

• Area averages and Area Integrals: All default fields.
• Probe points: All default fields.
• Forces and moments: Pressure, viscous, porous, and total forces and moments on a selection of faces. Total moment can be interpreted as torque when calculated on a set of rotating faces and for any other arbitrarily selected surface it is the sum of calculated moments (pressure+viscous+porous)
• Forces and moment coefficients: Lift, drag, and moment coefficients on a selection of faces.

Compressible

Fields

Quantity	Symbol	Type	SI Unit	Availability
Pressure	\(p\)	Scalar	\(Pa\)	Default
Velocity	\(U_x\), \(U_y\), \(U_z\)	Vector	\(m/s\)	Default
Temperature	\(T\)	Scalar	\(K\)	Default
Density	\(\rho\)	Scalar	\(kg/m^3\)	Default
Turbulent kinetic energy	\(k\)	Scalar	\(m^2/s^2\)	Default
Turbulent kinematic viscosity (nut)	\(\nu_{t}\)	Scalar	\(m^2/s\)	Default
Turbulent dissipation rate	\(\epsilon\)	Scalar	\(m^2/s^3\)	Default
Turbulent specific dissipation rate (omega)	\(\omega\)	Scalar	\(1/s\)	Default
Turbulent thermal diffusivity (alphat)	\(\alpha_t\)	Scalar	\(kg/ms\)	Default
Wall shear stress		Vector	\(N/m^2\)	Requested
Dimensionless wall distance	\(y+\)	Scalar		Requested
Reynolds stress tensor		Tensor	\(N/m^2\)	Requested

Data Plots

• Area averages and Area Integrals: All default fields.
• Probe points: All default fields.
• Forces and moments: Pressure, viscous, porous, and total forces and moments on a selection of faces. Total moment can be interpreted as torque when calculated on a set of rotating faces and for any other arbitrarily selected surface it is the sum of calculated moments (pressure+viscous+porous)
• Forces and moment coefficients: Lift, drag, and moment coefficients on a selection of faces.

Convective Heat Transfer

Fields

Quantity	Symbol	Type	SI Unit	Availability
Pressure	\(p\)	Scalar	\(Pa\)	Default
Non-hydrostatic Pressure (Modified Pressure)	\(p\_rgh\)	Scalar	\(Pa\)	Default
Velocity	\(U_x\), \(U_y\), \(U_z\)	Vector	\(m/s\)	Default
Temperature	\(T\)	Scalar	\(K\)	Default
Density	\(\rho\)	Scalar	\(kg/m^3\)	Default
Turbulent kinetic energy	\(k\)	Scalar	\(m^2/s^2\)	Default
Turbulent kinematic viscosity (nut)	\(\nu_{t}\)	Scalar	\(m^2/s\)	Default
Turbulent dissipation rate	\(\epsilon\)	Scalar	\(m^2/s^3\)	Default
Turbulent specific dissipation rate (omega)	\(\omega\)	Scalar	\(1/s\)	Default
Turbulent thermal diffusivity (alphat)	\(\alpha_t\)	Scalar	\(kg/ms\)	Default
Net radiative heat flux (Radiation toggled on)		Scalar	\(W/m^2\)	Default
Mean radiant temperature (Radiation toggled on)		Scalar	\(W/m^2\)	Requested
Passive Scalar (Passive species toggled on)		Scalar		Default
Dimensionless wall distance	\(y+\)	Scalar		Requested
Predicted Mean Vote (PMV)		Scalar		Requested
Predicted Percentage of Dissatisfied (PPD)		Scalar		Requested
Mean age of fluid		Scalar		Requested
Wall shear stress		Vector	\(N/m^2\)	Requested

Data Plots

• Area averages and Area Integrals: All default fields.
• Probe points: All default fields.
• Forces and moments: Pressure, viscous, porous, and total forces and moments on a selection of faces. Total moment can be interpreted as torque when calculated on a set of rotating faces and for any other arbitrarily selected surface it is the sum of calculated moments (pressure+viscous+porous)
• Forces and moment coefficients: Lift, drag, and moment coefficients on a selection of faces.

Conjugate Heat Transfer

Fields

Quantity	Symbol	Type	SI Unit	Availability
Pressure	\(p\)	Scalar	\(Pa\)	Default
Non-hydrostatic Pressure (Modified Pressure)	\(p\_rgh\)	Scalar	\(Pa\)	Default
Velocity	\(U_x\), \(U_y\), \(U_z\)	Vector	\(m/s\)	Default
Temperature	\(T\)	Scalar	\(K\)	Default
Density	\(\rho\)	Scalar	\(kg/m^3\)	Default
Turbulent kinetic energy	\(k\)	Scalar	\(m^2/s^2\)	Default
Turbulent kinematic viscosity (nut)	\(\nu_{t}\)	Scalar	\(m^2/s\)	Default
Turbulent dissipation rate	\(\epsilon\)	Scalar	\(m^2/s^3\)	Default
Turbulent specific dissipation rate (omega)	\(\omega\)	Scalar	\(1/s\)	Default
Turbulent thermal diffusivity (alphat)	\(\alpha_t\)	Scalar	\(kg/ms\)	Default
Net radiative heat flux (Radiation toggled on)		Scalar	\(W/m^2\)	Default
Mean radiant temperature (Radiation toggled on)		Scalar	\(W/m^2\)	Requested
Operative temperature (Radiation toggled on)		Scalar	\(K\)	Requested
Dimensionless wall distance	\(y+\)	Scalar		Requested
Predicted Mean Vote (PMV)		Scalar		Requested
Predicted Percentage of Dissatisfied (PPD)		Scalar		Requested
Mean age of fluid		Scalar		Requested
Heat Transfer Coefficient (HTC)		Scalar	\(W/m^2 K\)	Requested
Nusselt number		Scalar		Requested
Electric Potential (Joule Heating toggled on)	\(V\)	Scalar	\(Volts\)	Default
Joule Heat Generation (Joule Heating toggled on)		Scalar	\(W/m^2\)	Default
Current density (Joule Heating toggled on)	\(J_x\), \(J_y\), \(J_z\)	Vector	\(A/m^2\)	Default

Data Plots

• Area averages and Area Integrals: All default fields.
• Probe points: All default fields.

Conjugate Heat Transfer (IBM)

Fields

Quantity	Symbol	Type	SI Unit	Availability
Pressure	\(p\)	Scalar	\(Pa\)	Default
Non-hydrostatic Pressure (Modified Pressure)	\(p\_rgh\)	Scalar	\(Pa\)	Default
Velocity	\(U_x\), \(U_y\), \(U_z\)	Vector	\(m/s\)	Default
Temperature	\(T\)	Scalar	\(K\)	Default
Density	\(\rho\)	Scalar	\(kg/m^3\)	Default
Turbulent kinetic energy	\(k\)	Scalar	\(m^2/s^2\)	Default
Turbulent kinematic viscosity (nut)	\(\nu_{t}\)	Scalar	\(m^2/s\)	Default
Turbulent dissipation rate	\(\epsilon\)	Scalar	\(m^2/s^3\)	Default
Turbulent specific dissipation rate (omega)	\(\omega\)	Scalar	\(1/s\)	Default
Turbulent thermal diffusivity (alphat)	\(\alpha_t\)	Scalar	\(kg/ms\)	Default
Net radiative heat flux (Radiation toggled on)		Scalar	\(W/m^2\)	Default
Mean radiant temperature (Radiation toggled on)		Scalar	\(W/m^2\)	Requested
Operative temperature (Radiation toggled on)		Scalar		Requested
Dimensionless wall distance	\(y+\)	Scalar		Requested
Predicted Mean Vote (PMV)		Scalar		Requested
Predicted Percentage of Dissatisfied (PPD)		Scalar		Requested
Mean age of fluid		Scalar		Requested
Heat Transfer Coefficient (HTC)		Scalar	\(W/m^2 K\)	Requested
Nusselt number		Scalar		Requested
Electric Potential (Joule Heating toggled on)	\(V\)	Scalar	\(Volts\)	Default
Joule Heat Generation (Joule Heating toggled on)		Scalar	\(W/m^2\)	Default
Current density (Joule Heating toggled on)	\(J_x\), \(J_y\), \(J_z\)	Vector	\(A/m^2\)	Default

Data Plots

• Area averages and Area Integrals: All default fields.
• Probe points: All default fields.

Multiphase

Fields

Quantity	Symbol	Type	SI unit	Availability
Pressure	\(p\)	Scalar	\(Pa\)	Default
Non-hydrostatic pressure (Modified Pressure)	\(p\_rgh\)	Scalar	\(Pa\)	Default
Velocity	\(U_x\), \(U_y\), \(U_z\)	Vector	\(m/s\)	Default
Turbulent kinetic energy	\(k\)	Scalar	\(m^2/s^2\)	Default
Turbulent kinematic viscosity (nut)	\(\nu_{t}\)	Scalar	\(m^2/s\)	Default
Turbulent specific dissipation rate (omega)	\(\omega\)	Scalar	\(1/s\)	Default
Density	\(\rho\)	Scalar	\(kg/m^3\)	Default
Phase fraction	\(T1\)	Scalar		Default

Data Plots

• Area averages and Area Integrals: All default fields.
• Probe points: All default fields.
• Forces and moments: Pressure, viscous, porous, and total forces and moments on a selection of faces. Total moment can be interpreted as torque when calculated on a set of rotating faces and for any other arbitrarily selected surface it is the sum of calculated moments (pressure+viscous+porous)
• Forces and moment coefficients: Lift, drag, and moment coefficients on a selection of faces.

Multi-purpose

Fields

Quantity	Symbol	Type	SI unit	Availability
Pressure	\(p\)	Scalar	\(Pa\)	Default
Velocity	\(U_x\), \(U_y\), \(U_z\)	Vector	\(m/s\)	Default
Relative velocity		Vector	\(m/s\)	Simulation with rotating parts
Mass averaged pressure	\(pt\ [mass\_averaged]\)	Scalar	\(Pa\)	Default
Volumetric flow rate	\(Q_v\)	Scalar	\(m^3/s\)	Default
Mass flow rate	\(Q_m\)	Scalar	\(kg/s\)	Default
Density	\(\rho\)	Scalar	\(kg/m^3\)	Default
Displacement		Scalar	\(m\)	Simulation with rotating parts, Multiphase
Phase fraction	\(T1\)	Scalar	–	Multiphase
Temperature	\(T\)	Scalar	\(K\)	Compressible
Total Temperature	\(T_{t}\)	Scalar	\(K\)	Compressible

Data Plots

• Area averages: Pressure, mass averaged total pressure, volumetric flow rate, mass flow rate.
• Pressure difference between assigned inlet and outlet face.
• Forces and moments: Pressure, viscous, and total forces and moments on a selection of faces. Total moment can be interpreted as torque when calculated on a set of rotating faces and for any other arbitrarily selected surface it is the sum of calculated moments (pressure+viscous). Power about the axis of rotation.

Incompressible LBM

Fields

The incompressible LBM can also be downloaded, stored locally and post-processed in 3rd party post-processors such as the open-source ParaView. The export format for this solver is the encase format.

Quantity	Symbol	Type	SI unit	Availability
Pressure	\(p\)	Scalar	\(Pa\)	Default
Velocity	\(U_x\), \(U_y\), \(U_z\)	Vector	\(m/s\)	Default
Turbulent kinetic energy	\(k\)	Scalar	\(m^2/s^2\)	Default
Dimensionless wall distance	\(y+\)	Scalar		Default
Vorticity		Vector	\(1/s\)	Requested
Friction velocity		Vector	\(m/s\)	Requested
Surface normal				Requested

Data Plots

Data plots are displayed as 2D plots on the platform with the field against time in the x. The plots can be downloaded in many types of images, but importantly, they can be downloaded as CSV files for further processing. There are also options to do statistical analysis on the time-dependent data, including mean, max, min, standard deviation, and root mean square (RMS).

• Forces and moments, Pressure forces and moments on a selection of faces.
• Probe points: All default fields.

Pedestrian Wind Comfort

Fields (overall)

The pedestrian wind comfort analysis type is based upon the incompressible LBM solver\(^1\) and can also be downloaded, stored locally and post-processed in 3rd party post-processors such as the open-source ParaView. The export format for this solver is the encase format. These fields for pedestrian comfort will be interpolated 2D plots.

Results According To Comfort Criteria:

• Lawson (old)
• Lawson LDDC (London spec)
• NEN8100
• Davenport

Fields (Individual Directions)

Quantity	Symbol	Type	SI unit	Availability
Pressure	\(p\)	Scalar	\(Pa\)	Default
Velocity	\(U_x\), \(U_y\), \(U_z\)	Vector	\(m/s\)	Default
Velocity magnitude	\(UMag\)	Scalar	\(m/s\)	Default
Turbulent kinetic energy	\(k\)	Scalar	\(m^2/s^2\)	Default

Solid Mechanics

The output results for solid mechanics analysis types are sophisticated and further explained in our standard document on result control for structural analysis:

Result Control – Structural Analysis
