    With our Pedestrian Wind Comfort (PWC) analysis, it is possible to input additional advanced modeling of geometry in the form of surface roughness and porous media. This helps to better capture local effects on the wind comfort simulation for a more accurate analysis.

    Advanced Modeling PWC

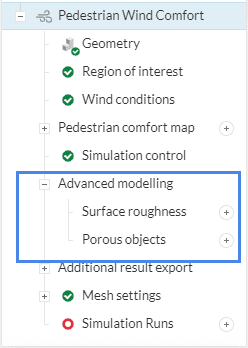

    Figure 1: Accessing the Advanced modeling feature inside the SimScale Workbench.

    Surface Roughness

    In PWC simulations, wind flow is affected by friction surfaces as well as obstacles, such as terrain, buildings, and trees. As large obstacles are captured via the geometry input, small obstacles or surface roughness is modeled using the advanced surface roughness modeling method. While the effect of surface roughness for laminar flows is negligible, turbulent flows are highly dependent on wall roughness. As the surface roughness changes, the thickness of the viscous sublayer modifies the law-of-wall for mean velocity. As a result, the turbulent friction factor increases with the roughness ratio.

    To apply the roughness effects on any surface in PWC analysis, SimScale has three options to input a surface roughness type. To assign a new surface roughness click on the plus icon next to Surface roughness.

    Adnaced modeling create surface roughness

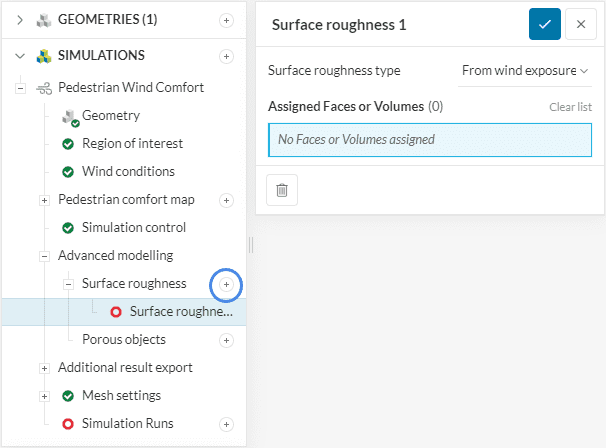

    Figure 2: Creating a new Surface roughness control

    1. From Wind Exposure

    Using the Wind Exposure method the aerodynamic roughness value is automatically selected individually based on the selected wind exposure category for each wind direction. This method is preferred in order to achieve horizontal homogeneity for the incoming ABL flow.

    Adnaced modeling From Wind Exposure

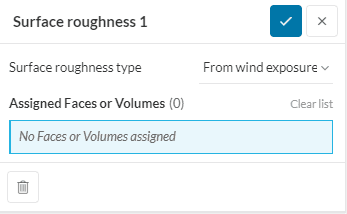

    Figure 3: Selection view for surface roughness type, From wind exposure

    For the exact values of the aerodynamic roughness used, depending on the wind engineering standard, please have a look at this documentation page.

    2. Equivalent Sand Grain

    When the roughness of the specific surface is known the Equivalent sand grain method allows the direct assignment of a surface roughness value. Typical values reach from 0.05 \(mm\) for steel to 3 \(mm\) for concrete.

    Advanced modeling equivalent sand Grain
    Figure 4: Selection view for surface roughness type, Equivalent sand grain.

    In the following table, the equivalent sand-grain roughness of some materials and terrain types can be seen:

    Material\(k_{s}\), equivalent sand-grain roughness \([m]\)
    Concrete, smooth wall0.0045
    Concrete, rough wall0.013
    Concrete, floor0.04
    Farmland with crops0.525
    Grass with shrubs0.265
    Grass and stone grid0.0225
    Case iron0.000254
    Commercial or welded steel0.00004572
    Cast iron0.00026
    Table 1: Materials and their respective sand-grain roughness in meters\(^1\)

    3. Aerodynamic

    The Aerodynamic surface roughness type is used to model the large-scale effects of non-modeled obstacles on the atmospheric boundary layer flow, such as vegetation, or benches. Typical values range from 0.0002 \(m\) for open sea to 1 \(m\) for dense urban areas. A few example values can be found in Table 2.

    Advanced Modeling aerodynamic
    Figure 5: Selection view for surface roughness type, Aerodynamic
    Terrain description\(z_0\) \([m]\)
    Open sea, fetch at least 5 \(km\)0.0002
    Mudflats, snow: no vegetation, no obstacles0.005
    Open flat terrain: grass, few isolated obstacles0.03
    Low crops: occasional large obstacles, \(x \over\ H\) > 200.10
    High crops: scattered obstacles, 15 < \(x \over\ H\) < 200.25
    Parkland, bushes: numerous obstacles, \(x \over\ H\) ≈ 100.5
    Regular large obstacle coverage (suburb, forest)1.0
    Table 2: Aerodynamic roughness length in wind engineering is usually defined as “the height where the wind velocity is equal to zero”. It is an important aerodynamic parameter and reveals the exchange between the atmosphere and land surfaces.

    Where \(x \over\ H\) is the ratio of length to the height of the obstacle.

    Porous Objects

    Porous media is a medium filled with solid particles, which lets fluid pass through. The arrangement of the flow path inside the porous medium can be regular or irregular.

    A porous medium can be classified as follows:

    • Consolidated medium: Solid-body has internal pores. Fluid passes through the pores.
    • Unconsolidated medium: A pile of solid particles is packed inside a bed. Fluid flows around the particles.

    Porous media is used to model permeable obstructions such as trees, hedges, windscreens, and other wind mitigation measures. When air flows through a porous body, a pressure gradient along the direction of the flow is generated. Using porous media simplification reduces the CAD and mesh complexity, and saves computational time and expenses.

    Within the PWC analysis type, SimScale allows users to model porous objects using the following two models:

    1. Darcy-Forchheimer Model

    A model used when the pressure drop characteristics of the geometry are known is the ‘Dary-Forchheimer Model’. The model uses a formulation of the pressure drop with respect to the local velocity. The two coefficients used can be determined by a curve fit to experimental data.

    Adnaced modeling DF Coefficients

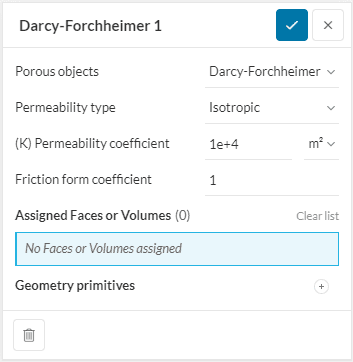

    Figure 6: Selection view for porosity type, Darcy-Forchheimer

    The pressure loss due to porosity is modeled by the empirical Darcy-Forchheimer equation.

    $$\overline{\frac{\Delta {p}}{\Delta x}}=- \frac{\mu}{K}.\overline{u}-\rho.\frac{F_\varepsilon}{\sqrt{K}}.|\overline{u}|.\overline{u}\tag{1}$$

    • \(\Delta p/\Delta x\): pressure gradient,
    • \(\mu\): dynamic viscosity,
    • \(\rho\): fluid density,
    • \(\overline{u}\): local velocity vector,
    • \(F_\varepsilon\): friction form coefficient,
    • \(K\): permeability coefficient.

    The first and the second term on the right-hand side of the equation are the Darcy and Forchheimer terms respectively. The Darcy term accounts for the friction drag which has a linear relation to the local velocity vector. The Forchheimer term accounts for the inertial drag or the form drag which has a quadratic relation to the local velocity vector.

    To be able to define a porous media in SimScale, define \(K\) and \(F_\varepsilon\). Use a minimum of 3 data points to perform a curve fitting to predict the \(K\) and \(F_\varepsilon\). An example is shown below:

    Experimental data:

    u \([m/s]\)dP/dx \([Pa/m]\)
    Table 3: Velocity and pressure gradient values for the curve fitting method

    Curve equation for air:

    $$ \frac{\mathrm dP}{\mathrm d x} = \frac{0.0000181}{K}.u+1.\frac{F_\varepsilon}{K^{0.5}}.u^2 \tag{2} $$

    Using the curve-fitting method, the missing coefficients were calculated as follows:

    • \(K\) = 0.00007135065
    • \(F_\varepsilon\) = 0.01890935
    velocity graphic displaying pressure drop in simscale through advanced modelling
    Figure 7: Pressure drop per unit length over velocity graph

    Once the relevant coefficients are calculated, they can be assigned to Darcy-Forchheimer’s porous object definition, and the porous media geometry is selected. This selection can be in the form of faces, volumes, or geometry primitives.

    Advanced modeling DF Coefficients 2

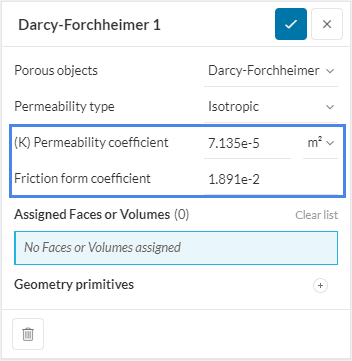

    Figure 8: Setting up porous media in SimScale using the Darcy-Forchheimer model

    While the isotropic type adds specific resistance in every direction, directional resistance can be added where the specific resistance can be defined for each direction individually.

    2. Tree Model

    Tree models are used to model the vegetation (single trees, bushes, hedges, forest canopies, etc.) as porous mediums. It’s possible to either define the porosity as predefined for the five most common trees in EU cities or by creating a custom tree model.

    Creating a custom tree requires the following inputs:

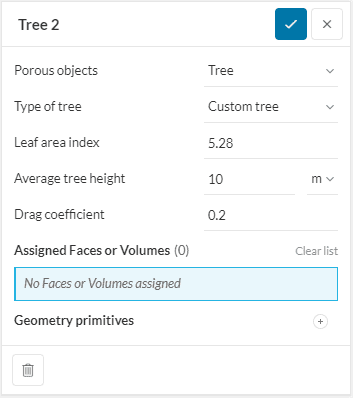

    Advanced Modeling Custom Tree
    Figure 9: Selecting the type of tree from the selection menu in SimScale
    • Leaf Area Index (LAI),
    • Average tree height,
    • Drag coefficient.

    The leaf area index (LAI) is a dimensionless number, which is used to compare plant canopies. It can be simply defined as the total leaf area per unit ground area.

    For predefined tree models, only the assignment of tree height is required since the solver applies related LAI and drag coefficient automatically. In SimScale the following models are available.

    • Planetree,
    • Oak,
    • Sycamore,
    • Silver birch,
    • Chestnut.

    The following table displays the default trees, and their respective LAI along with the drag coefficient:

    Tree TypeDrag CoefficientLeaf Area Index (LAI)
    Plane tree0.25.28
    Silver birch0.23.2379
    Table 4: Default tree types with their respective drag coefficients and LAI

    The above information obtained\(^2\) is a compiled data ranging over 70 years from 500 different locations.

    visual description of leaf area index (lai) used in simscale advanced modelling in PWC
    Figure 10: Visual Description of height used to calculate Leaf Area Index (LAI)

    In the tree model, we used the modified Darcy-Forchheimer equation. By assigning a high permeability value, we neglected the Darcy portion and simplified the equation as follows:

    $$\frac{\Delta \overline{p}}{\Delta x}=-\rho.\frac{F_\varepsilon}{\sqrt{K}}.|\overline{u}|.\overline{u}\tag{3}$$

    Next, modified the equation to define it with respect to Drag Coefficient \(C_d\) and Leaf Area Density \(LAD\):

    $$\frac{\Delta \overline{p}}{\Delta x}=-\rho.LAD.C_d.|\overline{u}|.\overline{u}\tag{4}$$

    Leaf area density is calculated with respect to leaf area index \(LAI\) and height of the vegetation \(h\):


    Read more about modeling tress in SimScale in our blog:
