Tutorial: Compressible CFD Simulation of a Golf Ball

In this tutorial, a compressible aerodynamic simulation of a golf ball is performed.

golf ball streamlines results
Figure 1: Visualization of the pressure distribution across streamlines that flow around the golf ball.

This tutorial teaches how to:

  • Set up and run a compressible simulation
  • Assign topological entity sets in SimScale
  • Assign boundary conditions, material and other properties to the simulation
  • Mesh with the SimScale standard meshing algorithm

We are following the typical SimScale workflow:

  1. Prepare the CAD model for the simulation
  2. Set up the simulation
  3. Create the mesh
  4. Run the simulation and analyze the results

Attention!

This tutorial performs simulation with the Compressible analysis type which is only accessible to users with a Professional plan and those who are already on the Community plan. New Community users or those recently downgraded to the Community plan will not longer be able to perform this tutorial. See our pricing page to request additional features.

1. Prepare the CAD Model and Select the Analysis Type

1.1.Import the CAD Model Into Your Workbench

First of all click the button below. It will copy the tutorial project containing the geometry into your own Workbench.

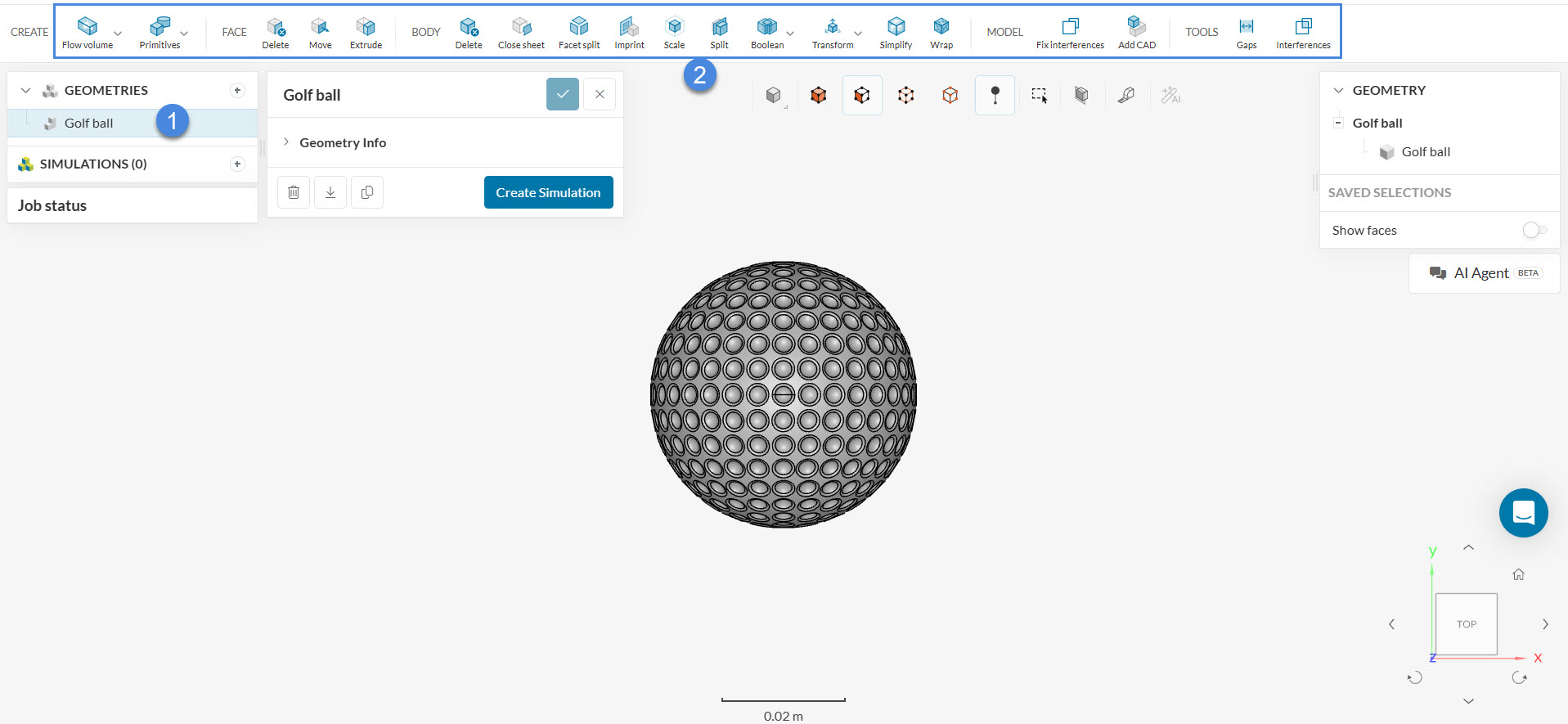

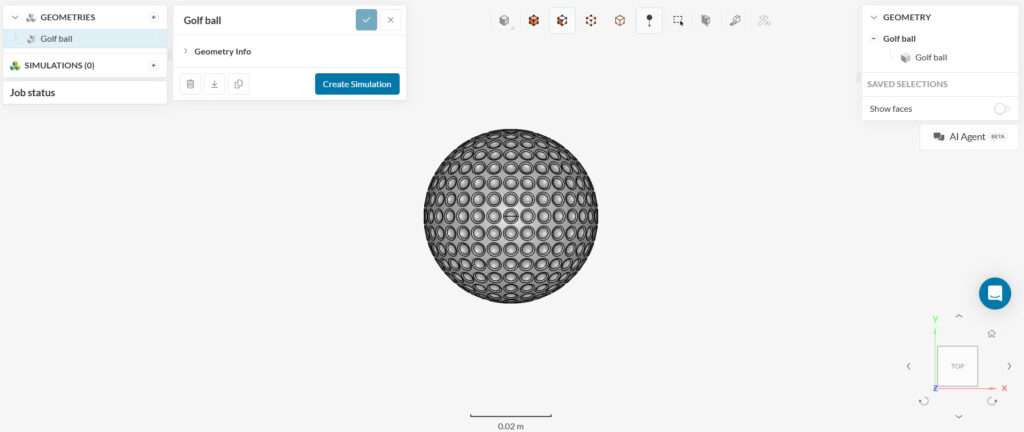

The following picture demonstrates what should be visible after importing the tutorial project.

import cad workbench

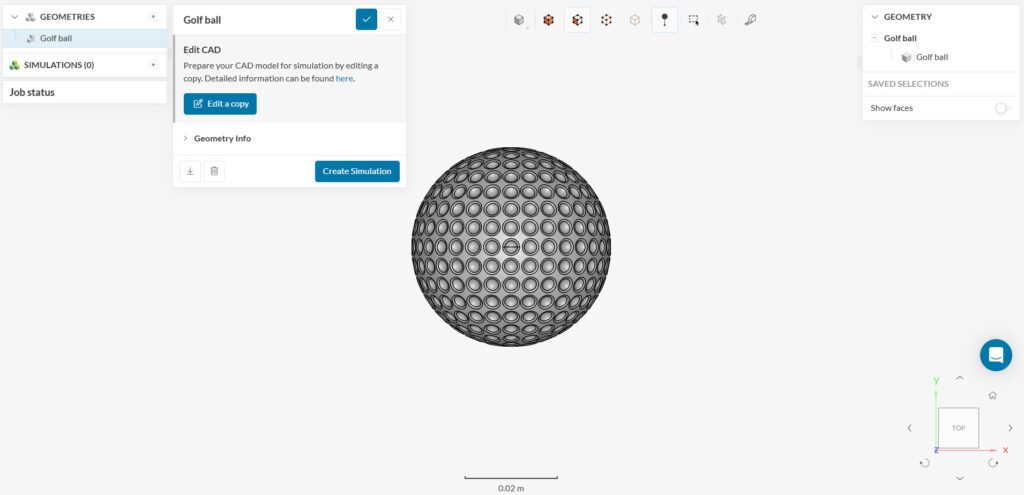

Figure 2: Imported CAD model of the golf ball in the SimScale Workbench.

1.2. CAD Mode

The first step for this simulation is the creation of a flow region volume. This will be the domain used for the external CFD analysis. To enter the CAD mode, click the ‘Edit in CAD mode’ button as shown in the picture:

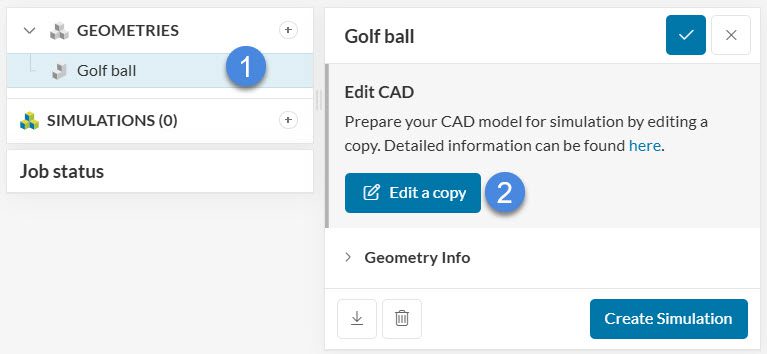

Figure 3: Clicking on this button will redirect you to the CAD mode interface.

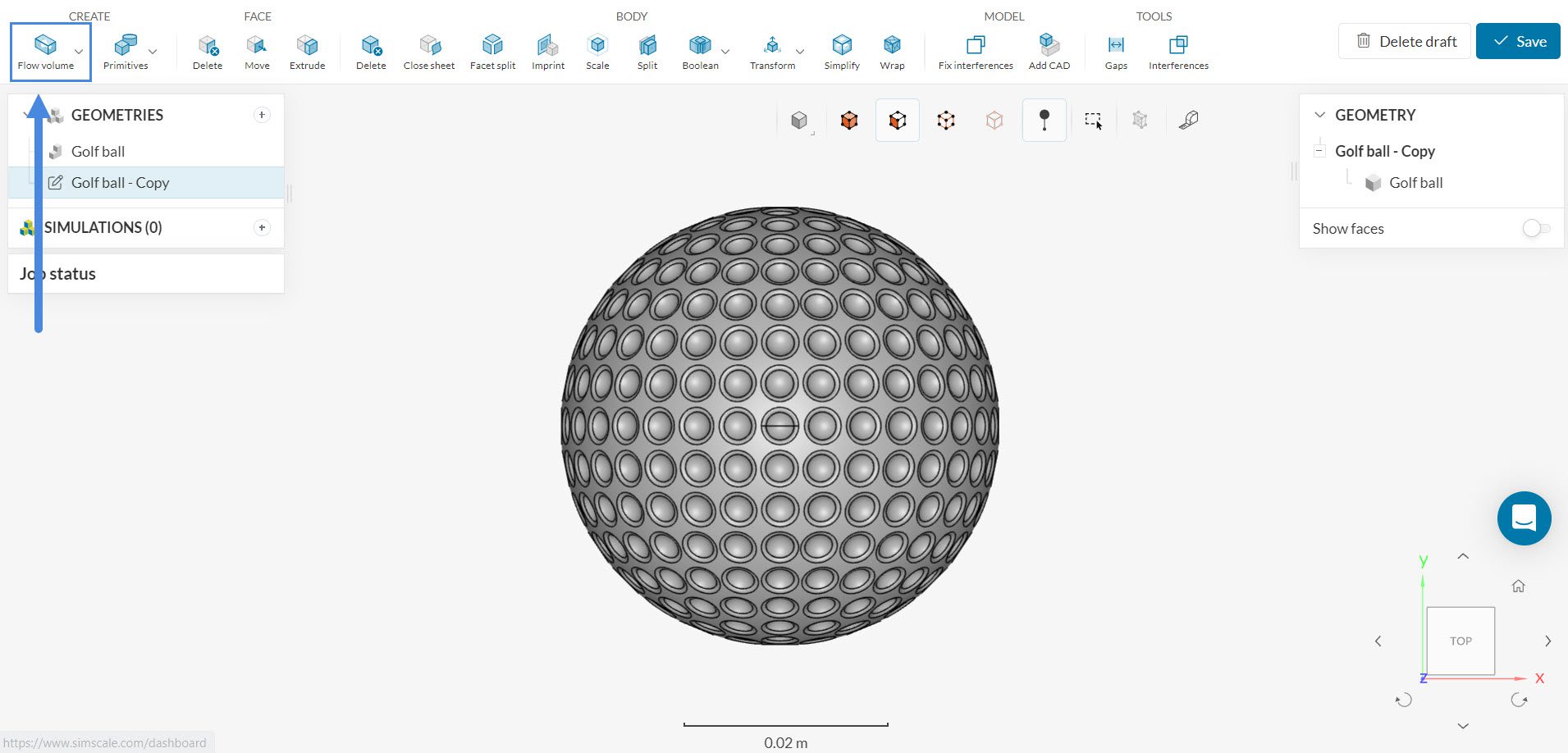

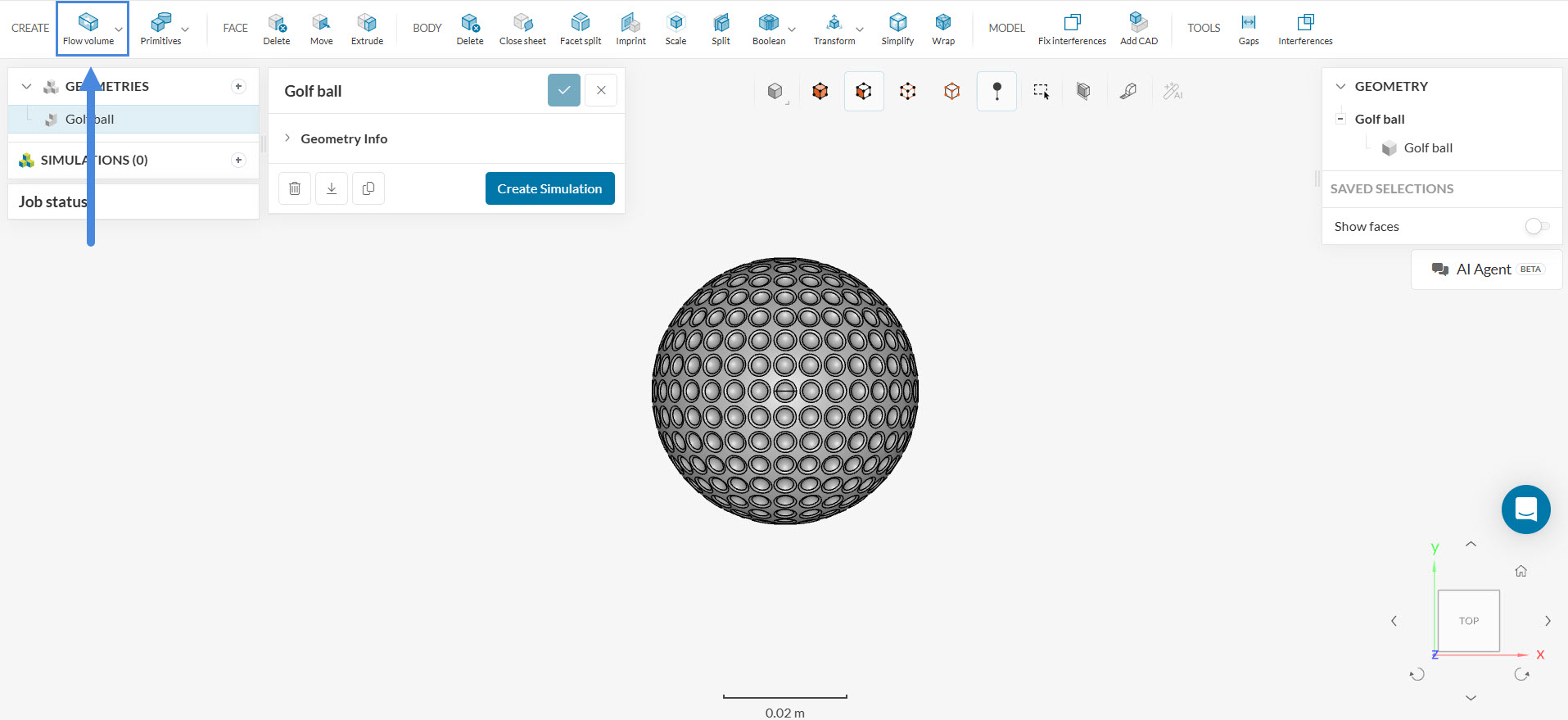

Select ‘Create – Flow volume’, from the top bar:

top menu of CAD mode containing all the operation options
Figure 4: All of the available features are located at the top of the page.

The ‘External’ option that is listed on the drop down menu is used to create the flow domain around the model:

flow volume options on the CAD Mode external and internal
Figure 5: There are two available options for the flow volume extraction depending on the type of analysis. For external aerodynamics use ‘External’.

Then, fill in the dimensions of the domain like shown below. Here, L represents the diameter of the golf ball:

enclosure reference length

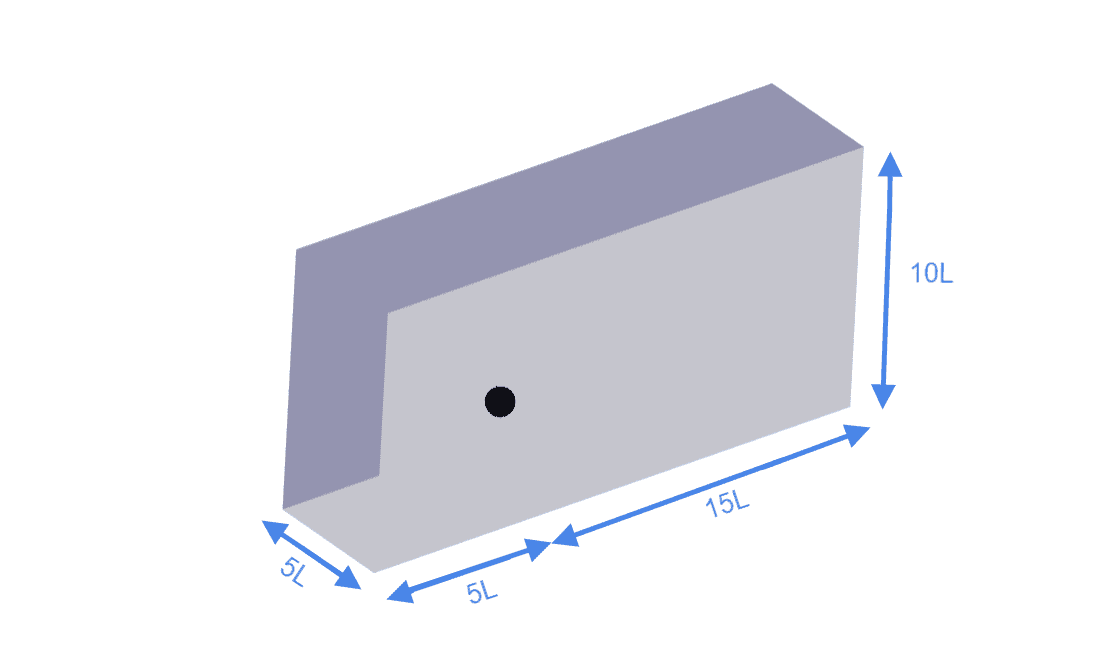

Figure 6: The size of the domain according to the reference length of the model.

In more details, the dimensions of the domain are as follows. Notice that only half of the domain is included, to leverage the symmetry of the model and save con computational resources. After you apply the dimensions, click on ‘Seed face’, and proceed to select a face of the ball that is inside the domain:

the sizing and seed face for the enclosure creation around a golf ball

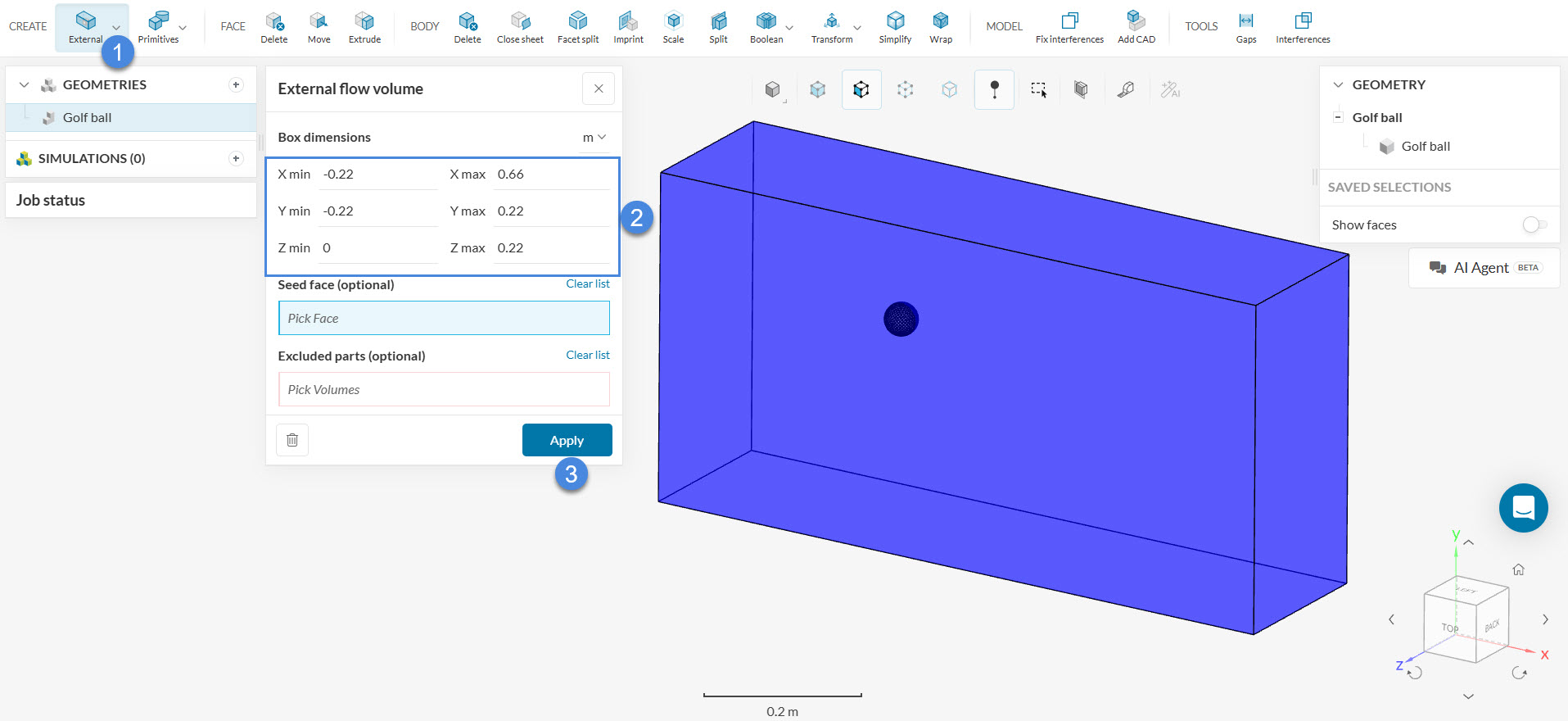

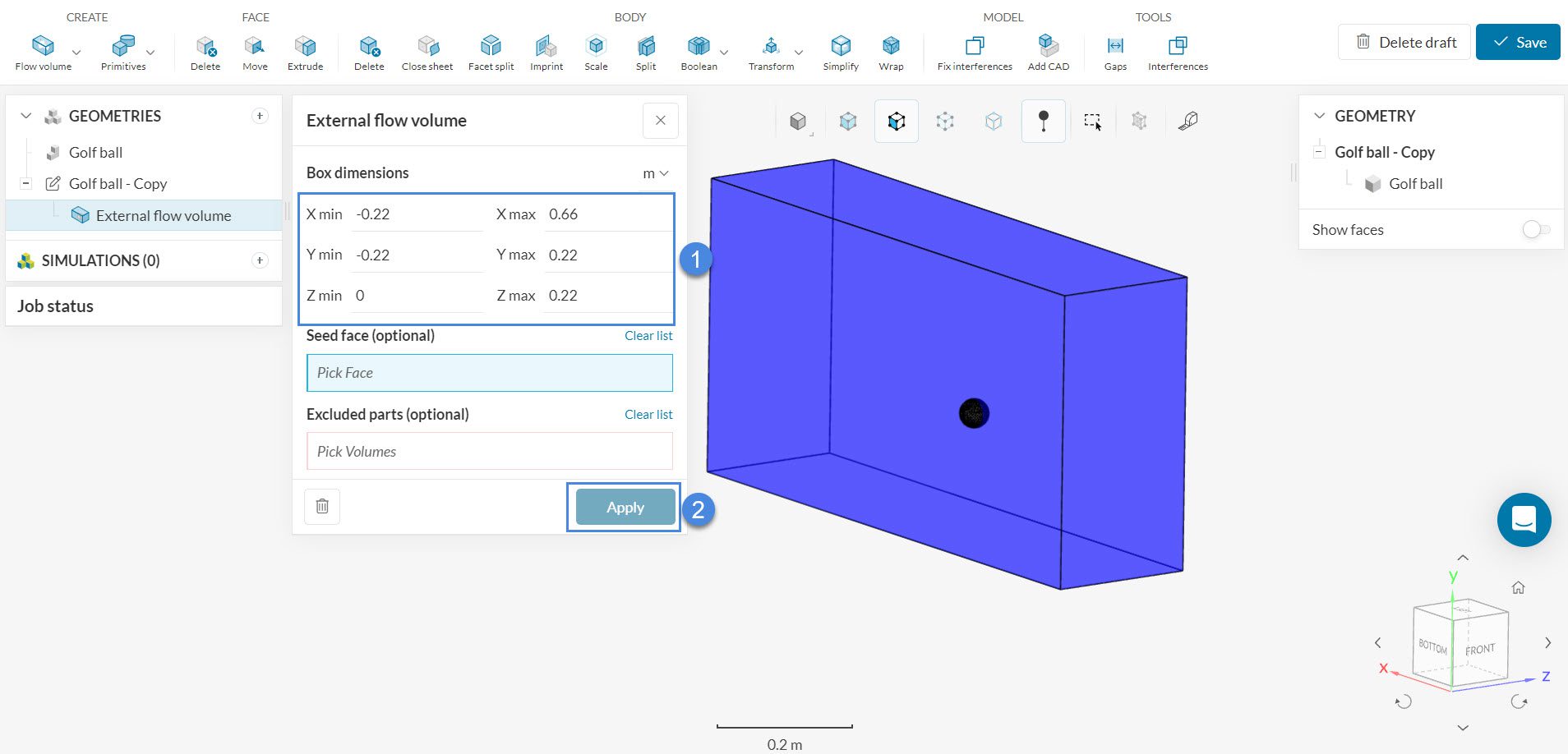

Figure 7: The dimensions and seed face inside the enclosure.

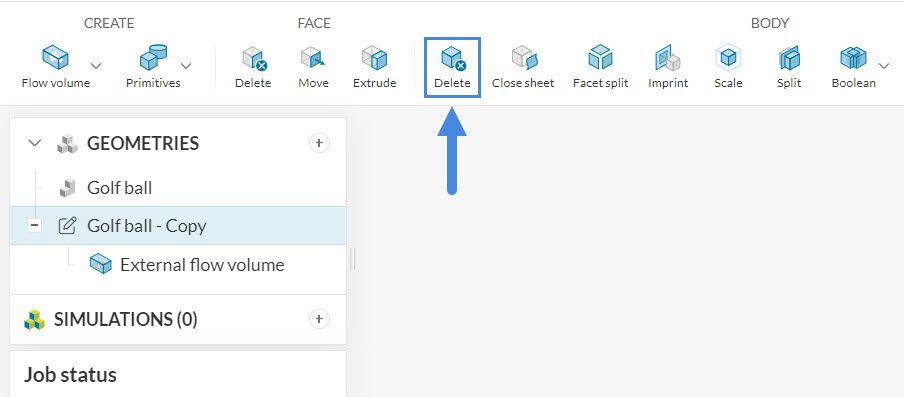

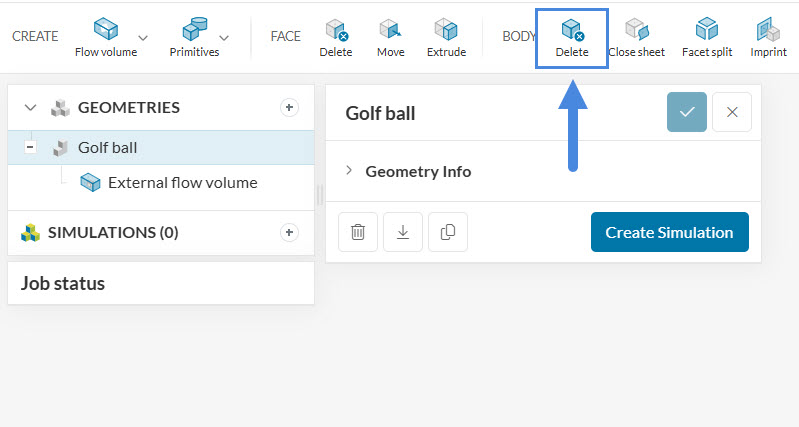

After you are done, click ‘Apply‘. Then select the ‘Delete’ feature next to the Body section, to remove the solid part representing the ball:

deleting the solid body from the model so the flow region is the only part used for the incompressible analysis
Figure 8: The ball must also be removed from the model, so only the flow region remains.

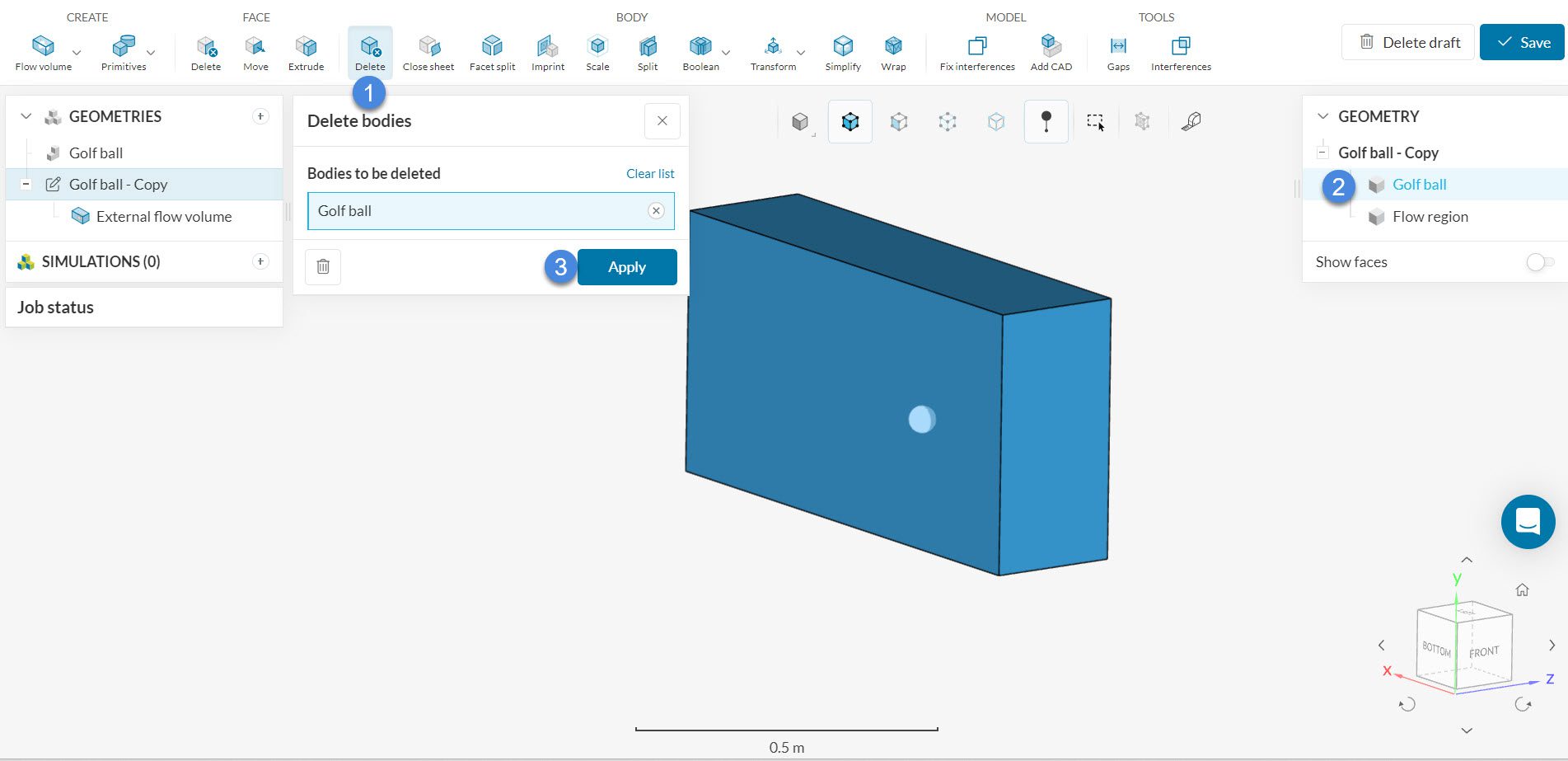

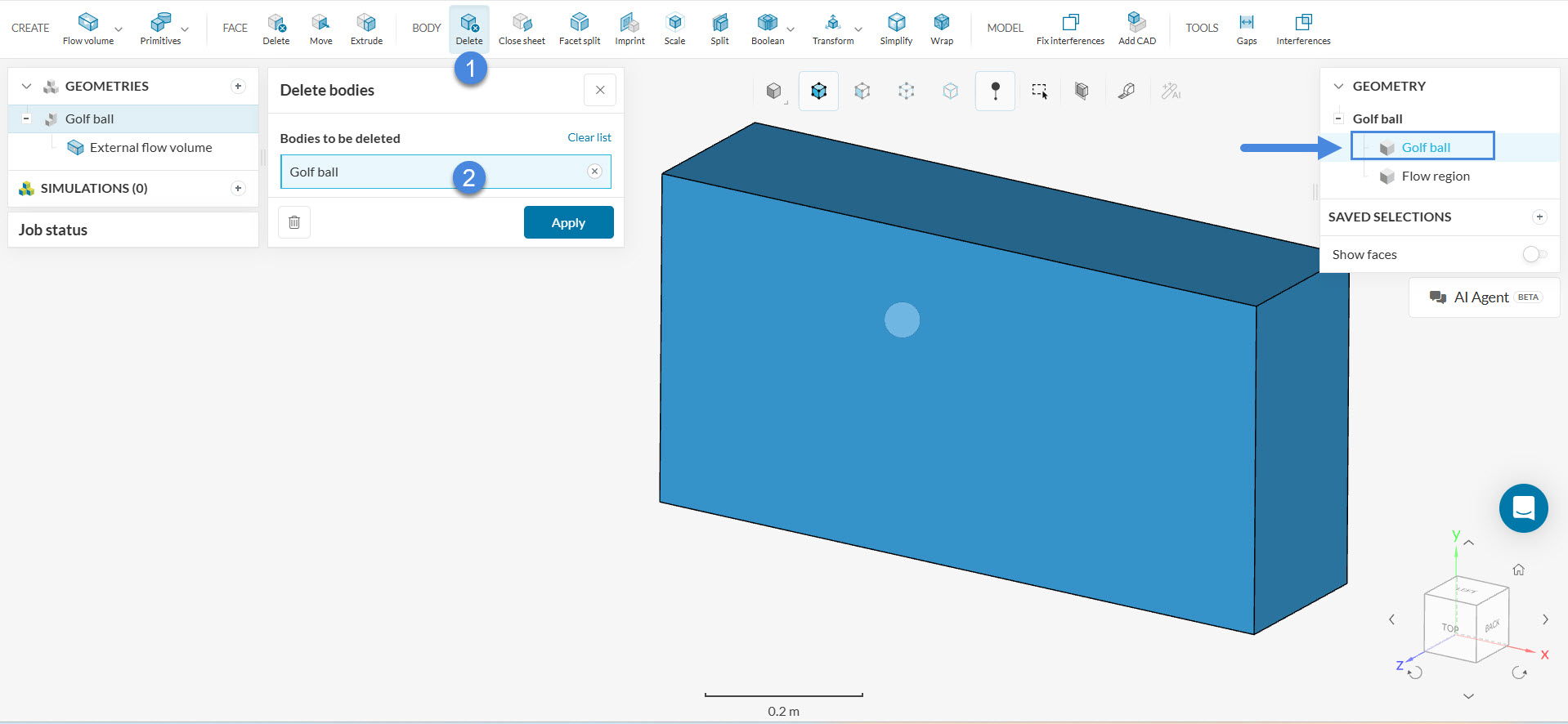

Select the solid body from the scene tree on the right and click ‘Apply’:

deleting the ball after selecting it from the geometry tree.
Figure 9: Removal of the solid ball using the geometry tree in the CAD mode.

When the operation is finished and the ball is removed, click on the ‘Export’ button at the top right so the edits are saved and imported into the Workbench:

finishing with the CAD mode operations and exiting the interface to proceed with the set up

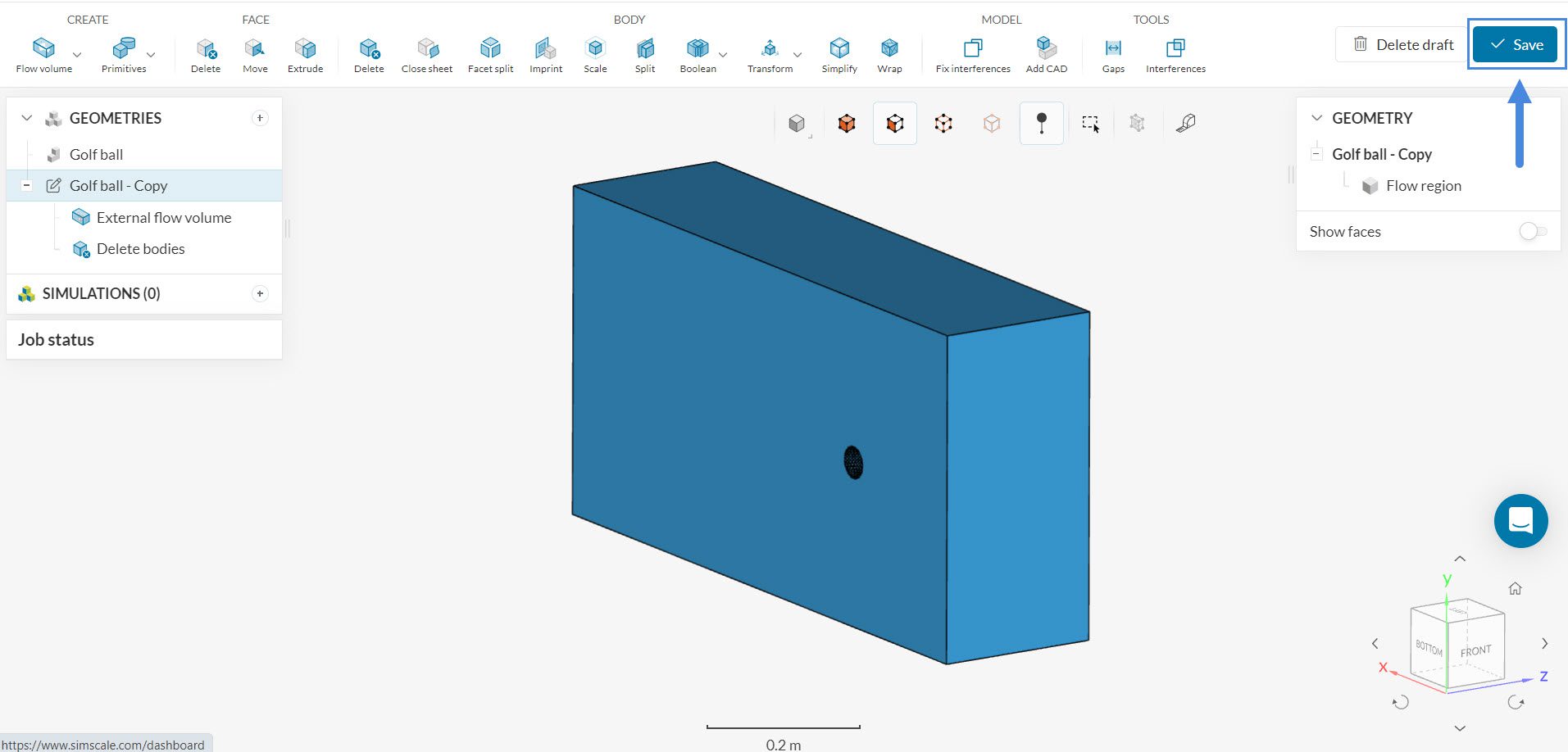

Figure 10: Go back to the Workbench when only the flow region is present, and the space where the solid part was located is now empty.

When the Workbench loads, another geometry will appear. It corresponds to the updated copy of the original model, after the CAD mode operations. You can delete the initial version:

delete original CAD model after CAD mode edit

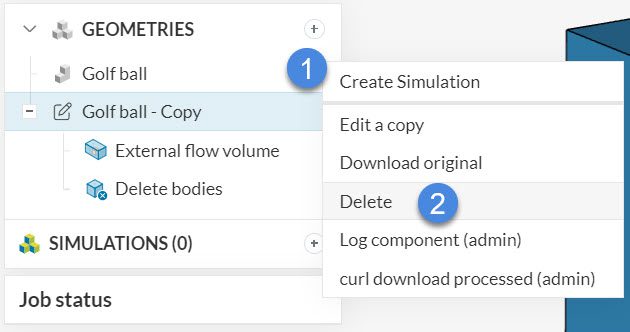

Figure 11: Deleting the CAD model can help avoid confusion between different versions.

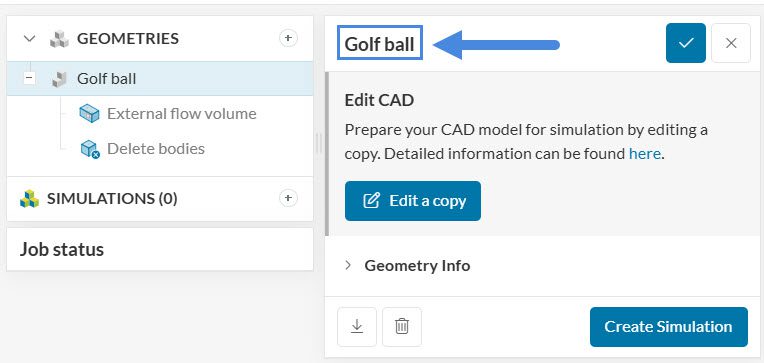

Then, rename the new version as ‘Golf ball’:

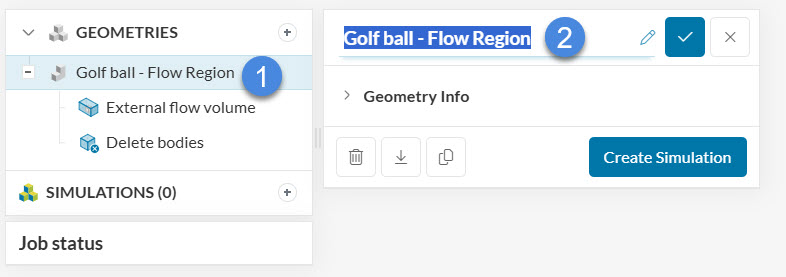

rename the new CAD model after CAD Mode
Figure 12: To rename the new version, click on the old name and edit.

1.3. Create Topological Entities

Create a topological entity set for the golf ball surface:

  • Hide the walls of the flow volume by selecting each one of them (6 in total) from the 3D viewer, then right-click, then choose the ‘Hide selection’ option from the drop-down menu.

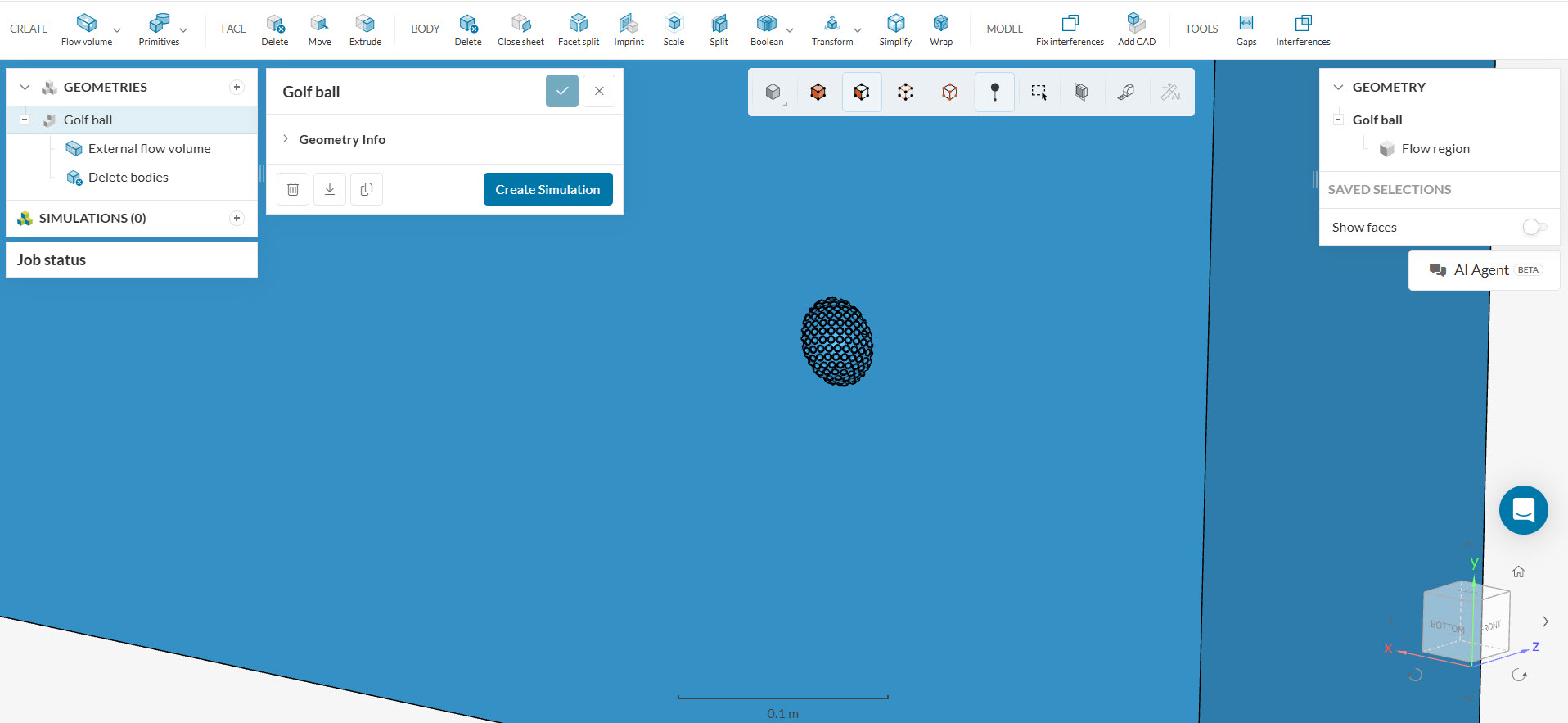

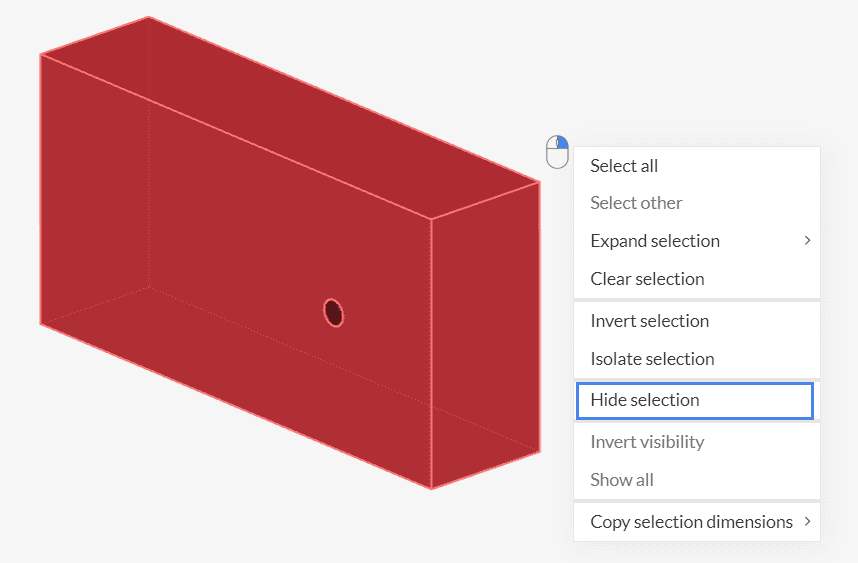

enclosure faces hide selection workbench
Figure 13: Hiding the walls of the domain
  • Activate the box selection at the top of the page.
  • Drag it across the model until all the faces are selected.
  • Click on the ‘+’ next to the Topological Entity Sets.
  • Name your new set ‘Ball’ and click the ‘Create new set’ button.
add topological entity set golf ball

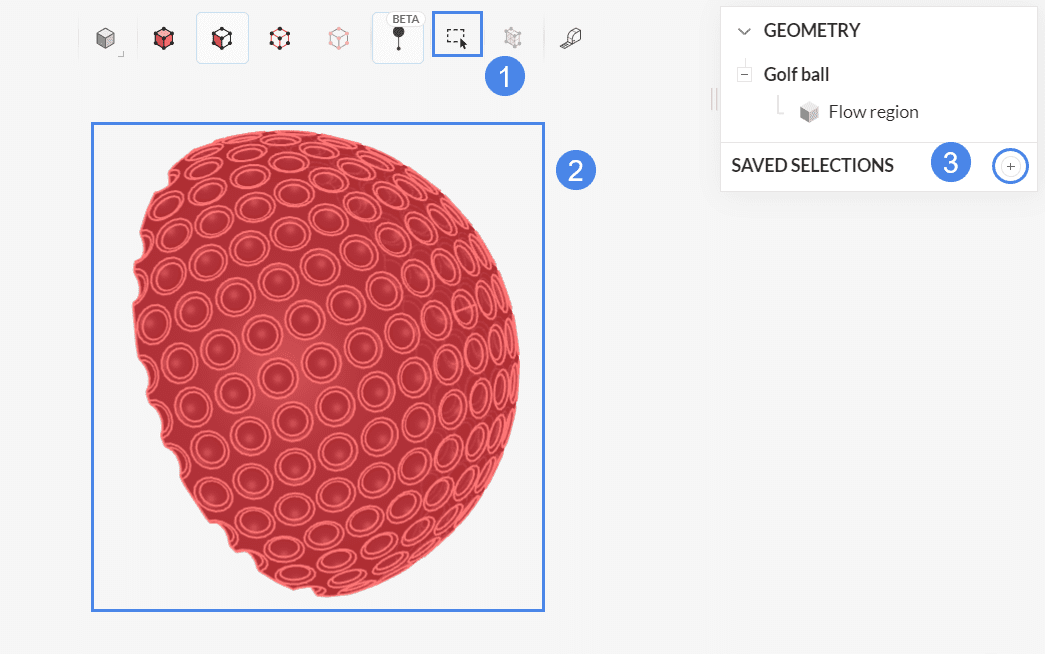

Figure 14: Adding a topological entity set containing all the faces of the golf ball.

1.4. Create the Simulation

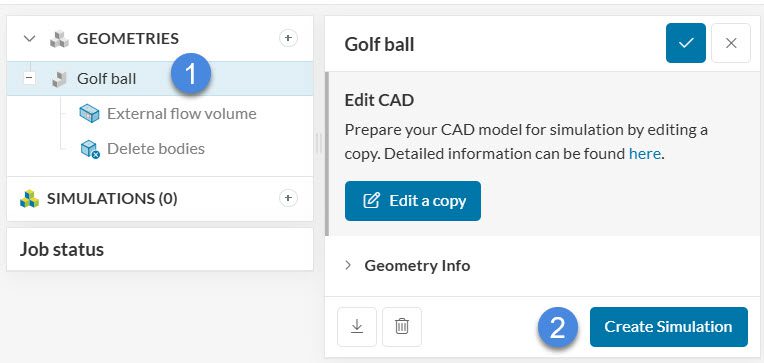

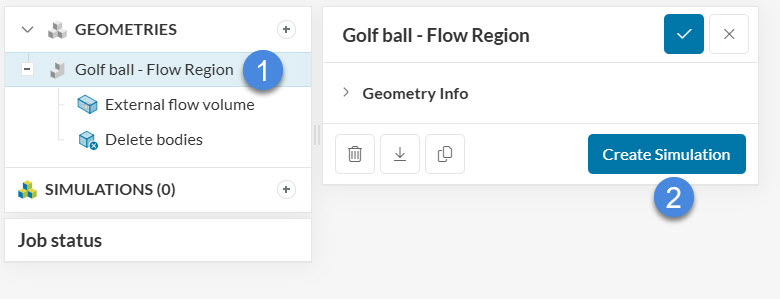

After you finish with the topological entity set, proceed to click the ‘Create simulation‘ option to get started.

create simulation around golf ball
Figure 15: Creating a new simulation.

Select the ‘Compressible‘ analysis, which is used for cases where the Mach number in any point of the domain reaches a value bigger than 0.3. This golf ball simulation will be using a high velocity, so the compressible analysis is the best fitting.

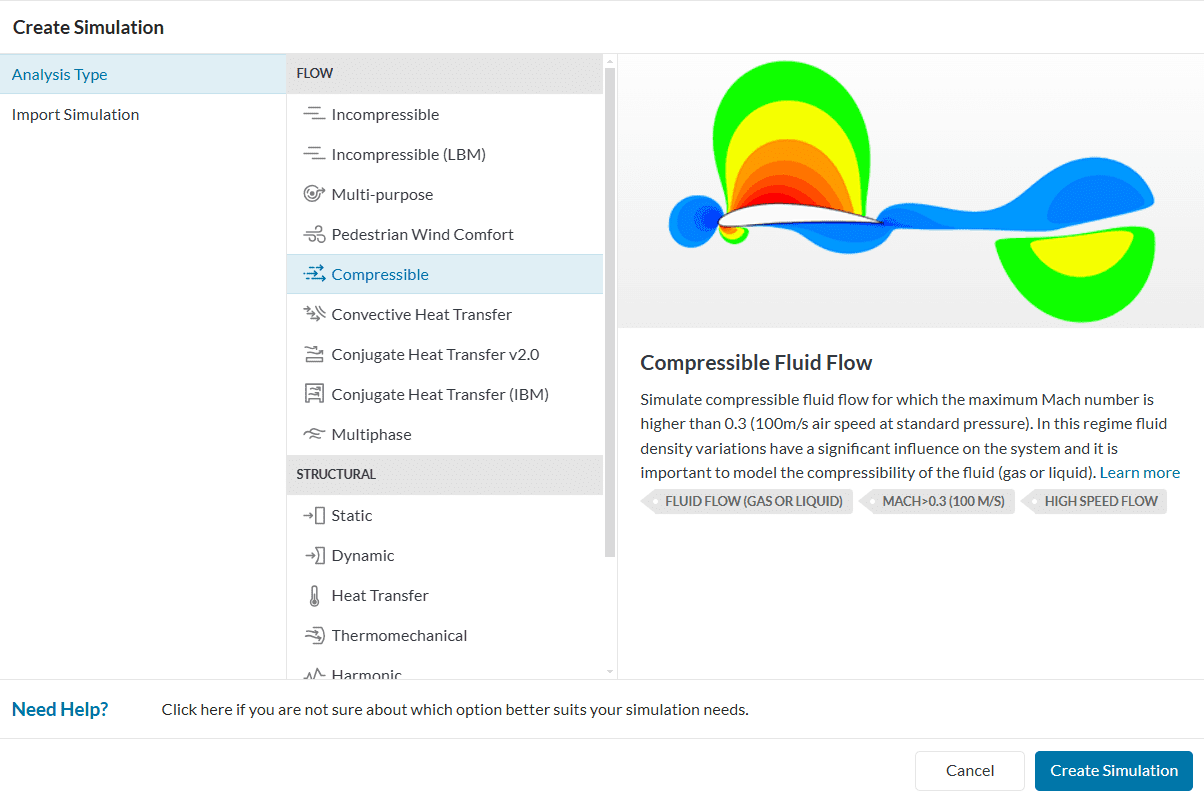

compressible fluid flow
Figure 16: The compressible fluid flow analysis type.

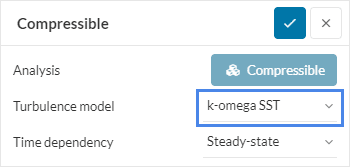

Switch the Turbulence model to ‘k-omega SST‘ in the panel that appears:

simulation properties turbulence model k-omega SST
Figure 17: Choosing the k-omega SST turbulence model for the compressible CFD analysis.

2. Assigning the Material and Boundary Conditions

Now we will set up the physics for the simulation.

2.1. Define a Material

In this simulation, we want to analyze the airflow around a solid body. Therefore we need to assign properties to the fluid region. Click on the ‘+’ icon next to the Materials option of the simulation tree on the left panel, then choose ‘Air‘ in Material pop up, and finally Apply:

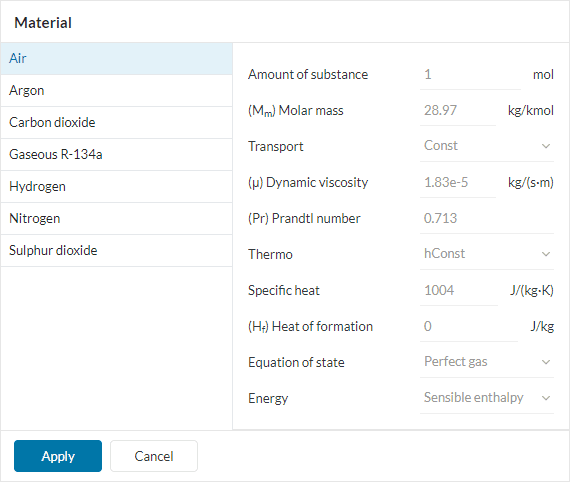

air assignment
Figure 18: Material list for a compressible fluid flow analysis.

The flow region that was created in the CAD mode at the beginning of the tutorial is automatically selected for the material, because it is the only one present.

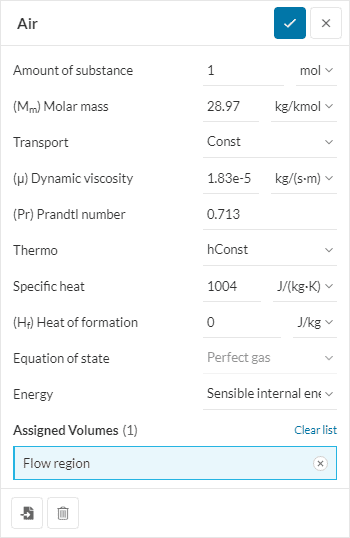

material assignment region air
Figure 19: Properties of air for the flow region material assignment.

Just confirm the selection by hitting the check button at the top of the panel. You can also create a custom fluid by changing the parameters and giving it a proper name.

2.2. Assign the Boundary Conditions

In order to assign Boundary Conditions on the model, click on the ‘+’ icon next to the Boundary Conditions, and select the types described in this section.

add boundary condition simulation tree
Figure 20: Adding a boundary condition.

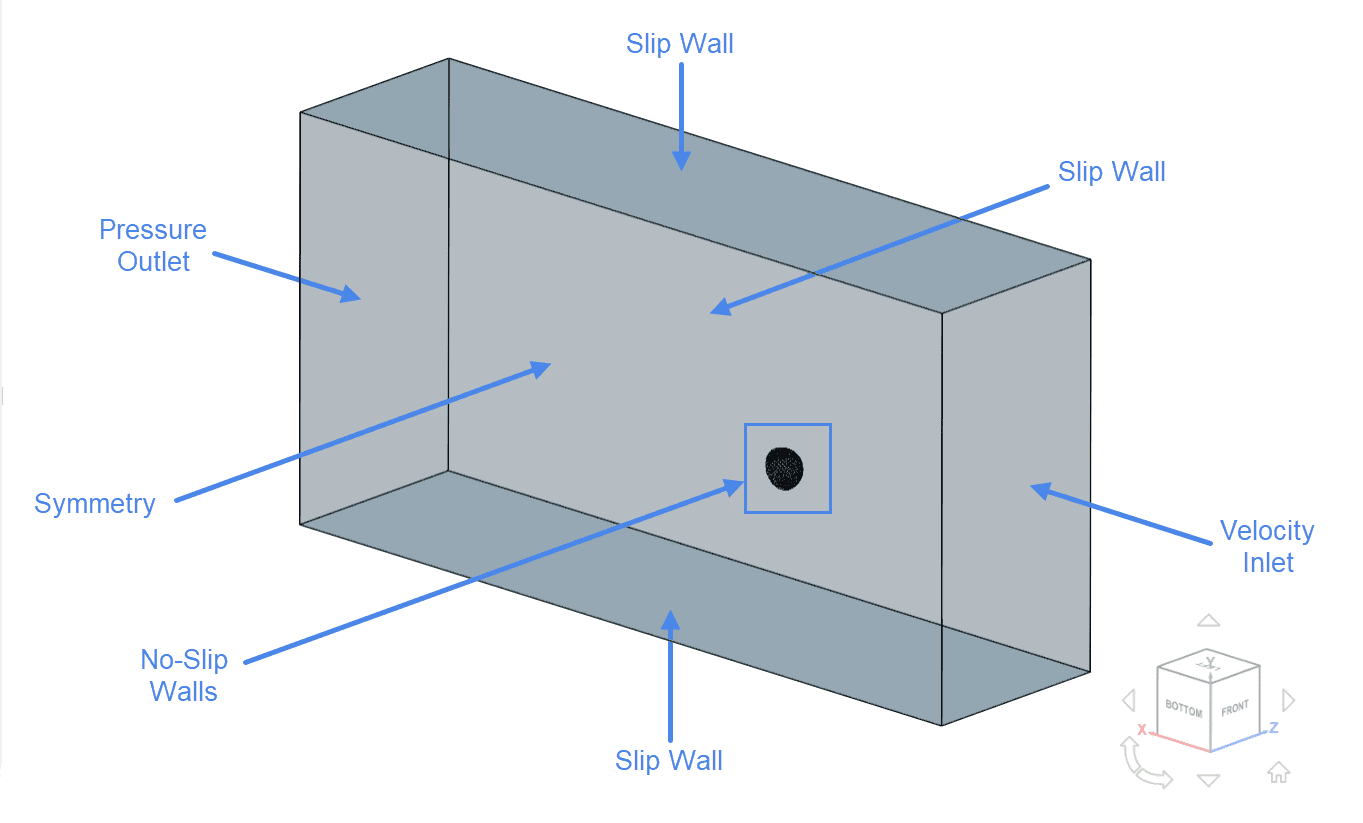

The following picture shows an overview of the boundary conditions used in this simulation:

overview boundary conditions compressible simulation of a golf ball

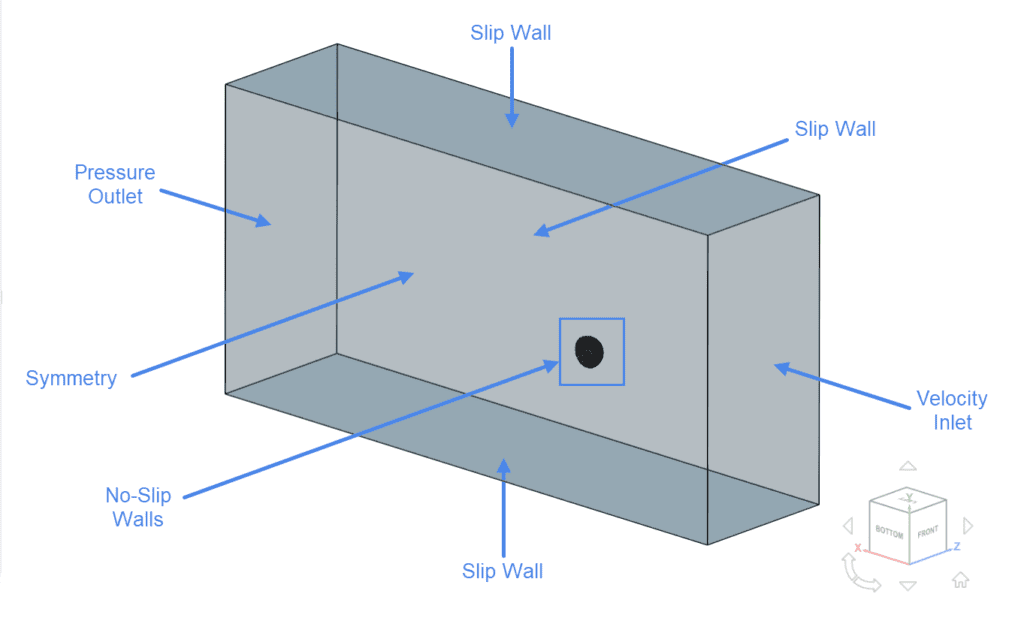

Figure 21: Overview of the boundary conditions for the golf ball.

a. Velocity Inlet

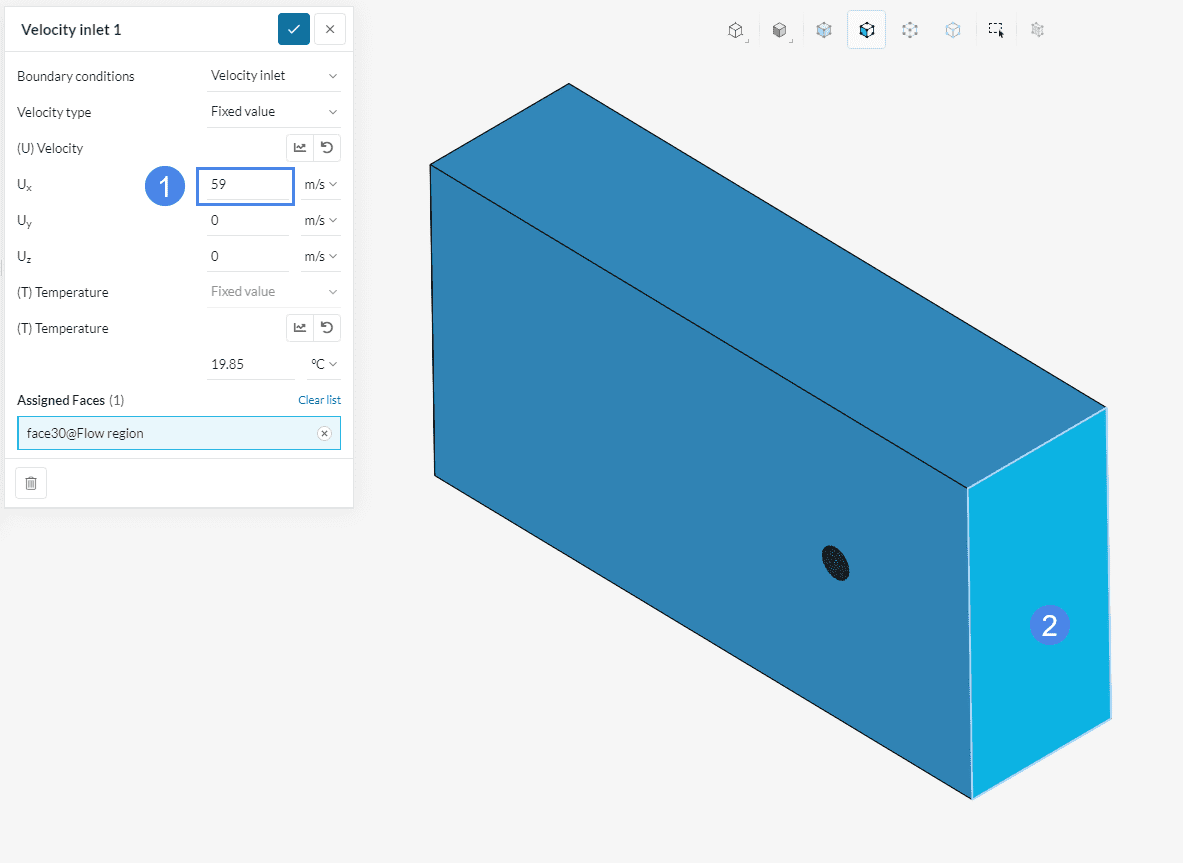

Assign a ‘Velocity Inlet‘ of 59 \(m/s\). This value is close to the Ball Speed that an average male golf player achieves[1].

velocity inlet fixed value
Figure 22: Velocity inlet for the airflow around the golf ball.

b. Pressure Outlet

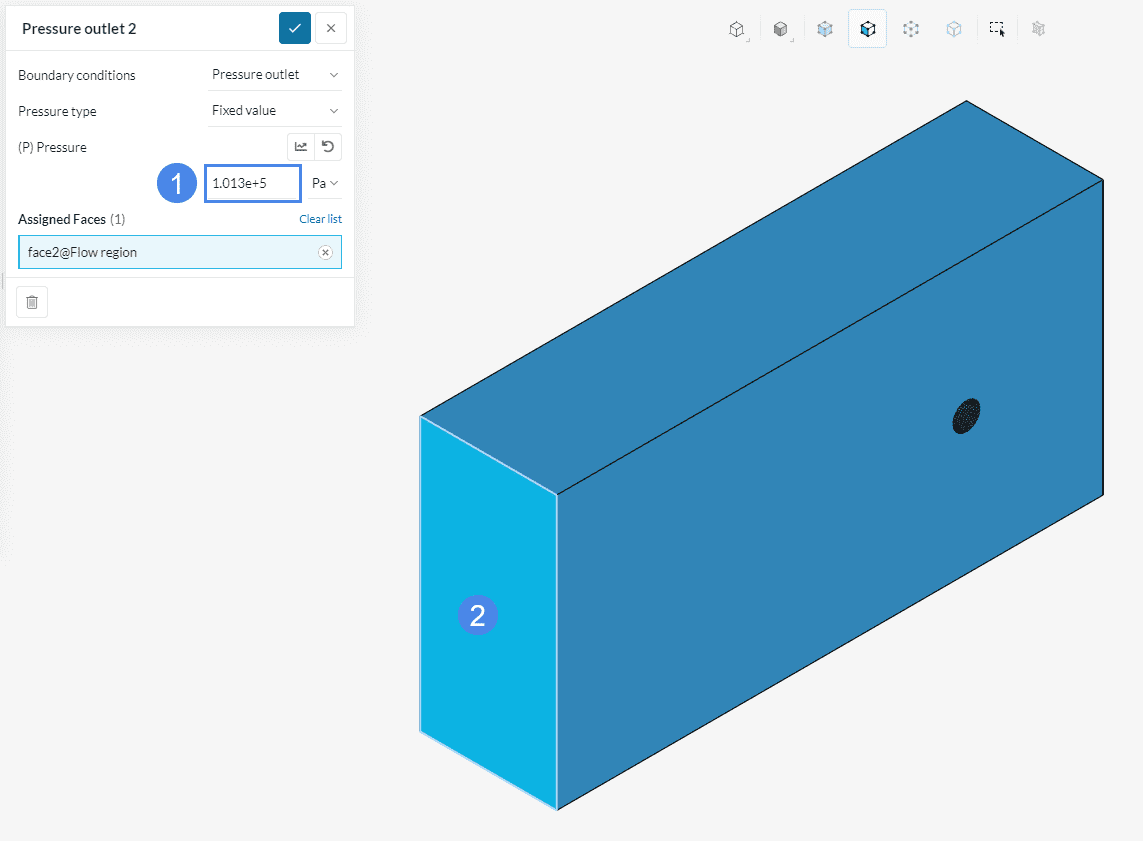

Assign a ‘Pressure Outlet‘ condition of 101 325 (Pa) at the highlighted face below:

pressure outlet assignment
Figure 23: Pressure outlet boundary condition.

c. Slip Walls

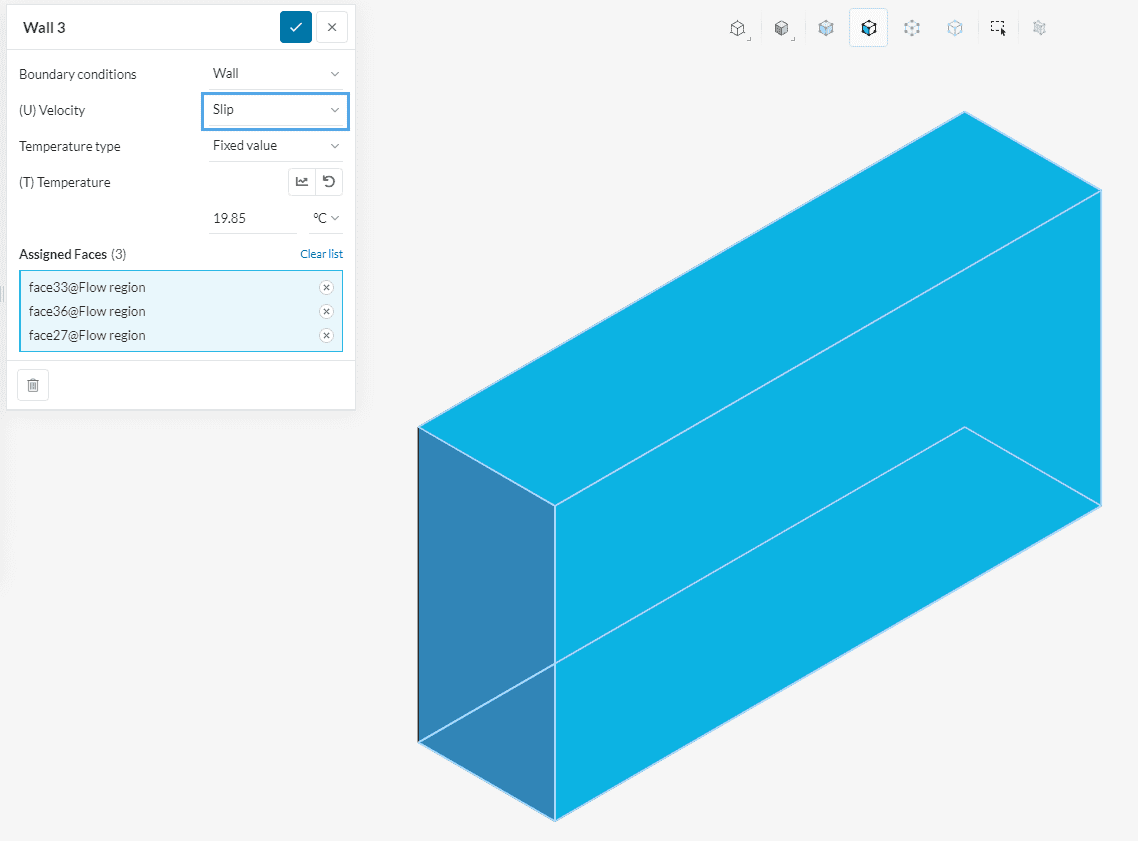

Add a Slip Wall boundary condition on the top, bottom, and right faces of the domain. Leave the symmetry plane unassigned.

slip walls assignment
Figure 24: Slip walls boundary condition.

d. Symmetry

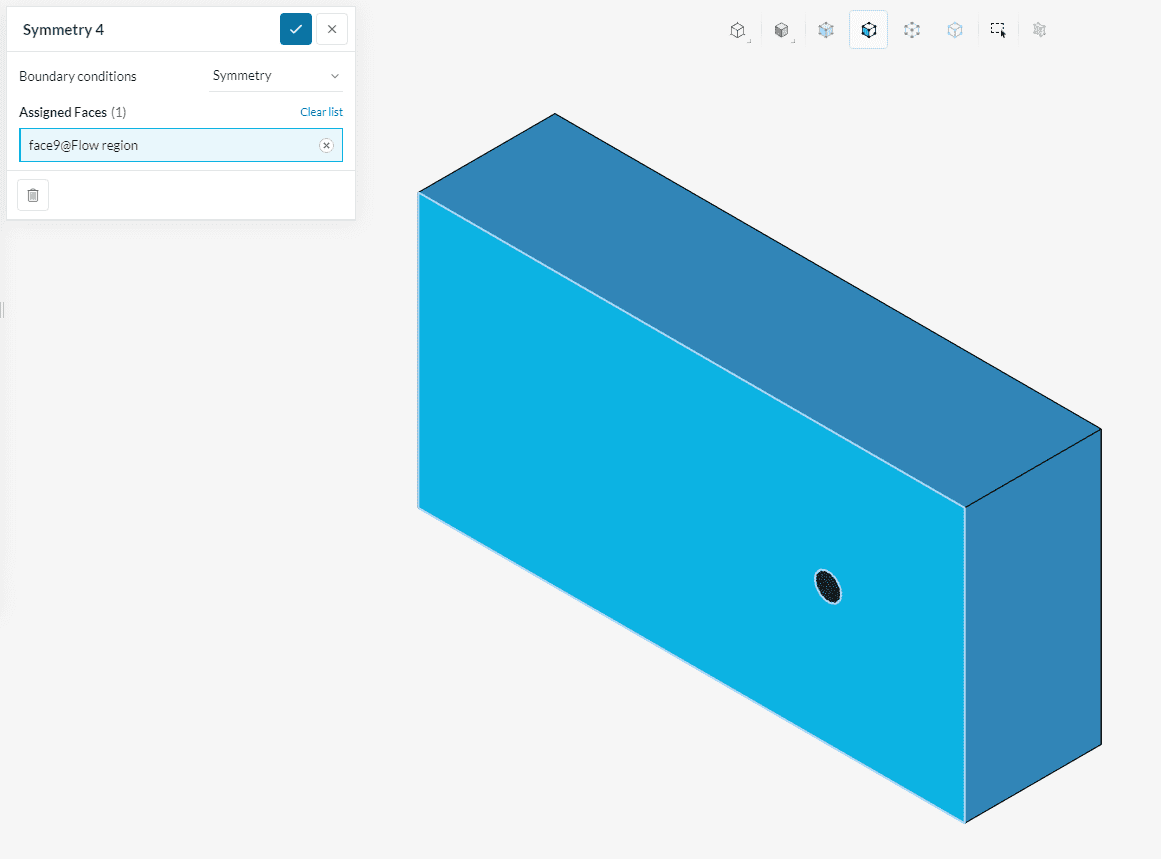

Assign a Symmetry condition on the symmetry cut plane. If you want to learn more about this boundary condition, click here.

symmetry condition assignment
Figure 25: Applying a symmetry boundary condition.

e. Rotating Walls

Did you know?

The golf ball rotates like the in following figure, thus the negative z direction is chosen for the rotation axis.

http://en.wikipedia.org/wiki/Magnus_effect

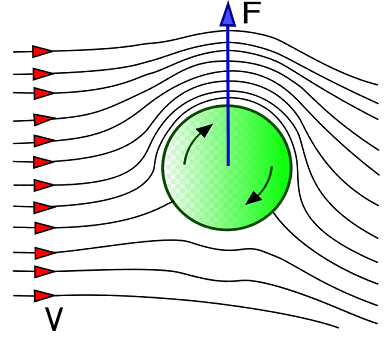

magnus effect of rotation of a ball
Figure 26 : Rotation of a golf ball.
Source: (http://en.wikipedia.org/wiki/Magnus_effect [2])

We will define the condition according to the spin rate of an average male golf player. Create a new ‘wall’ boundary condition:

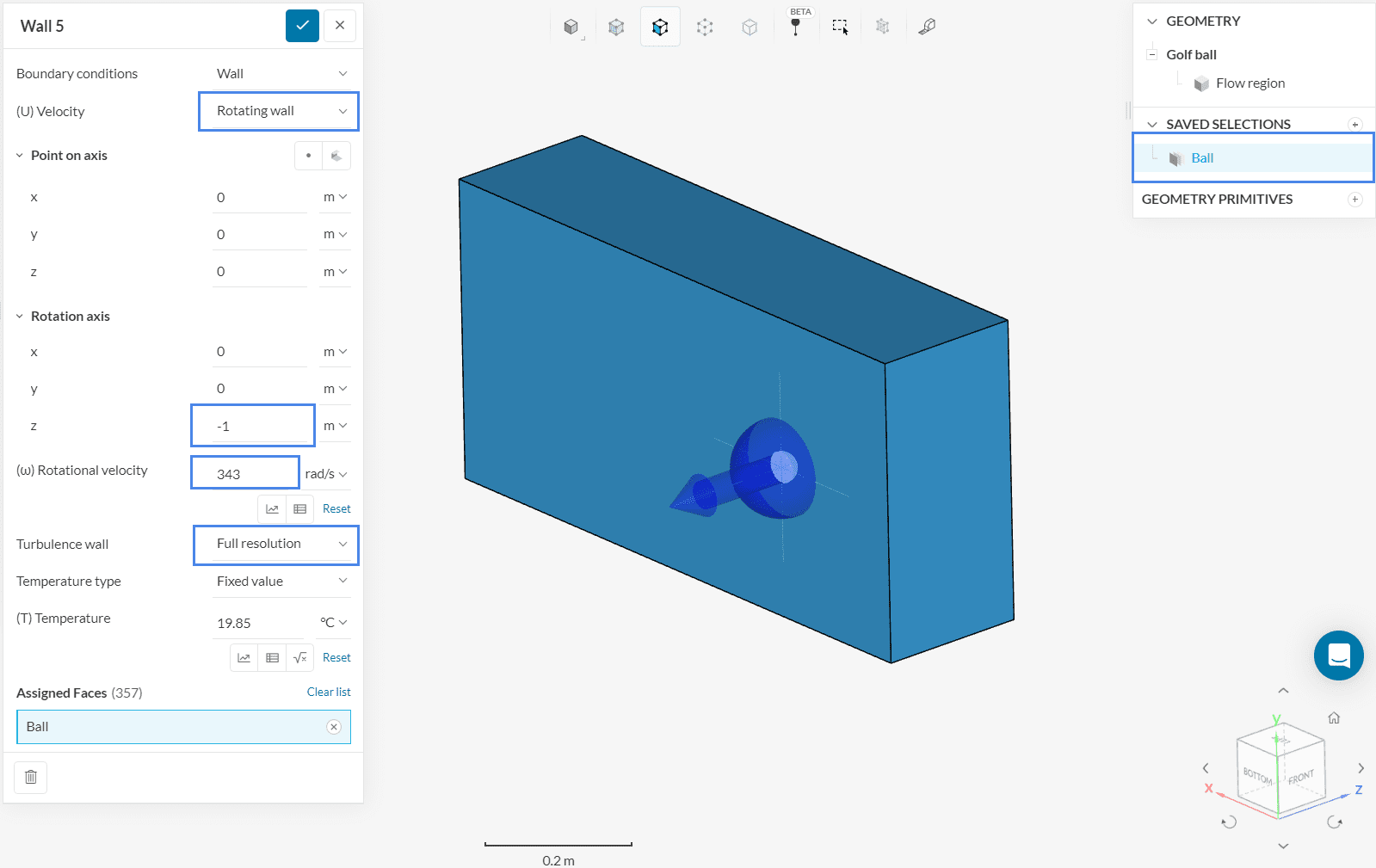

assign topological entity golf ball
Figure 27: Assigning the boundary condition to the topological entity of the golf ball.
  • Select ‘Rotating wall’ for (U) Velocity.
  • Set the Turbulence wall to ‘full resolution’.
  • The spin rate of an average male golf player (rotational velocity) is 343 \(rad \over \ s \) [1].
  • According to the coordinate system, we need to orientate it on the negative z-direction.
  • Assign it to the topological entity set of the golf ball by clicking on it as you can see below:

2.3. Simulation Control & Numerics

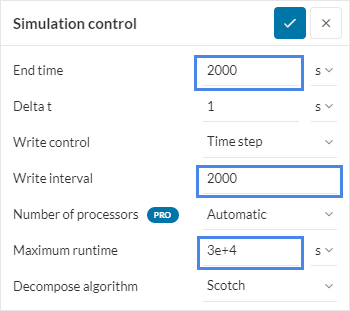

Fill the simulation control panel parameters like below:

simulation control properties
Figure 28: Simulation control panel.

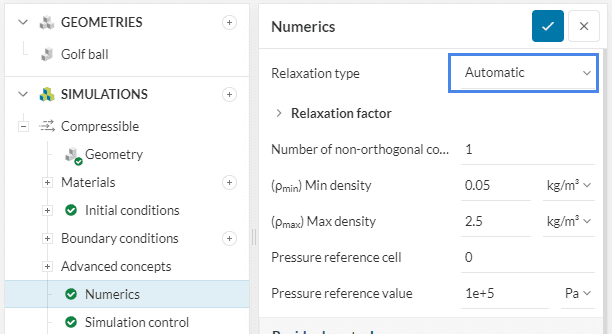

Under Numerics, please make sure that the Relaxation type is set to ‘Automatic’:

numerics relaxation factor golf ball tutorial
Figure 29: The relaxation type is directly correlated to convergence speed and simulation stability. An ‘Automatic relaxation’ works well for this tutorial.

3. Mesh

Access the global mesh settings by clicking on ‘Mesh’ in the simulation tree:

mesh standard algorithm automatic boundary layers fineness

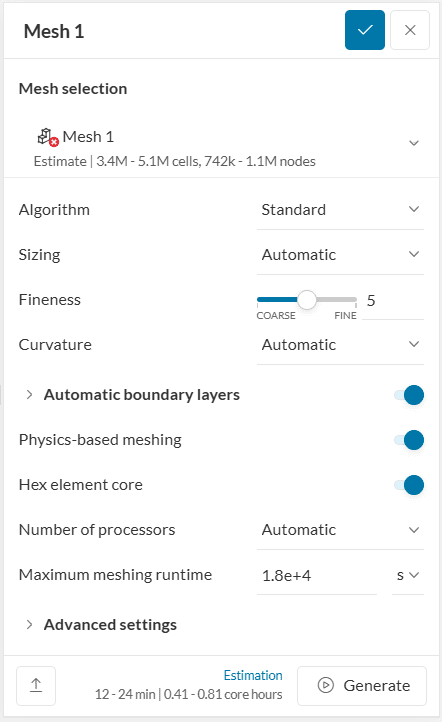

Figure 30: Mesh properties panel.

Choose the ‘Standard‘ algorithm, and keep the default settings.

3.1. Meshing Refinements

This project needs some mesh refinements in the region around the golf ball. If you want to learn more about using the Standard meshing tool, and using refinements, click on this.

a. Create Geometry Primitives

Prior to adding refinements, you must create some Geometry Primitives.

geometrical primitive creation

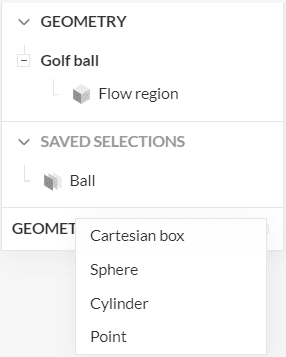

Figure 31: Creation of a new geometry primitive.
  • Click on the ‘+’icon under the Geometry Primitives in the GEOMETRY panel, at the right.
  • Choose the ‘Sphere‘ option.
geometrical primitive creation  sphere
Figure 32: Dimensions of the first spherical geometry primitive.
  • Name your entity, and define its’ center and 0.1 (m) radius.

Create a second Sphere primitive with a smaller radius (0.05 (m)):

geometrical primitive creation  sphere

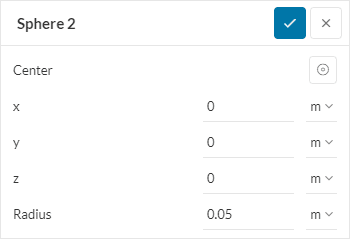

Figure 33: Dimensions of the second spherical geometry primitive.

b. Assign Region Refinements to the Spheres

In order to add mesh refinement regions, click on ‘+’ icon next to Refinements under Mesh:

region refinement new standard mesh

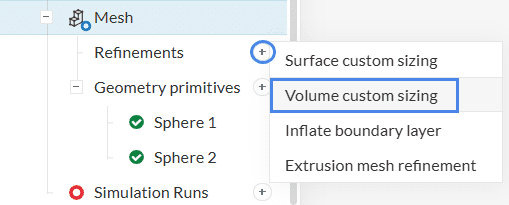

Figure 34 : Adding region refinements.

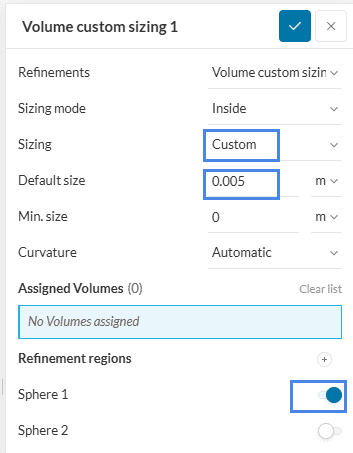

Add a region refinement to the first sphere:

sphere region refinement settings maximum edge length
Figure 35: Region refinement for the big spherical region.

And a second, finer region refinement to the smaller sphere, to create a denser mesh:

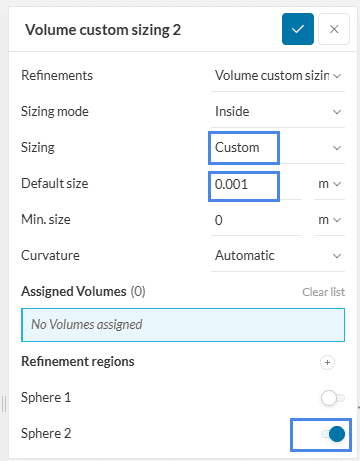

sphere region refinement settings maximum edge length
Figure 36: Region refinement for the small spherical region.

Watch out!

Do not click on the ‘Generate’ button after you are done with the mesh settings. Instead of generating the mesh at this point, it will be automatically created after you start the simulation run later on.

4. Start the Simulation

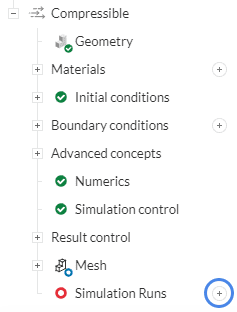

After all the settings are completed, proceed to clicking the ‘+’ icon next to the Simulation Runs, in order to get started with the computation. Initially, your mesh will be generated, and then the platform will go on with the run.

new simulation run simulation tree
Figure 37: Create a new simulation run

While the computation is running, you can have a look at the intermediate results in the post-processor.

Did you know?

Your results are being updated in real time! That means that you can already look into the intermediate results while the solver computes the final solution.

5. Post-Processing

5.1. Convergence Plot

When the simulation is completed, you can check the convergence of the simulation. You can access it under the completed run:

simulation run finished results convergence plot

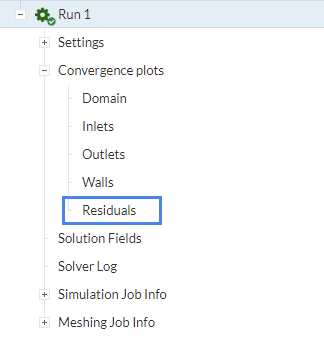

Figure 38: The residuals convergence plot can be seen under Convergence plots

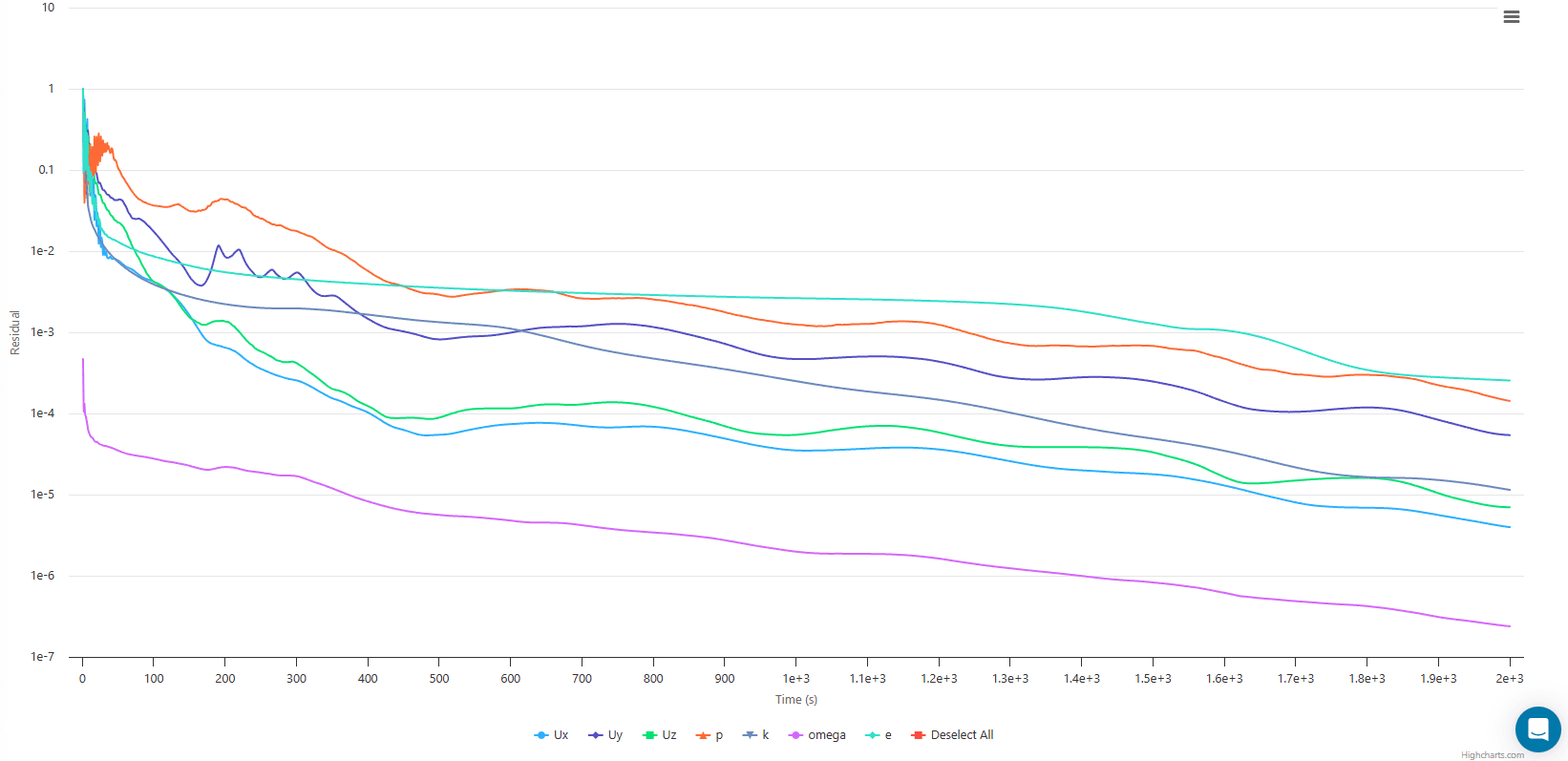

The convergence plot indicates whether the solution is reliable, or whether some changes should be made in the settings. For example, making the mesh finer, or increasing the simulation time. In the following picture you can see how the convergence of the residuals of your simulations will appear in the plot:

convergence plot variables of golf ball analysis
Figure 39: Convergence plot of the residuals for the involved flow variables

5.2 Surface Visualization

In order to view the results of your golf ball simulation, click on the ‘Solution Fields’ tab under your finished run. This will redirect you to the online graphical post-processor.

simulation run finished results solution fields
Figure 40: This time click on the ‘Solution Fields’ under the completed run, so you can access the post-processing environment.

You can use several post-processing filters to further analyze the results. For instance, if you wish to see the pressure distribution on your golf ball :

  • Make sure the post-processor shows the results for the final timestep – 2000 \(sec\)-;
  • Go to the Parts Color and choose ‘Pressure’ from the Coloring drop-down menu. When entering the post-processor, the whole model may be colored with this parameter at default. Feel free to change the parameter if you wish;
  • Delete the default Cutting Plane filter with the trash-can icon, if any.

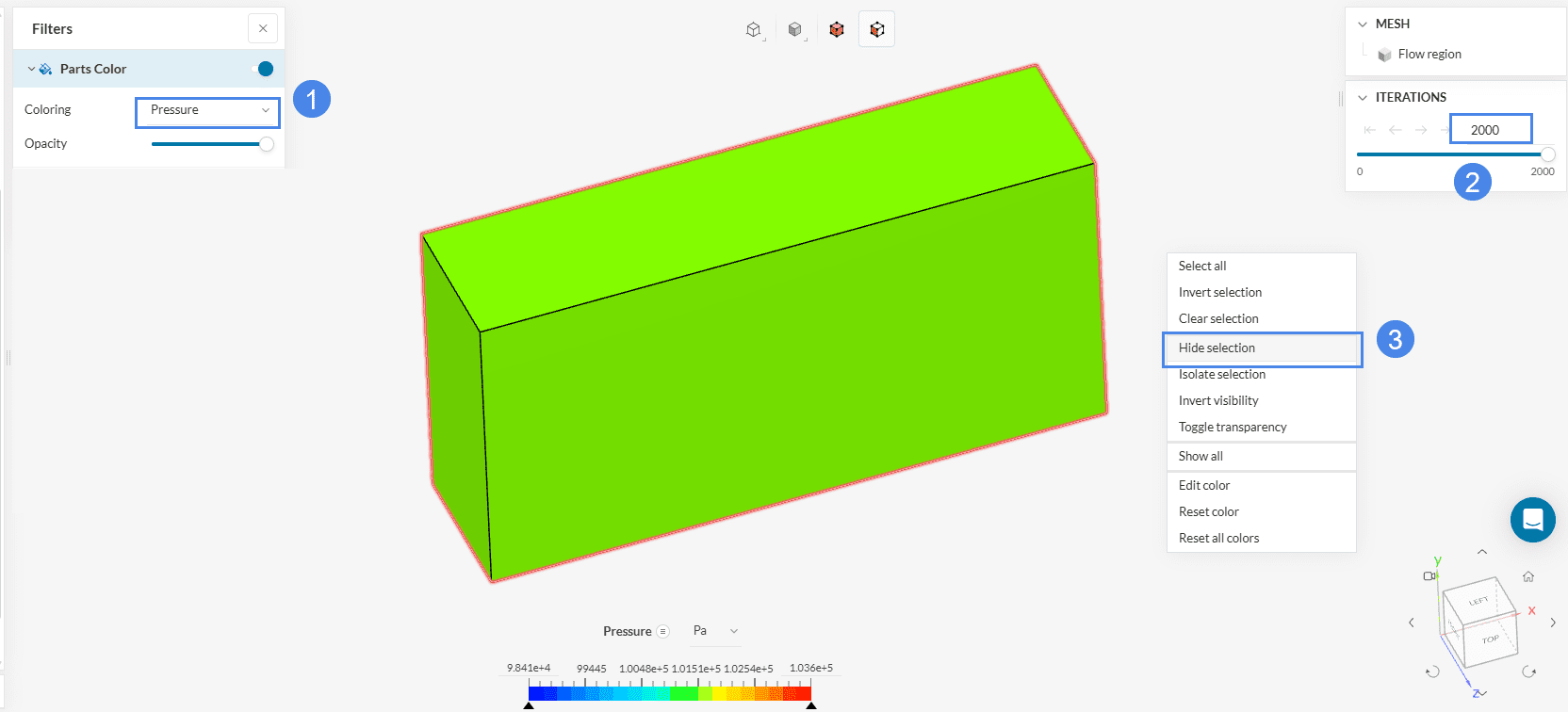

  • Click on the faces of the flow region, then right-click on the Workbench, and choose the ‘Hide selection’ option:
select walls and hide them to show pressure distribution on the golf ball
Figure 41: To see the pressure distribution across the ball, the domain walls must be hidden.

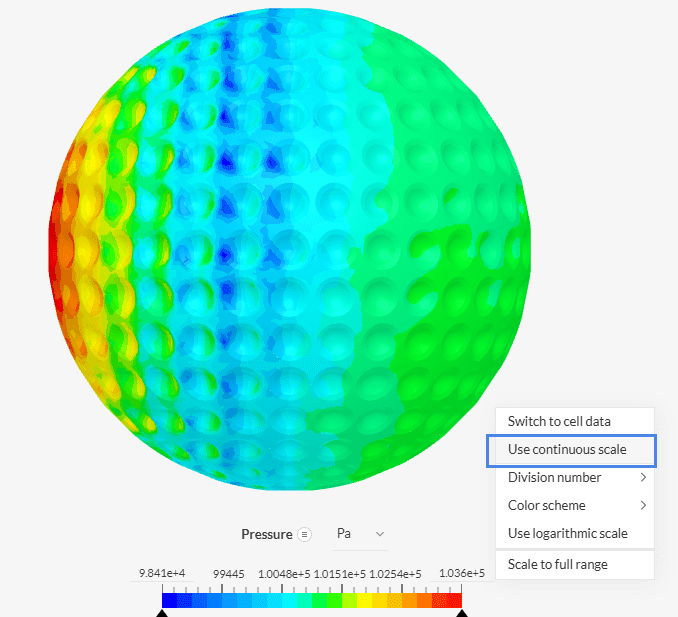

Make sure to right-click on the color scale at the bottom of the screen and select the ‘Use continuous scale option’, for smoother transition between color contours:

continuous legend pressure distribution results post processor golf ball
Figure 42: Applying the continuous legend feature on the pressure results in a smoother display of the value distribution on the surface.

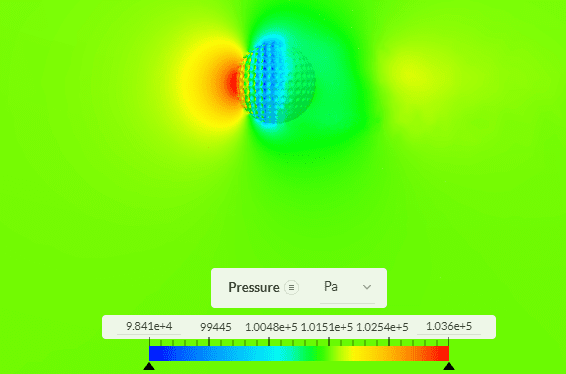

This is how the results will appear afterwards, if you include the symmetry plane too:

continuous legend pressure distribution on golf ball and symmetry plane
Figure 43: The pressure distribution on the symmetry plane and the golf ball with the use of the continuous scale

It is seen that at the front of the ball, an area of high pressure is created, and a low-pressure region is observed at the back. As the velocity is decelerating when reaching the back of the ball, there is flow separating, resulting in this low-pressure area.

5.3 Streamlines

Finally, for streamline visualization, select ‘Particle Trace’ from the top bar:

adding a new filter particle trace
Figure 44: Selecting ‘Particle Trace’ from the Filters panel to add a new set
  • Click on the circle icon next to Pick Position;
  • Apply the seed point on the inlet face, as close to the symmetry face and the center of the y-axis as possible;
  • The # Seeds horizontally represents the number of streamline rows along the z-axis. Set it to ‘2’. The # Seeds vertically represents the number of rows along the y-axis. Make sure it is big enough that it covers the whole y dimension of the domain. An input of ‘100′ should be fine for this case;
  • Select ‘Velocity Magnitude’ as Coloring;
  • For this case, you can optionally have the Trace both directions option disabled, as the flow here travels from the inlet only towards the positive x-direction.
seed point particle tracer post processor golf ball

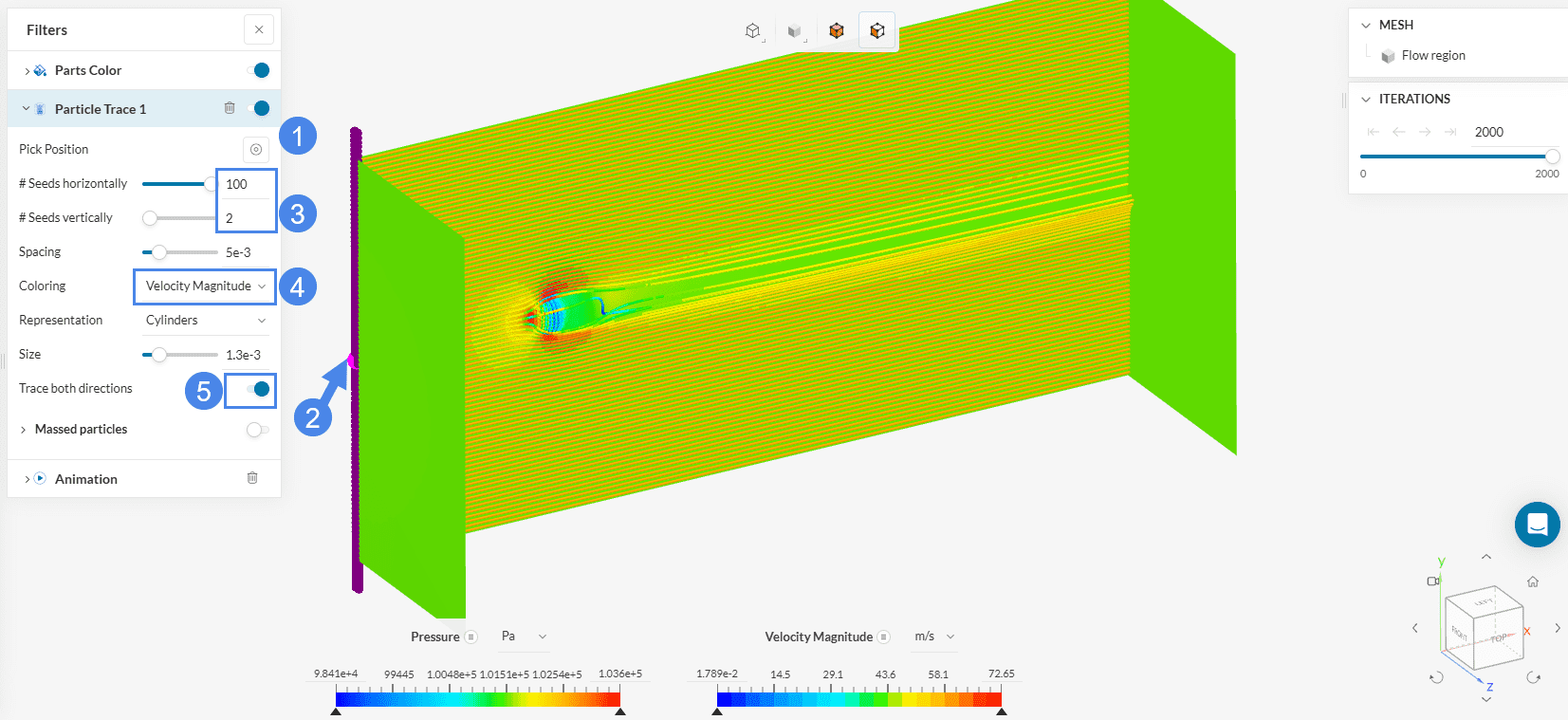

Figure 45: Setting the particle trace seeds near the symmetry plane so they are created as a slice of horizontally aligned streamlines colored with the velocity values.

With these settings, this is how the streamlines will finally appear:

particle trace filter post processor streamlines around golf ball

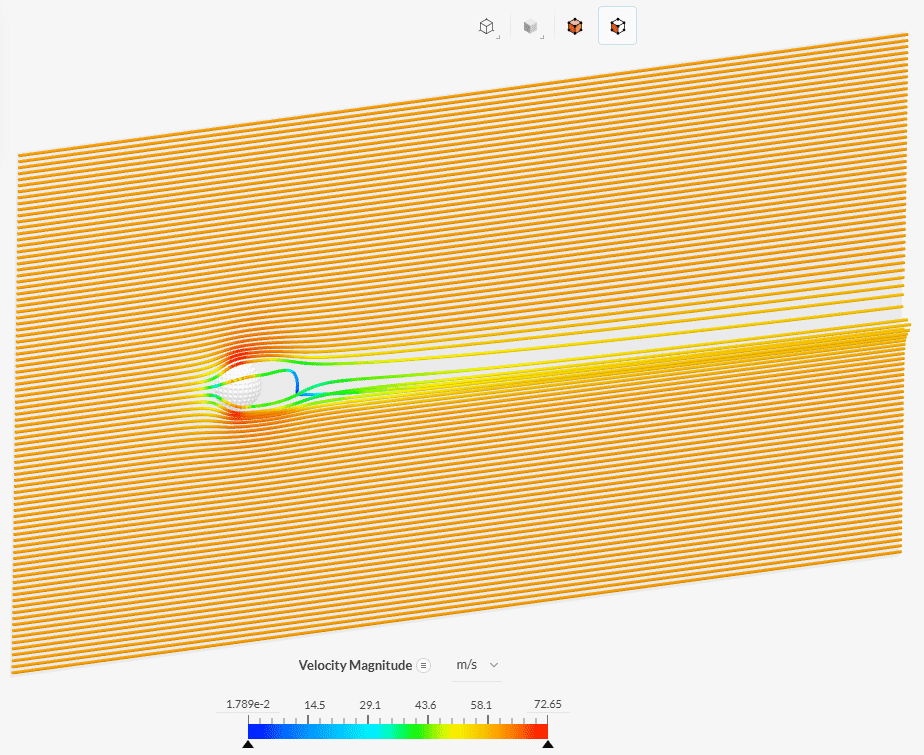

Figure 46: The resulting streamlines colored in the velocity values present the flow behavior before, during, and after encountering the object.

In Figure 46, the behavior of the flow can be observed. The decrease in velocity is obvious in the downstream, where low pressure was previously noticed (Figure 43). Towards the end of the domain, the streamlines gradually tend to become parallel again, reaching ambient conditions.

5.4 Animation

Animations can be started by choosing ‘Animation’ from the Filters panel:

adding a new animation as filter
Figure 47: The Filters panel contains an ‘Animation’ option that you must pick.

Click the play button to start the animation. Below is an example of animating the streamlines, colored with the velocity magnitude:

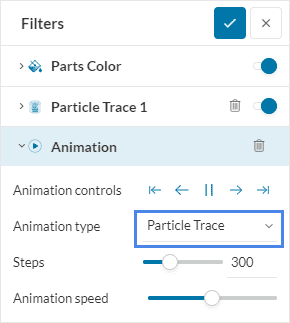

Figure 48: Change the Animation type to Particle Trace to animate the streamlines.
animation streamlines velocity magnitude
Animation 1: With the streamlines animation, you can monitor the gradual flow behavior around the golf ball.

For more information, have a look at our post-processing guide to learn how to use the post-processor.
Congratulations! You finished the tutorial!

Note

If you have questions or suggestions, please reach out either via the forum or contact us directly.

In this tutorial, a compressible aerodynamic simulation of a golf ball is performed.

golf ball streamlines results
Figure 1: Visualization of the pressure distribution across streamlines that flow around the golf ball.

This tutorial teaches how to:

  • Set up and run a compressible simulation
  • Assign topological entity sets in SimScale
  • Assign boundary conditions, material and other properties to the simulation
  • Mesh with the SimScale standard meshing algorithm

We are following the typical SimScale workflow:

  1. Prepare the CAD model for the simulation
  2. Set up the simulation
  3. Create the mesh
  4. Run the simulation and analyze the results

Attention!

This tutorial performs simulation with the Compressible analysis type which is only accessible to users with a Professional plan and those who are already on the Community plan. New Community users or those recently downgraded to the Community plan will not longer be able to perform this tutorial. See our pricing page to request additional features.

1. Prepare the CAD Model and Select the Analysis Type

1.1.Import the CAD Model Into Your Workbench

First of all click the button below. It will copy the tutorial project containing the geometry into your own Workbench.

The following picture demonstrates what should be visible after importing the tutorial project.

import cad workbench
Figure 2: Imported CAD model of the golf ball in the SimScale Workbench.

1.2. CAD Mode

The first step for this simulation is the creation of a flow region volume. This will be the domain used for the external CFD analysis. To enter the CAD mode, click the ‘Edit in CAD mode’ button as shown in the picture:

Figure 3: Clicking on this button will redirect you to the CAD mode interface.

Select ‘Create – Flow volume’, from the top bar:

top menu of CAD mode containing all the operation options
Figure 4: All of the available features are located at the top of the page.

The ‘External’ option that is listed on the drop down menu is used to create the flow domain around the model:

flow volume options on the CAD Mode external and internal
Figure 5: There are two available options for the flow volume extraction depending on the type of analysis. For external aerodynamics use ‘External’.

Then, fill in the dimensions of the domain like shown below. Here, L represents the diameter of the golf ball:

enclosure reference length
Figure 6: The size of the domain according to the reference length of the model.

In more details, the dimensions of the domain are as follows. Notice that only half of the domain is included, to leverage the symmetry of the model and save con computational resources. After you apply the dimensions, click on ‘Seed face’, and proceed to select a face of the ball that is inside the domain:

the sizing and seed face for the enclosure creation around a golf ball
Figure 7: The dimensions and seed face inside the enclosure.

After you are done, click ‘Apply‘. Then select the ‘Delete’ feature next to the Body section, to remove the solid part representing the ball:

deleting the solid body from the model so the flow region is the only part used for the incompressible analysis
Figure 8: The ball must also be removed from the model, so only the flow region remains.

Select the solid body from the scene tree on the right and click ‘Apply’:

deleting the ball after selecting it from the geometry tree.
Figure 9: Removal of the solid ball using the geometry tree in the CAD mode.

When the operation is finished and the ball is removed, click on the ‘Export’ button at the top right so the edits are saved and imported into the Workbench:

finishing with the CAD mode operations and exiting the interface to proceed with the set up
Figure 10: Go back to the Workbench when only the flow region is present, and the space where the solid part was located is now empty.

When the Workbench loads, another geometry will appear. It corresponds to the updated copy of the original model, after the CAD mode operations. You can delete the initial version:

delete original CAD model after CAD mode edit
Figure 11: Deleting the CAD model can help avoid confusion between different versions.

Then, rename the new version as ‘Golf ball’:

rename the new CAD model after CAD Mode
Figure 12: To rename the new version, click on the old name and edit.

1.3. Create Topological Entities

Create a topological entity set for the golf ball surface:

  • Hide the walls of the flow volume by selecting each one of them (6 in total) from the 3D viewer, then right-click, then choose the ‘Hide selection’ option from the drop-down menu.
enclosure faces hide selection workbench
Figure 13: Hiding the walls of the domain
  • Activate the box selection at the top of the page.
  • Drag it across the model until all the faces are selected.
  • Click on the ‘+’ next to the Topological Entity Sets.
  • Name your new set ‘Ball’ and click the ‘Create new set’ button.
add topological entity set golf ball
Figure 14: Adding a topological entity set containing all the faces of the golf ball.

1.4. Create the Simulation

After you finish with the topological entity set, proceed to click the ‘Create simulation‘ option to get started.

create simulation around golf ball
Figure 15: Creating a new simulation.

Select the ‘Compressible‘ analysis, which is used for cases where the Mach number in any point of the domain reaches a value bigger than 0.3. This golf ball simulation will be using a high velocity, so the compressible analysis is the best fitting.

compressible fluid flow
Figure 16: The compressible fluid flow analysis type.

Switch the Turbulence model to ‘k-omega SST‘ in the panel that appears:

simulation properties turbulence model k-omega SST
Figure 17: Choosing the k-omega SST turbulence model for the compressible CFD analysis.

2. Assigning the Material and Boundary Conditions

Now we will set up the physics for the simulation.

2.1. Define a Material

In this simulation, we want to analyze the airflow around a solid body. Therefore we need to assign properties to the fluid region. Click on the ‘+’ icon next to the Materials option of the simulation tree on the left panel, then choose ‘Air‘ in Material pop up, and finally Apply:

air assignment
Figure 18: Material list for a compressible fluid flow analysis.

The flow region that was created in the CAD mode at the beginning of the tutorial is automatically selected for the material, because it is the only one present.

material assignment region air
Figure 19: Properties of air for the flow region material assignment.

Just confirm the selection by hitting the check button at the top of the panel. You can also create a custom fluid by changing the parameters and giving it a proper name.

2.2. Assign the Boundary Conditions

In order to assign Boundary Conditions on the model, click on the ‘+’ icon next to the Boundary Conditions, and select the types described in this section.

add boundary condition simulation tree
Figure 20: Adding a boundary condition.

The following picture shows an overview of the boundary conditions used in this simulation:

overview boundary conditions compressible simulation of a golf ball
Figure 21: Overview of the boundary conditions for the golf ball.

a. Velocity Inlet

Assign a ‘Velocity Inlet‘ of 59 \(m/s\). This value is close to the Ball Speed that an average male golf player achieves[1].

velocity inlet fixed value
Figure 22: Velocity inlet for the airflow around the golf ball.

b. Pressure Outlet

Assign a ‘Pressure Outlet‘ condition of 101 325 (Pa) at the highlighted face below:

pressure outlet assignment
Figure 23: Pressure outlet boundary condition.

c. Slip Walls

Add a Slip Wall boundary condition on the top, bottom, and right faces of the domain. Leave the symmetry plane unassigned.

slip walls assignment
Figure 24: Slip walls boundary condition.

d. Symmetry

Assign a Symmetry condition on the symmetry cut plane. If you want to learn more about this boundary condition, click here.

symmetry condition assignment
Figure 25: Applying a symmetry boundary condition.

e. Rotating Walls

Did you know?

The golf ball rotates like the in following figure, thus the negative z direction is chosen for the rotation axis.

http://en.wikipedia.org/wiki/Magnus_effect
magnus effect of rotation of a ball
Figure 26 : Rotation of a golf ball.
Source: (http://en.wikipedia.org/wiki/Magnus_effect [2])

We will define the condition according to the spin rate of an average male golf player. Create a new ‘wall’ boundary condition:

assign topological entity golf ball
Figure 27: Assigning the boundary condition to the topological entity of the golf ball.
  • Select ‘Rotating wall’ for (U) Velocity.
  • Set the Turbulence wall to ‘full resolution’.
  • The spin rate of an average male golf player (rotational velocity) is 343 \(rad \over \ s \) [1].
  • According to the coordinate system, we need to orientate it on the negative z-direction.
  • Assign it to the topological entity set of the golf ball by clicking on it as you can see below:

2.3. Simulation Control & Numerics

Fill the simulation control panel parameters like below:

simulation control properties
Figure 28: Simulation control panel.

Keep the settings under Numerics as default:

manual compressible numerics default settings
Figure 29: The relaxation type is directly correlated to convergence speed and simulation stability. The default relaxation type works well for this tutorial.

3. Mesh

Access the global mesh settings by clicking on ‘Mesh’ in the simulation tree:

mesh standard algorithm automatic boundary layers fineness
Figure 30: Mesh properties panel.

Choose the ‘Standard‘ algorithm, and keep the default settings.

3.1. Meshing Refinements

This project needs some mesh refinements in the region around the golf ball. If you want to learn more about using the Standard meshing tool, and using refinements, click on this.

a. Create Geometry Primitives

Prior to adding refinements, you must create some Geometry Primitives.

geometrical primitive creation
Figure 31: Creation of a new geometry primitive.
  • Click on the ‘+’icon under the Geometry Primitives in the GEOMETRY panel, at the right.
  • Choose the ‘Sphere‘ option.
geometrical primitive creation  sphere
Figure 32: Dimensions of the first spherical geometry primitive.
  • Name your entity, and define its’ center and 0.1 (m) radius.

Create a second Sphere primitive with a smaller radius (0.05 (m)):

geometrical primitive creation  sphere
Figure 33: Dimensions of the second spherical geometry primitive.

b. Assign Region Refinements to the Spheres

In order to add mesh refinement regions, click on ‘+’ icon next to Refinements under Mesh:

region refinement new standard mesh
Figure 34 : Adding region refinements.

Add a region refinement to the first sphere:

sphere region refinement settings maximum edge length
Figure 35: Region refinement for the big spherical region.

And a second, finer region refinement to the smaller sphere, to create a denser mesh:

sphere region refinement settings maximum edge length
Figure 36: Region refinement for the small spherical region.

Watch out!

Do not click on the ‘Generate’ button after you are done with the mesh settings. Instead of generating the mesh at this point, it will be automatically created after you start the simulation run later on.

4. Start the Simulation

After all the settings are completed, proceed to clicking the ‘+’ icon next to the Simulation Runs, in order to get started with the computation. Initially, your mesh will be generated, and then the platform will go on with the run.

new simulation run simulation tree
Figure 37: Create a new simulation run

While the computation is running, you can have a look at the intermediate results in the post-processor.

Did you know?

Your results are being updated in real time! That means that you can already look into the intermediate results while the solver computes the final solution.

5. Post-Processing

5.1. Convergence Plot

When the simulation is completed, you can check the convergence of the simulation. You can access it under the completed run:

simulation run finished results convergence plot
Figure 38: The residuals convergence plot can be seen under Convergence plots

The convergence plot indicates whether the solution is reliable, or whether some changes should be made in the settings. For example, making the mesh finer, or increasing the simulation time. In the following picture you can see how the convergence of the residuals of your simulations will appear in the plot:

convergence plot variables of golf ball analysis
Figure 39: Convergence plot of the residuals for the involved flow variables

5.2 Surface Visualization

In order to view the results of your golf ball simulation, click on the ‘Solution Fields’ tab under your finished run. This will redirect you to the online graphical post-processor.

simulation run finished results solution fields
Figure 40: This time click on the ‘Solution Fields’ under the completed run, so you can access the post-processing environment.

You can use several post-processing filters to further analyze the results. For instance, if you wish to see the pressure distribution on your golf ball :

  • Make sure the post-processor shows the results for the final timestep – 2000 \(sec\)-;
  • Go to the Parts Color and choose ‘Pressure’ from the Coloring drop-down menu. When entering the post-processor, the whole model may be colored with this parameter at default. Feel free to change the parameter if you wish;
  • Delete the default Cutting Plane filter with the trash-can icon, if any.
  • Click on the faces of the flow region, then right-click on the Workbench, and choose the ‘Hide selection’ option:
select walls and hide them to show pressure distribution on the golf ball
Figure 41: To see the pressure distribution across the ball, the domain walls must be hidden.

Make sure to right-click on the color scale at the bottom of the screen and select the ‘Use continuous scale option’, for smoother transition between color contours:

continuous legend pressure distribution results post processor golf ball
Figure 42: Applying the continuous legend feature on the pressure results in a smoother display of the value distribution on the surface.

This is how the results will appear afterwards, if you include the symmetry plane too:

continuous legend pressure distribution on golf ball and symmetry plane
Figure 43: The pressure distribution on the symmetry plane and the golf ball with the use of the continuous scale

It is seen that at the front of the ball, an area of high pressure is created, and a low-pressure region is observed at the back. As the velocity is decelerating when reaching the back of the ball, there is flow separating, resulting in this low-pressure area.

5.3 Streamlines

Finally, for streamline visualization, select ‘Particle Trace’ from the top bar:

adding a new filter particle trace
Figure 44: Selecting ‘Particle Trace’ from the Filters panel to add a new set
  • Click on the circle icon next to Pick Position;
  • Apply the seed point on the inlet face, as close to the symmetry face and the center of the y-axis as possible;
  • The # Seeds horizontally represents the number of streamline rows along the z-axis. Set it to ‘2’. The # Seeds vertically represents the number of rows along the y-axis. Make sure it is big enough that it covers the whole y dimension of the domain. An input of ‘100′ should be fine for this case;
  • Select ‘Velocity Magnitude’ as Coloring;
  • For this case, you can optionally have the Trace both directions option disabled, as the flow here travels from the inlet only towards the positive x-direction.
seed point particle tracer post processor golf ball
Figure 45: Setting the particle trace seeds near the symmetry plane so they are created as a slice of horizontally aligned streamlines colored with the velocity values.

With these settings, this is how the streamlines will finally appear:

particle trace filter post processor streamlines around golf ball
Figure 46: The resulting streamlines colored in the velocity values present the flow behavior before, during, and after encountering the object.

In Figure 46, the behavior of the flow can be observed. The decrease in velocity is obvious in the downstream, where low pressure was previously noticed (Figure 43). Towards the end of the domain, the streamlines gradually tend to become parallel again, reaching ambient conditions.

5.4 Animation

Animations can be started by choosing ‘Animation’ from the Filters panel:

adding a new animation as filter
Figure 47: The Filters panel contains an ‘Animation’ option that you must pick.

Click the play button to start the animation. Below is an example of animating the streamlines, colored with the velocity magnitude:

Figure 48: Change the Animation type to Particle Trace to animate the streamlines.
animation streamlines velocity magnitude
Animation 1: With the streamlines animation, you can monitor the gradual flow behavior around the golf ball.

For more information, have a look at our post-processing guide to learn how to use the post-processor.
Congratulations! You finished the tutorial!

Note

If you have questions or suggestions, please reach out either via the forum or contact us directly.

Last updated: November 25th, 2021

Contents
Data Privacy
