Solenoid Simulation Software

Solenoid Simulation. Magnetic Field, Force & Coupled-Physics FEA

Simulate solenoid force, magnetic field distribution, and pull-in dynamics for valves, actuators, and bistable designs, coupled with fluid and structural physics, on an AI-native cloud platform.

Solenoid simulation
Trusted by 900,000+ engineers worldwide

Solenoid iteration is slow when it depends on specialist EM tools and hardware. SimScale opens it to any design engineer. Run parametric sweeps across geometry and operating conditions in parallel, and reach sign-off in days, not weeks.

Why SimScale for Solenoid Simulation

solenoid simulation

Multiphysics Electromagnetic, fluid, and structural in platform

Run magnetostatics alongside coupled thermal analysis, structural FEA, and CFD for valve flow — all from a single SimScale project, without exporting geometry or switching tools.

Solenoid simulation with Engineering AI

Engineering AI

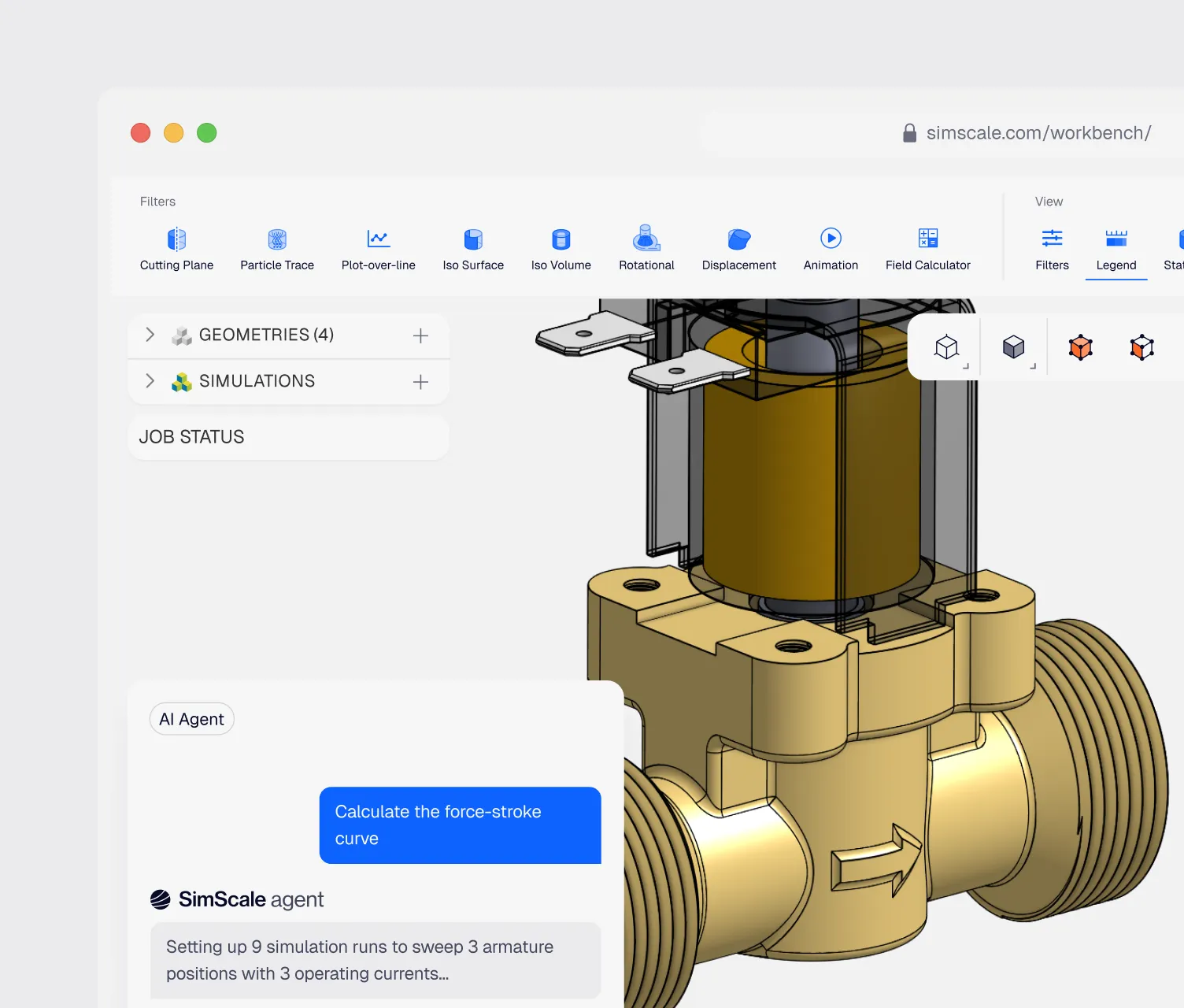

Get more from your engineering expertise. SimScale’s Engineering AI handles the mechanics of simulation setup — meshing, boundary condition configuration, solver tuning — so engineering time goes into interpreting results and making design decisions rather than managing software. Sophisticated multiphysics workflows that would previously require dedicated CAE resource can be orchestrated by the design team directly, compressing the feedback loop between simulation insight and design iteration.

Cloud-native scale

Cloud-scale compute that turns parametric studies from a bottleneck into a differentiator. On local hardware, a force-stroke sweep or geometry optimisation study means queuing runs sequentially and waiting. On SimScale, every variant runs simultaneously on cloud infrastructure — so a study that would take a week on a workstation completes in hours. Scale up or down on demand, with no hardware investment and no licence ceiling.

results of an electromagnetic simulation of a solenoid on the effects on the plunger

Electromagnetics

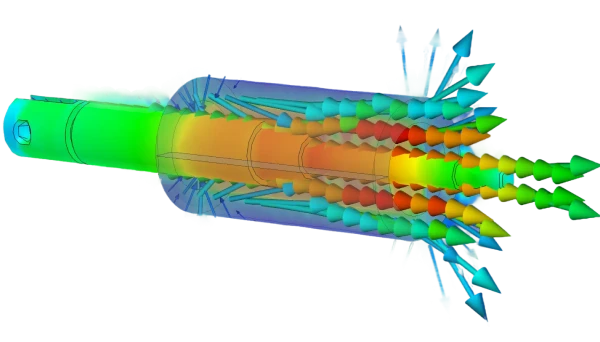

SimScale’s magnetostatics solver computes total flux, force-position characteristics, and field distribution by integrating the Maxwell stress tensor at the armature tip and air gap region. Use these results to assess pull-in force, holding force, and saturation behaviour across the full range of armature positions and excitation levels.

results of the thermal simulation of a solenoid

Thermal Management

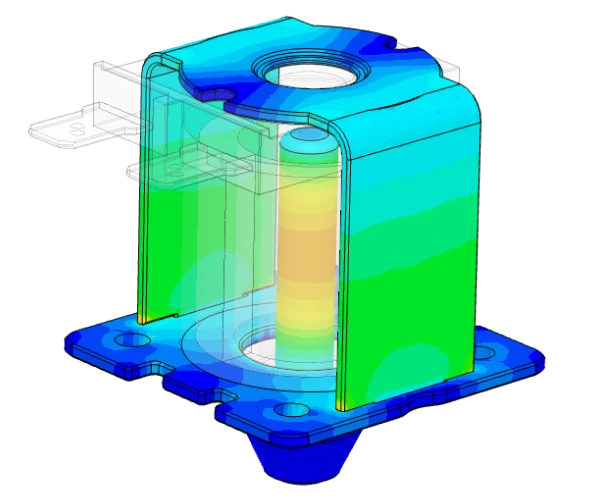

Copper winding resistance increases with temperature, directly affecting current draw and the magnetic force a solenoid can generate under sustained or high-duty-cycle operation. SimScale’s coupled electromagnetic-thermal analysis maps Joule heating as a heat source through the surrounding geometry, giving an accurate picture of steady-state operating temperature and the resulting force derating.

Fluid Flow Simulation through a solenoid valve

Fluid Control

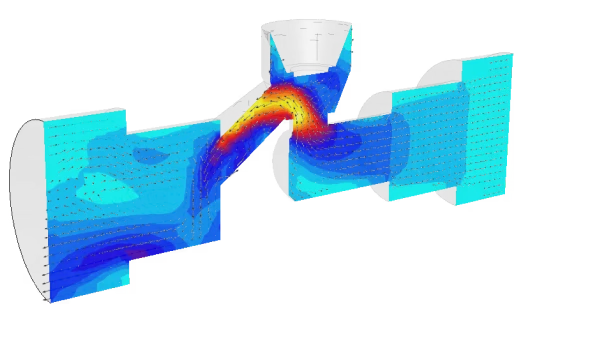

Once the solenoid’s actuation state is established, SimScale’s CFD solver models the resulting fluid flow through the valve — capturing pressure drop, flow rate, and cavitation across open, closed, and throttled positions. This makes it possible to validate both electromagnetic actuation and downstream hydraulic performance in a single platform, without needing a separate tool.
