Transformer Simulation Software
Cut transformer losses and optimize thermal performance with AI-native simulation
Simulate electromagnetic field distribution, predict core and copper losses, and validate cooling strategies for power and distribution transformers. Use Engineering AI to automate setup and Physics AI to eliminate solve time, all in a high-performance cloud environment.
Transformer development spans electromagnetic, thermal, and structural physics, often requiring separate tools and physical prototypes. SimScale unifies all three in the cloud. Teams can reduce core losses, optimize winding geometry, and validate cooling strategies without switching platforms.
Transformer simulation that covers your full design challenge

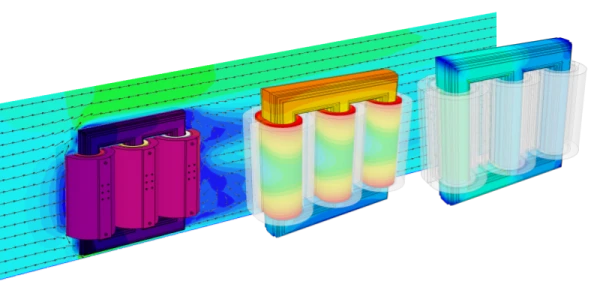

EM, thermal, structural, and fluid analysis in one platform

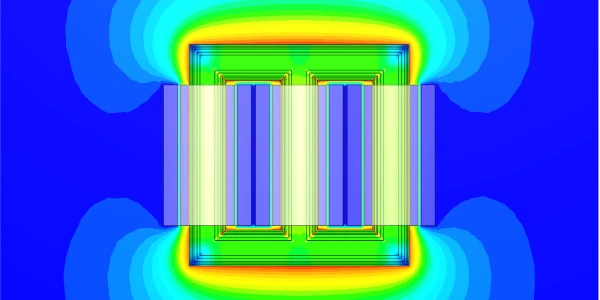

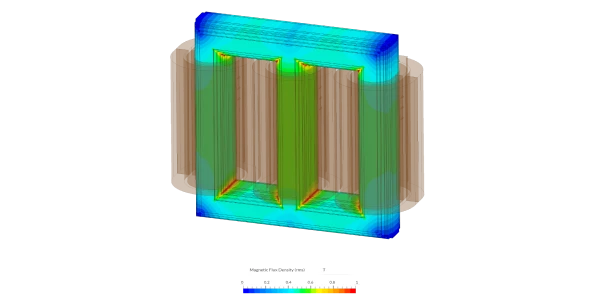

Visualize 3D flux distribution, compute eddy current and hysteresis losses, and evaluate dielectric safety margins — then map those losses directly onto thermal models to predict winding hotspots and optimize cooling. Add FEA to assess mechanical stress from short-circuit forces and magnetostriction.
AI-accelerated transformer setup and analysis
Automate meshing, setup, and analysis with Engineering AI — so engineers spend more time evaluating winding configurations, core materials, and cooling strategies, and less time clicking through options.
Cloud-native simulation — from any browser, at full scale
Import transformer geometry from SolidWorks, CATIA, Inventor, or any standard CAD format and run multiple designs, cooling configurations, or load cycles in parallel — from any web browser, no installation required. Share validated electromagnetic and thermal results with your design team or certification authority in real time.
Power & grid transformers
Predict voltage regulation, flux density, and loss distribution under real load cycles. Combine electromagnetic and thermal analysis to optimize cooling and assess long-term reliability.
Distribution & medium-voltage transformers
Evaluate material choices, lamination geometry, and winding arrangements to reduce core and copper losses while verifying insulation safety at rated voltage.
Power electronics & high-frequency transformers
Analyze skin and proximity effects, copper losses, and insulation stress in gate drive, converter isolation, and resonant transformer designs for EV powertrains and industrial drives.
Countless
Simulation integrated into transformer enclosure tender proposals
“Simulation allows us to present prospective clients with highly accurate, data-driven proofs of our ventilation strategies during the tender phase.”
Dr. Richard Wilson — Acoustic Design Engineer, Merford
Reduced
physical prototyping, faster time to market
“Due to the cloud-native nature of the solvers, the simulation speed is essentially a non-issue because I can add on more cores for faster simulation as needed. I can run 1, 2, or 20 simulations in parallel without worrying about hardware needs.”
Andrzej Tunkiel — Mechanical Team Lead, EASEE
2×
faster iteration cycles
“Getting speed, accuracy, usability, and cost efficiency in one package is hard to find anywhere else.”
Maximilian Güttinger — CEO & Co-founder, Emil Motors
Related resources
Heat pump simulation software: system models vs 3D CFD
System models size heat pumps and predict seasonal performance. 3D CFD checks the air they assume: recirculation, plume dispersion, fan pressure and indoor comfort.
Kanchan Garg
October 16, 2026
Mixing tank simulation: how to set up a stirred tank CFD model in 8 steps
Eight steps to set up a mixing tank simulation in CFD, from the rotating zone and mesh to power number, blend time and multiphase checks.
Alexander Fischer
October 14, 2026
Drop test simulation: how to set up a virtual drop test in 8 steps
Eight steps to set up a drop test simulation in FEA, from the test standard and impact velocity to contact stiffness, mesh, time step and result checks.
Jon Wilde
October 13, 2026
Luis Goncaves
August 4, 2026
Luis Goncaves
June 18, 2026
Luis Goncaves
January 27, 2026
Steve Lainé
October 9, 2026
Peter Selmeczy
September 28, 2026
Alex Graham
September 15, 2026
Peter Selmeczy
July 9, 2026
Peter Selmeczy
March 24, 2026
Peter Selmeczy
September 10, 2025
Peter Selmeczy
September 23, 2026
jwebster
September 15, 2026
FAQs
New to transformer simulation or evaluating SimScale? Here are the questions we hear most.
ContactSimScale supports power and grid transformers, distribution and medium-voltage transformers, dry-type transformers, oil-cooled transformers, and power electronics transformers including gate drive, converter isolation, and resonant designs.
Yes. SimScale models natural air cooling (AN), forced air cooling (AF), oil natural air natural (ONAN), oil natural air forced (ONAF), oil forced air forced (OFAF), and water-cooled systems — enabling complete cooling optimization for any transformer type.
Yes. SimScale couples electromagnetic, thermal, and structural simulation to analyze transformer temperature rise and cooling performance, thermal expansion and mechanical stresses, vibration and acoustic noise from magnetostriction, and electromagnetic-thermal-fluid interactions in oil-cooled designs.
Yes. SimScale's electromagnetic solver evaluates electric field distribution and dielectric stress in insulation systems under rated and overload voltage conditions, supporting high-voltage safety verification and compliance assessment.
No. SimScale is 100% cloud-native. Import your transformer CAD geometry and start simulating from any web browser with no installation.
