Heat Sink Design Simulation Tool

Cooling management for heat sink design.

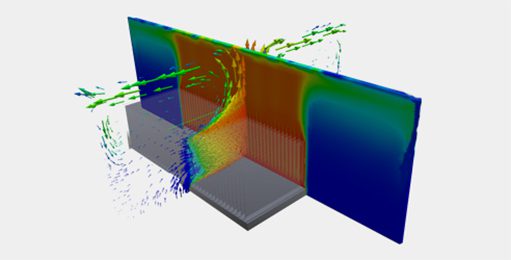

SimScale is a 100% cloud-based CAE software for heat sink design simulation that lets you test, validate, and optimize your designs through CFD, FEA, and Thermal analysis.

Heat sinks designs are imperative when it comes to the cooling of electronic components in order to maintain them under the maximum allowed operating temperature. Thermal management for these electronic components raises several challenges for heat sink designers and engineers. The challenges are related to the heat sink material such as thermal resistance and conductivity. One example is the decision of whether to use pin fin, staggered or flared heat sink for specific cooling requirements.

To assess their cooling efficiency, the classical approach of Design-Build-Test-Redesign is time-consuming and expensive. Designers are now turning to an effective method to virtually evaluate, test, and optimize designs for maximum cooling efficiency before they are built, saving production time and cost. Thermal simulations is the computerized method to study the heat dissipation efficiency of a heat sink both in the conceptual and detailed design stages. SimScale allows engineers to quickly analyze the heat sink design for thermal resistance and conductivity. Moreover, they can also compare various types that may include active, passive, stamped, single fin, or forged.

heat sink design simulation

Heat Sink Design: Thermal Resistance

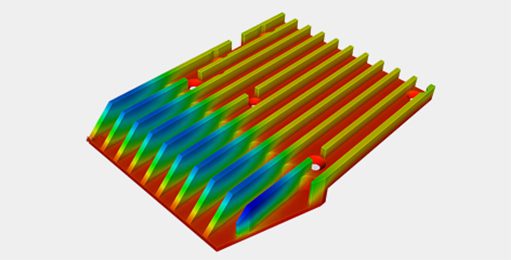

Determine the required air flow around a heat sink to enhance the thermal resistance for satisfying the thermal criteria.

 simscale sink design

Thermal Conductivity for Heat Sinks

Using SimScale, you can compare the performance of a heat sink with different materials to ensure better thermal conductivity for faster cooling. In this webinar focusing on conduction, learn how to use simulation to select the best heat sink design for an LED lighting system.

energy efficiency simulation simscale

Energy Efficiency for Heat Sink Designs

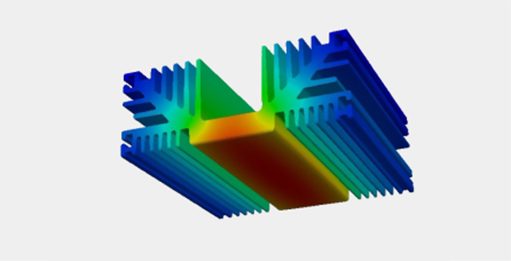

Energy efficiency is essential for an environment-friendly product. SimScale enables you to compare different design versions to obtain better results.

Subscriptions and access to thermal engineering simulation for every budget.

heat sink

Cooling Management

Ensure proper cooling of the design and determine if the ventilation is sufficient to safeguard and protect the components from overheating. With this white paper, find out how to develop the best cooling strategy for electronics.

heat dissipation simscale

Heat Dissipation

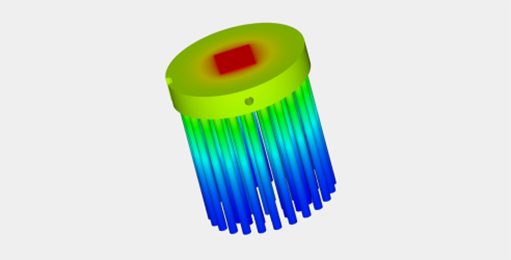

Decide whether passive cooling is sufficient to safeguard and protect the components from overheating or active cooling is required. This webinar recording focuses on electronic packaging cooling with online CFD.

thermal management webinar simscale

Thermal Management

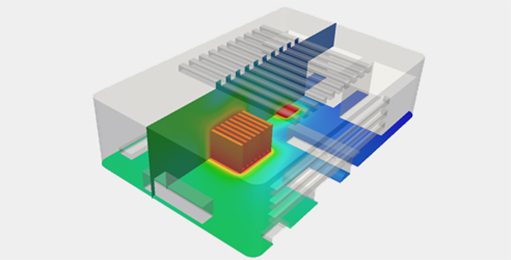

Studying heat transfer in solids (FEA), fluids (CFD) and the interaction between them (CHT) is necessary in thermal management processes. With this webinar, learn the basics of heat transfer and thermal analysis.

Browse through thousands of CFD simulations

The SimScale Community gives you access to completed public simulation projects

led case study thermal management simscale

Case Study: Heat Sink Cooling Performance

Assess Heat Sink Cooling Performance for Different LED Packages

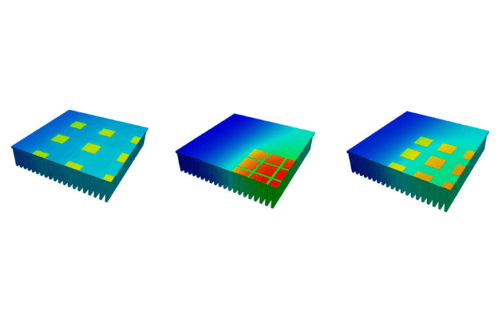

Common in consumer electronics, LEDs need to have a proper cooling mechanism, and they usually include a heat sink. This heat transfer analysis was performed on three different light emitting diode (LED) packages used in consumer electronics. Its focus was to evaluate the cooling performance for different LEDs array placement.

webinar convection

Convection: Cooling of Electronics

Simulation-Based Development of Electronics Architecture

Electronic chips are used in a wide range of electronic circuits. Power loss normally occurs in these chips due to the rise in temperature which decreases their efficiency. To be able to operate at maximum power and be reliable over time, designers need to make sure that the cooling architecture of heat sinks is appropriate for their energy consumption.

Christopher

I have used a lot of simulation packages over the past 25 years, including Nastran, Ansys, SolidWorks, and a whole host of others. I have been using SimScale for about nine months now and it has become my goto simulation tool. It allows me to run models larger than I have ever conceived on my own workstation.

Christopher Quijano Mechanical Engineer at MSA, United States

Technical Heat Sink Resources: Documentation & Validation Cases

Validation Case: Thermal Effects in High Power LED Packaging

Validation Case: Heat Transfer in an Electronics Design

Validation Case: Conjugate Heat Transfer – Rectangular Fins

Heat Transfer Documentation

Convective Heat Transfer Analysis

Thermal Management Tutorial: CHT Analysis of an Electronics Box

Learn more about our cloud-based capabilities, and how SimScale can automate and customize your heat sink designs with scalable simulation.
