    If you’ve been keeping up with SimScale this year, you know that our goal is to release more new features and to make more updates to existing platform functionalities than ever before. Last month, we released 8 updates that you can read all about in this blog. Since then, March has already brought an array of new features, 4 of these will be discussed below.

    Update One: 3D Result and Forces Output PwC Analyses

    Our customers already had access to 3D result export functionality from a single-directional Incompressible (LBM) analysis and this is now added to the multi-directional Pedestrian Wind Comfort setup. With a single setting, 3D results will be available for each individual wind direction, up to the maximum of 36.

    particle traces and an ISO surface of velocity shaded by pressure

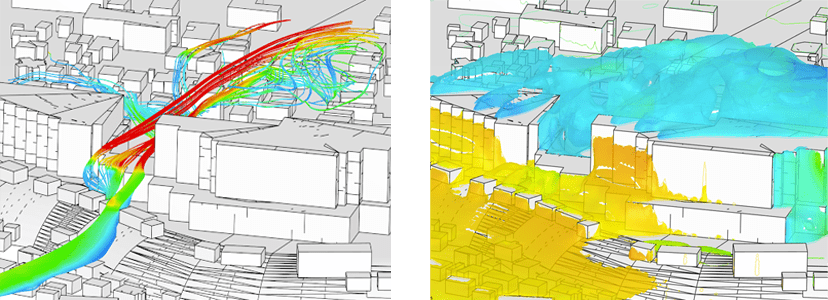

    Two images showing particle traces and an ISO surface of velocity shaded by pressure. Very useful in understanding where the air is traveling and why.

    Update Two: Updated Bulk Calculator

    When viewing results and selecting parts or cutting planes, a summary of the result fields is shown. As a recent update, this summary is now also split by the result region, enabling users to inspect the result summary individually per region.

    simscale bulk calculator

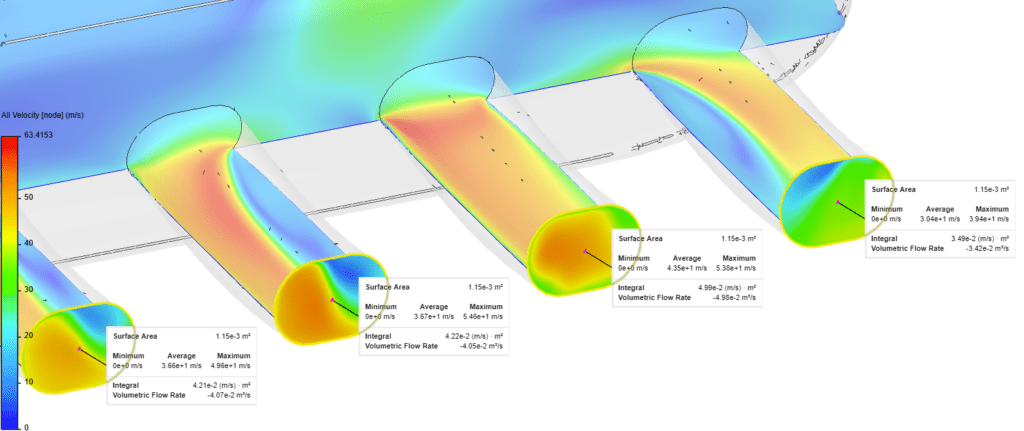

    This is an engine inlet manifold and we can quickly assess the flow rate through each of the individual inlets with a single cut plane.

    Update Three: Porous Media for PwC and LBM

    When using the Pedestrian Wind Comfort analysis type, our customers now have the possibility to model trees. With built-in tree models based on a library of tree species SimScale makes it extremely easy to set up a tree with the correct wind hindrance properties.

    Example of a tree modeled as porous object in the wind comfort analysis

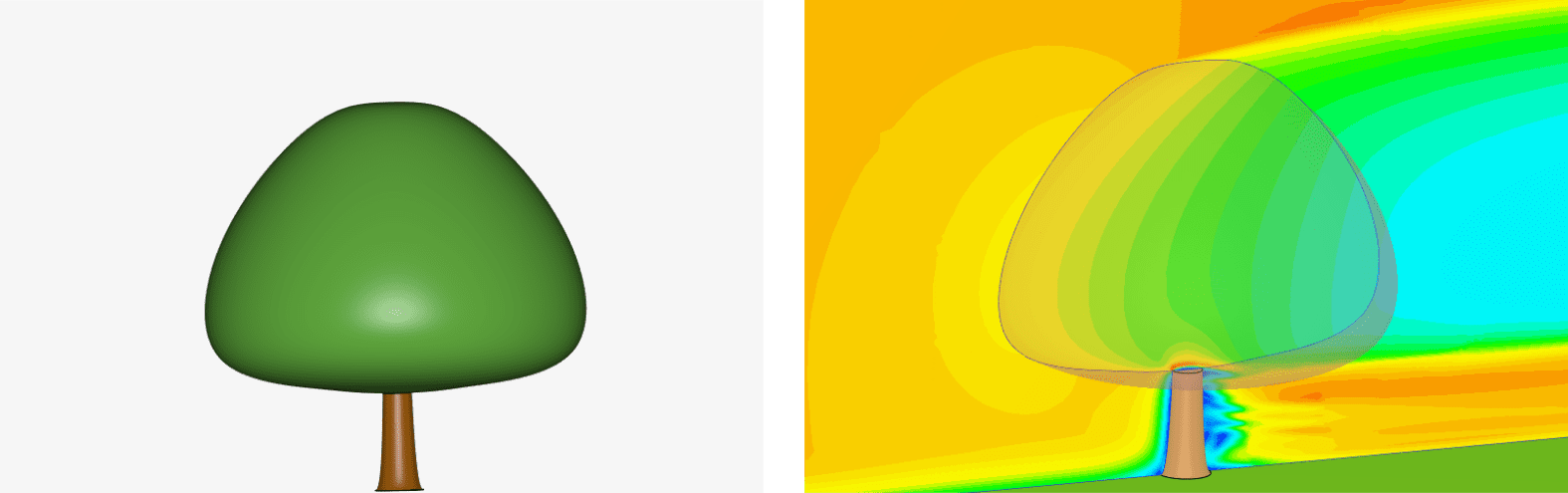

    Example of a tree modeled as porous object in the wind comfort analysis. Left: tree representation in CAD model. Right: Mean flow contours of air flowing through and around the tree

    Instead of modeling single trees individually, there exists also the option to model the combined effect of a park or forest with many trees.

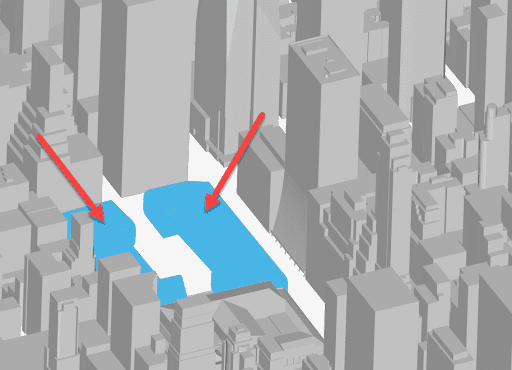

    This image depicts where tree porosity values were added to Bryant Park, NYC, for a comparative pedestrian wind comfort analysis. Read the whole story here.

    The impact of modeling the trees can be visualized below, where an animation shows the difference between two simulations. The right-hand simulation uses porous regions to model trees, whereas in the left model the trees were ignored. The difference in the overall wind flow and especially the velocities at the pedestrian level is clearly visible.

    Animation of wind effects around Grace Building and Bryant Park, NYC, before and after trees are modeled with porous regions.

    Update Four: Live Results

    While running a (non-LBM) CFD simulation, the post-processor will now regularly provide the opportunity to update and show more recently available results for your simulations. This means users no longer have to wait until a run is complete to begin assessing results.

    The solver is running in the background and as new results are available, we can update to see the latest status.

    That’s all for now, but stay tuned for more to come!
