Tutorial 4: Electromagnetics Simulation on a Magnetic Lifting Machine

This tutorial showcases how to use SimScale to run an electromagnetics simulation on a Magnetic Lifting Machine.

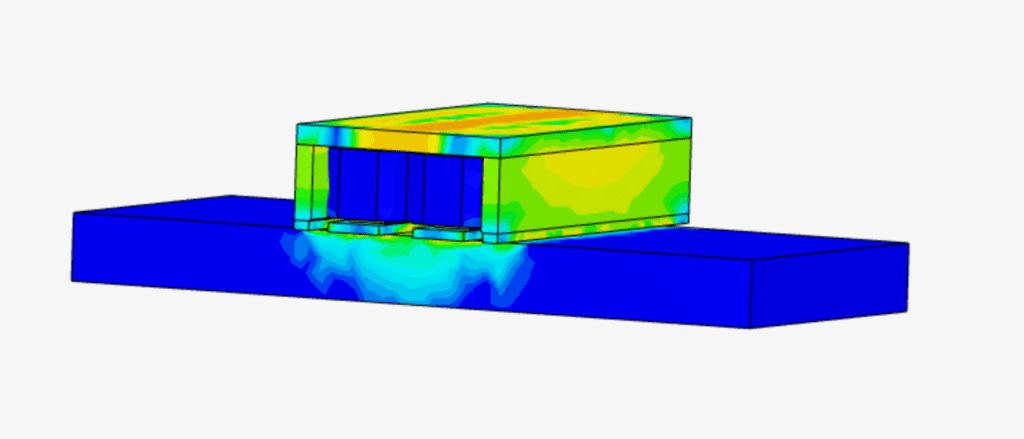

magnetic flux density results simscale post processor
Figure 1: Magnetic Flux Density magnitude results for a magnetic lifting machine using SimScale’s electromagnetics solver


This tutorial teaches how to:

  • Setup and run an electromagnetics simulation;
  • Create external flow region ;
  • Assign multiple materials, and other properties to the simulation;
  • Mesh with the automatic standard meshing algorithm.

We are following the typical SimScale workflow:

  1. Prepare the CAD model for the simulation;
  2. Set up the simulation;
  3. Create the mesh;
  4. Run the simulation and analyze the results.

1. Prepare the CAD Model and Select the Analysis Type

To begin, click on the button below. It will copy the tutorial project containing the geometry into your Workbench.

The following picture demonstrates what is visible after importing the tutorial project.

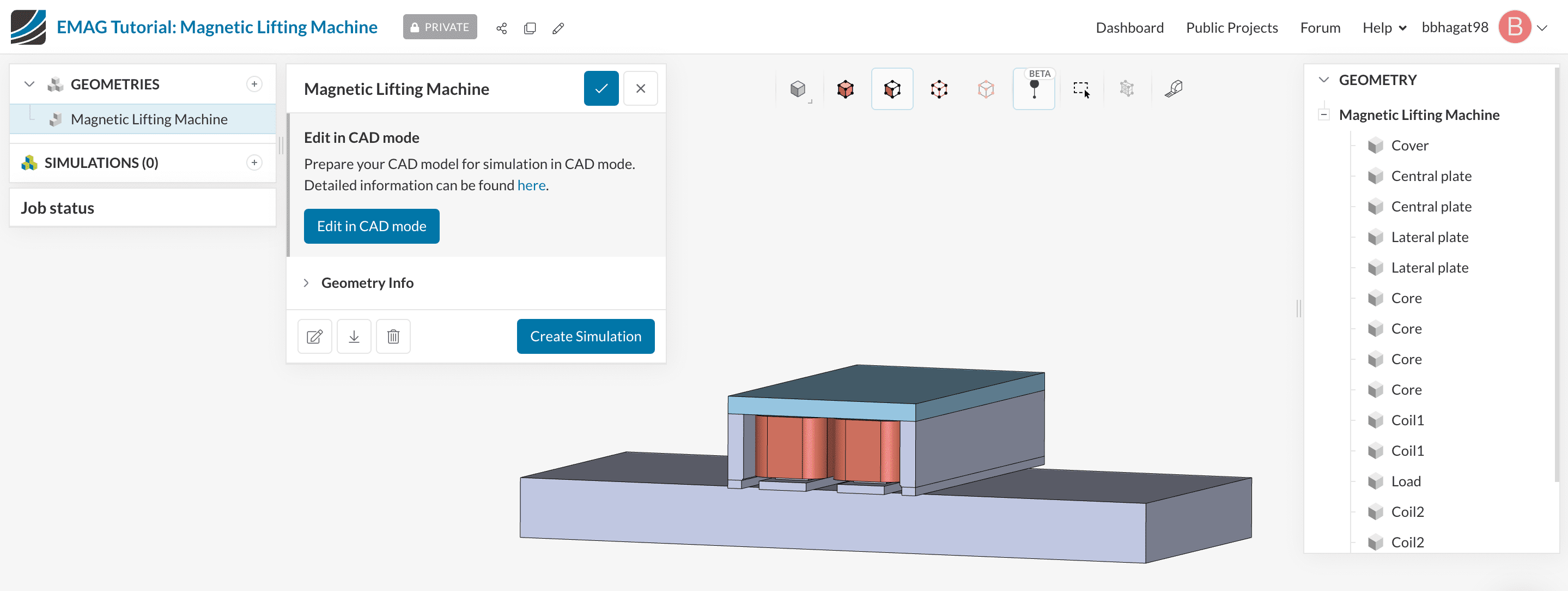

CAD model imported into the workbench
Figure 2: Imported CAD model of a magnetic lifting machine in the SimScale Workbench

The geometry consists of an actual Magnetic Lifting Machine. It consists of multiple parts as can be observed in the scene tree.

1.1 Geometry Preparation

The geometry for this tutorial is not ready for electromagnetic simulations. It contains multiple solid parts of the valve. We need a single flow volume region for setting up the simulation.

To create a flow volume click on the ‘Edit in CAD mode’ icon to enter the CAD mode.

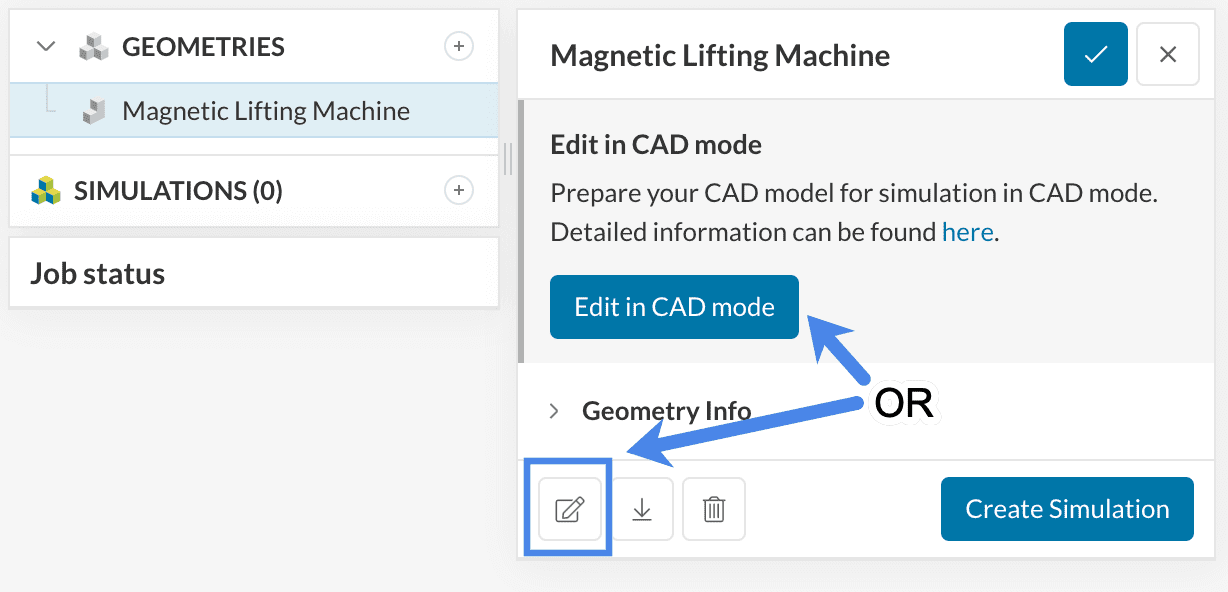

edit in cad mode
Figure 3: CAD mode is an environment within SimScale that allows modifications to the existing geometry to prepare it for the simulation.

Now perform the following steps:

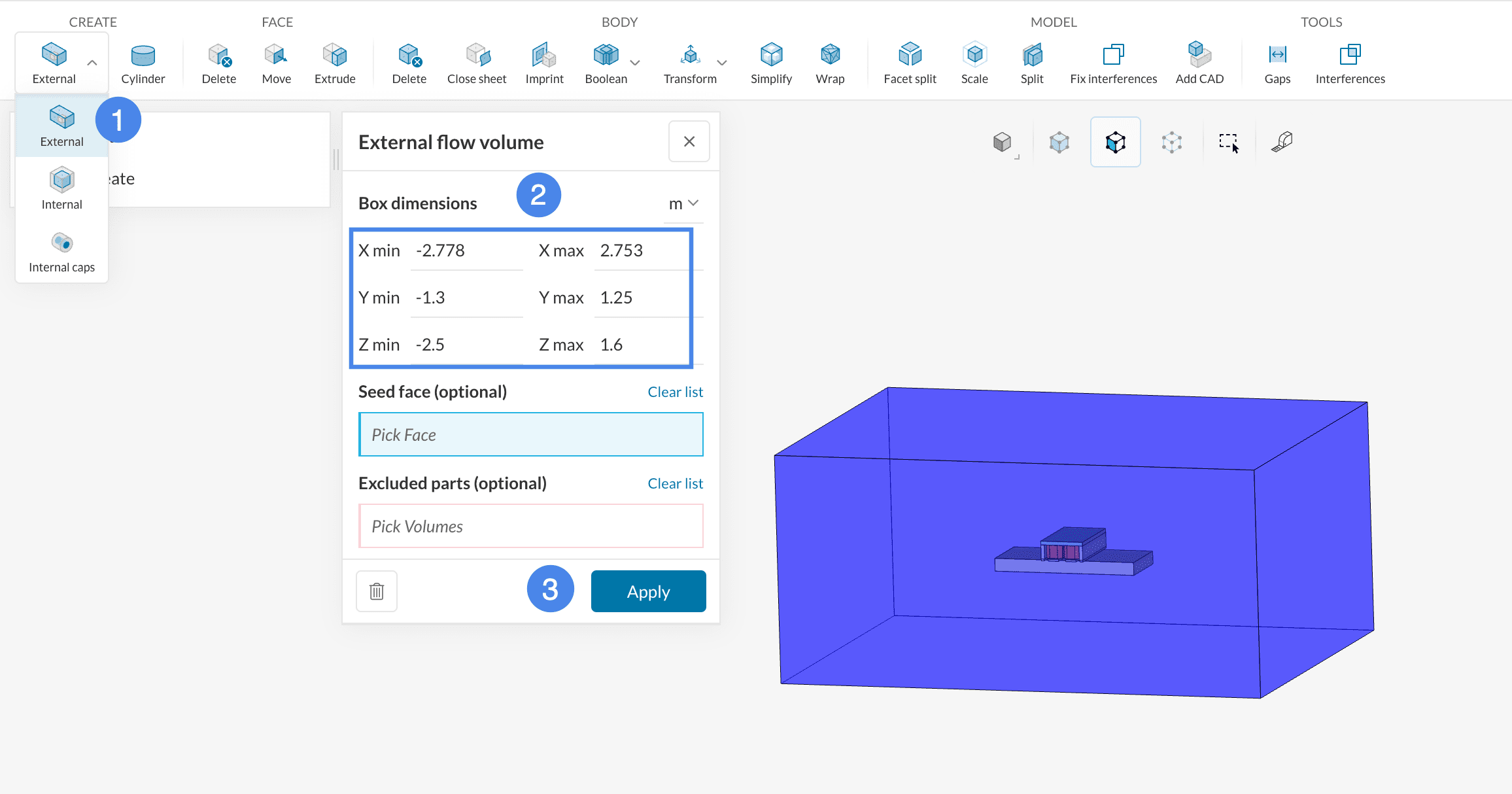

external flow volume operation in cad mode
Figure 4: External flow operation creates a volume region that fluids will occupy.
  1. Select the ‘External Flow Volume operation’. This will lead to a settings panel where the user needs to define the box dimensions.
  2. Click ‘Apply’.

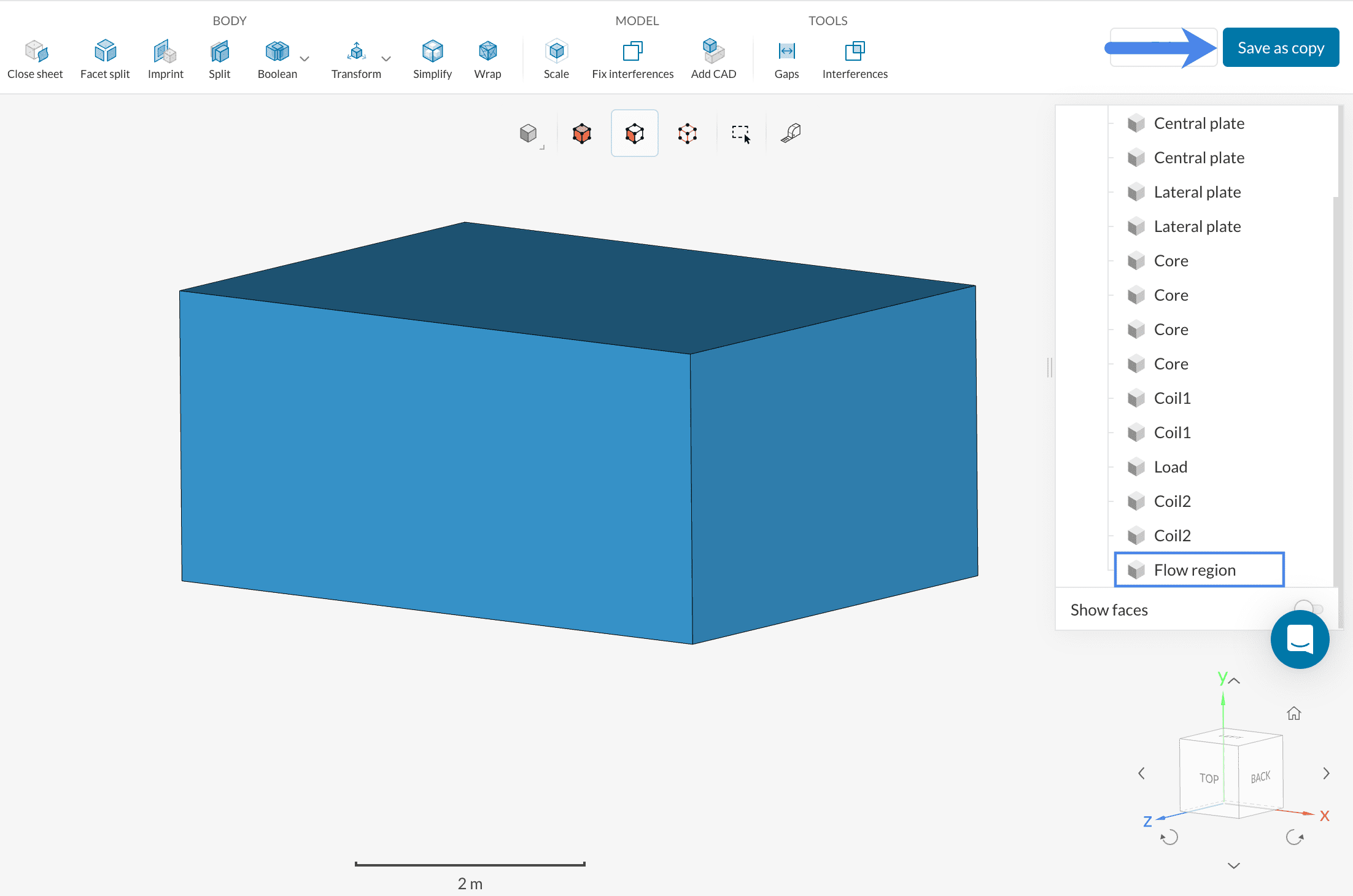

Notice that there is a new volume entity called Flow region under the parts list at the very end (see Figure 5). Use the ‘Save as copy’ button to bring this new geometry back to the Workbench.

magnetic lifting machine geometry flow region
Figure 5: By saving the geometry as a copy, you can bring the new CAD model to the Workbench.

The modified geometry (with the Flow region) will appear under Geometries as a copy of the original valve geometry.

1.2 Create the Simulation

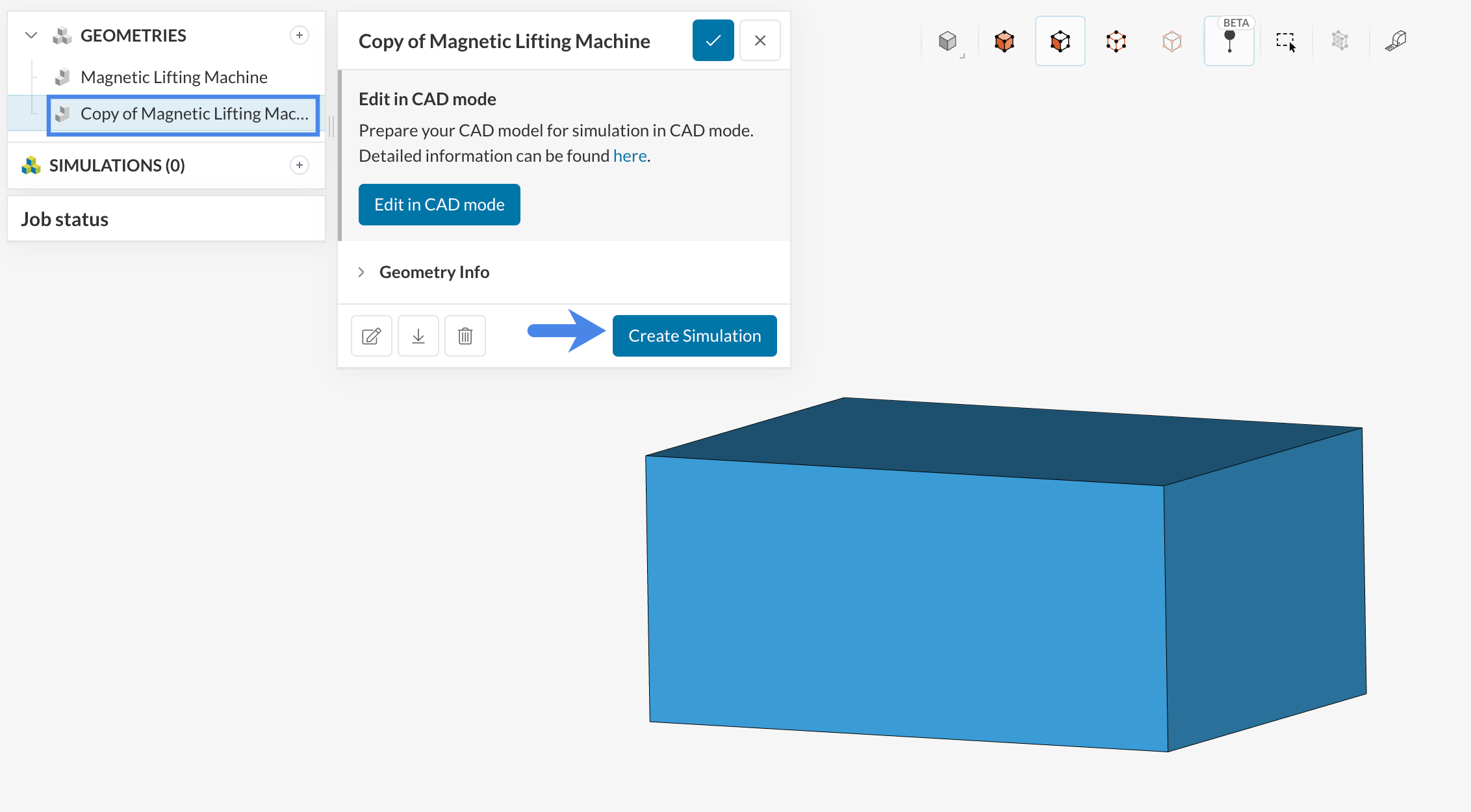

Click on the new geometry ‘Copy of Magnetic Lifting Machine’ and hit the ‘Create Simulation’ button. You can rename it if you’d like.

Creating a new simulation
Figure 6: Creating a new simulation for the Magnetic Lifting Machine with the exported geometry

This will open the simulation type selection widget:

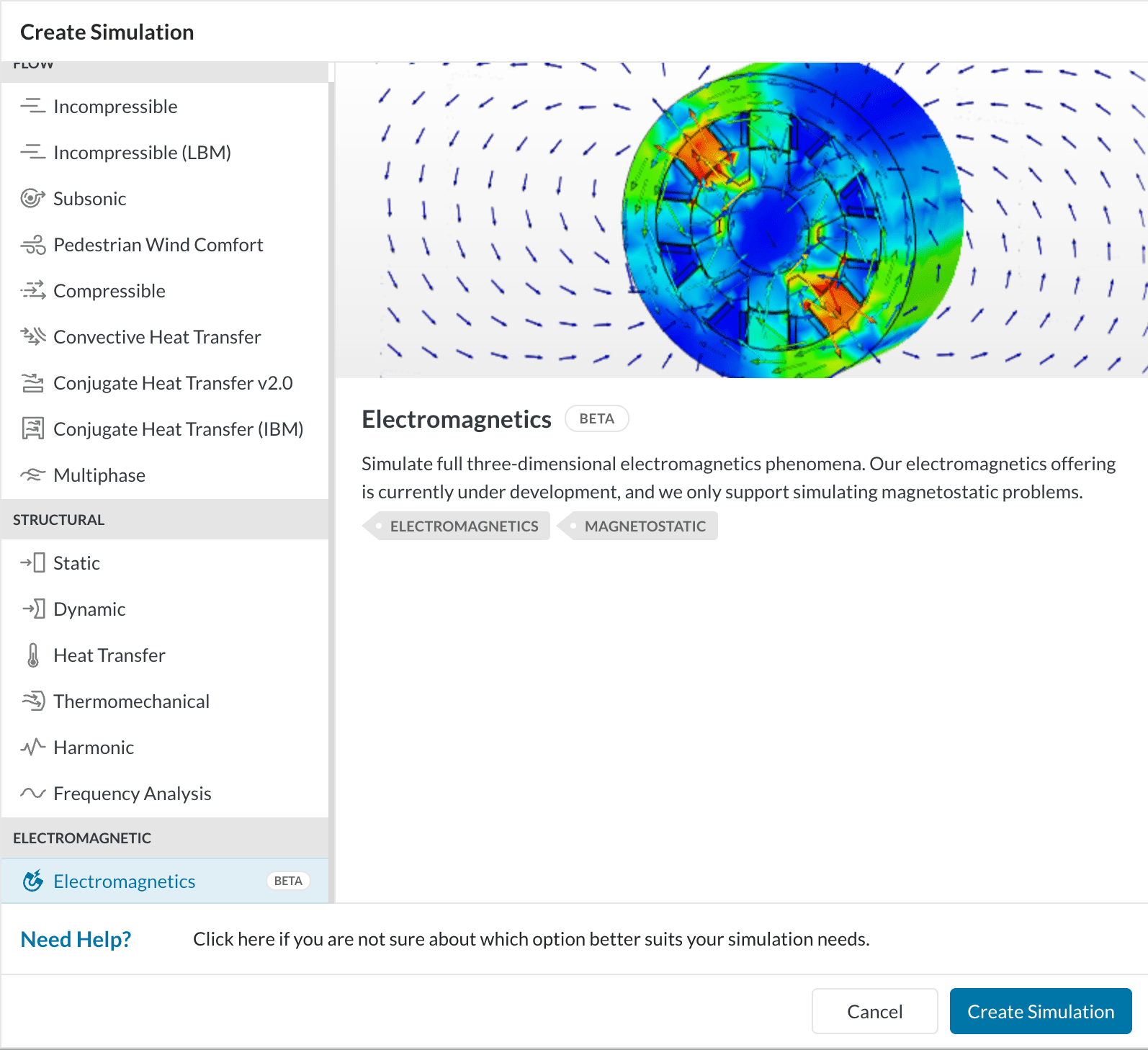

Electromagnetics analysis type.
Figure 7: Library of analysis types available in SimScale. Choose the ‘Electromagnetics’ analysis type.

Choose Electromagnetics as the analysis type and ‘Create Simulation’.

At this point, the simulation tree will be visible in the left-hand side panel.

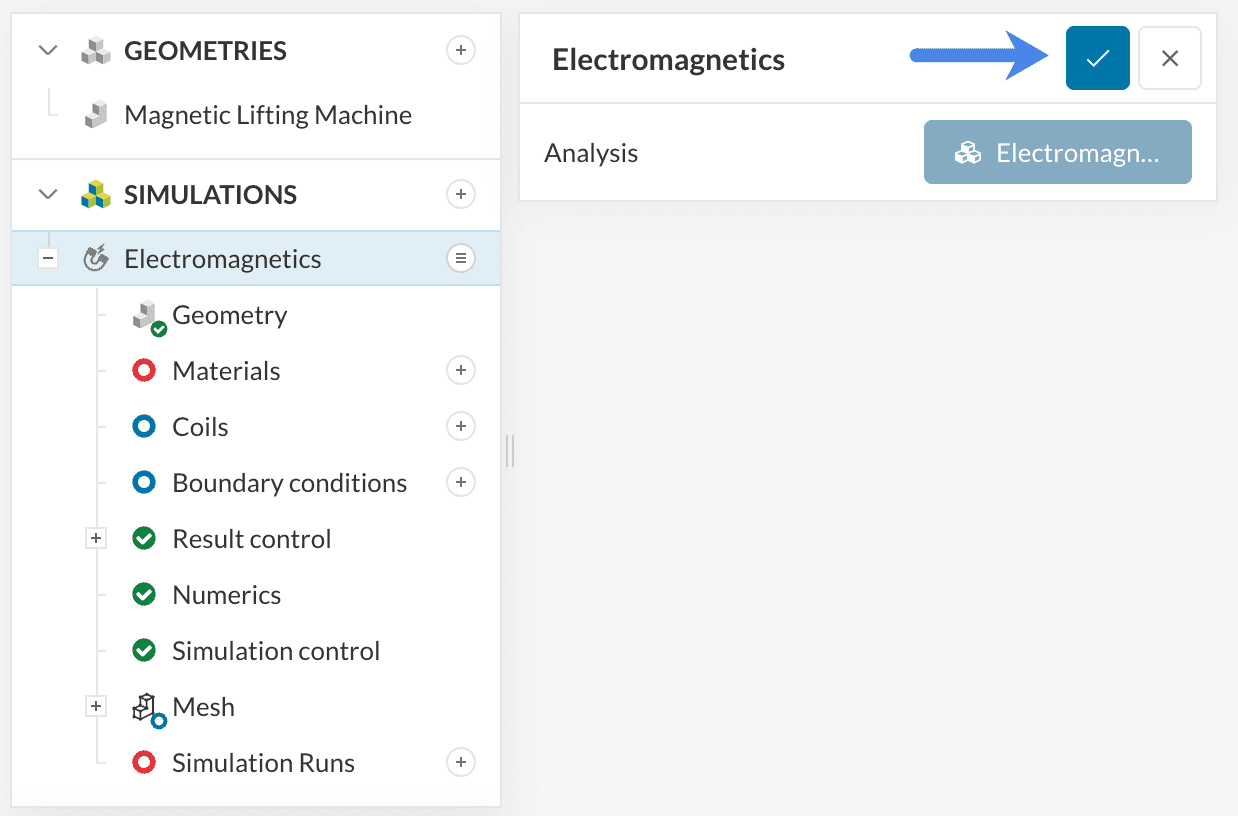

electromagnetics simulation tree
Figure 8: Electromagnetics simulation tree

2. Pre-Processing: Setting up the Simulation

2.1 Define Materials

This simulation will begin with air initially present in the flow region. Then we will assign Copper, Steel, and AISI 1008 Steel to the solid bodies. Therefore, this simulation will use four materials. Hence, click on the ‘+ button’ next to Materials. In doing so, the SimScale fluid material library opens, as shown in the figure below:

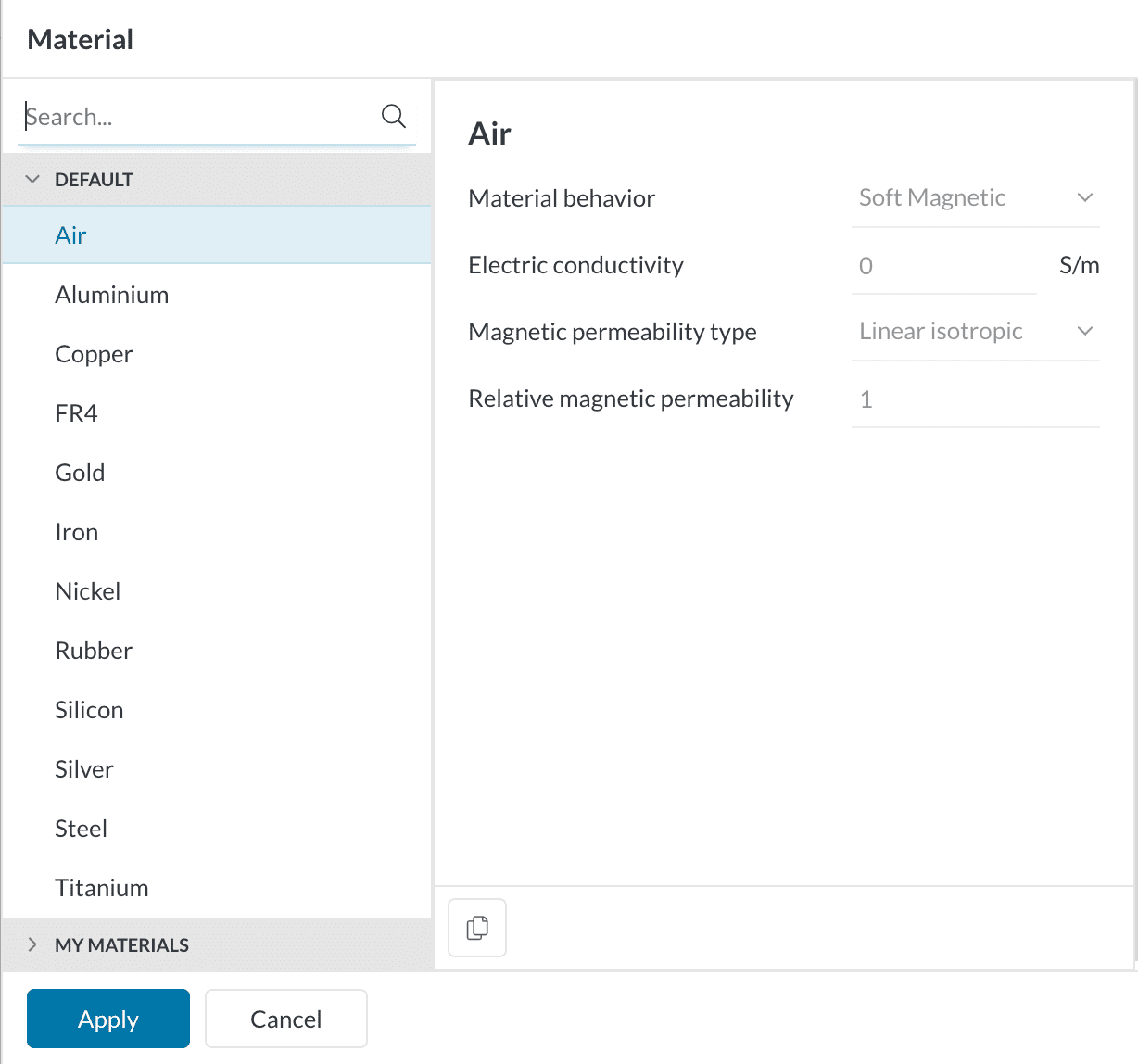

magnetic lifting machine electromagnetics tutorial simscale
Figure 9: Library of available fluid materials in SimScale. Select Air as the material.

Select Air and click ‘Apply’. This means air will be recognized by the flow region throughout the simulation. Keep the default values, and assign the entire Flow region to it (if not already by default).

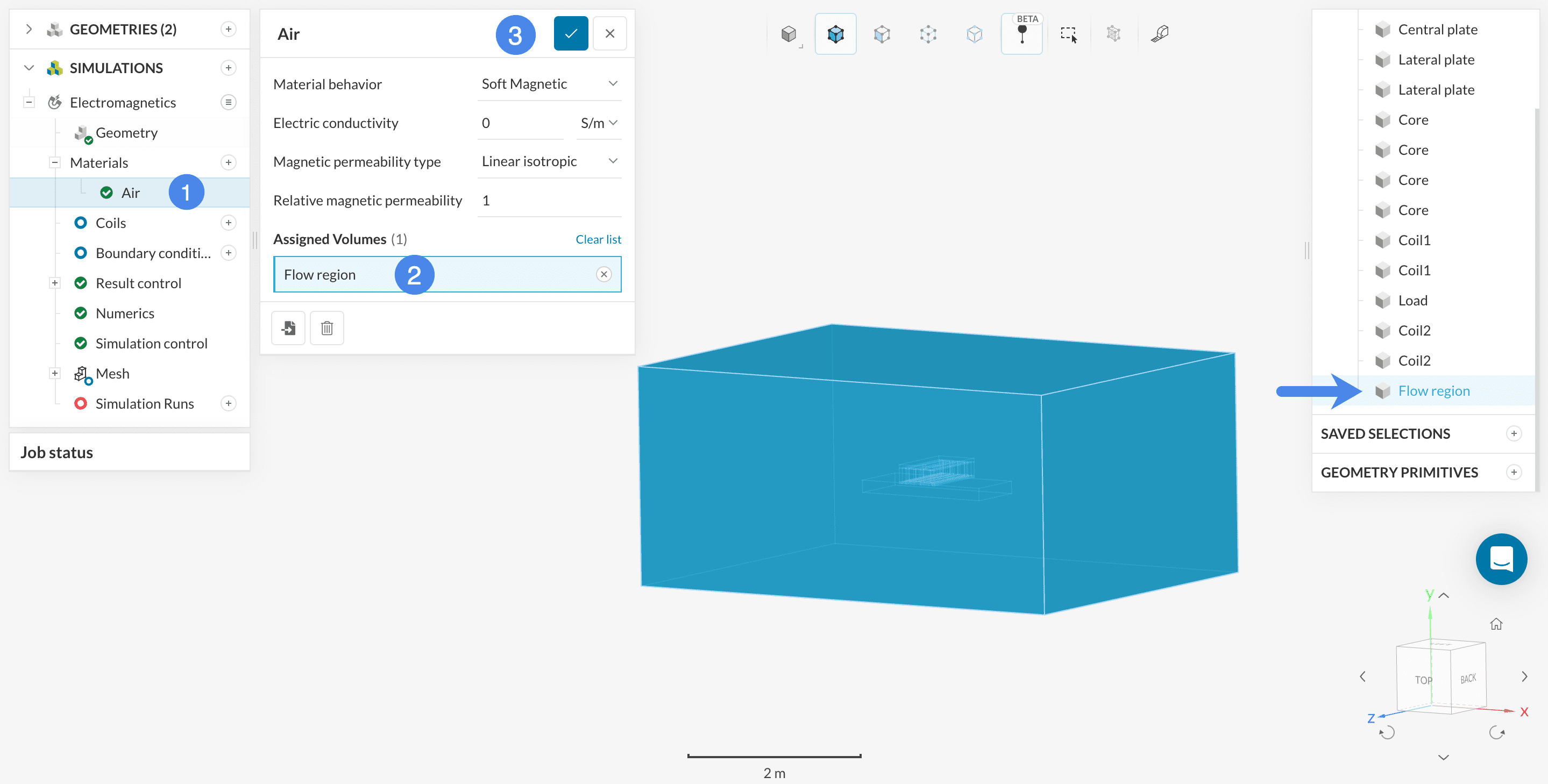

magnetic lifting machine geometry flow region
Figure 10: Note that the Flow region receives a material assignment

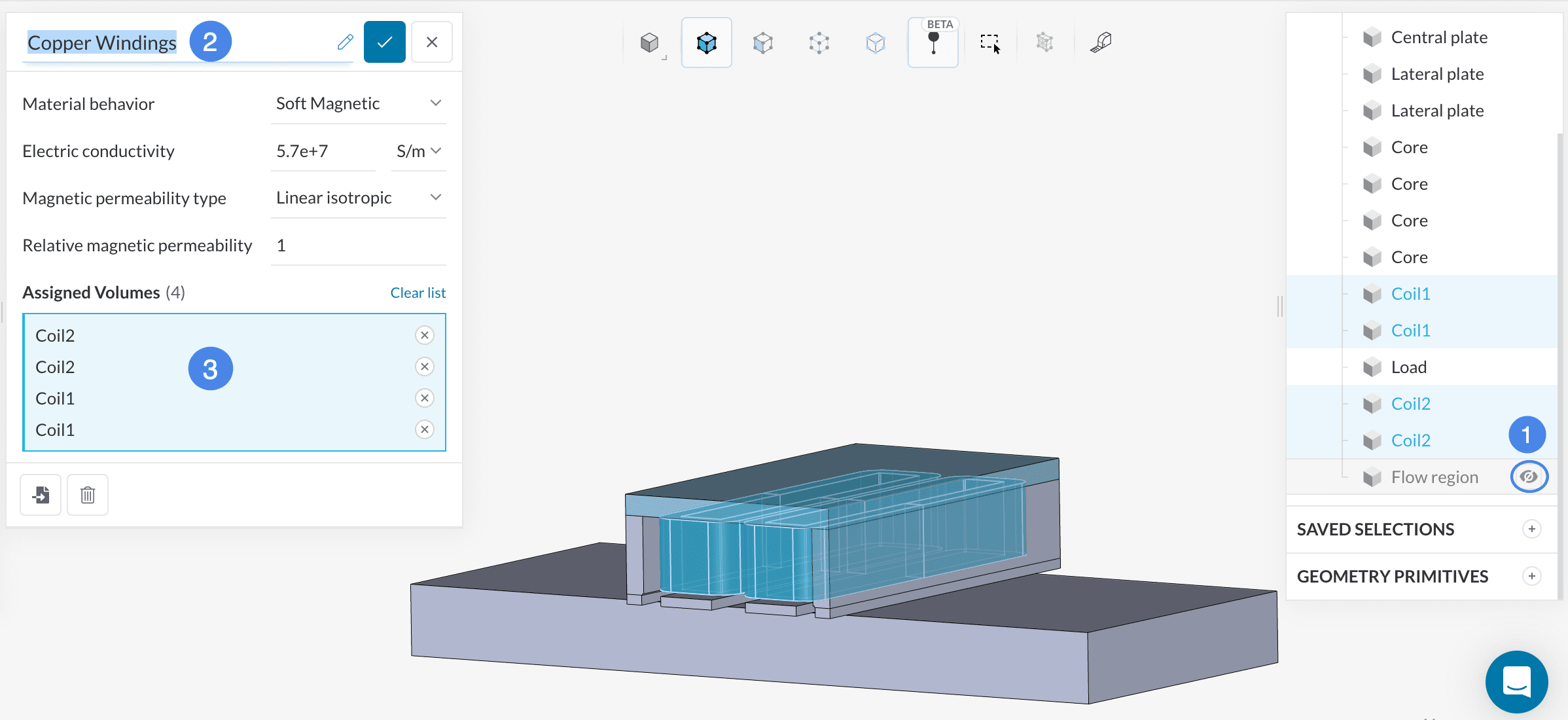

Repeat the same procedure for the material Copper and assign it to the coils. We can rename the material to ‘Copper Windings’. To view the solid parts, hide the Flow region and select the coils as shown in Figure 11.

Assign material 'Copper' magnetic lifting machine
Figure 11: Assign Copper material to the coils by hiding the flow region.

Repeat the procedure for Steel and assign it to Load as shown in Figure 12. Please note that the flow region is still hidden. We can rename the material to ‘Typical Steel – Workpiece’.

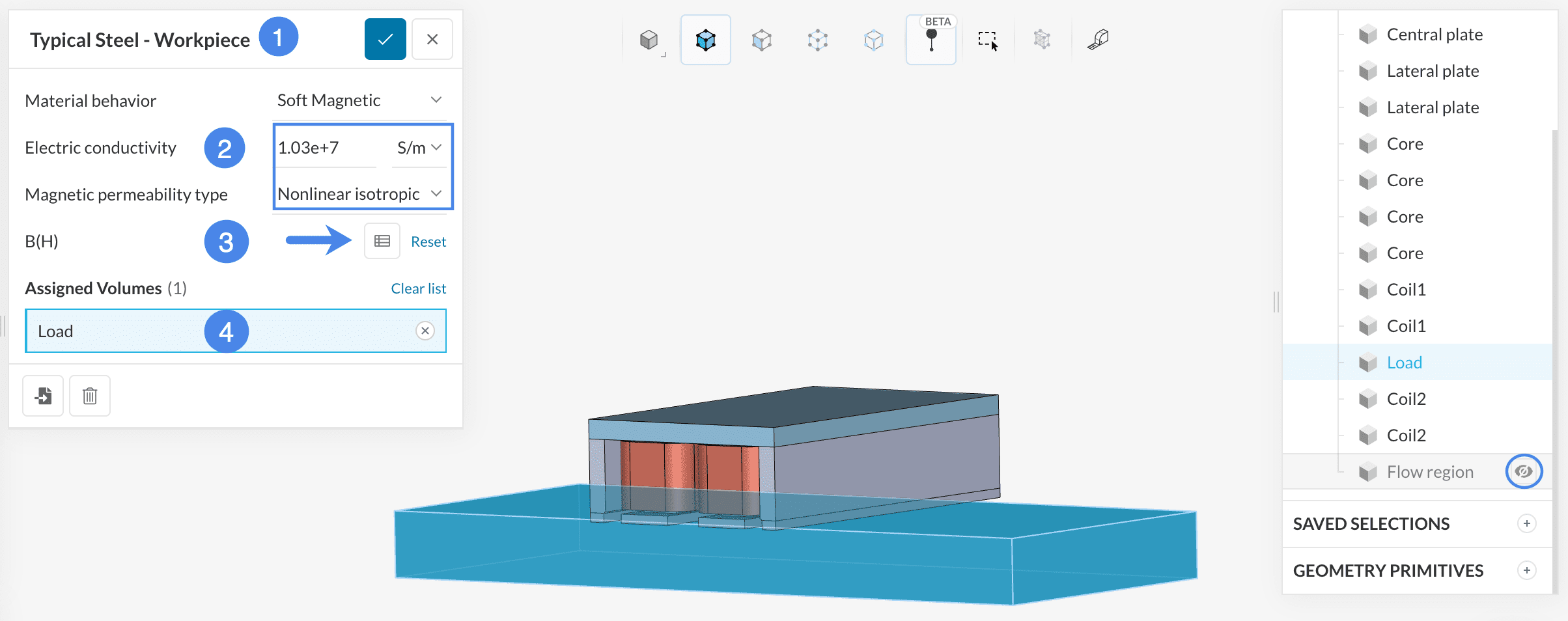

Assign material 'Steel' magnetic lifting machine
Figure 12: Assigning Steel material to the Load component

Change the material properties, namely Electric conductivity to 1.03e+7 \(S/m\) and Magnetic permeability type to ‘Nonlinear isotropic’. We then need to set B(H). For this, we use a table. Download the CSV file ‘B(H)_Typical Steel’ below and upload it to your project.

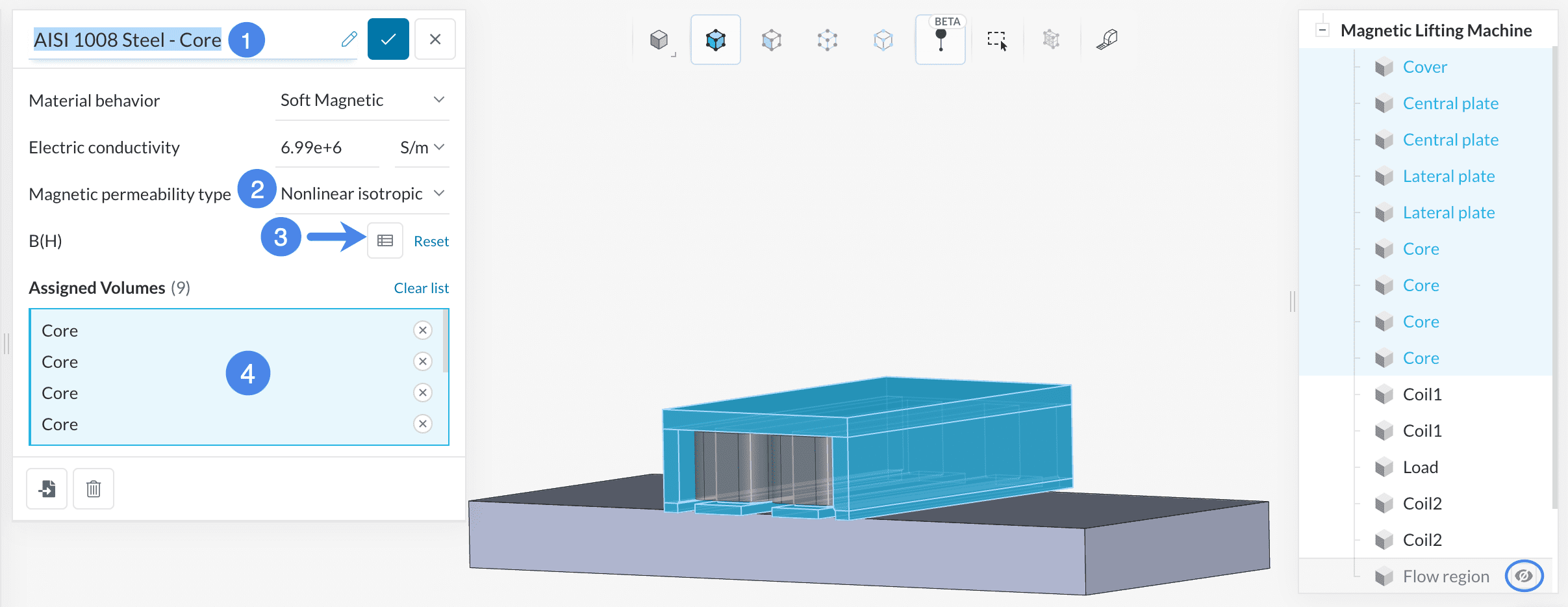

Repeat the procedure once again for Steel, assign it to 9 volumes as shown below, and rename it to ‘AISI 1008 Steel – Core’.

Assign 'Steel' as the material and rename it to 'AISI 1008 Steel - Core' magnetic lifting machine
Figure 13: Assigning Steel as the material to cover, plates and core

Keeping the value for Electric conductivity as default, change the material property Magnetic permeability type to ‘Nonlinear isotropic’. Now upload a CSV file for B(H) by downloading the ‘BH_1008Steel’ file attached below.

2.2 Assign the Coils

Under Coils in the simulation tree, we will assign two coils named ‘Coil 1’ and ‘Coil 2’. Please select the faces and change the respective values as shown in Figure 14 and Figure 15 (shown in Wireframe mode for ease). Hide all the outer surfaces until the inner face and coil is visible. To hide faces, select them and right-click to select the ‘Hide selection’ option from the drop-down. Continue until you see the face as shown in both figures. Please make sure to change the values for Topology, Number of turns, Wire diameters, and (I) Current.

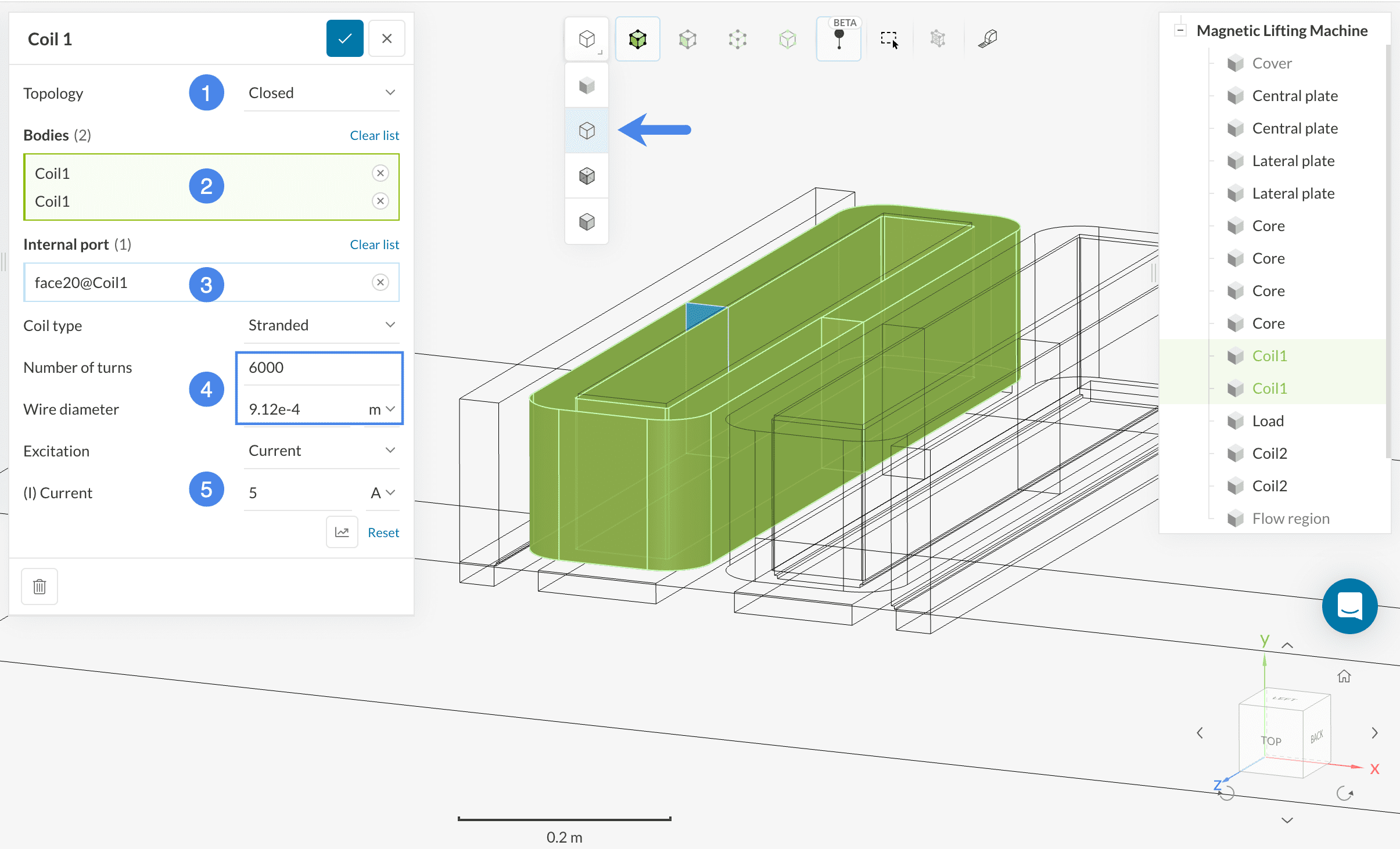

Assign faces for 'Coil 1'
Figure 14: Settings panel for Coil 1

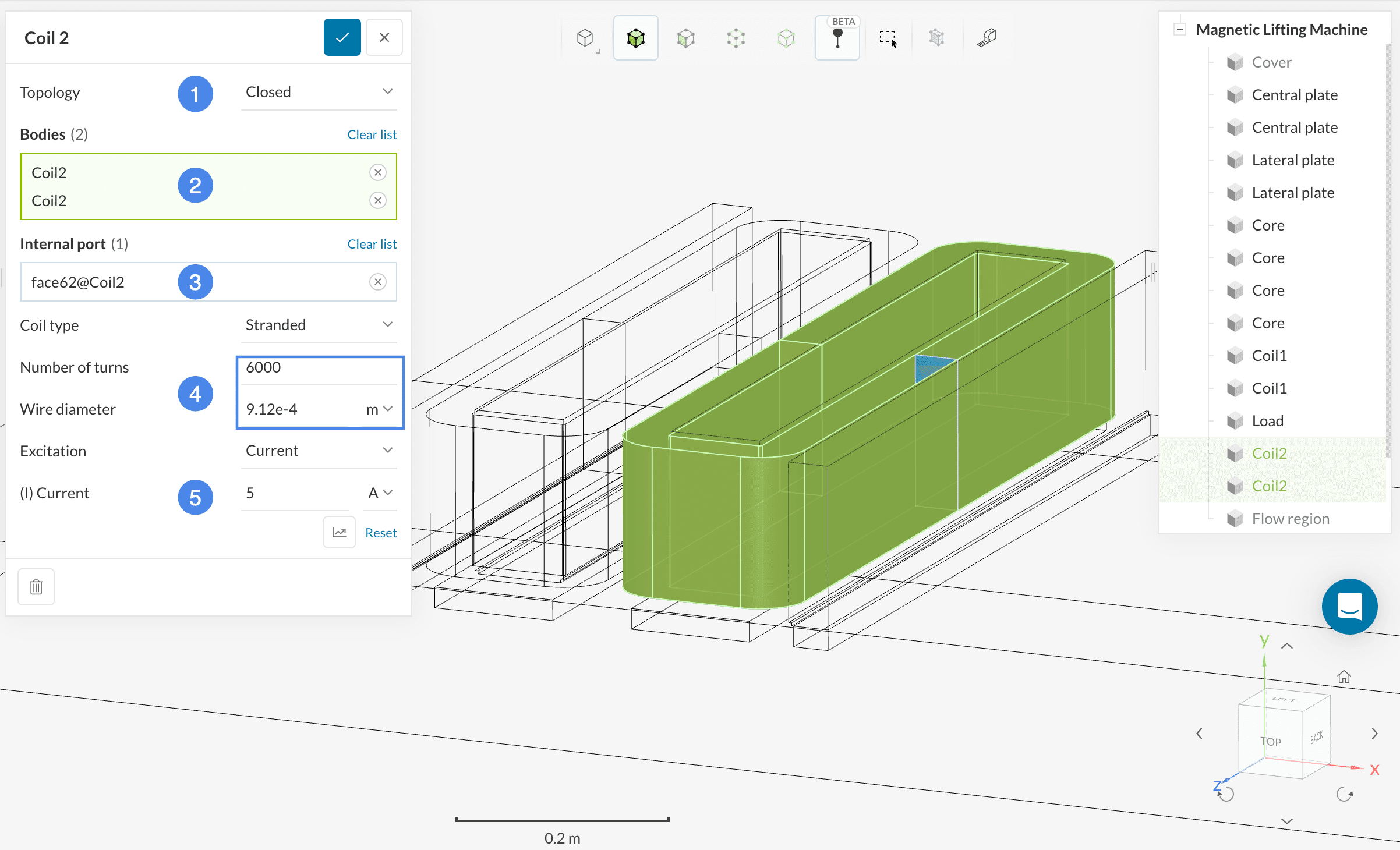

Repeat the procedure for ‘Coil 2’ as shown in Figure 15.

Assign faces for 'Coil 2' and set Current to 5A.
Figure 15: Settings panel for Coil 2

2.3 Assign the Boundary Conditions

There are no boundary conditions for this simulation.

2.4 Result Control

Result control allows you to observe the convergence behavior globally as well as at specific locations in the model during the calculation process. Hence, it is an important indicator of the simulation quality and the reliability of the results. Remember to toggle on ‘Calculate Inductances’ under Result control.

a. Forces and Torques

For this simulation, set a ‘Forces and torques’ control on the Load of the valve. Click on the ‘+’ icon under Result control> Forces and torques to open the settings panel. Select the coordinates shown in Figure 16 as the Torque Reference Point.

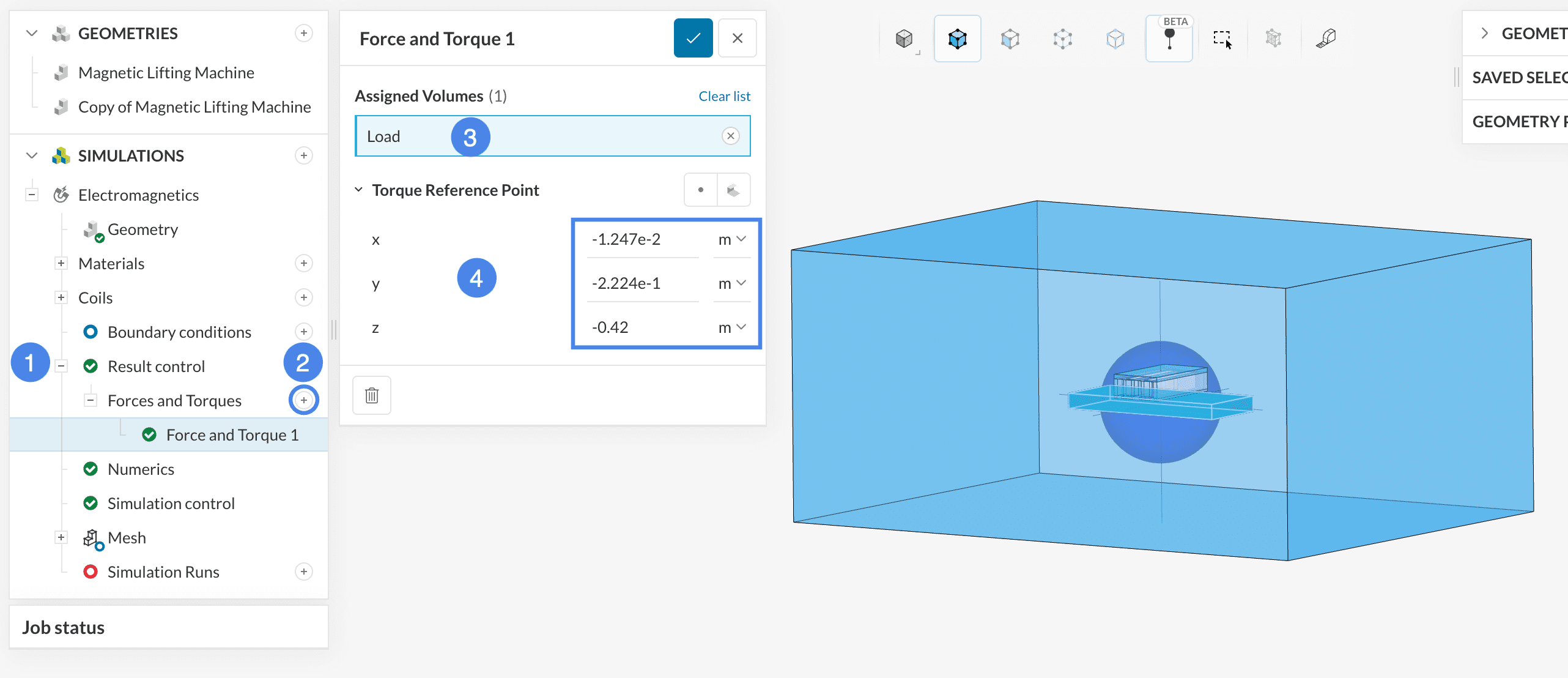

force and torque assignment simscale magnetic lifting machine
Figure 16: Add ‘Force and Torques’ and assign ‘Load’ as the volume.

2.5 Numerics and Simulation Control

The Numerics and Simulation control for this simulation, are optimised with their default values and need not be altered.

3. Mesh

To create the mesh, we recommend using the Automatic mesh algorithm, which is a good choice in general as it is quite automated and delivers good results for most geometries.

In this tutorial, a mesh fineness level of 5 will be used. If you wish to undertake a mesh refinement study, you can increase the fineness of the mesh by sliding the Fineness slider to higher refinement levels or using the region refinements.

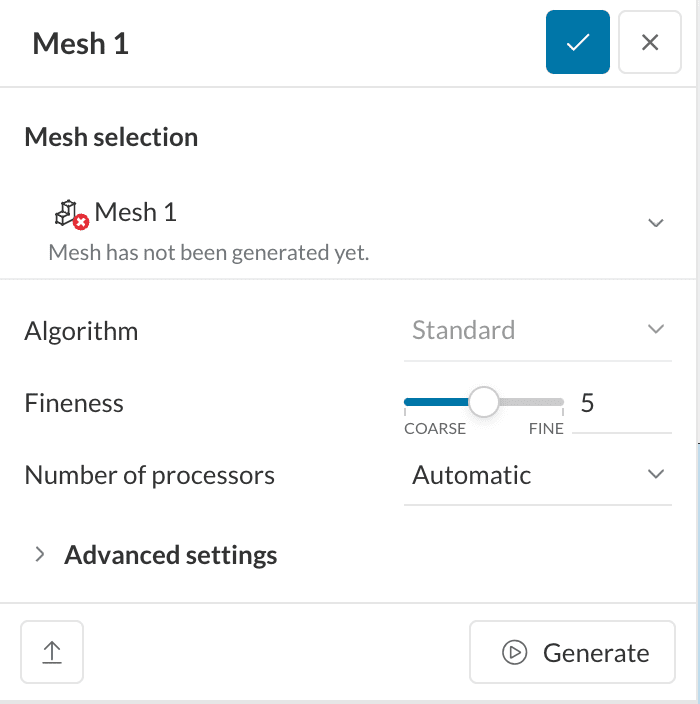

automatic mesh fineness 5 in multiphase analysis
Figure 17: Automatic mesh settings

Did you know?

The automesher creates a body-fitted mesh which captures most regions of interest using physics based meshing.

4. Start the Simulation

Now you can start the simulation. Click on the ‘+’ icon next to Simulation runs. This opens up a dialogue box where you can name your run and ‘Start’ the simulation.

create a new run
Figure 18: Simulation setup is now ready to run simulations.

While the results are being calculated you can already have a look at the intermediate results in the post-processor by clicking on ‘Solution Fields’ or ‘Post-process results’. They are being updated in real-time!

finished run
Figure 19: During the simulation run and after it’s finished you can access the post-processor by clicking on ‘Solution Fields’ or ‘Post-process results’.

Depending on the instance chosen by the machine, it might take 5-10 minutes for the simulation to finish. Once finished access the online post-processor as indicated in Figure 19.

5. Post-Processing

5.1 Magnetic Flux Density Magnitude

Once inside the post-processor, under the Parts Color filter change Coloring to ‘Magnetic Flux Density Magnitude’.

parts color surface with mesh simscale online post-processor
Figure 20: Solution results visualization inside SimScale’s online post-processor
cutting plane filter mesh solid color
Figure 21: Inspecting magnetic flux density magnitude in detail using a cutting plane
  • Hit the ‘Cutting Plane’ filter from the top ribbon.
  • Adjust the position accordingly and set the orientation of the plane to ‘Z’ axis.
  • Adjust Coloring to represent the magnetic flux density magnitude
  • Toggle on Vectors to visualize the magnetic flux flow direction.
  • Toggle on Clip model so that the cut plane view can be visible.

After a few seconds, you will see a clip showing the inside of your model.

Different parameters can be viewed by changing the coloring. In this tutorial, we will have a look at Electric Current Density Magnitude and Magnetic Field Magnitude as well.

5.2 Electric Current Density Magnitude

To view the Electric Current Density Magnitude, follow the steps below:

  • Create a ‘Cutting plane’ filter using the top ribbon.
  • Adjust the Orientation of the cutting plane to the ‘Y’ direction.
  • Set the Coloring of the plane to ‘Electric Current Density Magnitude’
  • Toggle on Vectors and choose the vector field as ‘Electric Current Density Magnitude’
electric current density vectors
Figure 22: Inspecting electric current density magnitude in detail using a cutting plane

From Figure 22, you can see the strength and direction of the current flow. Thicker, closely packed lines denote higher current densities, while thinner, more spaced-out lines signify lower densities. The direction of the lines illustrates the path a positive charge would take. The continuous nature of these lines indicates the uninterrupted flow of current.

5.3 Magnetic Field Magnitude

magnetic field magnitude vectors magnetic lifting machine
Figure 23: Inspecting magnetic field magnitude in detail using a cutting plane
  • Create a ‘Cutting plane’ filter using the top ribbon.
  • Adjust the Orientation of the cutting plane to the ‘Z’ direction.
  • Set the Coloring of the plane to ‘Magnetic Field Magnitude’.
  • Toggle on Vectors and choose the vector field as ‘Magnetic Field Magnitude’

From Figure 23, you can see the magnetic field arrows which represent both the strength and direction of the magnetic field. Longer, closely spaced arrows indicate a stronger, more concentrated field, while shorter, sparser arrows denote a weaker field. The direction of the arrows signifies the path a north pole would follow, from the north pole of the magnet to its south pole, forming closed loops that reveal the continuous nature of magnetic fields.

5.4 Forces and Torques on the Load

The Forces and torques results are of particular interest in the simulation. The load will be subjected to forces and torques as assigned and we can also view the resistances and inductances on both the coils Coil 1 and Coil 2. Hence, let’s inspect the results in the tables:

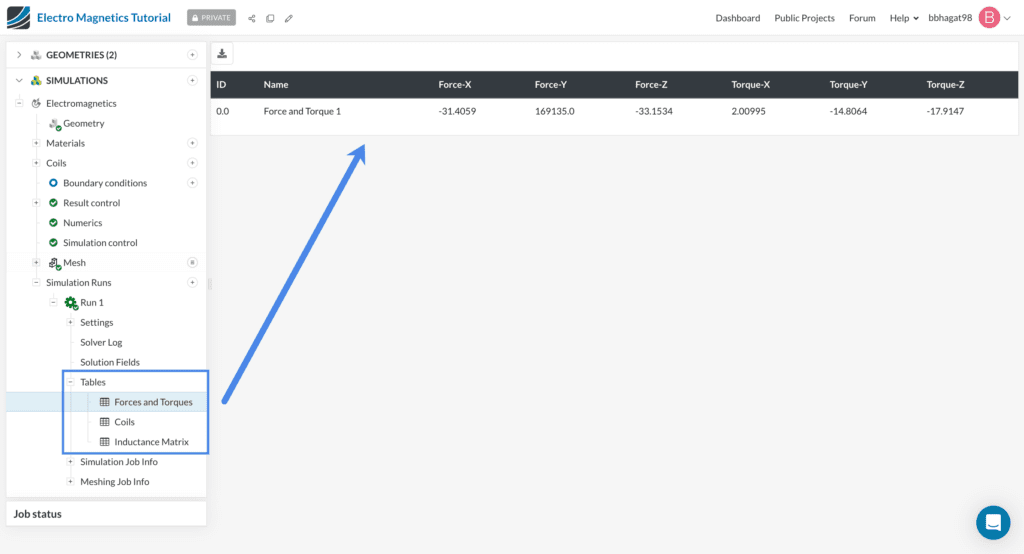

electromagnetic forces and torques in table form
Figure 24: Forces and torques as well as inductances and resistances are available under Tables

Analyze your results further with the SimScale post-processor. Have a look at our post-processing guide to learn how to use the post-processor.


If you have questions or suggestions, please reach out either via the forum or contact us directly.
