Multiphase Flow in CFD: Basics and Modeling

Serkan Solmaz
BlogCFDMultiphase Flow in CFD: Basics and Modeling

One of the key factors in a numerical simulation is determining the appropriate mathematical model which describes the physics of the problem. Almost every engineering problem comprises of interactions between matter: water, air, oil, etc. For this reason, the analyst should carefully specify the problem, taking these factors into consideration. In order to understand multiphase flow properly, it is necessary to first explain the basics of the physical phenomenon:

Matter: Matter is defined as a physical structure which has mass and volume in space. It comprises all forms of physical elements that exist in the form of atoms. Uranium, water, salt, and even a piece of wood, are all expressed as matter.

Phase: The distinctive form of matter is defined as a phase which is categorized into three main fields.

  • Solid: Shape and volume are definite
  • Liquid: Volume is definite, yet shape belongs to the container.
  • Gas: Shape and volume belong to the entire structure of the container.

Although liquid water and ice both belong the same matter, they differ regarding physical properties and therefore should be scrutinized separately as if a different matter. In short, the matter is a broader term that comprises of all phases.

Interface: Having differences due to chemical or physical structures, a narrow region between phases emerges. A credible mathematical expression for the interface is substantial for numerical modeling so as to negate the effect of divergences in the section of the interface during transportation of mass and energy.

It is obvious that multiphase flow includes both matter and phase. As the mixture of liquid-mercury and liquid-water is multiphase flow, so too is a phase changing process (e.g., transition of the ice into liquid water). The expression of multiphase fluid flow might be indicated as “number of phases” + “flow” in accordance with the total number of phases. For instance, the mixture of liquid-water and liquid-oil can be classed as a two-phase flow or a multiphase flow. On the upshot, multiphase flow is the interaction of more than one matter or phase of matter that exist simultaneously. Transportation of mass, momentum, and energy among phases—based on the conservation laws—is examined through the simulation.

multiphase flow examples
Figure 1: Multiphase flow examples

Multiphase Flow Multiphase Flow Models

For the purpose of carrying out a reliable numerical simulation, the mathematical model which describes the physics should be scrutinized. For instance, transition among phases such as condensation, requires an appropriate mathematical model, correlation, or theory which defines the condensation process as accurately as possible.

keywords that describe multiphase flow
Figure 2: Keywords that define the multiphase flow

Generally, the modeling process of multiphase flow includes three main stages, which are the description of the physical process, specification of the flow, and the determination of the suitable mathematical model.

Learn how a ducting system design was optimized with CFD 100% via web browser.

Multiphase Flow Description of the Physical Process

In the case that fluid flow comprises of more than one phase, the physical model should be defined properly to describe the governing process so as to herald fluid flow and even mathematical model. Some of the process and models might be specified concerning multiphase flow, as illustrated in Figure 2.

Multiphase Flow Specification of the Fluid Flow Regime

There are various types of multiphase fluid flow in the literature that diversify in accordance with the physical process and properties of the problem, and these can be classified into three main fields:

Separated Phases: More than one immiscible fluid in continuous phases and separated by interface [1].

Mixed Phases: Presence of both separated and dispersed phases [2].

Dispersed Phases: Finite numbers of phases spread through the volume of continuous phases such as droplets, drops, particles or bubbles [1].

Various types of fluid flow can be classified, as shown in Figure 3:

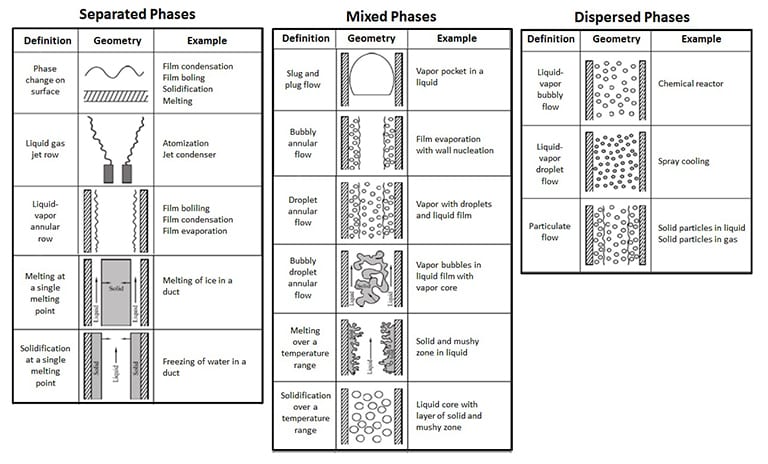

Multiphase fluid flows according to types of phases [2]
Figure 3: Multiphase fluid flows according to types of phases [2]

Multiphase Flow The Mathematical Model

The discrimination of phases in the numerical simulation basically relies on the rate of volume or mass. To determine an appropriate mathematical model for fluid flow, factors such as physical process and flow regime have to be described in advance. Several mathematical models have been developed in order to properly simulate fluid flow. The investigation of multiphase flow still has several hindrances due to complexities related to the mathematical models. However, the Navier-Stokes equations might be broadly used to examine multiphase flows, and the capability of hardware in conducting numerical studies, which are reliant on Navier-Stokes equations, is still far from an affirmative solution.

Over and above that, a challenging model—such as those related to turbulence, chemical reaction or mass transfer—carries the problem into a further level of complexity. For this reason, generating both realistic and simpler models is the key factor for multiphase fluid flow simulations [1]. The most commonly used mathematical approaches—such as empirical correlations—might be conducted as follows [3]:

  • Volume of Fluid (VOF): Separated flows, free surface flows
  • Lagrangian Multiphase (LMP): Droplet flows, track individual point particles, particles do not interact
  • Discrete Element Method (DEM): Particle flows, solve the trajectories of individual objects and their collisions, inside a continuous phase
  • Eulerian Multiphase (EMO): Dispersed flow, particle flows, bubbly flows, boiling heat and mass transfers, interphase mass transfer
  • Eulerian/Lagrangian Dispersed Phase Model (DPM): Particle-wall interaction is always considered, particle-particle is usually not
  • Eulerian-Eulerian Model (EEM): Particle-wall interaction is considered, particle-particle is usually not
  • Eulerian-Granular Model (EGM): Both particle-wall and particle-particle interaction are considered

Apart from the models above, further miscellaneous models can be found in the literature according to the type of fluid flow.

Multiphase Flow Application of Multiphase Flow

multiphase flow analysis of a waterfall carried out with SimScale

Multiphase flow analysis of a waterfall carried out with SimScale

Many engineering problems depend on the numerical examination of fluid flow, which typically comprises of more than one phase. Automotive, power generation, chemical industry, food industry, environment, and even medicine are some sectors that have been using numerical tools to predict the outcomes in advance. If you are looking for a relevant example, here is a step-by-step tutorial for setting up a multiphase flow analysis in the web browser with SimScale. To discover all the features provided by the platform, download this document.

If you’re interested in learning how to use the SimScale cloud-based platform for CFD simulation, this free CFD Master Class is all you need. Or start smaller by watching the first session of the training directly here—just fill out this short form.
