Optimized Safety Solutions creates quality CFD visuals with SimScale

1.7M

1.7M cells meshed in 17 minutes

37 minute runtime

Fast simulation time

Optimized Safety Solutions, LLC (OSS) offers clients a cost effective, all-inclusive environmental, health and safety risk management portfolio, and a variety of personalized aviation safety solutions. As a full-service safety consulting group, OSS develops, implements, and maintains a safety program that complies with regulatory requirements. OSS provides companies with the knowledge and expertise they need to partner with clients across many industries, advising them on integrating and optimizing safety programs and helping to recognize hazards and minimize risk.

The Challenge

Understanding Flow Behavior of Fumes with CFD

Using the SimScale platform, Optimized Safety Solutions (OSS) expected to obtain high quality, professional images and animations which could then be used to present and discuss results with safety professionals—many of them not familiar with CFD.

This project aimed to visualize the concentration and flow pattern of diesel exhaust fumes entering a warehouse from the outside environment. With a desire to present the results at the National Safety Conference, OSS had a tight deadline that it had to adhere to.

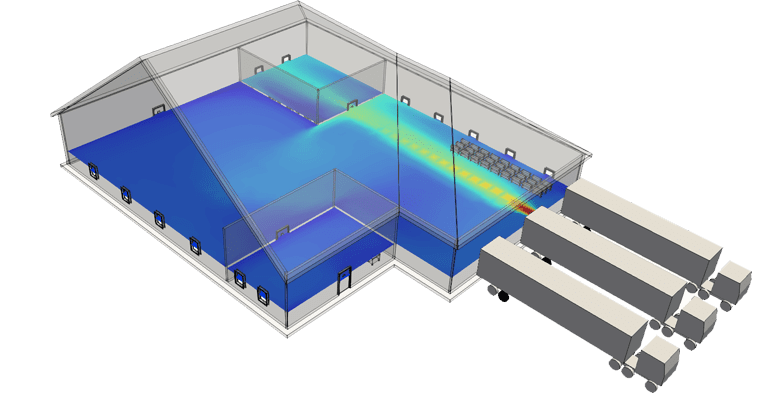

CFD analysis of fume distribution in the warehouse
CFD analysis of fume distribution and flow behavior

Already familiar with basic CFD simulations, OSS decided to jump into CAE software and incorporate it into the workflow to obtain improved visualization of results for air ventilation systems related to health concerns. OSS came to SimScale looking to visualize air and fume distribution and concentration in order to understand the flow behavior. This would allow the OSS team to test different ventilation designs based on varying factors such as combining different flux sources or changing fan speed.

How they solved it with SimScale

Modelling Fume Diffusion and Flow Velocity in the Warehouse

Starting from the CAD model of the warehouse, OSS then needed to generate the inner fluid volume in the platform. This would allow them to simulate how the flume entered and was dispersed all over the room.

This case involved one steady simulation that took just 37 minutes to run, using 20 core hours. The analysis type chosen was a steady-state incompressible CFD simulation with a k-omega SST turbulence model and a passive scalar to model fume diffusion. The warehouse was modelled with a 10 m/s fume inlet condition and took into account natural ventilation from open windows. A hex-dominant mesh with automatic coarse fineness was used for this simulation. This included 1.7M cells, meshed in 17 min and 9.6 core hours.

Animation created using CFD analysis of flow in the warehouse
Animation created using CFD analysis of flow in the warehouse

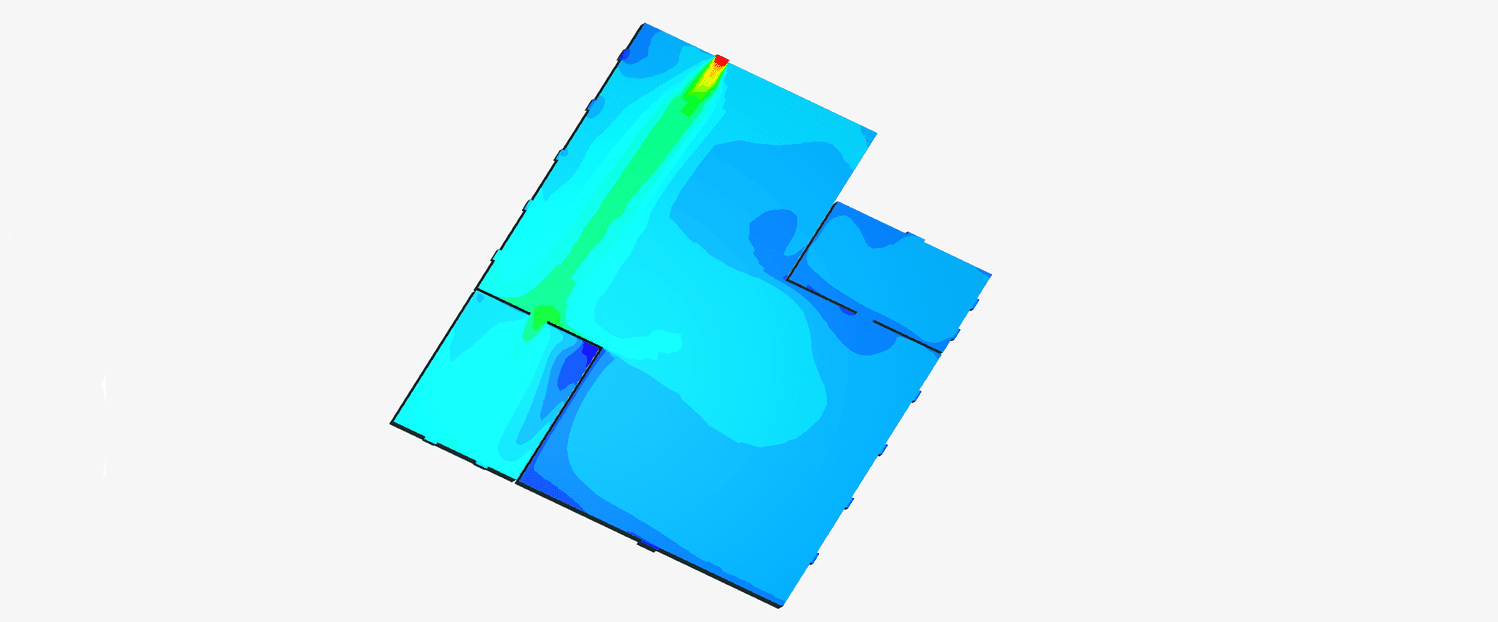

The results of the simulation showed the flow velocity at different sections and the contaminant spread through the warehouse. Using these, an animation was created, demonstrating the increasing contaminant concentration inside the warehouse with an isovolume.

“Thanks to the support of SimScale application engineers, steady results were obtained fast so more time could be spent on post-processing to make the most out of the simulation.”

The results

Using Simulation Results for Professional Quality Content

Post processing CFD simulation image of OSS's design
Post processing CFD simulation image of OSS’s design

Having simulated smoke distribution in the room with SimScale, OSS could then generate marketing-oriented post-processing images and animations. In this way, geometries that were not needed for the simulation (such as the trucks bringing smoke into the warehouse) could simply be added later and professional rendering could be performed. Using SimScale allowed for simulations created with optimized speed and minimized cost outlay. As a result, multiple simulations with different inlet conditions or ventilation systems could be tested in parallel. Thanks to the support of SimScale application engineers, steady results were obtained quickly which allowed for more time to be spent on post-processing to ensure the simulation could be used to its best advantage.
