Tutorial 1: Stress analysis of a Connecting Rod

In this tutorial you will learn to quickly set up a basic structural simulation of a connecting rod and conduct stress analysis using SimScale.

connecting rod simscale post-processor
Figure 1: Total Strain Magnitude acting on the connecting rod

The tutorial project “Tutorial 1: Connecting rod stress analysis” has been imported and is open in your SimScale Workbench.

1. Select the Analysis Type and Create Simulation

Figure 2 demonstrates the current layout of your screen. This is the Workbench and the geometry is ready for the simulation.

To create a new simulation, click on the ‘Create Simulation’ button.

simscale workbench

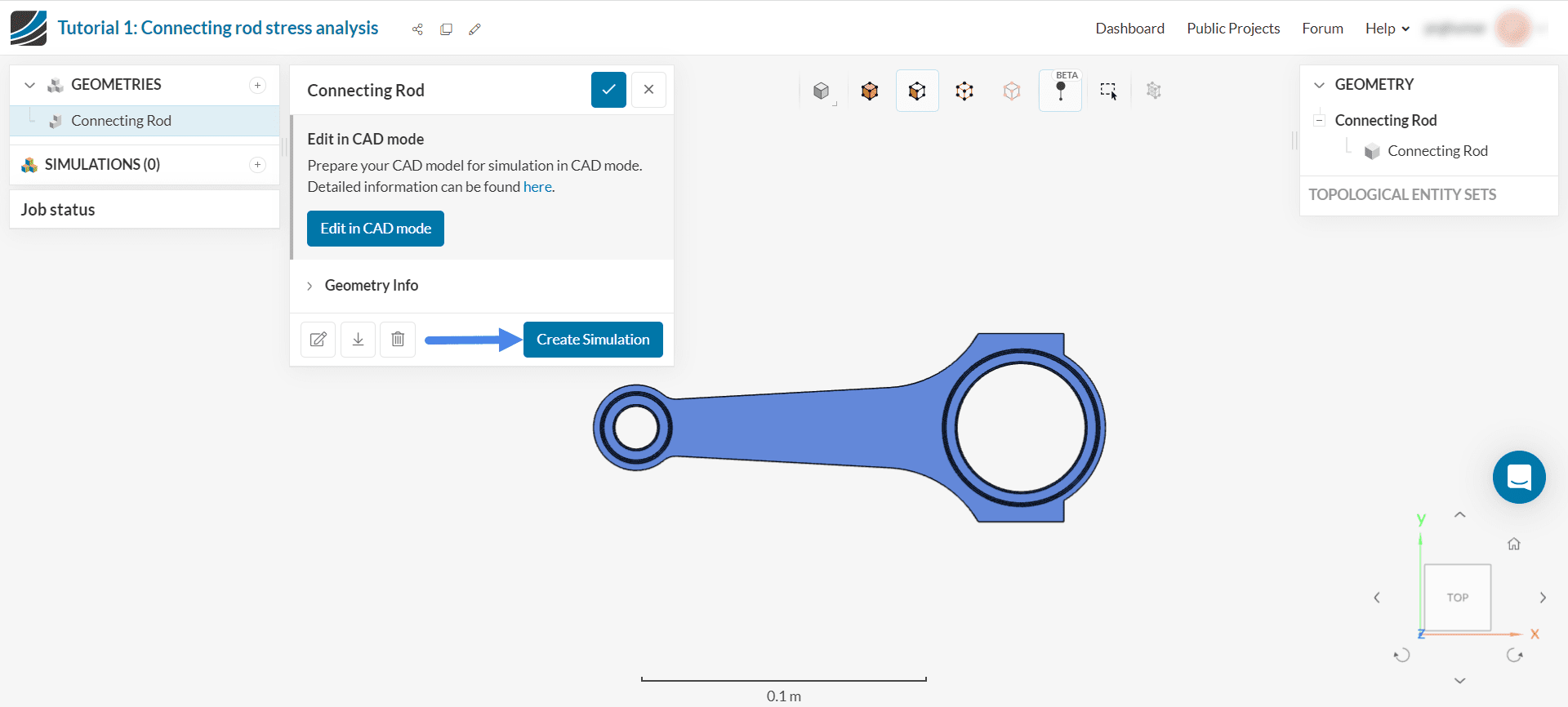

Figure 2: SimScale Workbench view. Click ‘Create Simulation’ to begin.

This will open up the Analysis type library. Select ‘Static’ as the analysis type and click ‘Create Simulation’.

static analysis

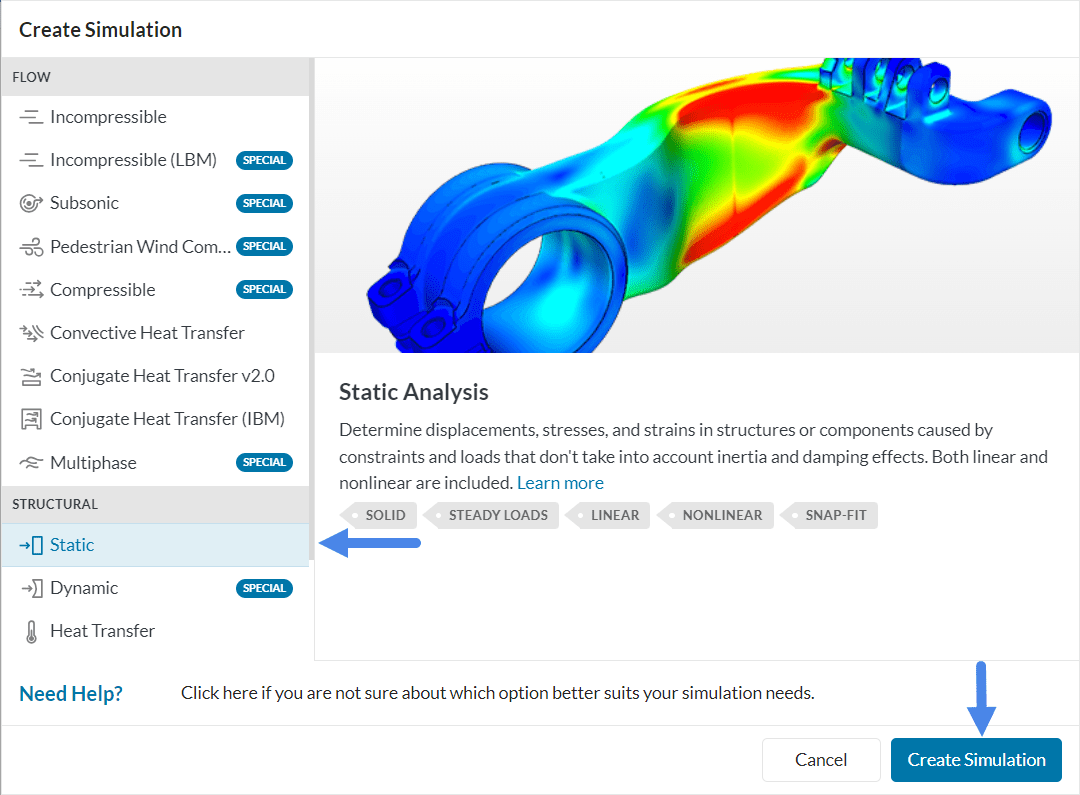

Figure 3: Analysis type library. Select ‘Static’ to perform stress analysis.

A new Simulation tree will automatically be generated on the left side of your Workbench, containing all parameters and settings required to start the simulation.

Model gravity
Figure 4: Simulation tree consists of simulation steps to be completed before a simulation run.

2. Set Up the Simulation

A successful simulation setup means a complete and accurate definition of the physics defined within the simulation tree.

2.1 Model

To define and modify the direction of gravity, click on ‘Model’.

model settings
Figure 5: Defining gravity under Model

This will open up the settings panel for Model. In this case, gravity is acting in the negative y-direction. Add ‘9.81’ m/s as the magnitude and ey as ‘-1’ to indicate gravity in the negative-y direction.

2.2 Material

To assign a material to your model, click on the ‘+’ button next to Materials in the simulation tree.

Materials simscale
Figure 6: First step to assigning a material in SimScale

The Material library will open containing pre-defined materials. Scroll down to select ‘Steel’ and click ‘Apply’.

material library
Figure 7: Lists of pre-defined materials for structural analysis. Select ‘Steel’ for this simulation.

The material will automatically be assigned to the connecting rod.

steel material assignment to connecting rod

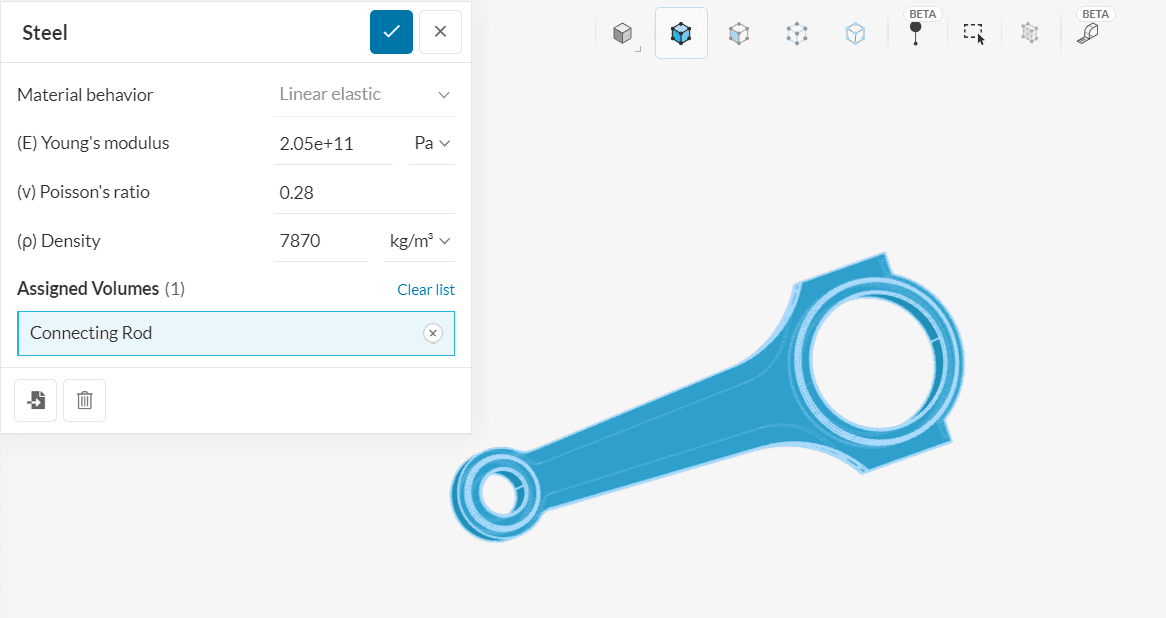

Figure 8: Steel with its physical properties applied to the connecting rod model. The assigned part will turn blue when the material is applied.


The color blue indicates that the material has been assigned.

2.3 Boundary Conditions

Two boundary conditions, pressure (load) and fixed support, need to be assigned to the connecting rod.

A. Pressure

To create a new boundary condition, click on the ‘+’ button next to Boundary conditions in the simulation tree. Select ‘Pressure’ from the list.

pressure boundary condition
Figure 9: Selecting the pressure boundary condition in SimScale

Set the pressure value to ‘200’ bar. You can change the units from the dropdown by selecting ‘bar’ as the unit of pressure. (see Figure 10)

Now select the faces on which the pressure should act. In the viewer, select the two inner faces inside the smaller opening of the rod.

pressure boundary connecting rod

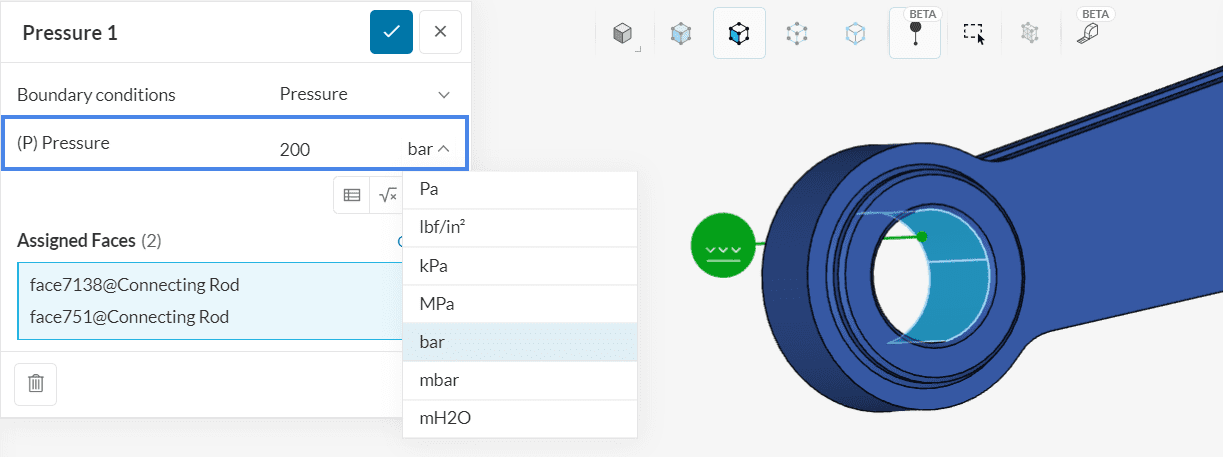

Figure 10: Entering the amount of pressure and changing the units to ‘bar’; applied to the two inner faces of the small opening.


The color turns blue, indicating that they will be assigned to the current boundary condition.

B. Fixed Support

Repeat the process and add another boundary condition by clicking on the ‘+’ button next to Boundary conditions. Select ‘Fixed Support’. Assign all the inner faces at the larger end of the connecting rod in the viewer.

fixed support boundary
Figure 11: Fixed support boundary condition applied at the other end of the connecting rod

3. Start the Simulation

Now you are ready to start your simulation run.

The NumericsSimulation Control and Mesh settings are set by default and do not have to be changed for this simulation.

Create a simulation run by clicking on the ‘+’ button next to Simulation Runs in the simulation tree.

simulation run simscale
Figure 12: Starting a new simulation run in SimScale

A dialog box will appear stating the estimated amount of resource consumption. Click ‘Start’ in the New run dialog box to start the simulation run.

resource estimation dialogue
Figure 13: Resource consumption estimation displayed before the beginning of the simulation

Once the simulation run is finished, the status will be changed to Finished in the run settings panel.

finished run simscale
Figure 14: Example of a finished run

4. Post-Processing

To access the post-processor you can click ‘Post-process results’ or ‘Solution fields’ under your run to load the results in the Post-processor.

access simscale postprocessor
Figure 15: Access to the SimScale’s integrated post-processor

SimScale’s integrated post-processor consists of filters and different viewing tools to better visualize and download the simulation results. Figure 16 shows the default view where the displacement field is applied with contours of Von Mises Stress for visualization.

von mises stress displacement field

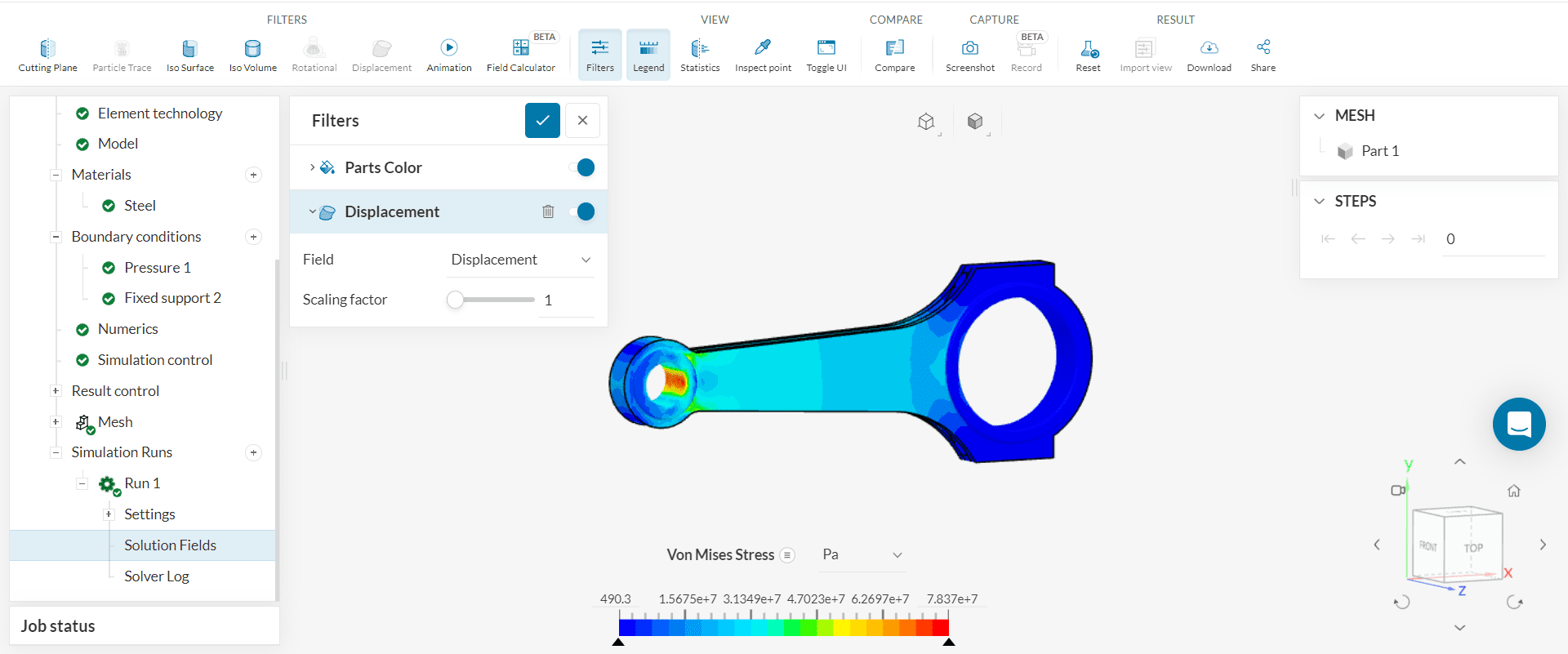

Figure 16: Von Mises stress distribution on a connecting rod

Regions of high stress load are colored red while lower stress regions are shown in blue.

The legend can be changed to some other quantity of interest as shown below:

legend in simscale post-processing displacement magnitude
Figure 17: Steps to visualizing von Mises stress

Congratulations! You just finished your first Stress Analysis simulation on SimScale!
