Smartlouvre Technology Ltd. Validates the Performance of a MicroLouvre™ Screen for Low Energy Building Design With SimScale’s Cloud-Based Platform.

Smartlouvre Technology Ltd. (Smartlouvre) are manufacturers of high-quality louvred metal fabrics. Their MicroLouvre™ solar shading screens are the result of decades of extensive and exhaustive international research and development. They are probably the most efficient modern method of solar shading in the world. Smartlouvre is focused on the construction specification market, working with architects, building consultants, and engineers on improving building performance and energy consumption in controlled temperature environments.

The Initial Challenge for Smartlouvre Technology Ltd.

Introducing the Microlouvre To Building Simulation

The Smartlouvre MicroLouvre is a woven fabric /mesh of paper-thin bronze louvres used to enhance the performance of any glazing or building facade. It is commonly attached to external windows and acts as a natural ventilation and solar shading device. The metal fabric has exceptional performance properties. Its glare control capabilities and strength, combined with its lightweight property, fire, and heat resistance, make it uniquely versatile. It has been used in limitless shapes, sizes, and colors for all types of window coverings, lighting design and control, exhibition displays, and for managing natural ventilation and solar gains in buildings.

Introducing the Microlouvre™ To Building Simulation

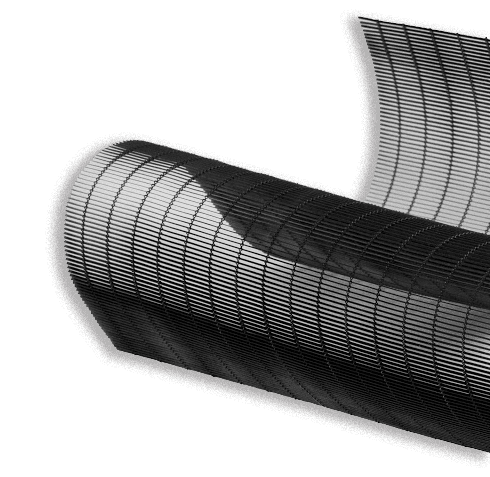

Smartlouvre’s unique MicroLouvre fabric

There is no other product like MicroLouvre fabric. It is totally unique with a wider combination of thermal, environmental, and comfort performance characteristics. Due to the many variables which underpin the overall performance of MicroLouvre Screens, it is necessary to be able to correctly replicate its performance in building modelling and simulation studies. Building simulation is used widely in the construction industry to design, specify, and approve in accordance with building regulation standards. Building simulation tools are used by architects, engineers, and sustainability consultants to optimize the energy and environmental performance of a building design, and in turn use this as evidence to pass through the planning and approvals process. Only then can a new building or refurbishment/refit go ahead as planned.

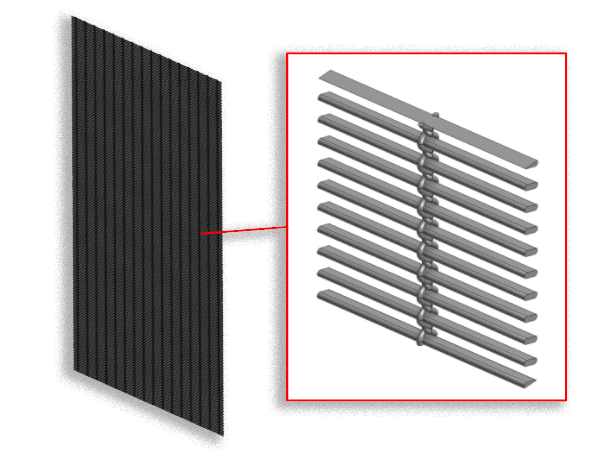

microlouvre screen cad model
A 3D model of MicroLouvre imported into SimScale’s cloud-based platform.

Previously, the building simulation community was not aware of how to model the multiple performance characteristics of Smartlouvre’s MicroLouvre Screen. This meant that it was difficult to incorporate MicroLouvre Screens into building designs as well as include it within standard specifications. Extensive testing at Fraunhofer ISE and LBNL California was commissioned to verify its performance for certain aspects like solar shading and thermal performance. These data sets, which proved the high performance of MicroLouvre were then made available, but not in a form needed for building design.


Join Our Upcoming Webinar With Smartlouvre on November 11, 2020, at 5pm CET! Learn More and Register for Free Here.

smartlouvre simscale webinar

How Smartlouvre Solved It with SimScale

The Three Steps That Led To Smartlouvre’s Success

The project with SimScale was completed in several stages:

  • Firstly, SimScale conducted a thorough review of all MicroLouvre existing test and certification reports in order to ascertain its actual performance characteristics.
  • Secondly, SimScale used their expertise in CFD and building aerodynamics to evaluate the pressure-flow characteristics of the MicroLouvre to determine an appropriate discharge coefficient (Cd). The Cd value is a key property used in almost all building simulation tools to model the airflow in/out of building openings. Previously, this value did not exist for MicroLouvre. SimScale simulated the device in their digital wind tunnel set up at various wind speeds and angles. The result is a Cd value of 0.39, which can be inputted directly into any thermal modelling software such as IES, TaS, and DesignBuilder for simulating the airflow through a MicroLouvre Screen.

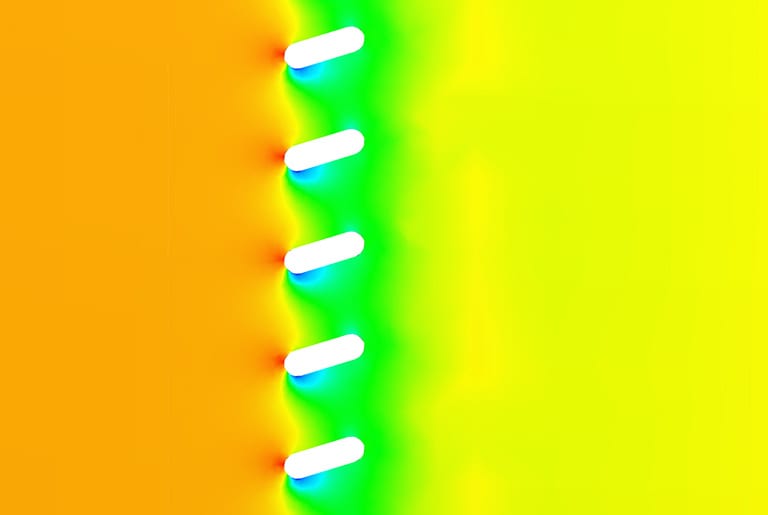

post-processing image of a smartlouvre microlouvre screen using simscale cfd
Evaluating the pressure field around a MicroLouvre Screen using SimScale.
  •  The final stage was using the solar shading test data to devise a quick method for building simulation consultants to be able to mimic actual performance, in a few easy steps. Smartlouvre and SimScale then produced an easy-to-use guide that explains to building simulation users how to set up and model a MicroLouvre Screen.

Smartlouvre decided to recruit the expertise of SimScale GmbH because SimScale recognized the unique nature of the product and the fact that its performance was complex and challenging to simulate. SimScale's expertise in the architecture, engineering, and construction sector meant they had a clear appreciation of all the challenges with simulating MicroLouvre performance criteria.

Andrew Cooper, Managing Director at Smartlouvre Technology Ltd

Andrew Cooper

Managing Director at Smartlouvre Technology Ltd.

THE RESULTS & NEXT STEPS

Smartlouvre & SimScale’s Continued Collaboration

The results from SimScale illustrated to Smartlouvre useful performance characteristics of a MicroLouvre Screen. Its aerodynamic behavior could be visualized, and SimScale was able to assess the pressure-flow characteristics at various wind speeds, flow rates, and wind directions. This insight is useful for understanding the current performance of MicroLouvre, but also allowing a parametric design analysis to further enhance its overall performance by altering louvre angle, thickness, material, etc.

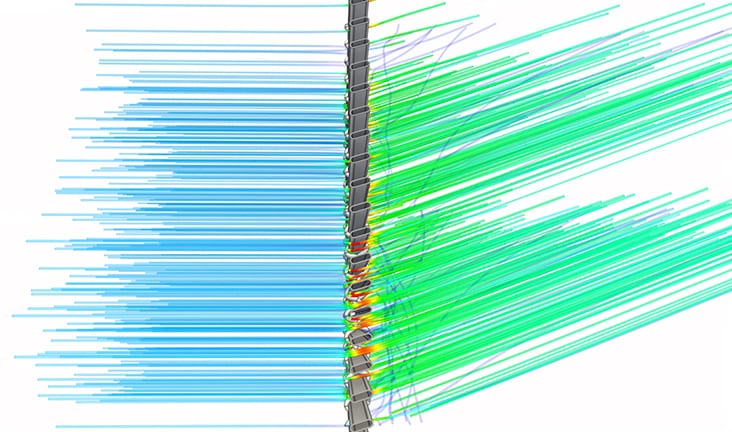

smartlouvre microlouvre airflow results
Streamlines of airflow going through the screen system.

SimScale also showed how the air would enter a room, as the louvre angle was pitched at 17° thereby altering the flow of air. This attenuation is dependent on wind speed and local conditions, and serves to improve the efficacy of the air mixing in the room.

The geometry of a MicroLouvre Screen is complex and very fine. The louvres themselves are only 1.5 mm wide, meaning a 3D model accurately representing the build of the system is a very large file. This becomes prohibitive if engineers try to physically model MicroLouvre in CFD, as the meshing and computational requirements become restrictive. SimScale used the Darcy-Forchheimer model to determine appropriate coefficients and unit vectors to be able to model the complex flow behavior of MicroLouvre using a porous media simplification. The comparison between physically modelling MicroLouvre and using the porous media simplification is almost a 100% match.

smartlouvre microlouvre animation of simulation from simscale
Natural ventilation air flow entering a room using a simplified Darcy-Forchheimer model in porous media setup.

Due to the fact that MicroLouvre is a metal fabric made of 90% copper alloy, its thermal conductivity is high. In still or low wind speed conditions a ‘chimney effect’ can be observed where the metal fabric is much warmer (due to incident solar and reflected gains) than the surrounding air, causing air to rise like a column above a MicroLouvre Screen. In certain double-skinned facade systems, this might be a useful property. This observation was also useful to determine a minimum MicroLouvre Screen-Window distance to minimize any unwanted heat gains into a space.

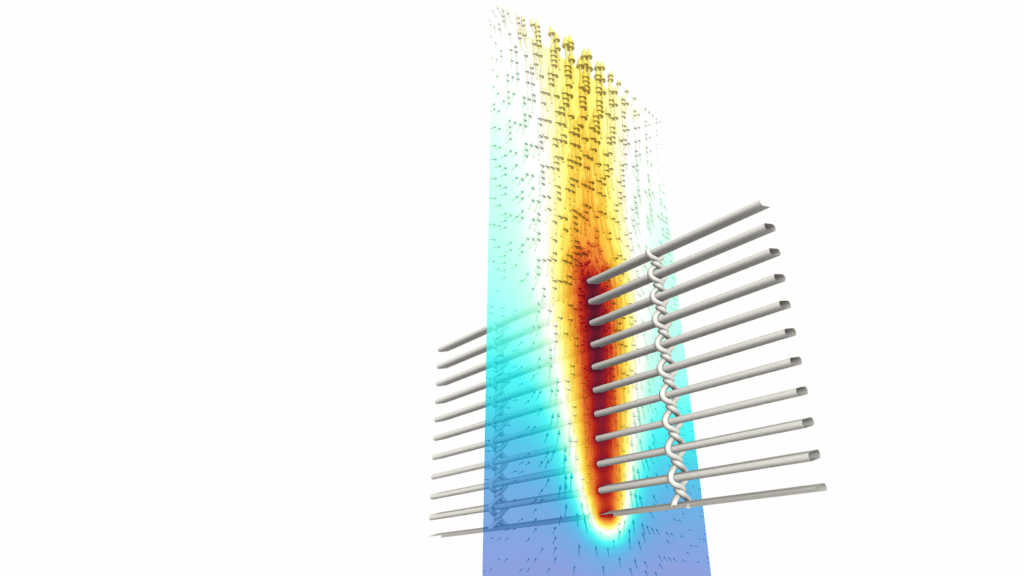

microlouvre chimney effect as observed by smartlouvre and simscale
The ‘chimney effect’ observed on a still day with incident solar gain warming the metal MicroLouvre fabric.

SimScale and Smartlouvre conducted some scenario analyses in various types of buildings to assess the installed impact of MicroLouvre on thermal comfort and energy efficiency. For a three-story healthcare building with typical internal gains, a London climate and thermal performance meeting minimum Part L (Conservation of Fuel and Power 2013) regulations, the following was observed:

  • Up to 60% drop in room solar gains with MicroLouvre Screens installed
  • Up to 50% reduction in cooling load in Summer months with MicroLouvre Screens installed
  • Exceeding minimum ventilation requirements when used for natural ventilation
3 story building cad including microlouvres
Smartlouvre’s MicroLouvre Screens installed (modelled) on a top floor room on a multi-story building.

Smartlouvre now has two methods to model MicroLouvre Screens in building simulation models for solar shading and the relevant data to represent its performance in natural ventilation models. They are now confident that the construction industry can integrate the unique MicroLouvre system in their building designs and refit plans.
