How to setup force and moments coefficients and how they work

Project Support
1

Hi, I was wondering how to set up force and moments coefficient. I want to have the coeficents of my forces acting on my aircraft but I dont know how to set it up. When you go into forces and moments coefficients. It has all these numbers. I need some help on finding out what they do and how to correctly enter them.

Here is the project link:

Thank you so much for your time,
Frank lucci

1 Like
2

Hi Frank, this is Fillia, thank you for using the forum!

Have a look at the following pages, they contain all the necessary info and tips regarding the forces and moments settings:

Let me know if you face any issues or need clarification.

Best regards,
Fillia

1 Like
3

Thank you I just need clarification that if you were to select the whole asembely for the faces that the reference area would be the surface area of the whole entire assembly or just half? Or If the reference area is something else please let me know?

Thank you,

Frank lucci

4

My colleague Ricardo wrote some tips regarding the reference area, check this post: How to find reference area - #18

5

afafdfferfreg

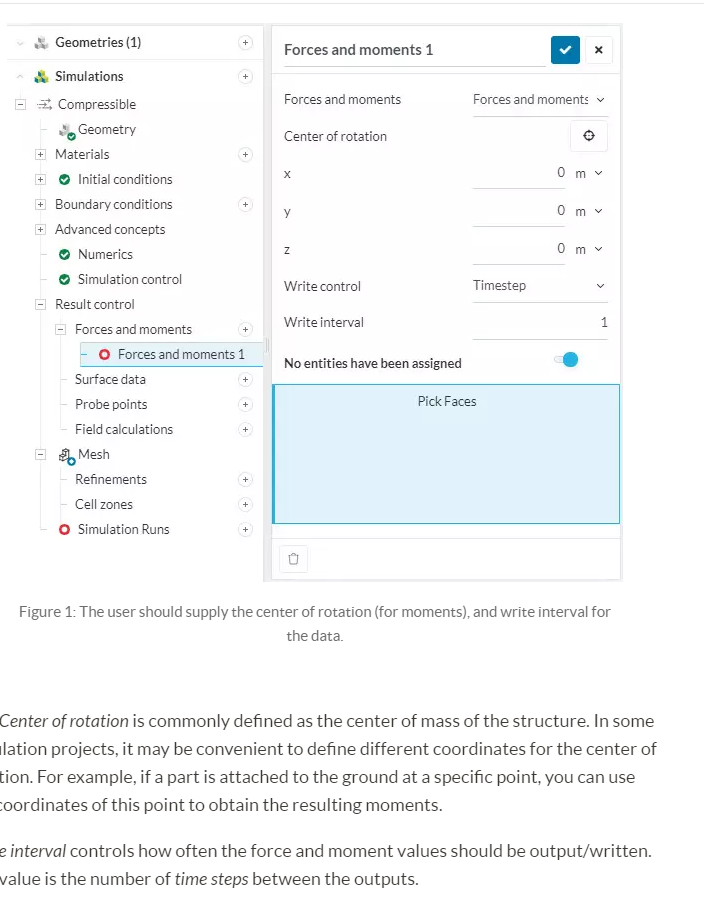

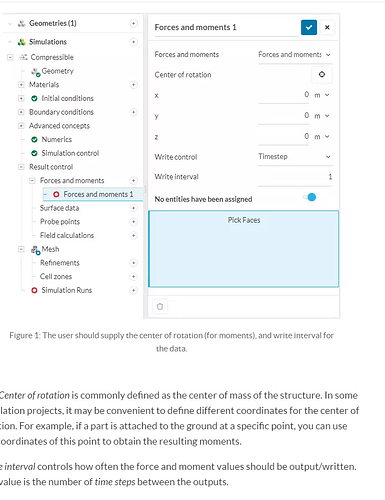

afafdfferfreg704×912 121 KB

Hi again, I don’t know what faces to select for force and moments. do I select anything or leave it blank? if I do select anything do I select the whole thing?

6

You will have to select the faces of the CAD model :slight_smile:
