Truck - Aerodynamic analysis & exhaust gases propagation


#1

Dear SimScalers,

in this weeks spotlight we will have a look at fluid dynamcs simulation taking into account passive scalar transport of a truck by our PowerUser @varsey .

Introduction

The project represents the CFD simulation of a driving truck with exhaust gases coming out its exhaust pipe (CFD + Scalar Transport modelling). The CAD model of the truck has been simplified with the program SALOME.

Courtesy: Aerodynamics of a Semi-truck trailer vehicle project


Geometry

Format: IGES

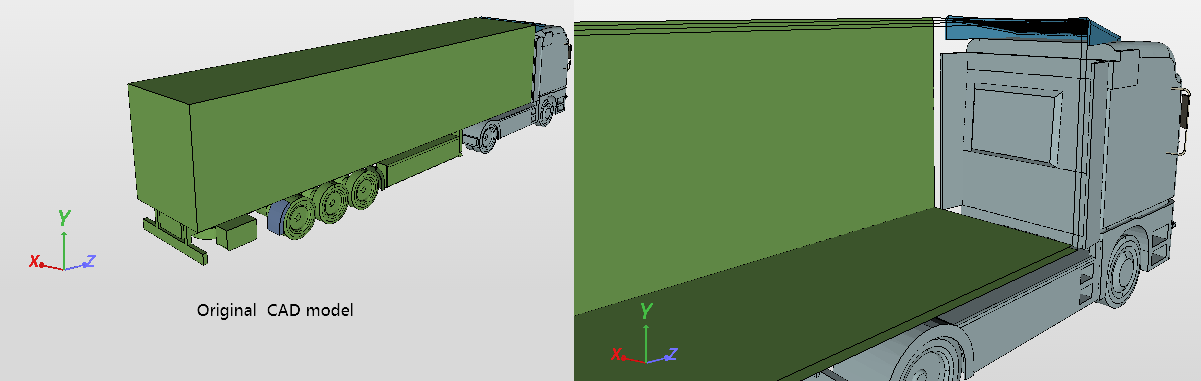

Original Model:

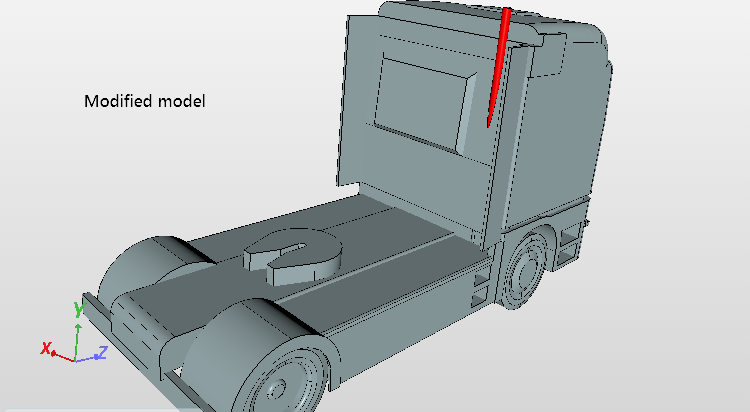

Modified Model:

truck aerodynamics cad model


Meshing

Type: Hex-Dominant Parametric

The geometry was meshed using hex-dominant parametric mesh with refinements. The mesh is shown in figure below.

Nodes: 2377645
1D elements (edges): 0
2D elements (faces): 6172019
3D elements (volumes): 1909492


Simulation:

Type: Passive Scalar Transport

Simulations Details

Solution

Start time value [s]: 0
End time value [s]: 1500
Time step length [s]: 1
Number of computing cores: 4

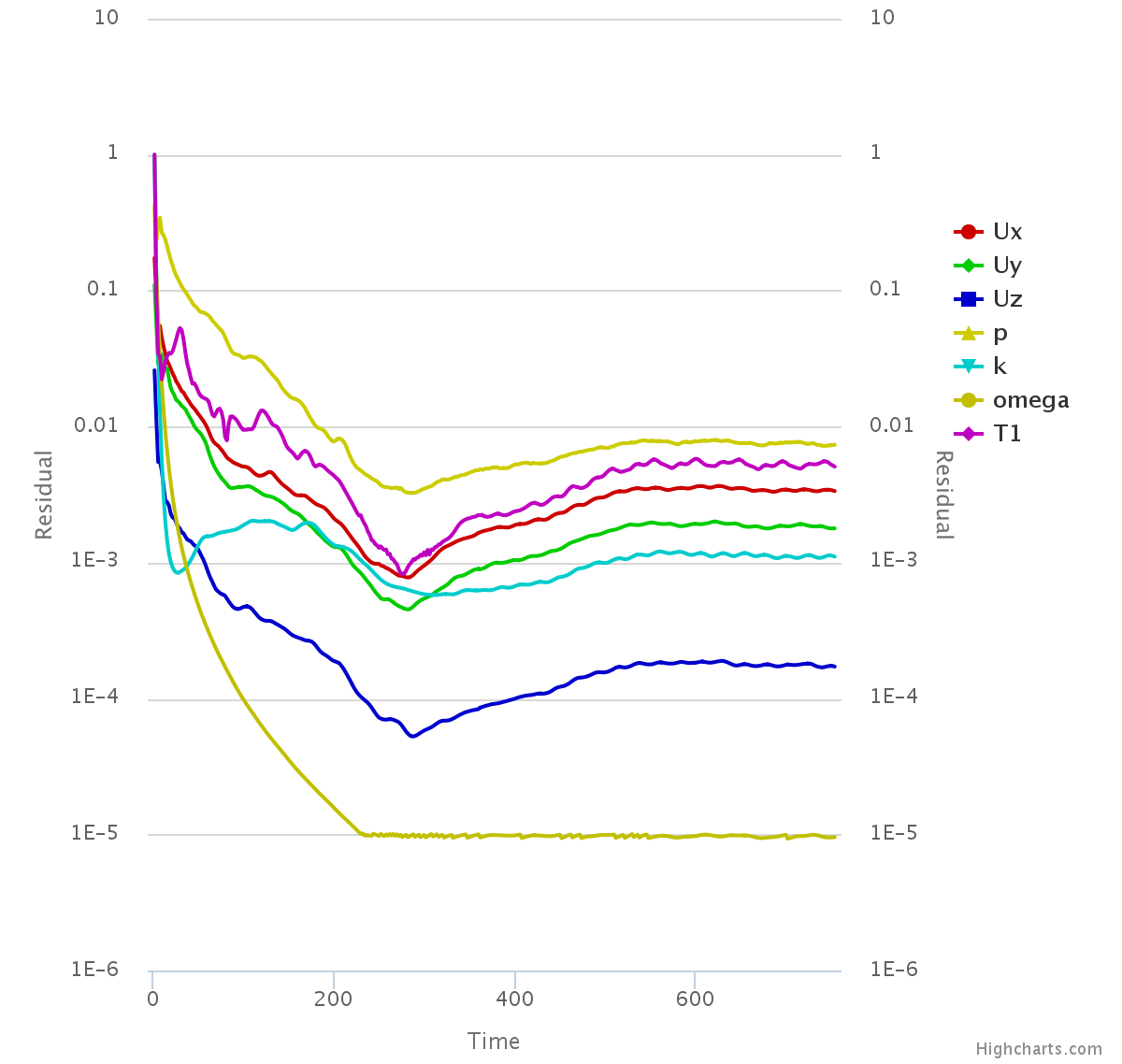

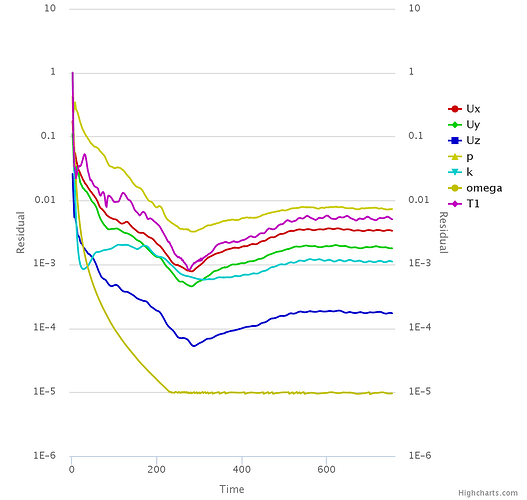

Residuals:

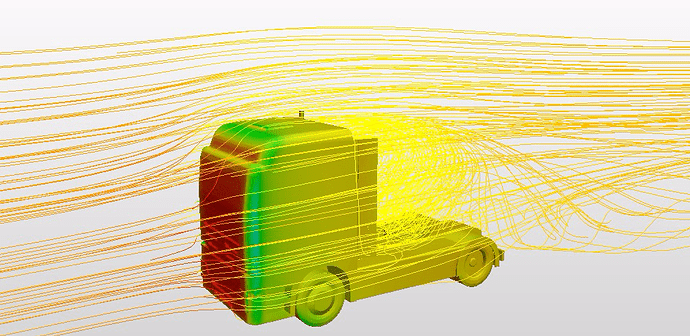

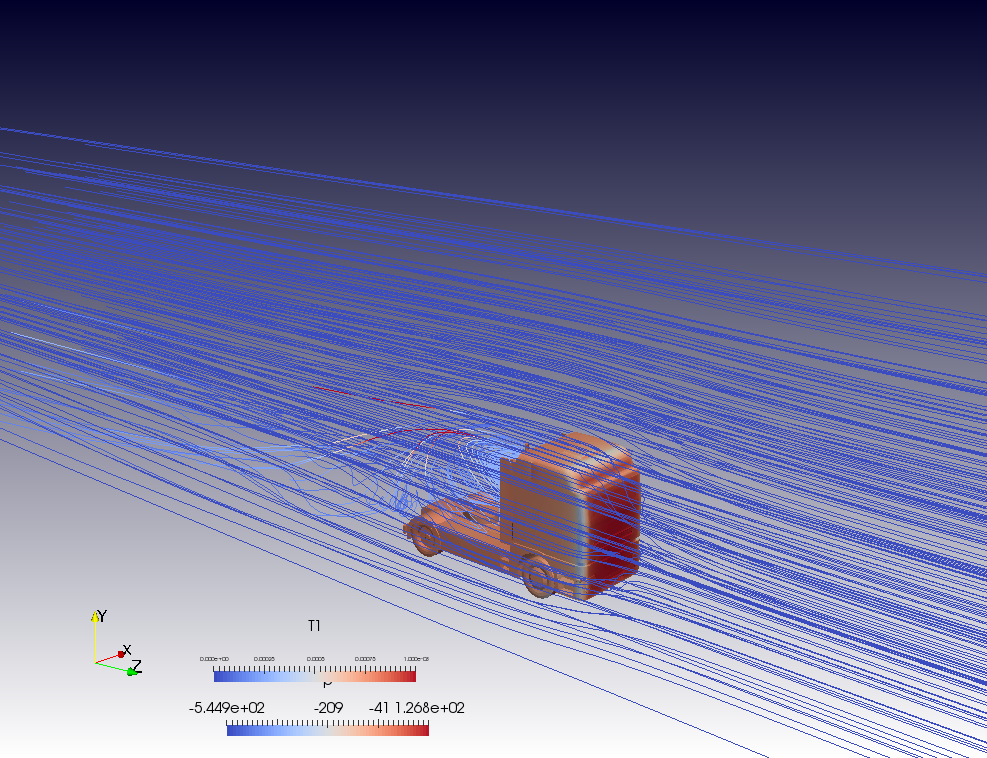

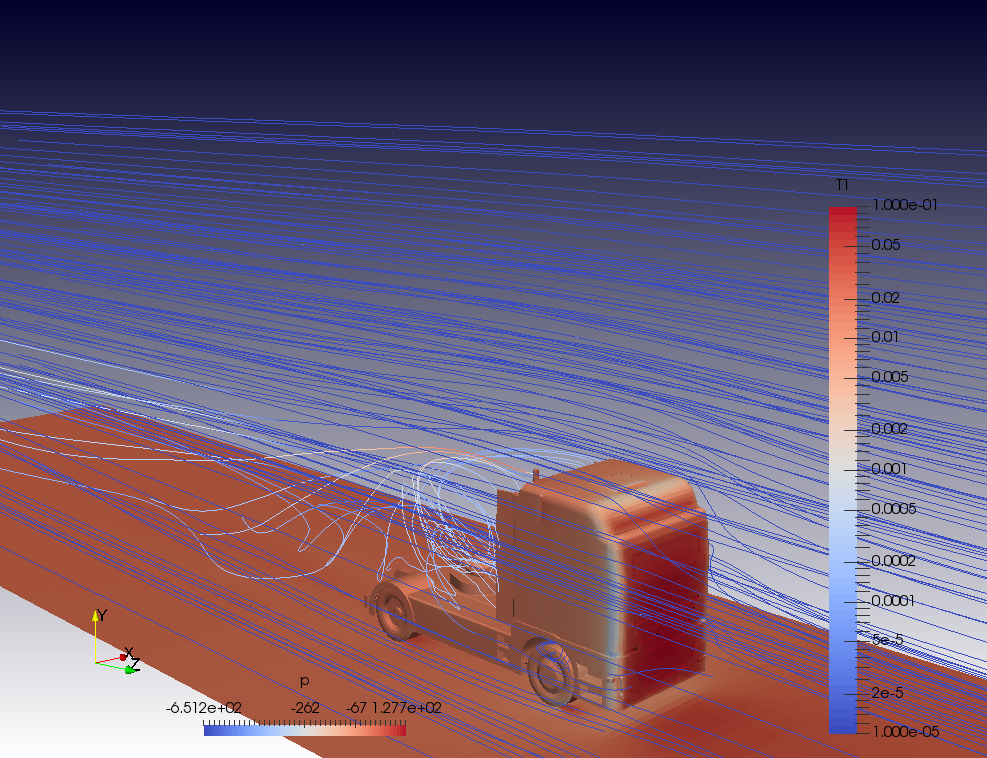

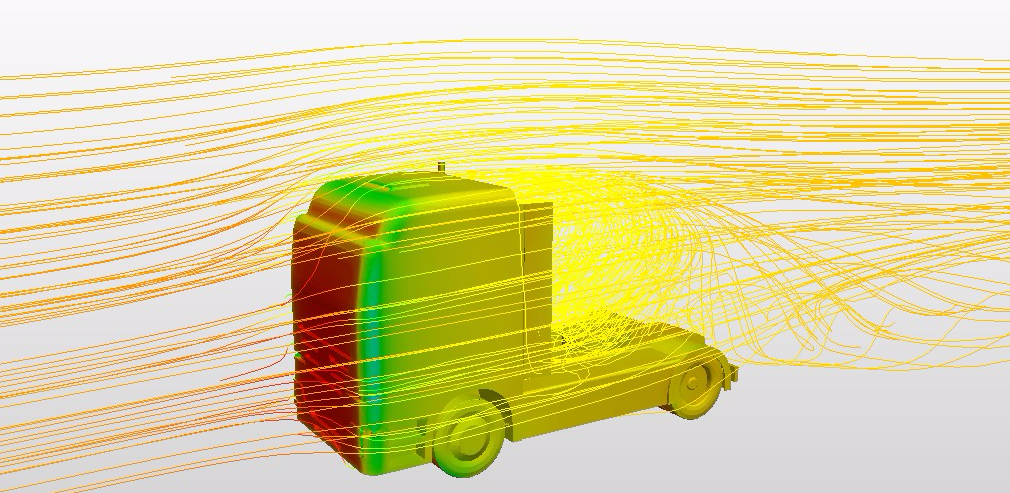

Results


SimScale project:

To look at the simulation setup, please have a look at the project from @varsey :

Truck - Passive Scalar Transport Simulation

To copy this project into your workspace, simply follow the instruction given in the picture below.
