Issues with mesh quality

Project Support
1

Thank you again,

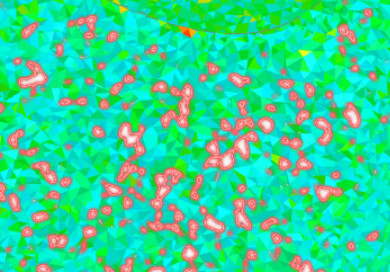

While we are on the topic I am having some issues with my mesh. There are red holes in the mesh quality but I do not know what they mean and how I would go about fixing them.

image390×272 63 KB

Also how would I go about fixing this


Thank you.

Issues with post process results
2

Hi @kilgore_802,

This is normal - the holes come from the Iso Volumes filter, which will only show cells which have the Iso Scalar variable within a certain range.

Cheers

3

Thank you,

But how do I go about fixing this issue


Best

4

Hey kilgore_802,

This is just a warning since your mesh size is smaller than the defined small feature suppression value to alert you that maybe you have a value much higher than required for small feature suppression, for example. As long as the mesh quality meets the criteria and your convergence is reached, you can feel free to ignore the message. :slight_smile:

Best,
Satvik
