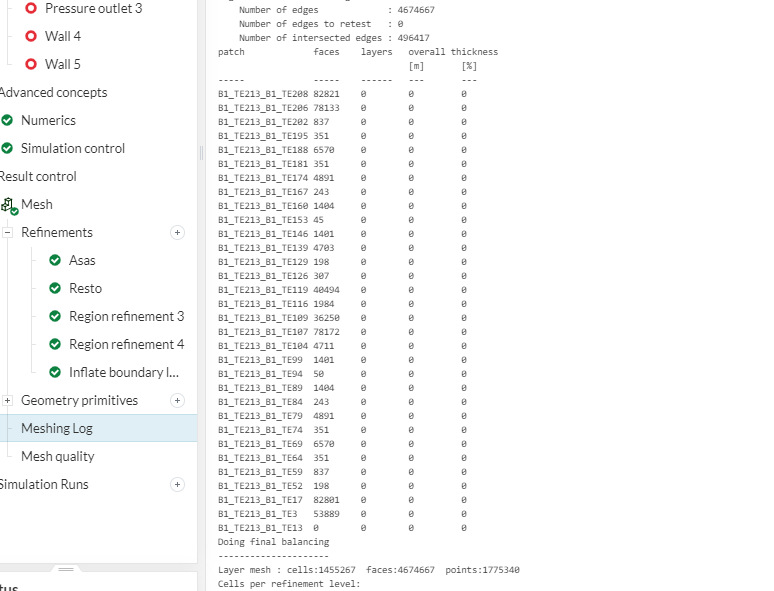

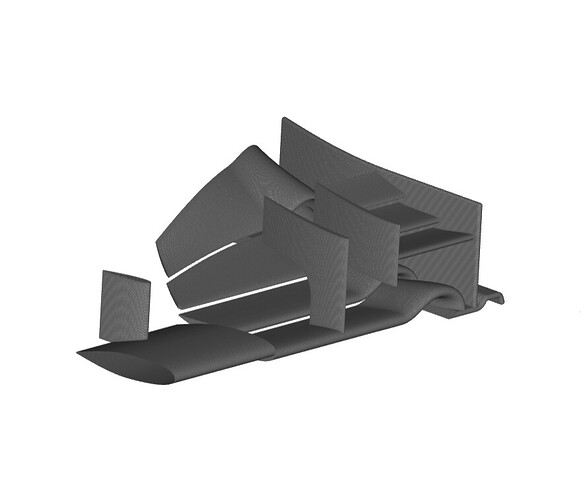

Hello, I am trying to generate a boundary layer by making a refinemente but the layer does not generate as show below in the mesh log.
Can anyone help me understand why this is happening?
Hi there
In order to understand what is going on with the settings etc, I will need your project’s link.
Best regards,
Fillia
Thank you for your quick reply.

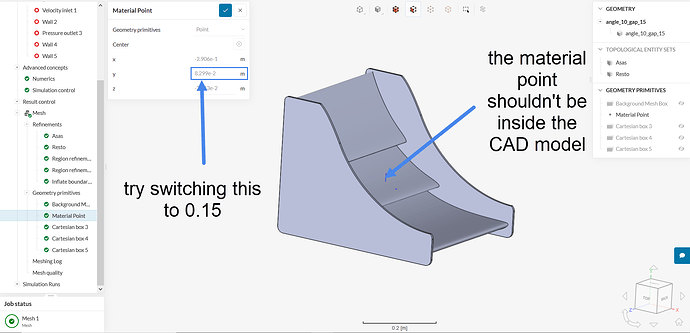

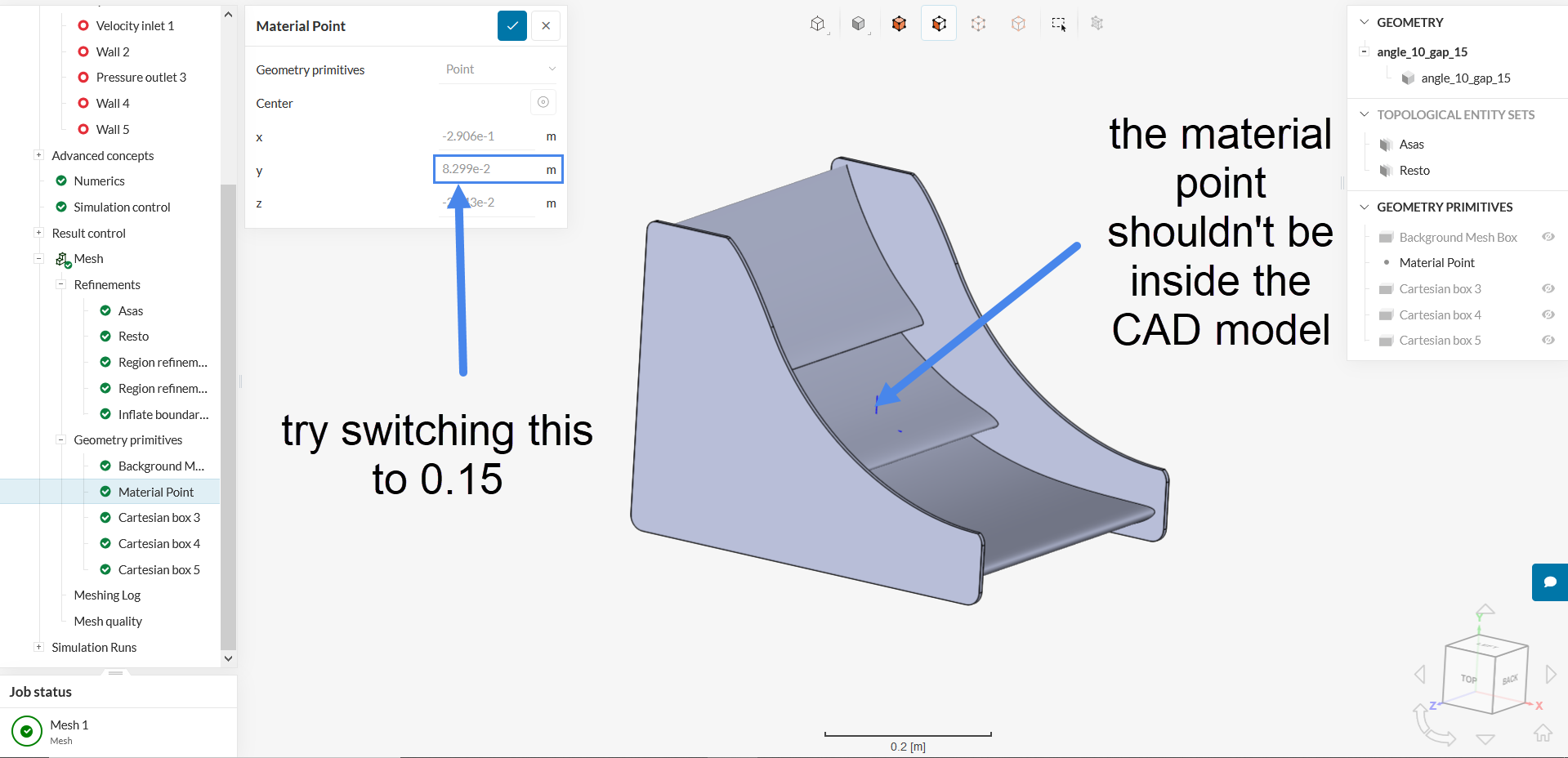

Can you try changing the position of the material point? Right now it is placed inside your airfoil, so it creates an internal mesh:
You can learn more about the settings here: Hex-Dominant Meshing | Simulation Setup | SimScale
Thank you.
The material point was in thw wrong place but even before whe it was oustide the CAD model, the boundary layer did not seem to inflate. I am running again in order to see if now i can generate it.
1 Like

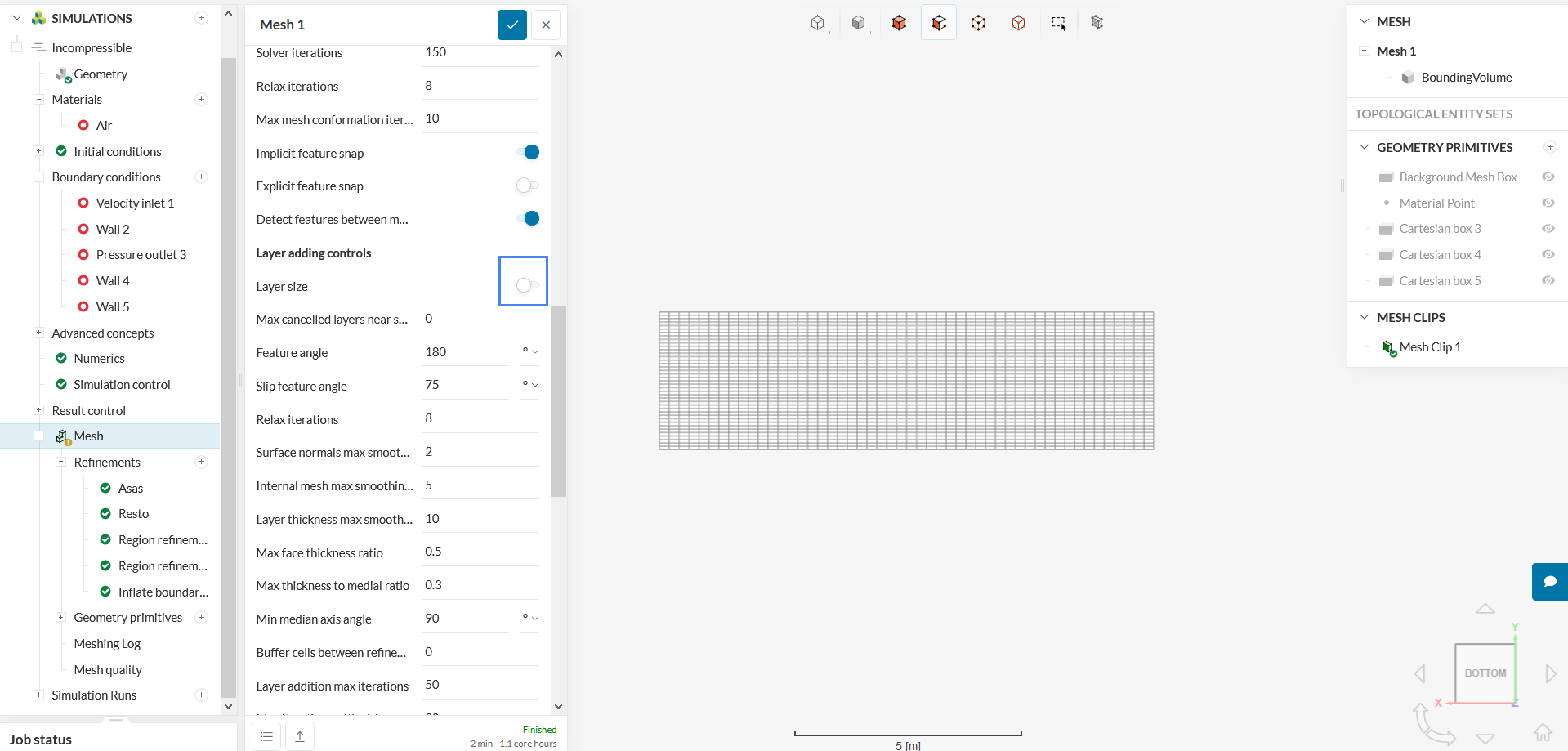

Hi, de-activate this option, so that the settings of your boundary layer are independent from the rest of the mesh’s characteristics:

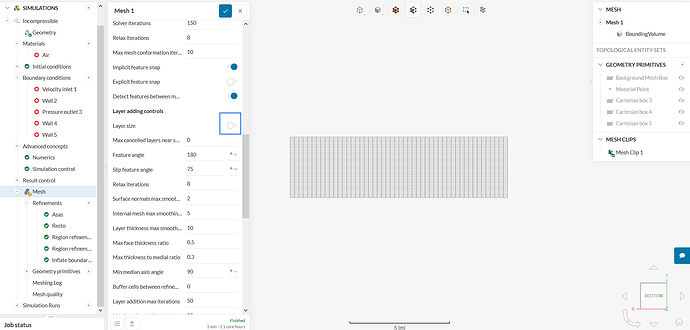

This will be the result:
In general, I suggest you use the settings from this case if you wish to continue with the hex-dominant parametric algorithm:
Best regards,
Fillia
