Flow simulation on the Spurs gear

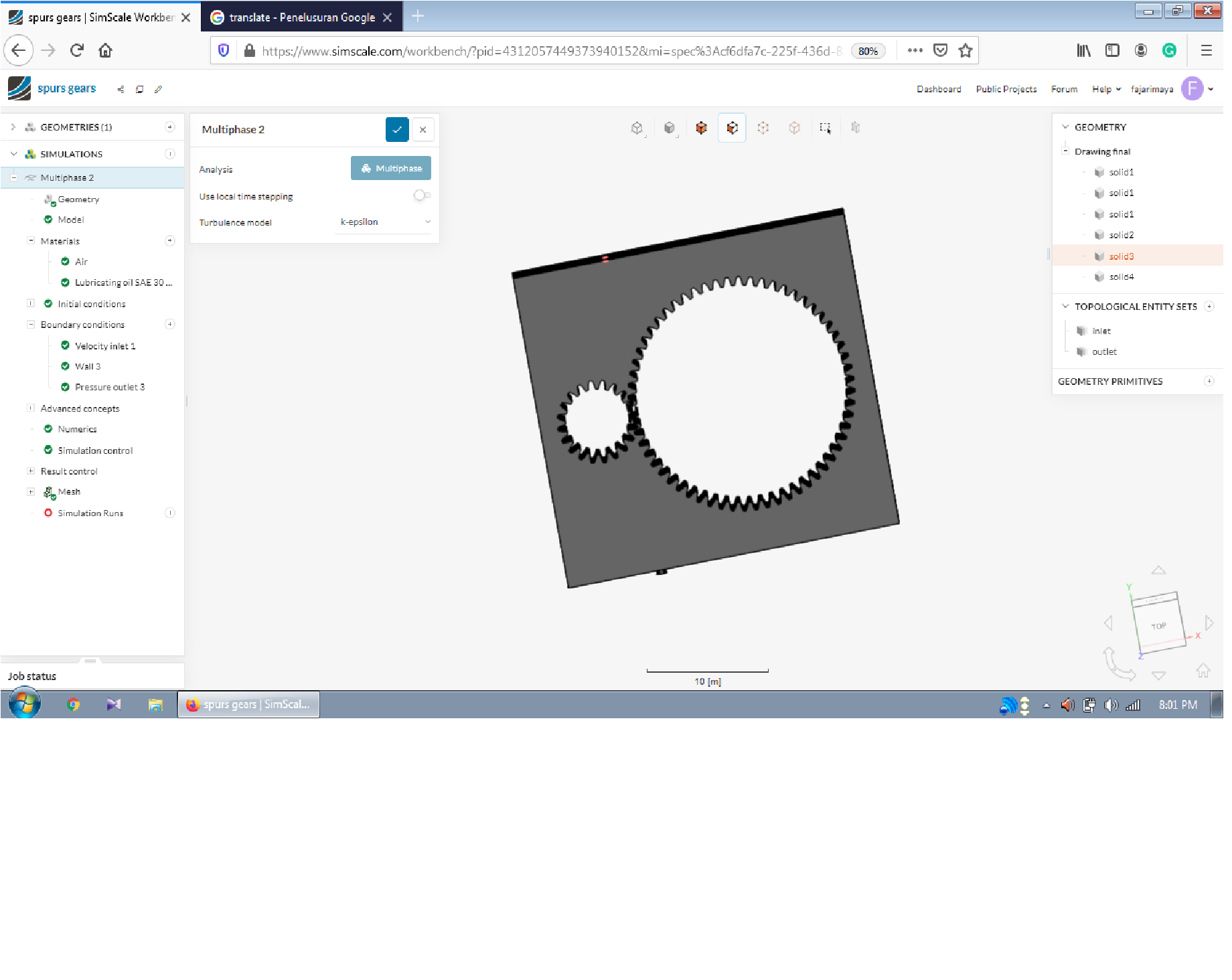

hello I am a beginner in simscale, I want to simulate the flow in multiphase in spurs gears but I have difficulty in the boundary conditions, the 4 model region and the multiphase, can you help me to see the 2 phase flow only, thanksFlow simulation on the Spurs gear

Hi there, can you also include the link to your project please? :slight_smile:

Best regards,
Fillia

spurs gears

https://www.simscale.com/projects/fajarimaya/study_of_oil-jet_gear_interaction_flow_phenomena_in_spurs_gear_1/

Hi there, thank you for sharing!

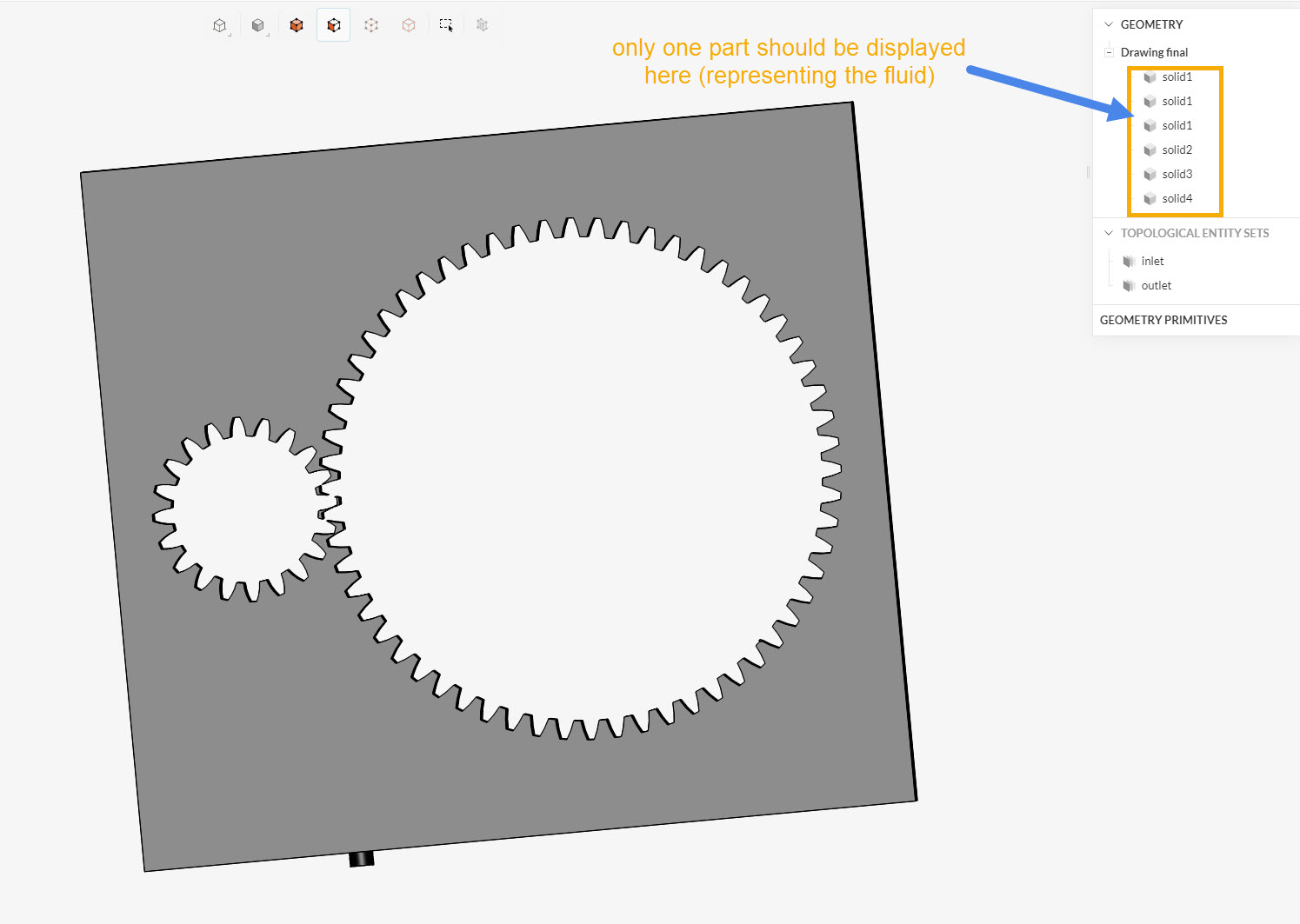

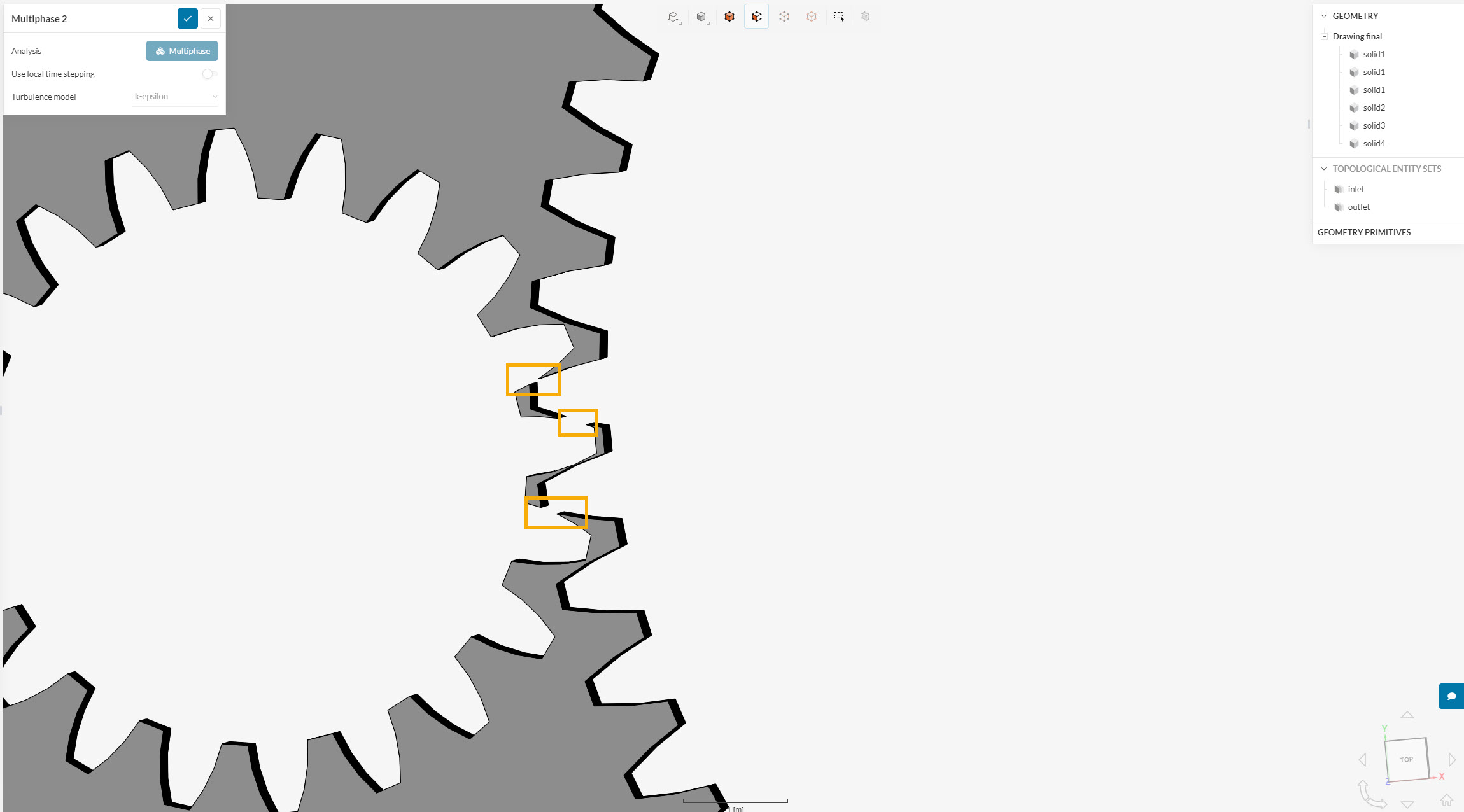

The model currently has some issues you should fix. For example, there are some gaps in the flow region, resulting in various parts, instead of a single continuous fluid domain, as you can see below:

So to begin with, the model should have be consisting of a single part - the flow region-, otherwise it will not be simulated.

When you fix the model, you can have a look at the following multiphase pages, and use them as reference:

Best regards,
Fillia
