I have created a new project called PD-1 vol1
Unfortunately i receive the following error during simulation runs that breaks the procedure :
I would like also to mention that I have also tried with different wind tunnel dimensions, but I get the same error message.
Could you help me please ?
Thank you in advance
Hi, this article should give you the basic troubleshooting steps for diverging runs.

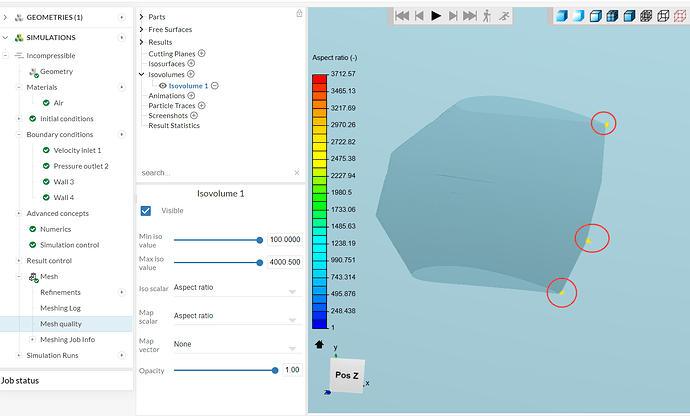

In short, the trailing edge has a handful of mesh cells with very poor quality:

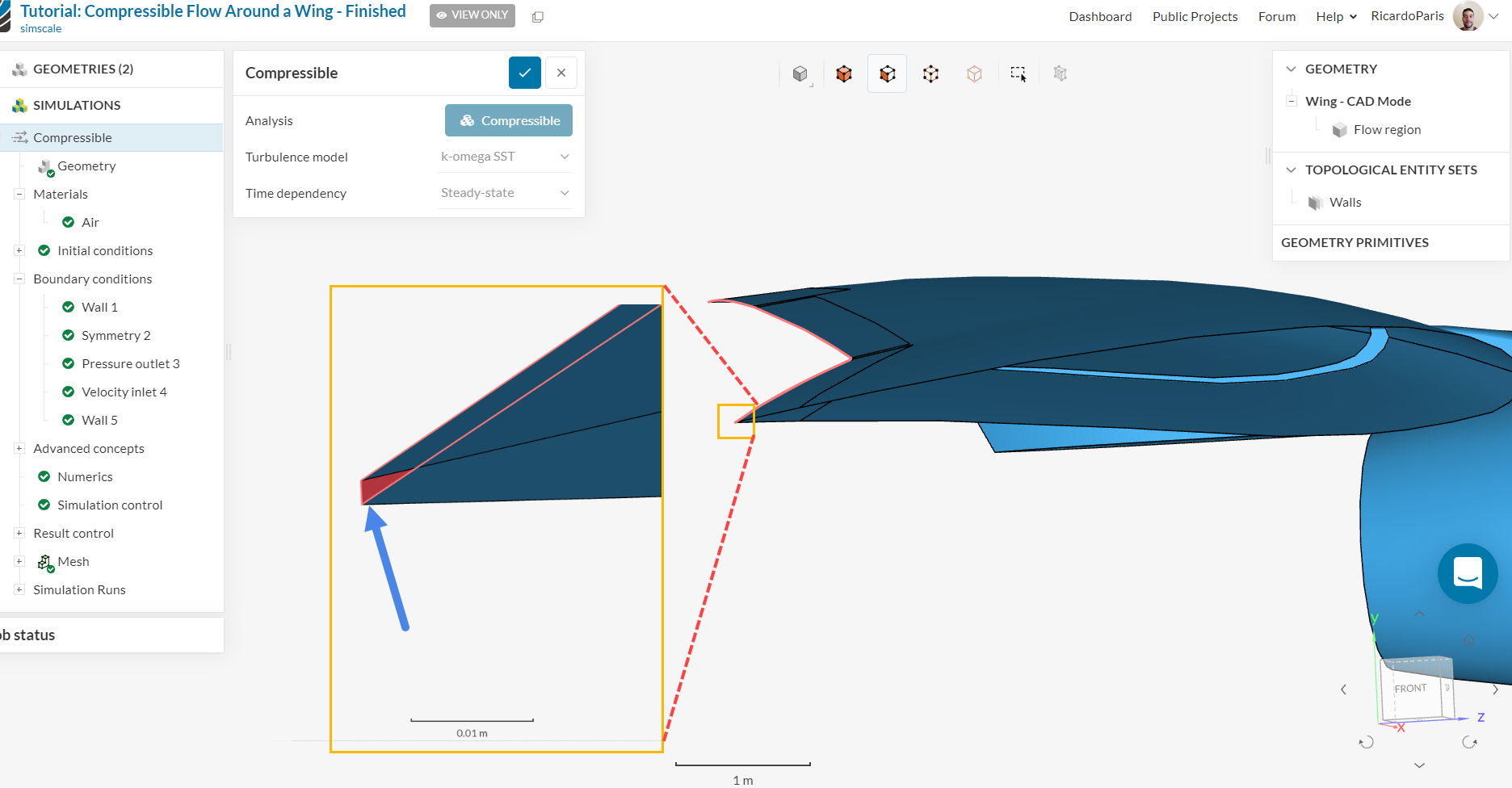

Usual approach is to make a small cut on the trailing edge, allowing for a better quality local mesh. Make sure to check the geometry used in this tutorial:
