A multi-region mesh was assigned - this analysis-type requires a single-region mesh-Hex Mesh

Project Support
1

Project: Basic Fan blade simulation
I attempted a simulation run for the fan, working of the online tutorials on how to simulate rotary machinery using the MRF rotating zone feature. Using Hex-dominant mesh to avoid the errors discussed previously in the forums to no avail, the cylinder that has the propeller was cleared out from the solid, and as of now it has 2 volumes those are:
-The rotating zone
-The flow domain
I could not understand why the simulation run is yielding this error

2

Hi @yalhaddad

Could you please share the project link here?

best,

3

Hi @goncalves

Sincerely
Yamen

4

It seems that the project is private. Could you please click on Share with support button?

5

Hi, just checked

is it public now?

6

Not yet. Here you find a tutorial on how to share a project.

7

Hello!

Did you remember to create a cell zone within the hex-dominant mesh configuration? E.g. fig 9 from this article.

9

Hi

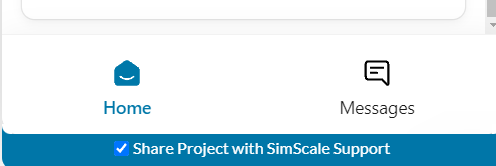

I double-checked, and ticked the share with support box as shown in the box

image496×166 3.5 KB

sincerely

10

It is working, thanks. It seems the problem will be fixed if you carefully follow these steps. Please give a try and let me know how it goes.

1 Like
11

Hi, it works, thanks for the help !
