Weird result of wing simulation


#1

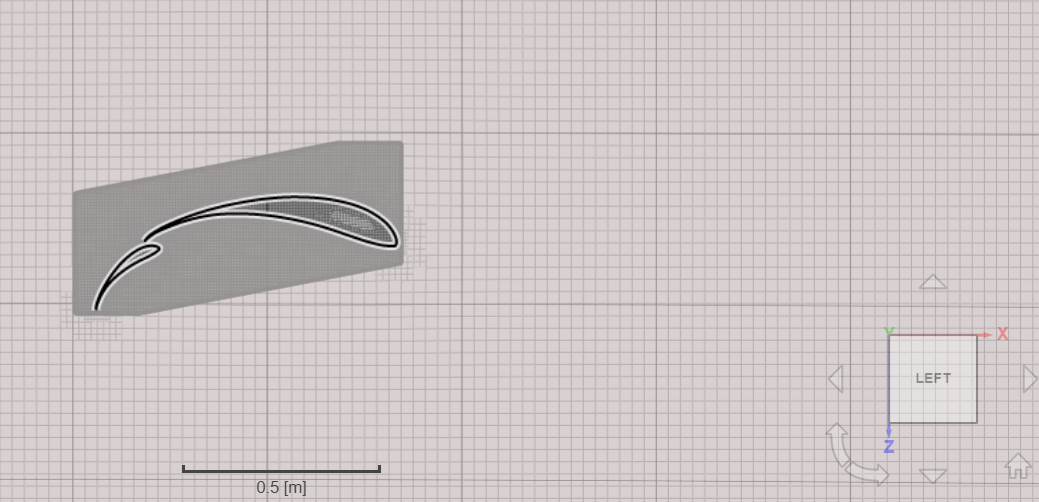

Hello, Im having some troubles with my simulation. Ive followed the steps here Step-by-Step Tutorial: Homework of Session 2

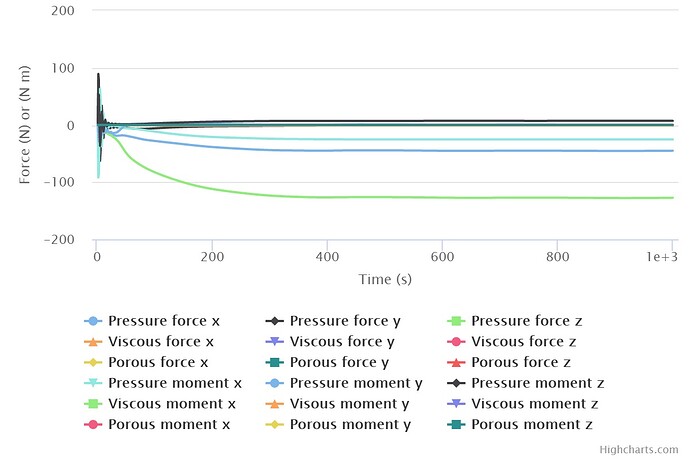

trying to do the same with my own wing. Post process results :


Any idea how to fix it?
Thanks in advance


#2

Hi @brumak: it seems that your wing is ‘upside down’. If lift is reported on Z axis, it points to -Z.

Cheers,

Retsam


#3

Hi, does it matter if my wing in default position is upside down, but still top pointing along the Z axis?


#4

Not at all. Gravity is not taken into account. :sweat_smile:
