Trees simulation in the incompresible (LBM) enviroment

Project Support
1

I have a problem with the core hours in this proyect. It consist in simulating a 3D model of a tree, the type of simulation is incompresible (LBM).

I made two diferent resolutions for the 3D model, the simulation execution time and mesh count didn´t change, in the following image i will exibit the trees

image840×802 32.2 KB

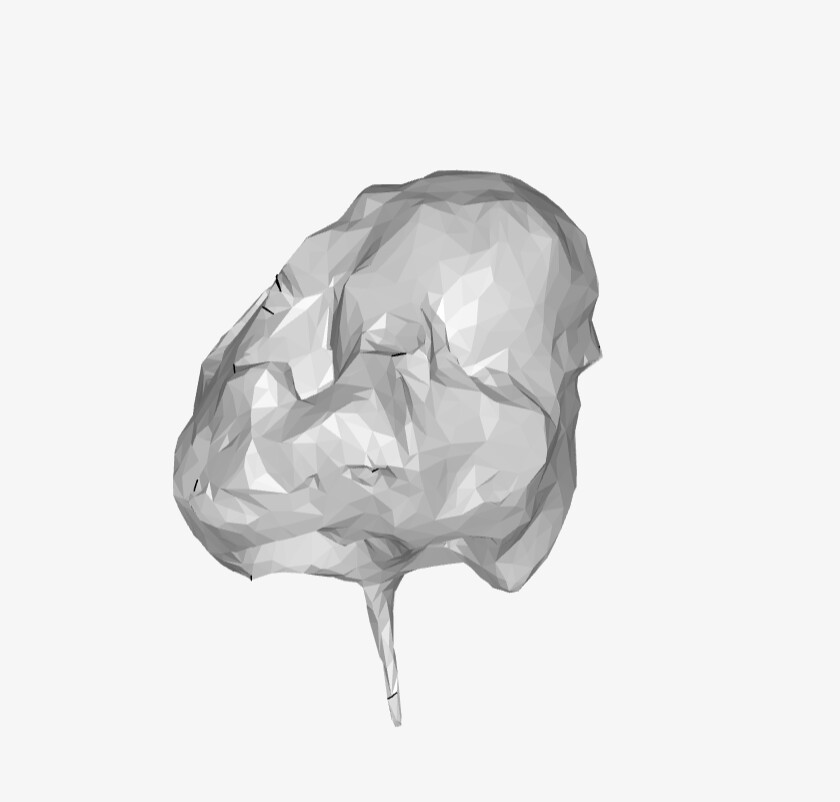

Img 1.High resolution tree

image620×675 27 KB

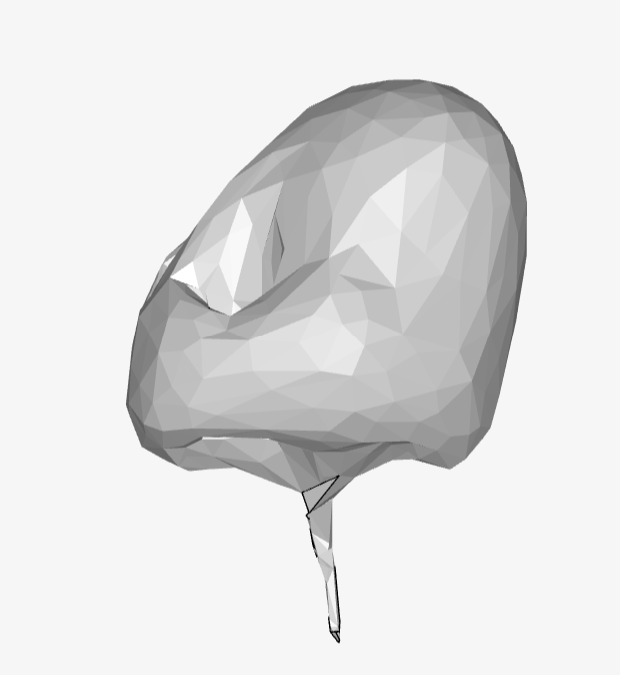

Img 2. Low resolution tree

I reduce all parameters that i can and the simulation didn´t become more lighter. What i can do in this case? The simulation set up is the following.

image1345×1370 116 KB

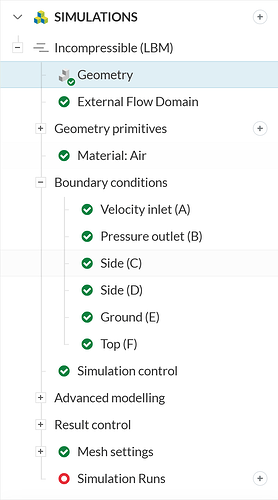

Img 3. High resolution tree setup

image762×840 84.6 KB

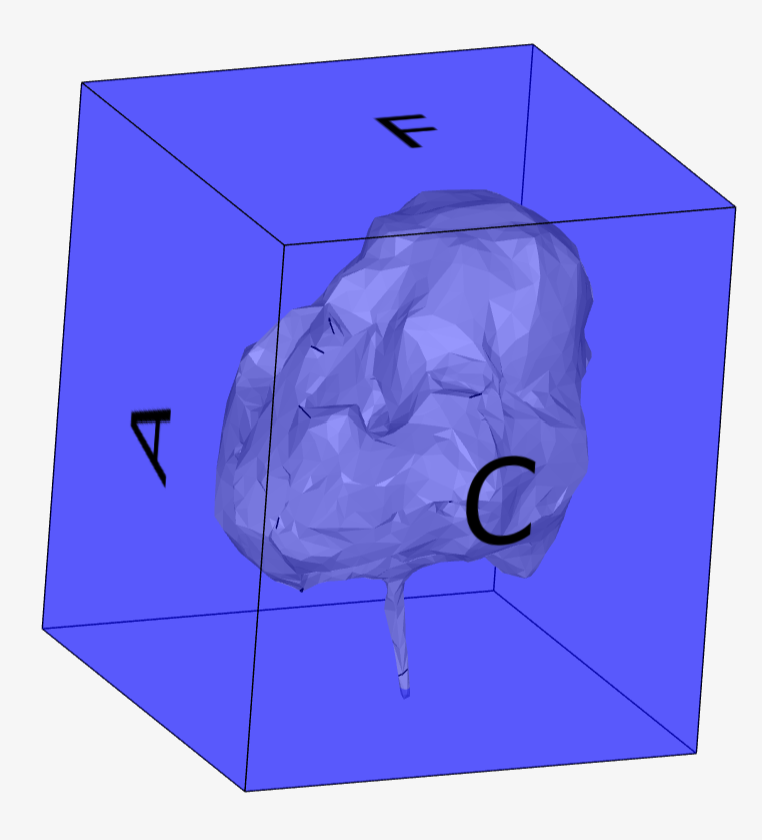

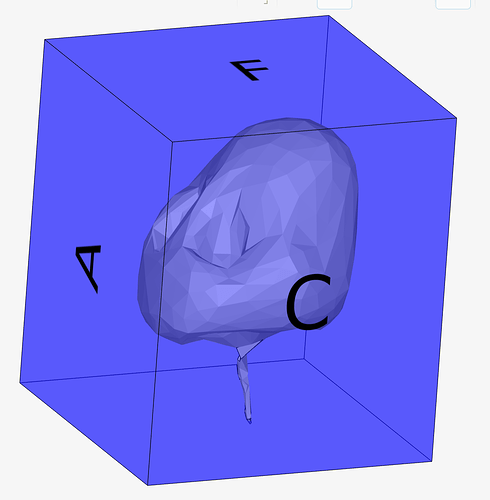

The distribution of the faces in the setup is explain in the image below.

image725×1300 59.7 KB

2

Hi,

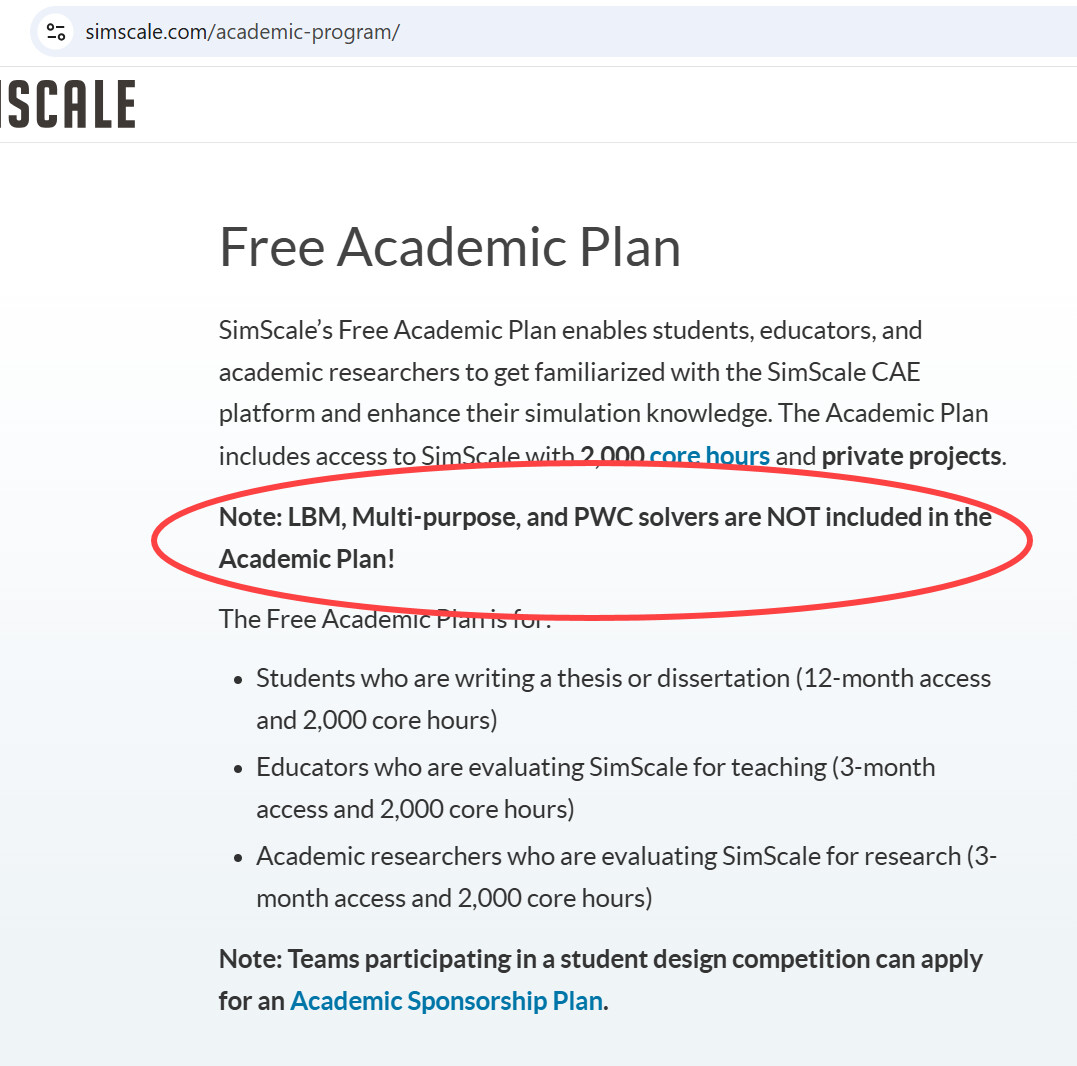

As outlined in the academic program page, incompressible LBM is not available in the academic program.

image1077×1066 171 KB

As such, you would have to look for different analysis types (e.g. incompressible). Side note: this flow domain is extremely small. For instance, see this tutorial for reference: https://www.simscale.com/docs/tutorials/aerodynamic-simulation-vehicle/
