Solid body from sheet bodies

Using SimScale CAD & Meshing
1

Hi everyone,

I have a complex geometry of a wind tunnel which contains only sheet bodies.
Project link: https://www.simscale.com/workbench/?pid=8871083702543879899&mi=spec%3A7134ce3d-0146-4dd6-aa2d-7d2e8b0ddbb9%2Cservice%3AMESHING%2Cstrategy%3A8&sh=7

Is there any simple way to extract the air volume as a solid body, in order to proceed with standard meshing?

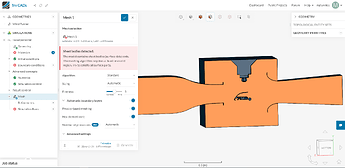

image1919×937 128 KB

Thanks!

2

Hi there, thank you for using the forum!

I opened your model, and I see that it needs a lot of cleanup with your CAD software. There are two main rules which are crucial for any flow simulation:

  1. Your CAD needs to be watertight: There must not be any holes except inlets and outlets.
  2. Your CAD must only contain solid parts. Shells or Sheets must not appear.

To learn more about cad preparation and troubleshooting have a look here:

Best regards,
Fillia
