Node selection is not allowed

Using SimScale Solid Mechanics / FEA
1

Hello
I am working on a project which is FEA on a drone arm and I want to apply a fixed value boundary condition on a node but the node button is greyed and I can not select it, so what is the problem?

2

Hi @Youssef_Samir,

Could you please post the project link here? Also a screenshot of the error would be helpful.

best,

3

Here is the project link

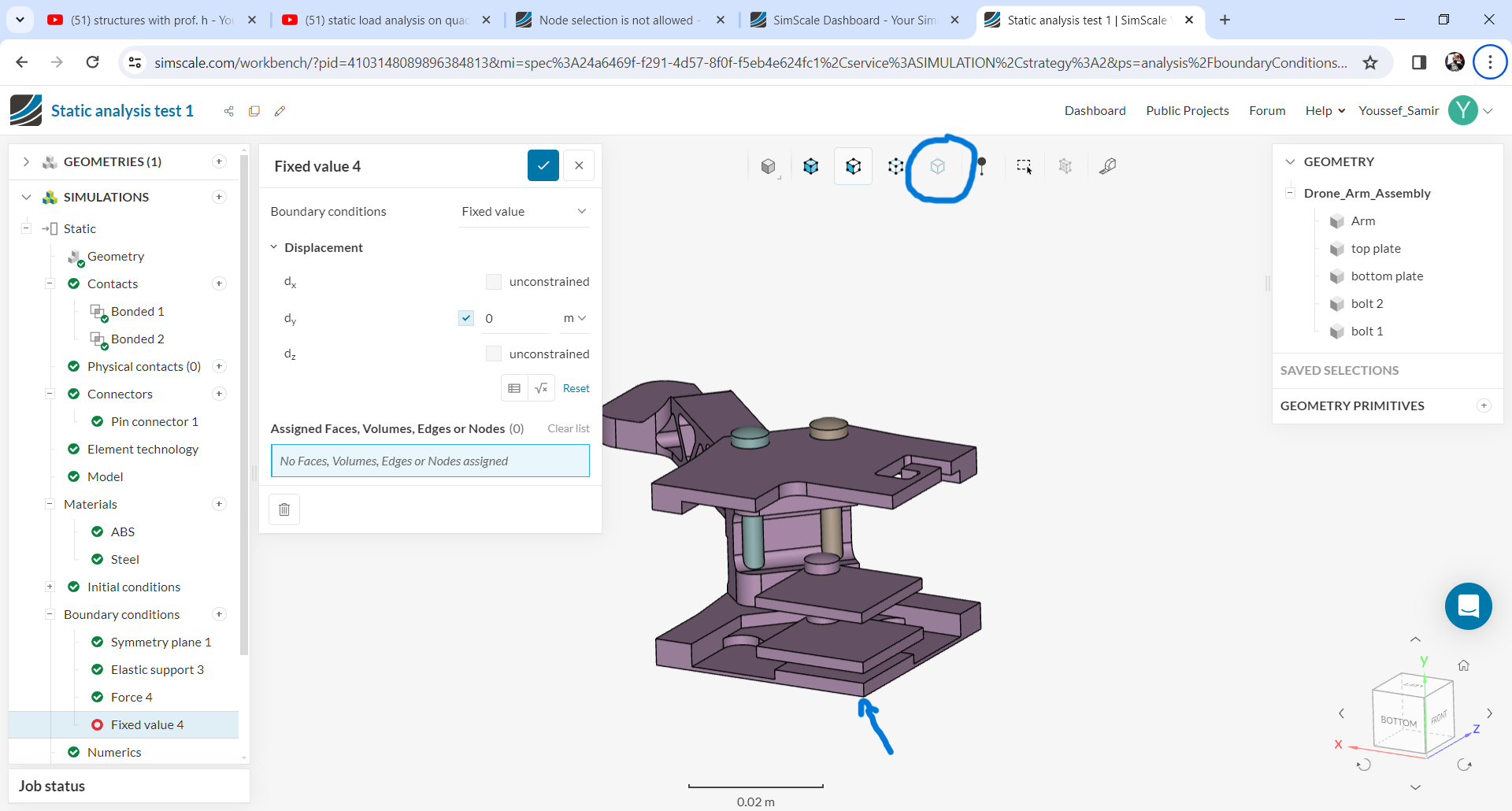

Static analysis test 1 _ SimScale Workbench - Google Chrome 2_3_2024 9_09_44 AM

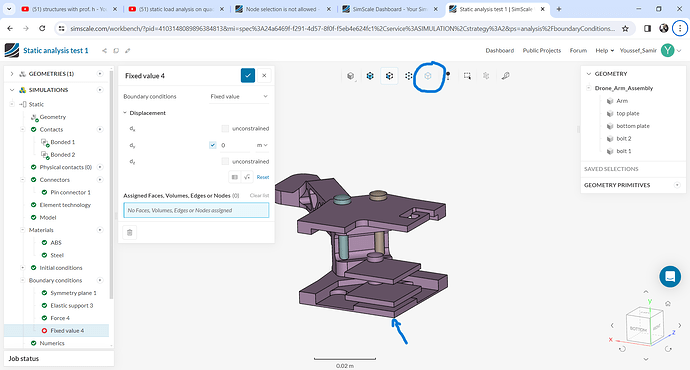

Static analysis test 1 _ SimScale Workbench - Google Chrome 2_3_2024 9_09_44 AM1920×1030 146 KB

As you can see the node selection option is greyed and I can’t choose it, I want to make a boundary condition at the node I point to.

4

Got it, thanks for the link. Unfortunately mesh upload is mandatory if Node selection needs to be used, being not possible to use it for uploaded geometries.

best,

5

Thank you so much.
