Monotonous color map on simulation solution

[tsite]

Hey, thank you for sharing!

We had a chat today, and you mentioned you want to perform an internal CFD analysis, however, this type of application is an external simulation. So forget about the internal CFD tutorial I sent you You will have to create an External flow region in CAD mode instead, as in the following tutorial:

'Wind field over city landscape' simulation project by tsite

The purpose of this simulation is the examining of the behavior of air flow through a modern urban landscape. CFD wind engineering, constitutes a valuable source of input for urban developers, architectural designers and environmental planners to promote natural ventilation, a good measure for reducing energy use in buildings and providing better outdoor air quality. You can have a look at the finished project here. Part 1. Prepare the CAD Model and Select the Analysis Type The Geometry use…

Here is a guide for the CAD mode:

CAD Mode | CAD Preparation & Upload | SimScale

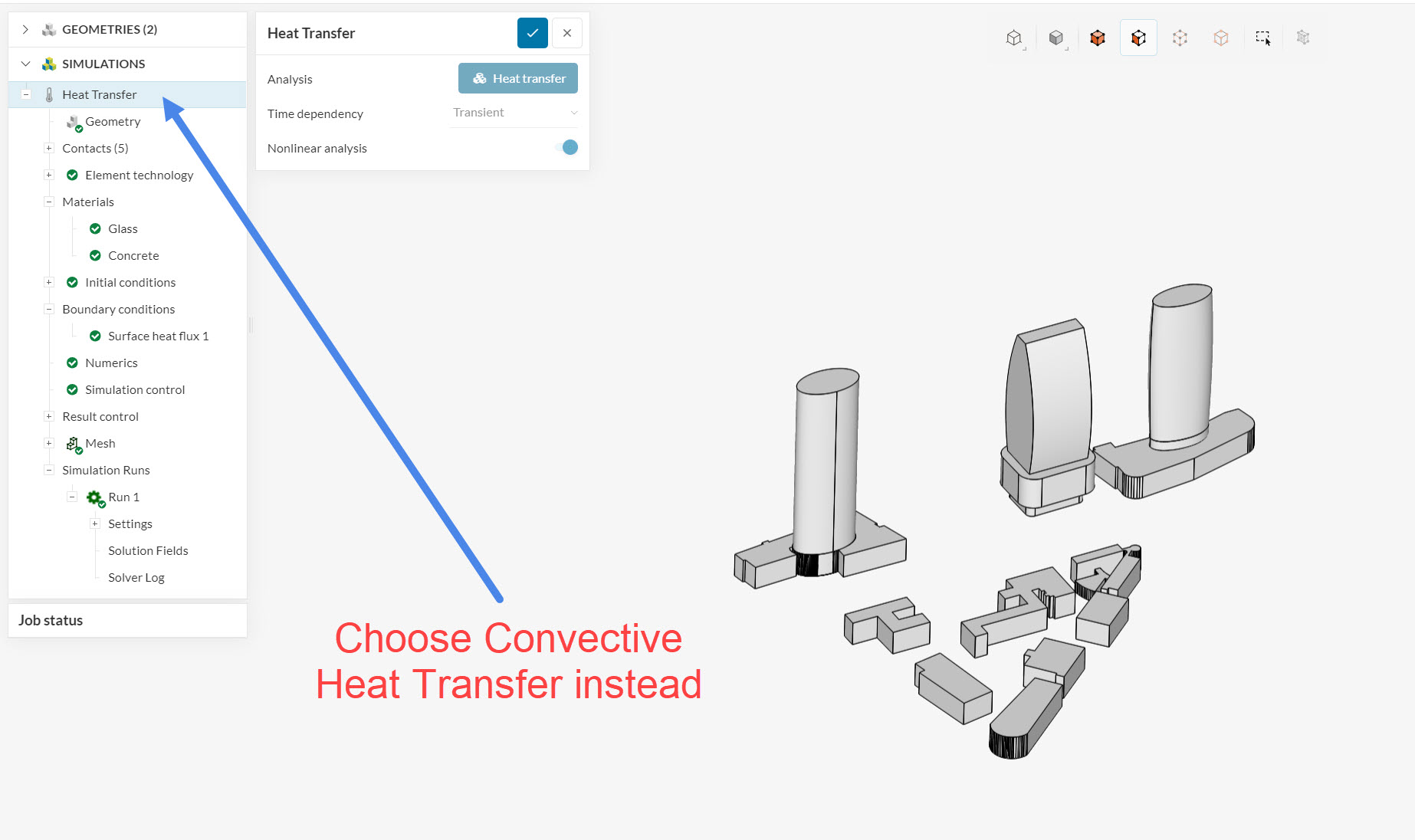

Also, you will need to create a Convective Heat Transfer ( not plain Heat Transfer, this is not a CFD analysis).

Best regards,
Fillia
