Hi , Would be possible to someone offer me support in my final year project from university
Kind Regards,
Welles Henrique
-
A description of the project and what you are trying to achieve
Full CFD Simulation best as possible with best quality images possible
-
An description of what is happening, screenshots or error logs are helpful

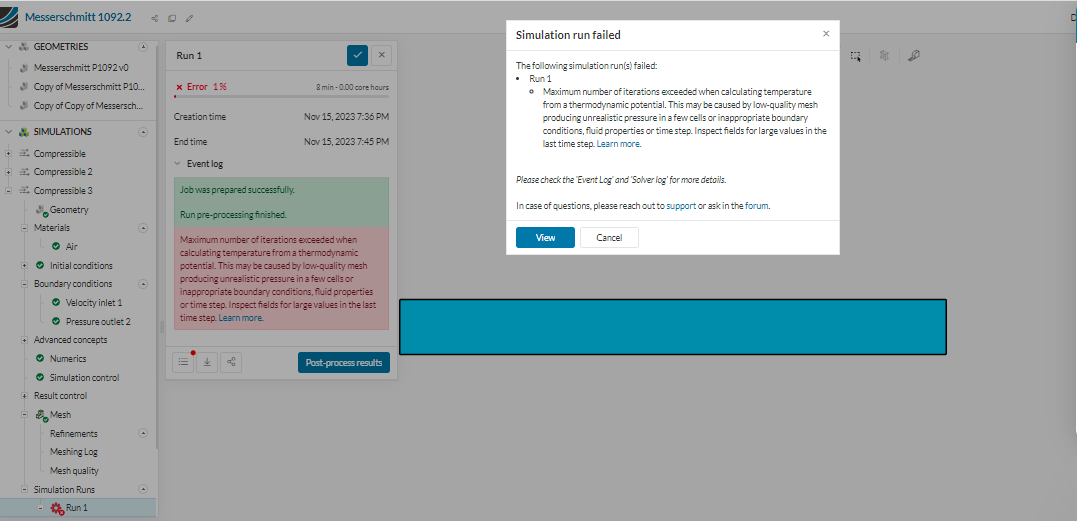

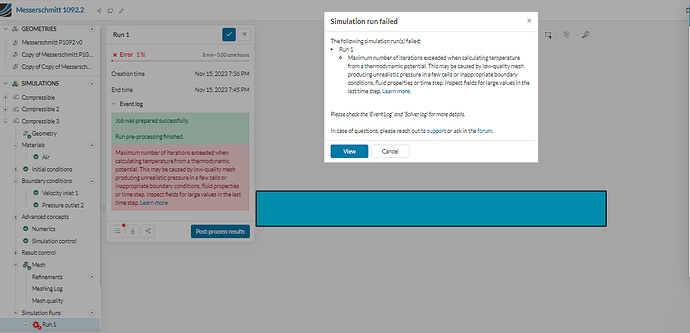

Simulation is not running
-
[Important] Always provide a link to your project so that it is easy to find.
https://www.simscale.com/workbench/?pid=2714065238916886978&mi=run%3A25%2Csimulation%3A11&mt=SIMULATION_RUN
Please feel free to edit the meshing or other setup parts of the project in order to achieve the best simulation outcome
It might be a good idea to ramp up the velocity at the inlet, instead of setting up the ‘full’ velocity from iteration 0 (i.e. like was done in this tutorial).
On a side note: it appears that the flow domain was extruded to the ‘wrong side’? The extension upstream from the object is much longer than the extension downstream. I’d have expected the opposite (fig 8 in the linked tutorial).

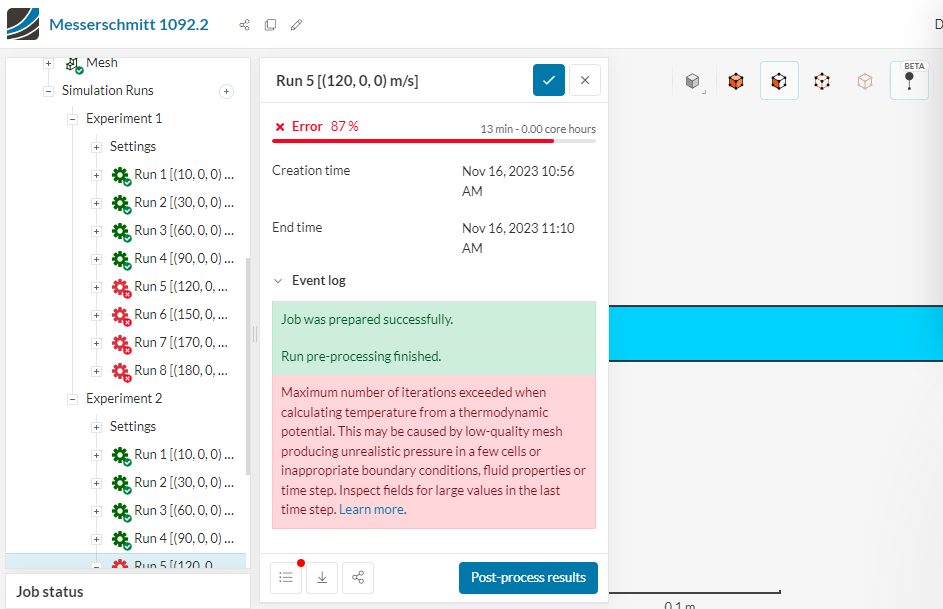

I did everything you said and even with online support from the simscale doenst seems to work , can someone edit or help me here ?
Kind Regards,
Welles Henrique
Hi there,

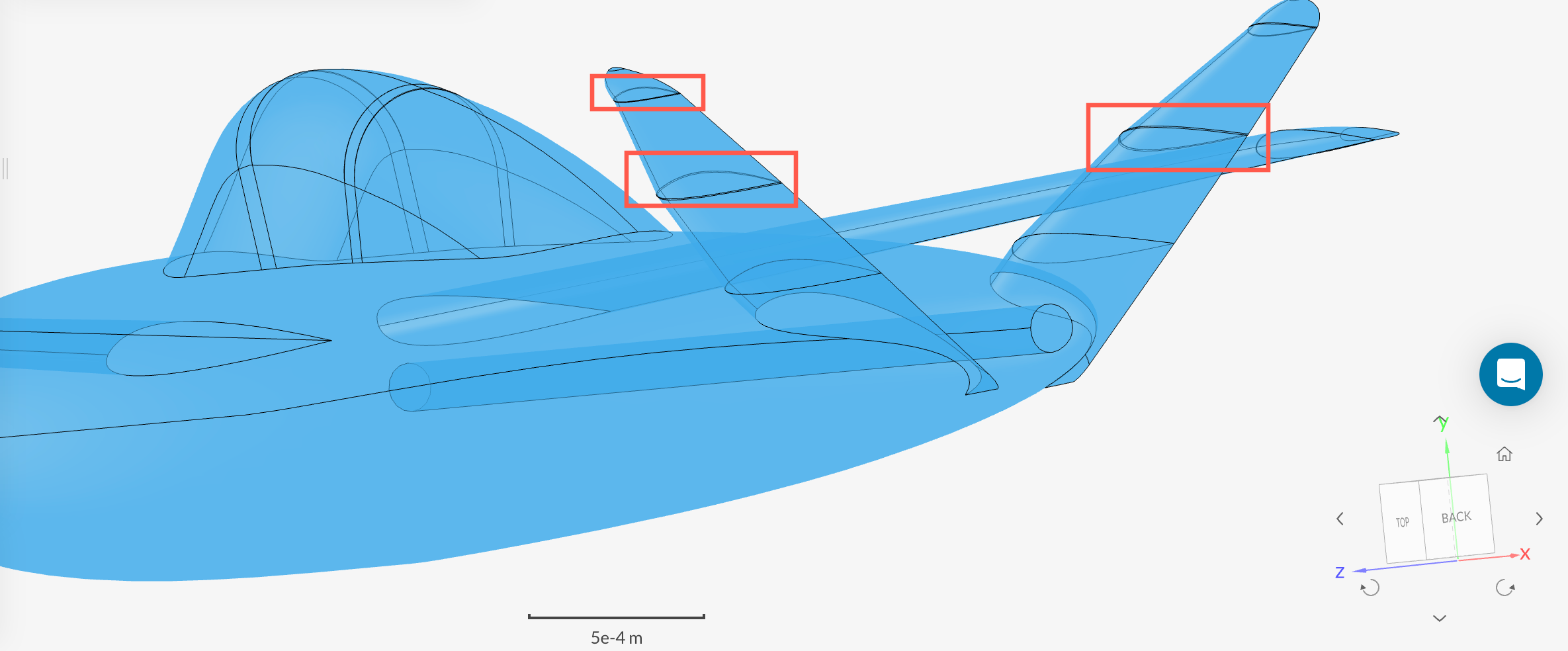

There are a lot of sharp edges in the geometry. It seems like your simulation fails when it reaches the airplane or so. I haven’t been able to mark all of the sharp edges but you can have a look and decide.
Perhaps you can start with removing the unnecessary sharp edges and faces. That should improve the mesh quality.
