Internal flow design not generating or displaying fully

[rlierman]

Greetings,
Incompressible flow model 1 input and 7 outputs. I am not seeing all outputs after the simulation run. Any insight would be greatly appreciated. What is the difference between velocity inlet and Pressure Inlet?

Public Project:

SimScale Login

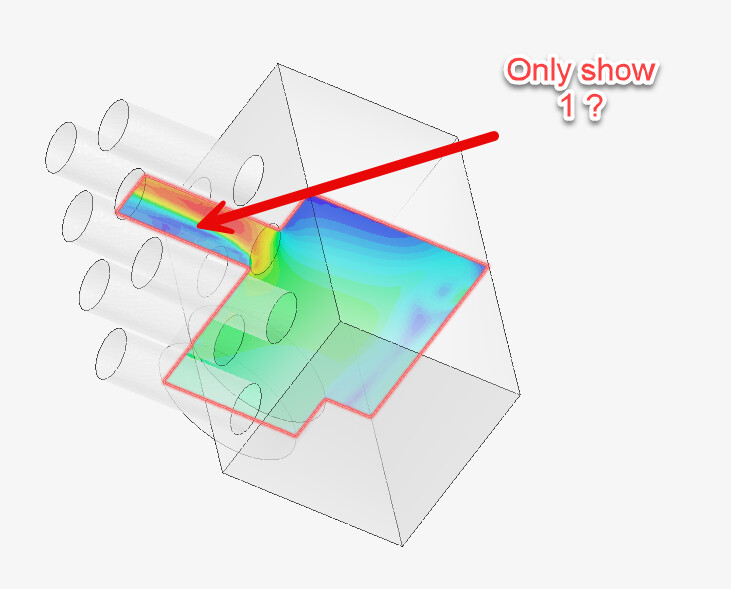

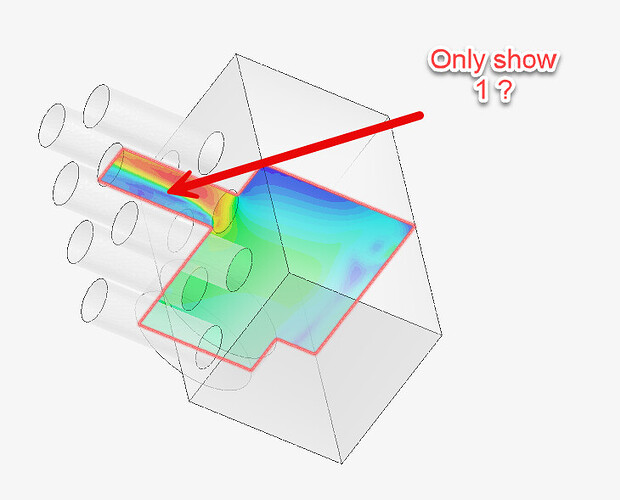

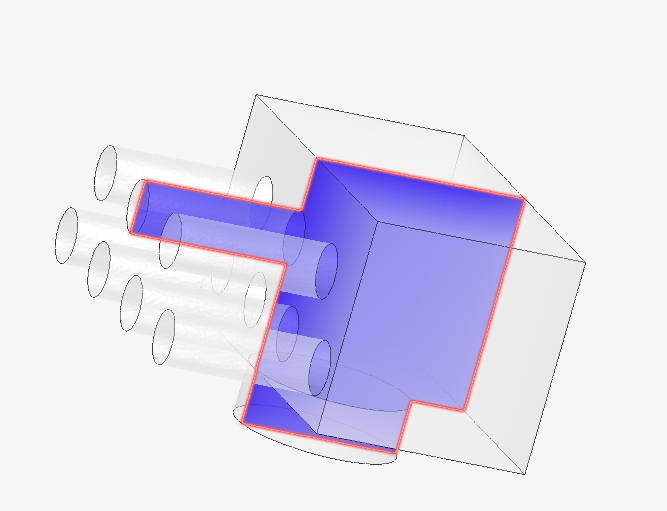

I only see flow in 1 outlet anyway to see all outlets?

Many Thanks
Rob

[igaviano]

Hi @rlierman, thanks for posting at our forum

I’m taking a look at your project and get back to you later with my findings.

Best,
Igor

[igaviano]

Hi @rlierman,

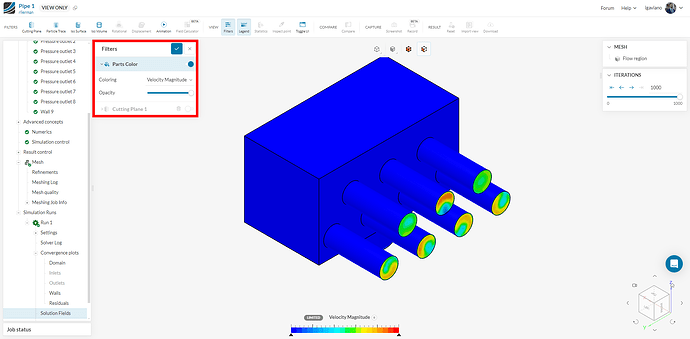

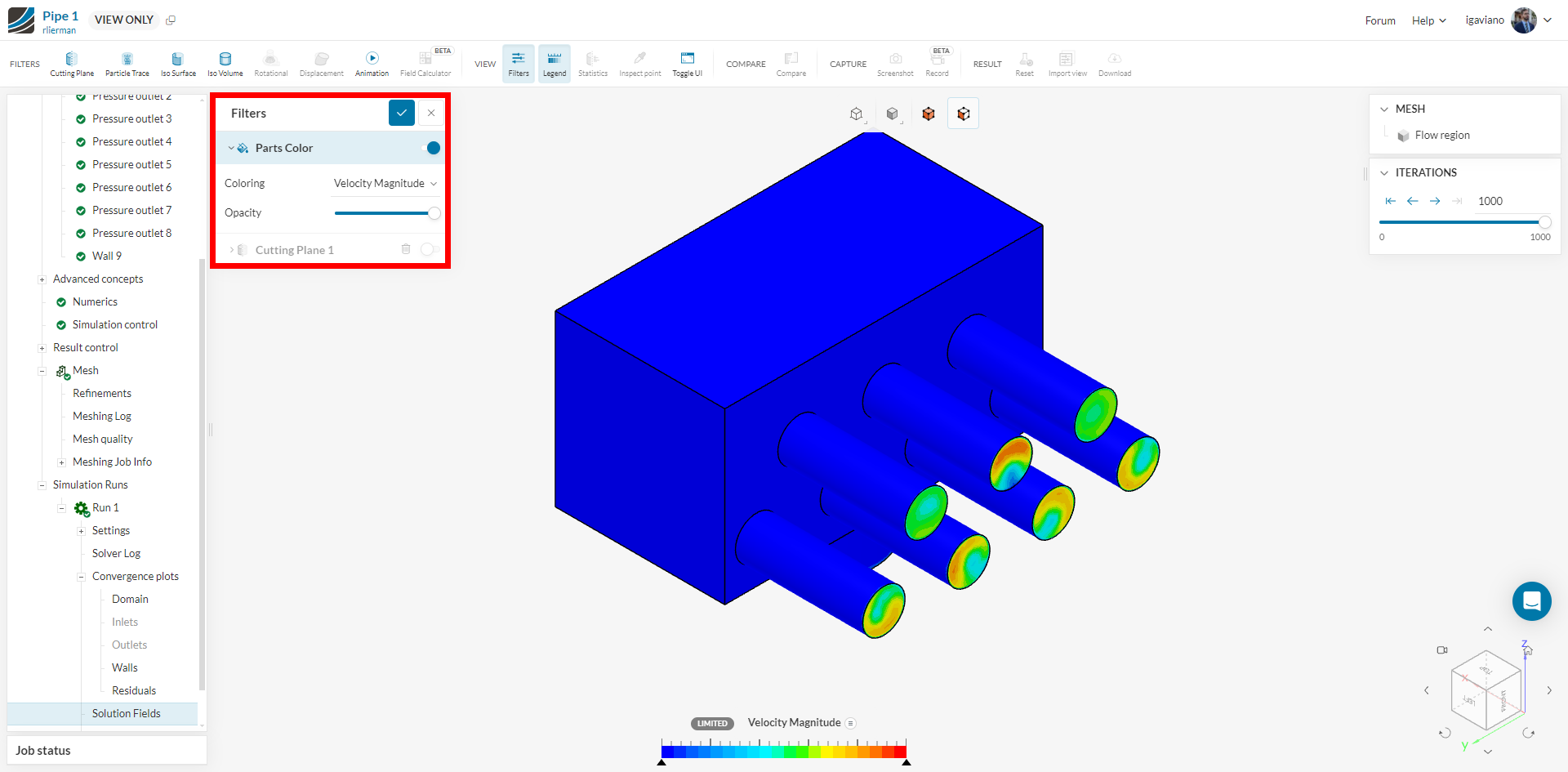

I guess what you’re looking for is the view in the parts color:

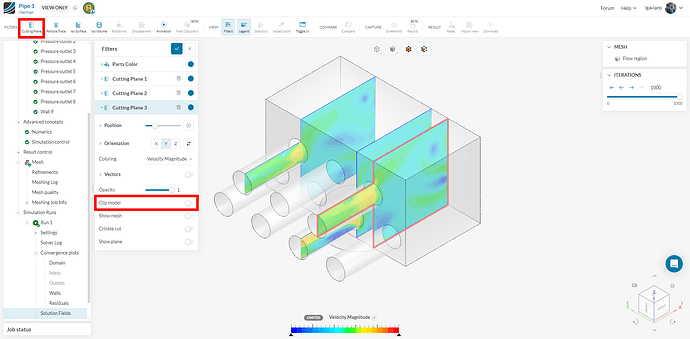

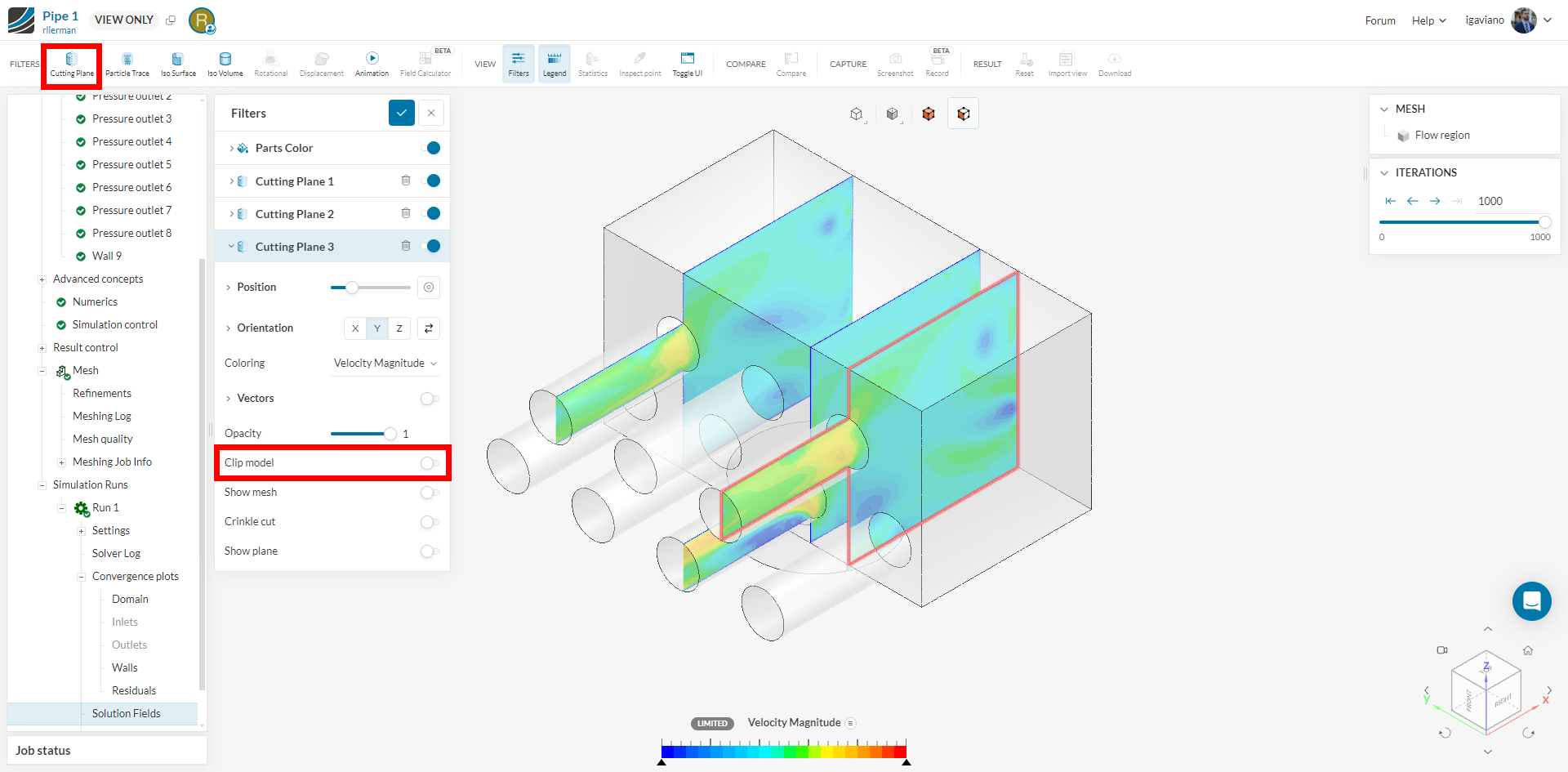

However, you can also set it as a solid color and apply multiple cutting planes as well (don’t forget do disable the clip model option):

An useful guide on post-processing within the platform can be found here:

• Tutorial: Post-Processing Fluid Flow Simulations | SimScale

Does that help?

Best,
Igor

[rlierman]

Igor, Worked Many Thanks.
