How can i measure the thrust generated by my propeller

Project Support
1

It is harder and it takes longer to provide support without full details.To speed up the process and quickly solve your issues this is a reminder to post as much information as you possibly can:

  • A description of the project and what you are trying to achieve
  • An description of what is happening, screenshots or error logs are helpful
  • [Important] Always provide a link to your project so that it is easy to find.

(delete this message before posting)

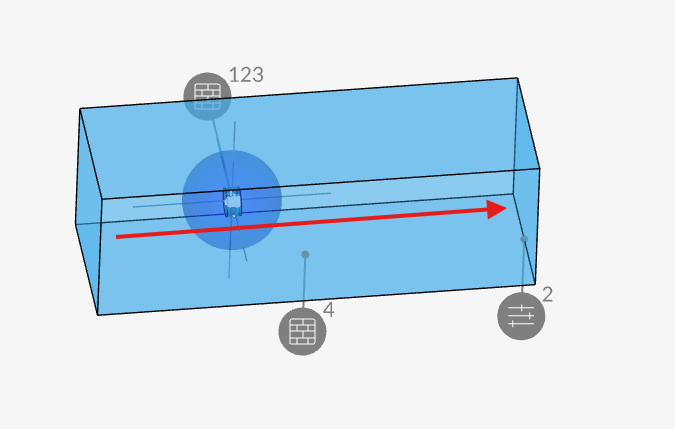

I am comparing 2 types of propellers, at different RPMs, one is a conventional propeller and the other is a toroidal propeller and I am having problems to find the thrust that is generated by the propeller. I have tried using the result control, forces and moments but it gives various values and I do not know which is of the thrust generated in this direction shown in the image.

image675×429 15 KB

if you cant access my project its public in my profile

2

Hey @fernando_ferro ,

This would be similar to let’s say how a lift is calculated over an aircraft wing. We already have a tutorial about that here: Compressible Flow Around a Wing | Tutorial | SimScale

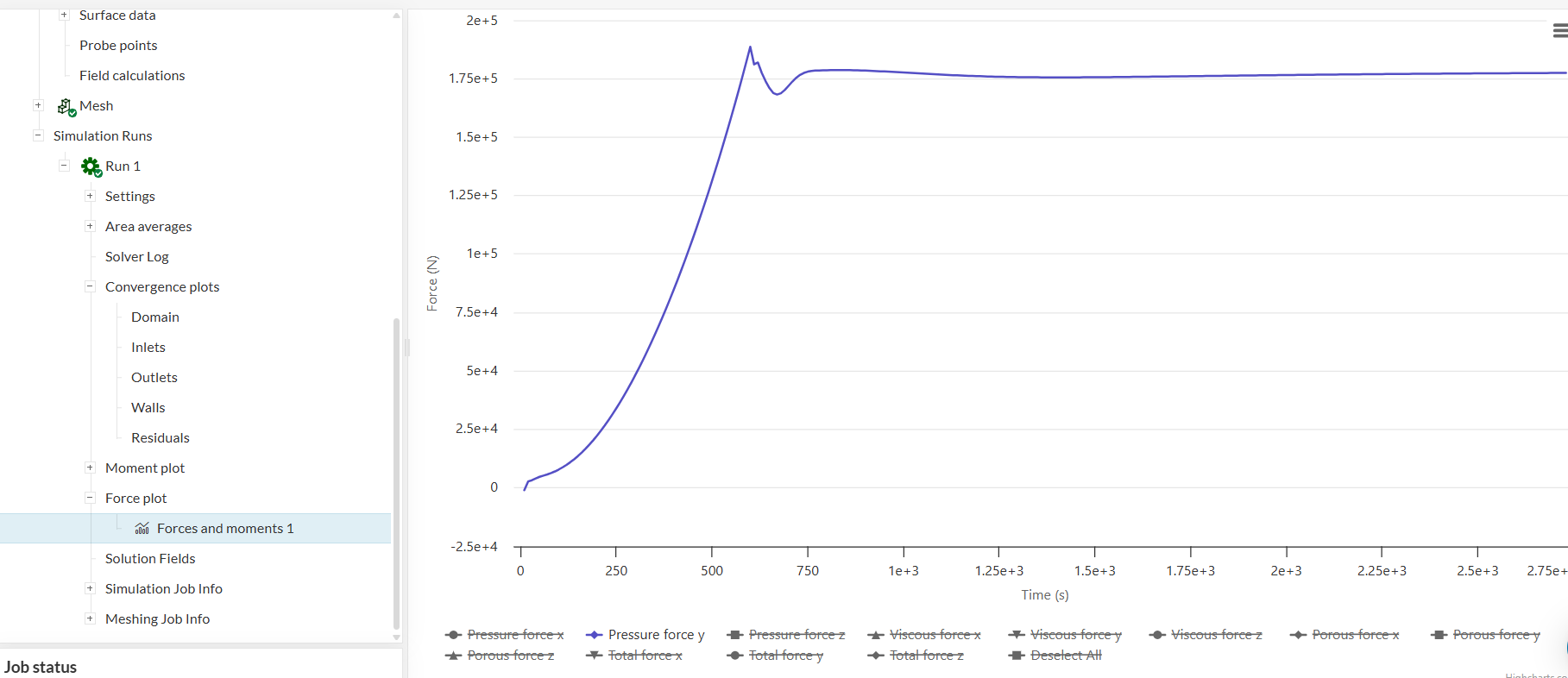

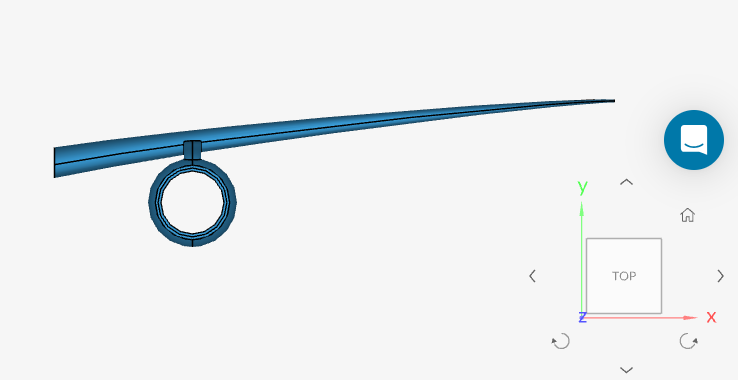

The force and moments result available under the successful simulation should give you the lift / thrust force generated around the blade surfaces. In the case of the tutorial, pressure force (lift) is in positive Y direction since the model has an orientation of the wing like that (see below images and notice the orientation cube)

image1817×786 41.9 KB

image738×380 20.8 KB

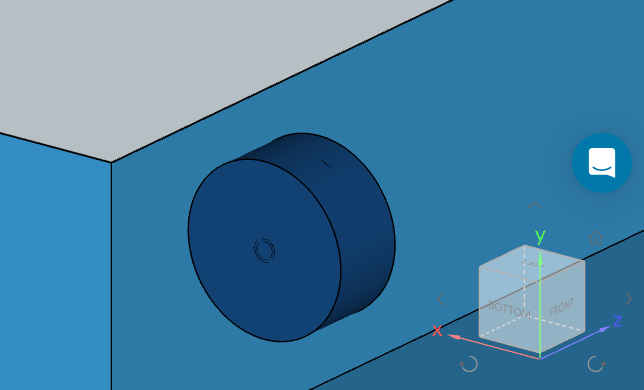

In your case, you would have to check the z direction pressure force.

image644×390 13 KB

image1562×791 34.1 KB

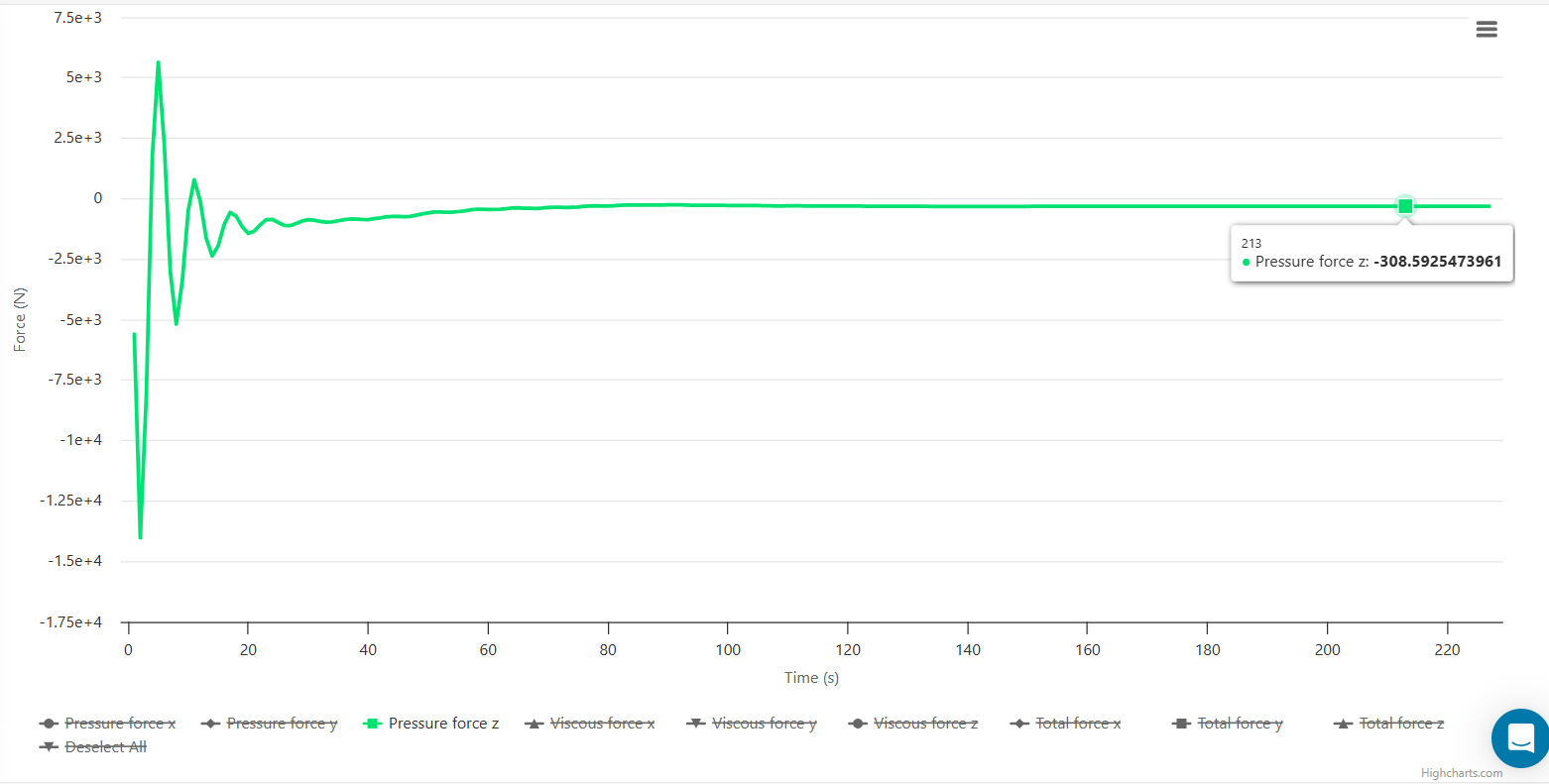

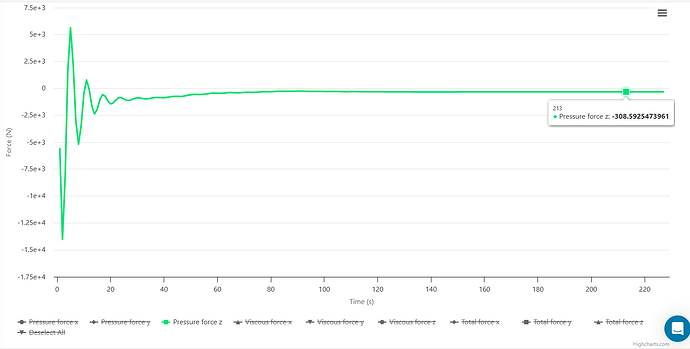

With the boundary conditions you have assigned, it seems to be about 300 N of thrust.

Let us know if you need more support! :slight_smile:

Cheers,
Satvik
