:) Geometry and Meshing 'bugs' from native RHINO file

Is this simply a geometry display ‘bug’.

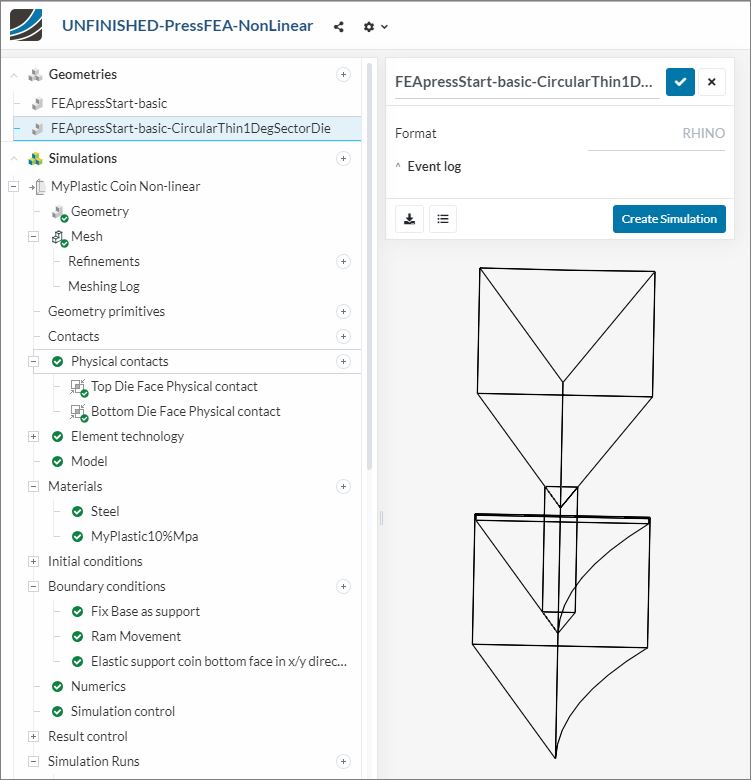

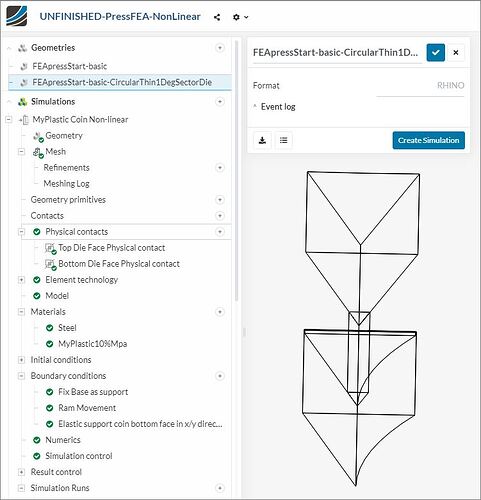

The geometry shows a curved face (not curved in Rhino):

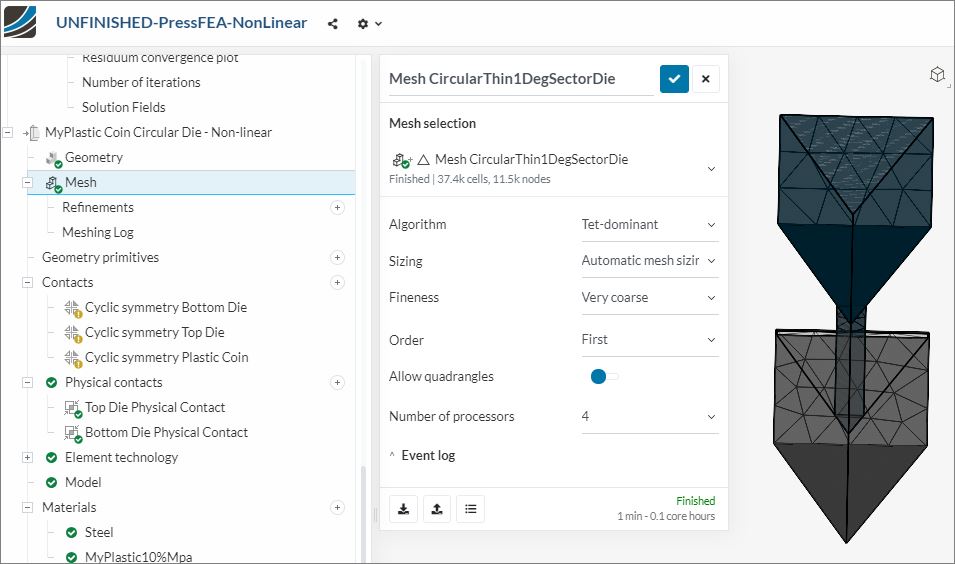

BUT the mesh from that geometry is straight again:

Hi Dale!

You substituted the models, is that correct? Want to have a look at this before I report it.

Edit: Got it now :slight_smile:

Best,

Jousef

1 Like

What you mean, first image is of geometry and 2nd is a mesh made from that geometry.

1 Like

Oh-oh, it now looks like more than a geometry display bug …

Here is a bent mesh too:

And the geometry shows as bent in SimScale UX , but different faces are bent:

BUT, in RHINO the bent faces are ALL planar faces:

Now we really need some experts involved quickly in case the mesh was really generated like that :sob:

EDIT: Another data point.
I tried to run a simulation on the mesh using cyclic symmetry.
I had to stop the simulation run after being stuck at 4% for ~25 minutes.
The simulation issue is not likely caused by this ‘geometry and mesh display bug’ but IT COULD BE, so here is the stalled Simulation Run

EDIT #2 And, finally here is proof that it is not just a ‘display’ issue.

I downloaded the results of a cancelled Run 1 using the above mesh. I then opened the results in ParaView, this Paraview image says it all:

I have edited this topic name accordingly :sob:

1 Like

Hey Dale,

Have reported the issue and awaiting a response from my colleagues :slight_smile:

Best,

Jousef

2 Likes

Hi @DaleKramer,

I downloaded your file, imported into Onshape and it looked just fine. I then imported teh Onshape file into Simscale and it looked good. Somehow, Simscale is having problems reading teh original file correctly.

Christopher

1 Like

@cjquijano Please see the Edit #2 I made to Post 4.

Thanks for confirming that the ‘bug’ appears to be related to the way SimScale interprets the native RHINO files which I unfortunately have used for all my SimScaling :sob:

Still doesn’t explain why we have so far in Post 1:

  1. Good geometry in RHINO
  2. Bad geometry depiction in SimScale
  3. Good mesh generation in SimScale

But in Post 4 we have:

  1. Good geometry in RHINO
  2. Bad geometry depiction in SimScale.
  3. Bad, but different, mesh generation in SimScale
  4. Bad mesh from a sim results as seen by ParaView, (this bad mesh in ParaView is the same as bad mesh in SimScale)

This may have far reaching implications for all the projects, their meshes and sim results which I have ever created with SimScale :sob: :sob: :sob:

2 Likes

Hi @DaleKramer,

I am having a hard time visualizing the second image in Post 1 but a course mesh could hide issues with the geometry. Hopefully Simscale will enlighten us on Monday. :grinning:

That 2nd image in Post #1 was not to show mesh quality, just to show that the incorrect curve of the right side lowest face in the geometry was not transferred as curved in the mesh that was generated from it (since all mesh faces are planar) …

1 Like

Bump … any progress from SimScale side to report ?

Not yet Dale :slight_smile: Will push a little bit.

Best,

Jousef

Bump … any progress from SimScale side to report ?

Will ask about it Dale :slight_smile:

BUMP…I just copied the project and with that copy I have confirmed that this VERY IMPORTANT issue still exists in the current UI.

I am getting very discouraged :frowning:

Dale

EDIT: We are closer but still no cigar…

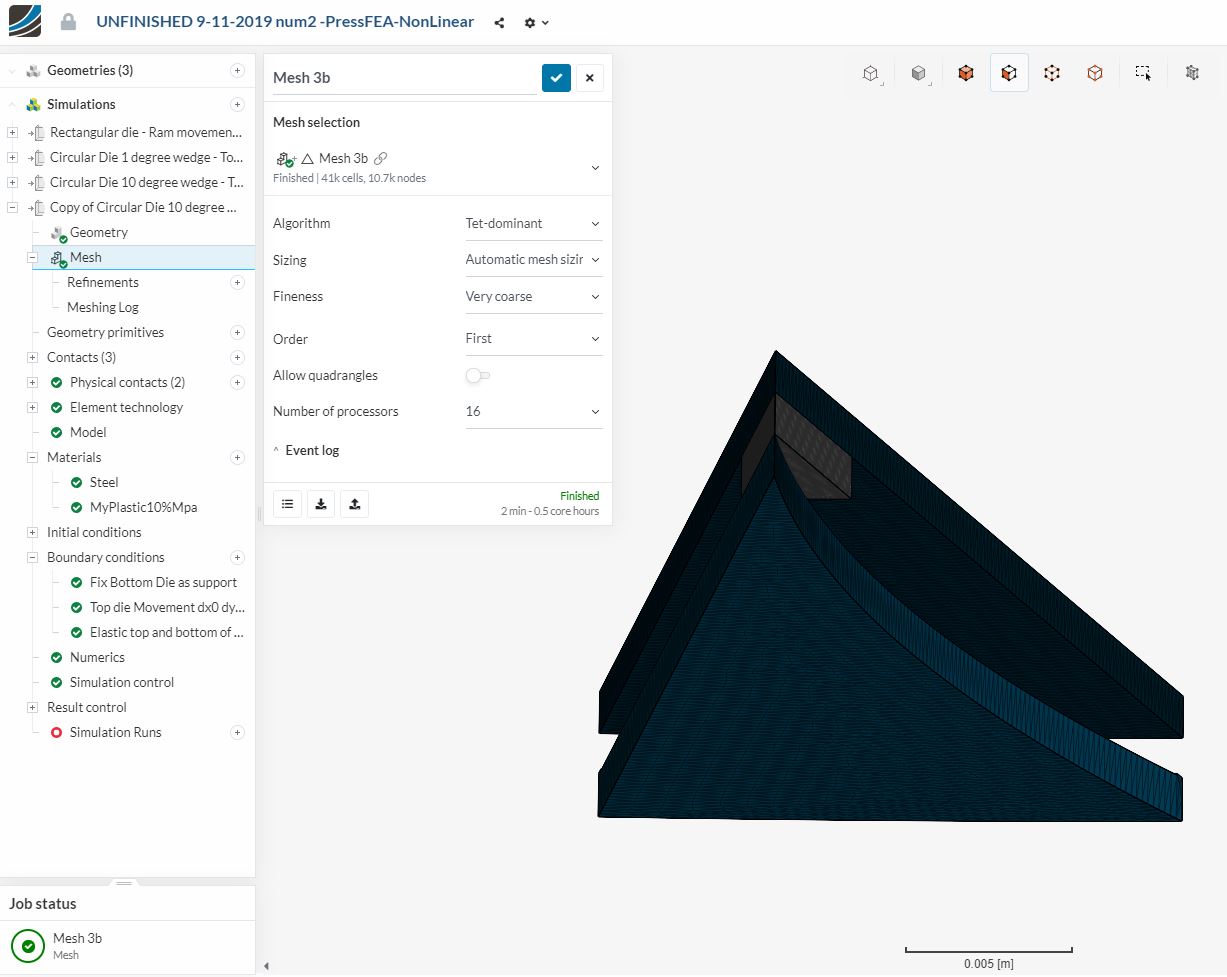

I copied the simulation of Post 4, then I simply changed the number of processors for the bad mesh to 16, named it ‘Mesh 3b’ and regenerated the mesh. As you can see we have a slightly better mesh now but still one curved mesh surface that should be planar :frowning:

@jousefm I hope this has made it to someones list at SS, can you check again?

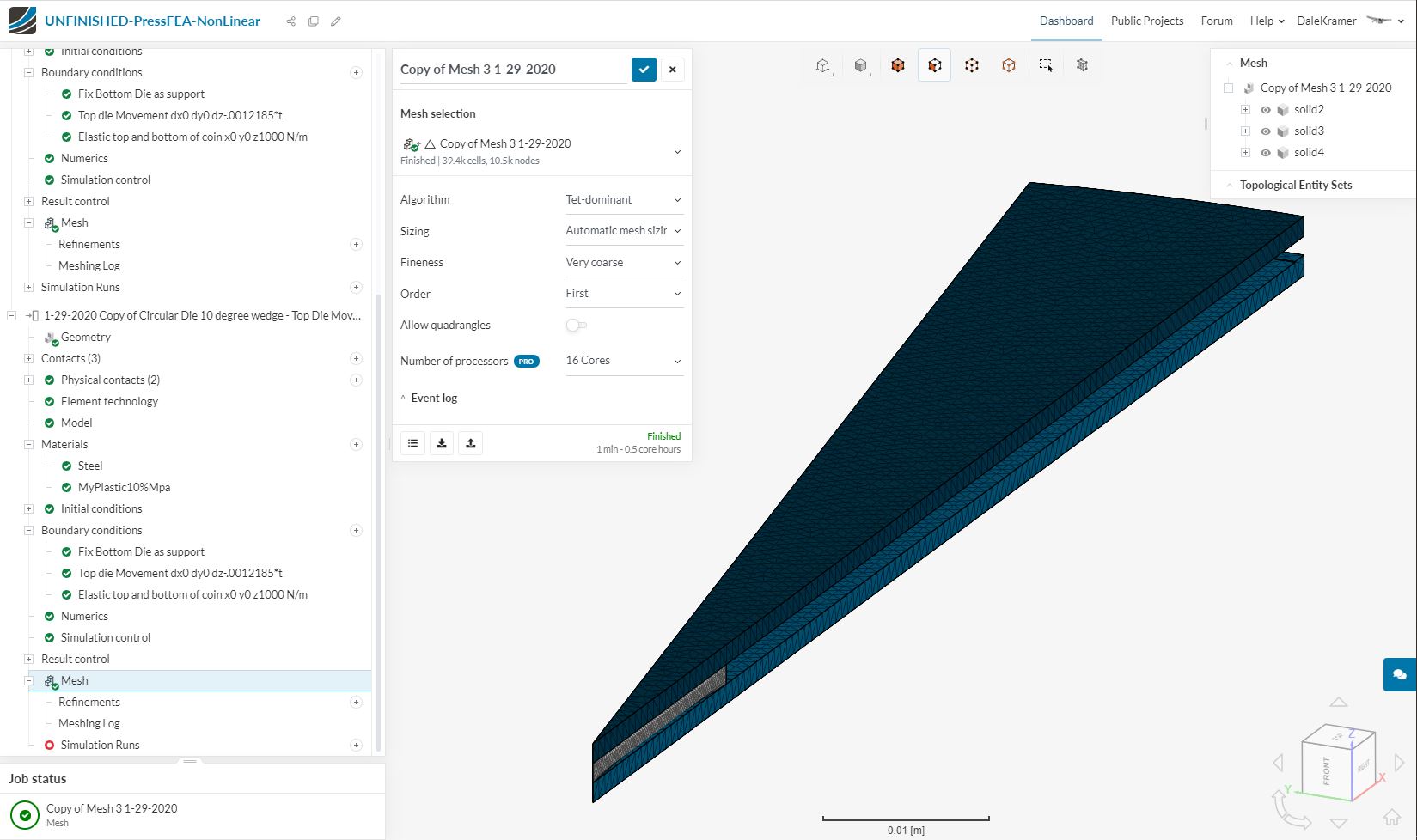

Today I did a re-mesh of Mesh 3 of post 4 here and the re-mesh is NOT BENT :slight_smile:

This problem seems fixed! GREAT!

I am disappointed though that whoever fixed it did not inform us at the time they fixed it…

I have not used RHINO files for the last 4 months because I could not trust that they would mesh properly since there was no way of knowing if somewhere, deep in the mesh, there was a bent face I did not notice :frowning:

I will now use them again since today, I have found an issue with improper importation of STEP files into SimScale…

I will make a post about that in the next few days…
