Enclosure Error

Project Support
1

Hello everyone. I am trying to create an enclosure for my geometry. Very new to SimScale. I am required to create a solid, smooth sphere in Inventor AutoCAD and then import the file into SimScale and create an enclosure for it. However, I keep receiving an error that says “Please consider clean up operations in your CAD tool”. I am not sure what there is to clean up as my geometry is simply a smooth solid sphere.

Any advice would be great!

2

Hi!

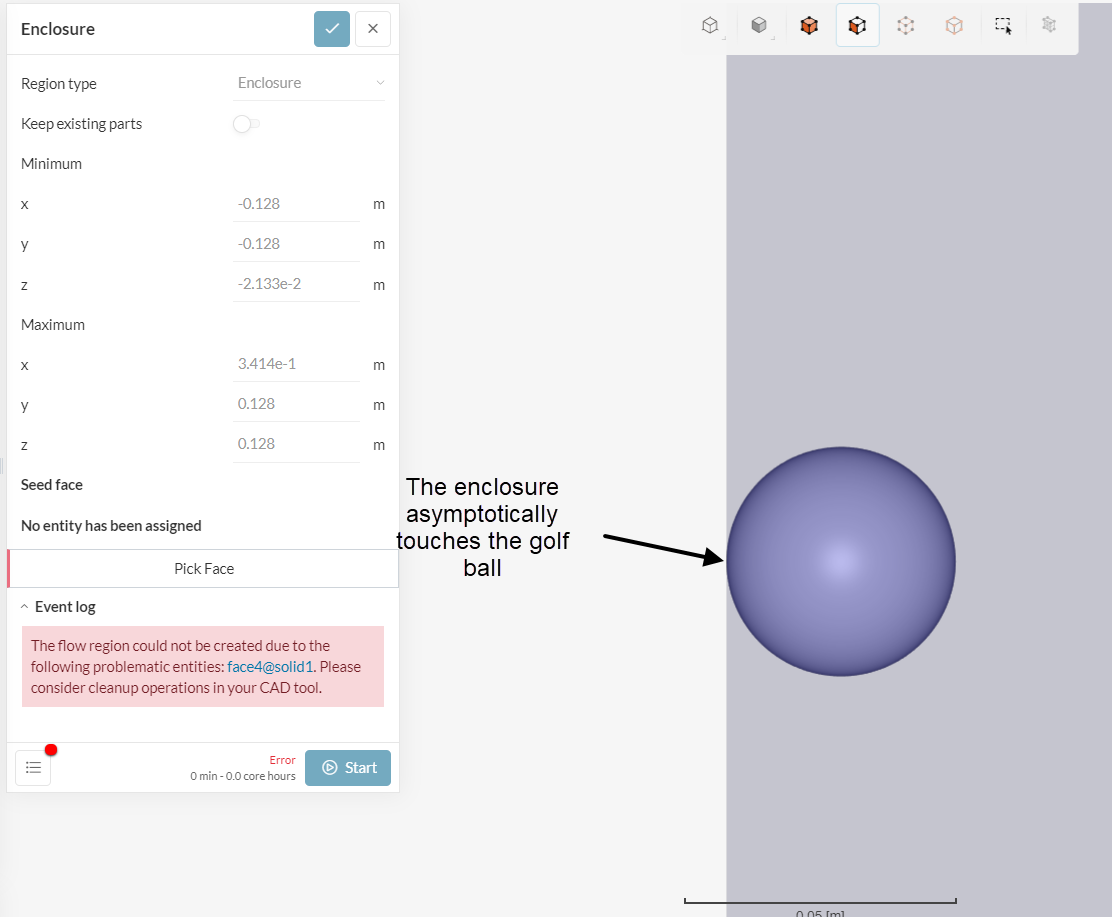

From what I can see, this is the current issue:

image1112×917 54.6 KB

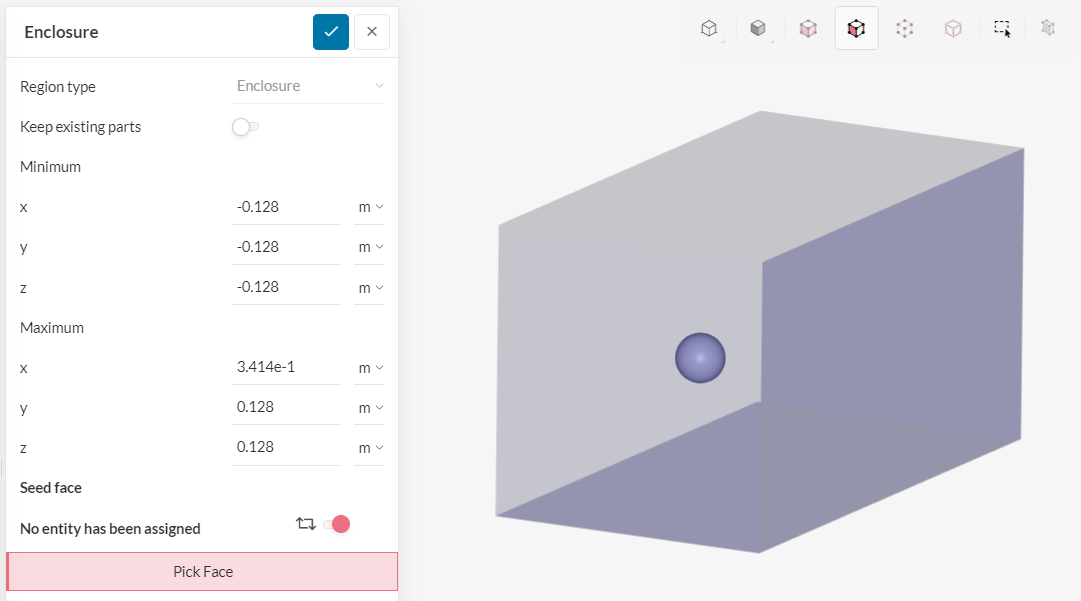

By changing the “Minimum z” enclosure dimensions, the enclosure should be created successfully:

image1081×601 31.6 KB

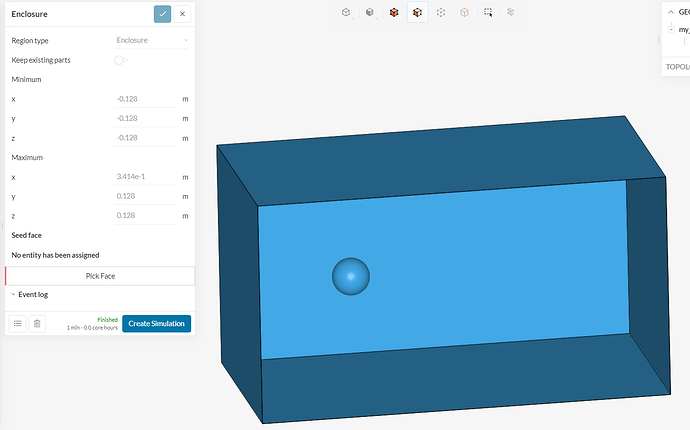

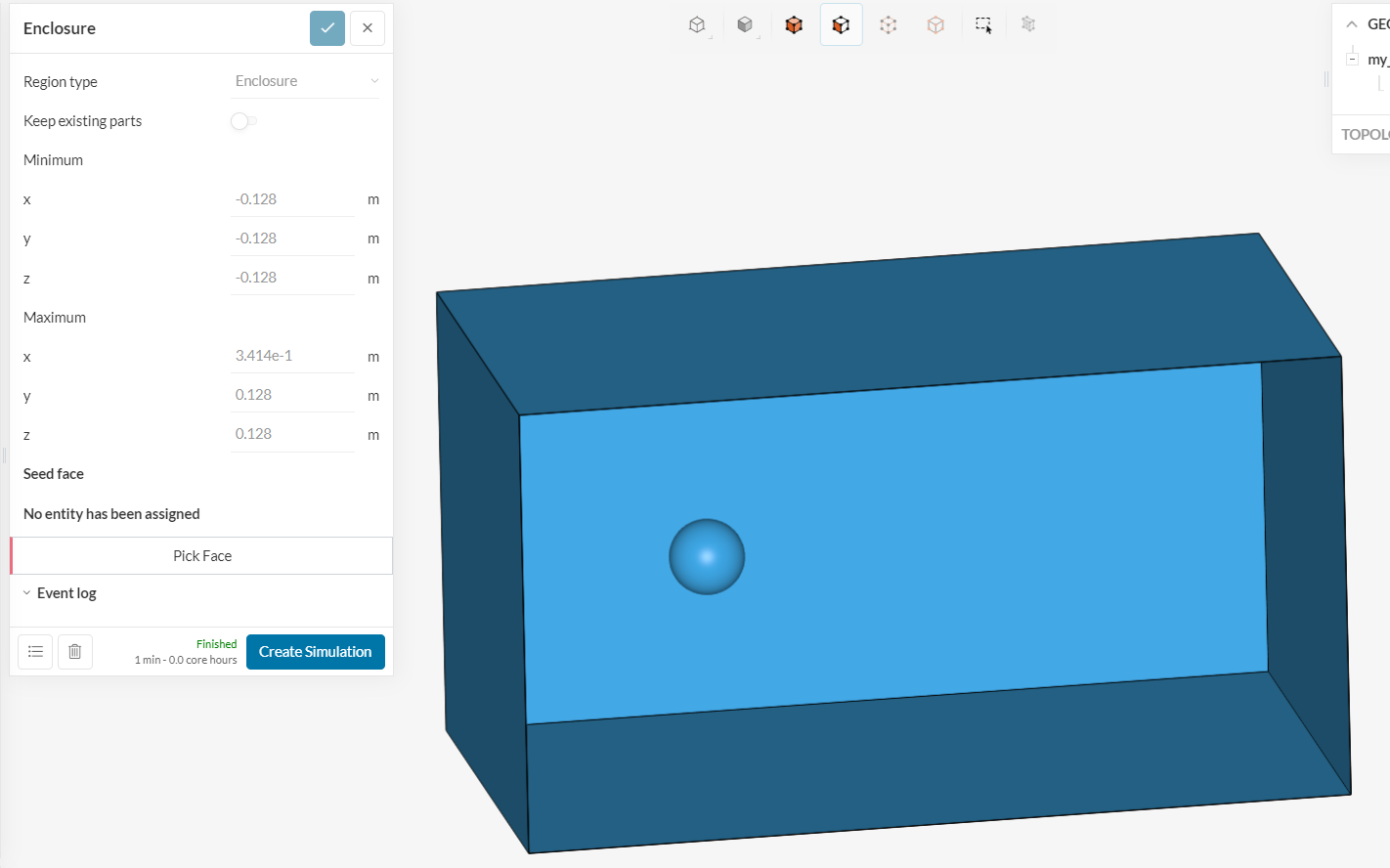

And the final result:

image1422×888 75.7 KB

For more notes, please visit this page: Why Do Geometry Operations Fail? | SimScale Knowledge base

Cheers

3

Thanks Ricardo! That helped a lot!
