Diverging Velocity Field

Project Support
1

Hi

So, as the title suggests, the velocity field started to diverge. I tried refining that area but it says certain mesh qualities/metrics were still within the recommended range. I’m still pretty new to CFD in general so I am not exactly sure how to approach this problem and hopefully anyone knowledgeable about this (especially SimScale support) can assist and point out what I have to do. Thanks. Screenshots with descriptions below:
————————

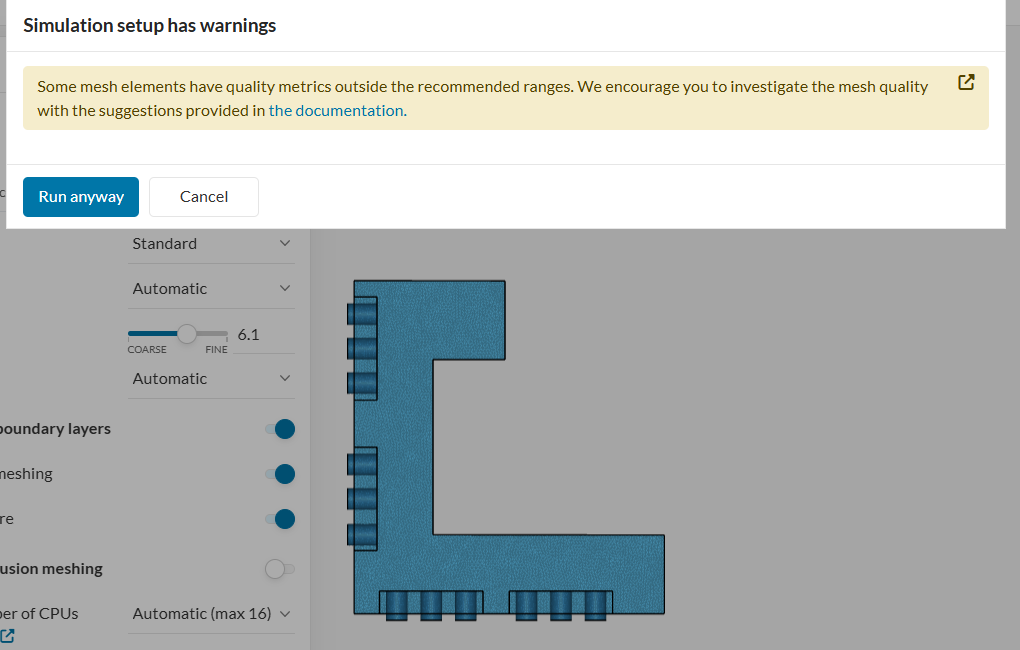

This one says I have quality metrics outside the recommended range (probably what’s causing the velocity field divergence)

image1020×650 101 KB

————————

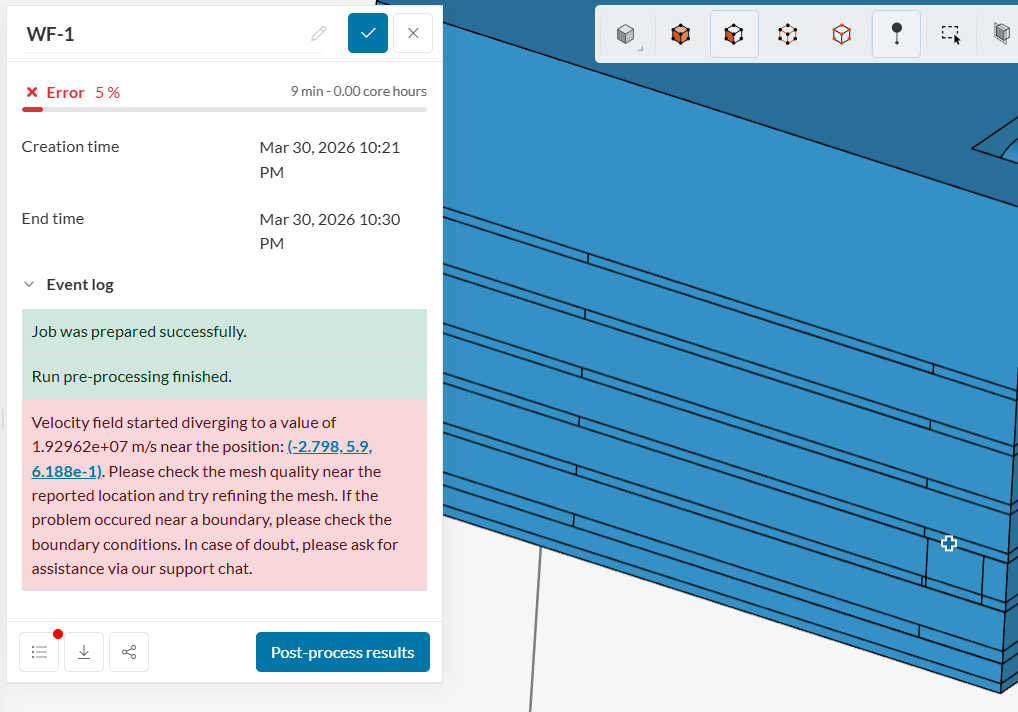

The actual problem:

image1018×712 56.6 KB

——————————————————–
Link to the project: SimScale Login

Thanks in advance!

3

Hello,

I’d suggest that you follow typical troubleshooting steps here. If you follow the steps carefully, you will notice a handful of very small faces around the divergence point, which I would suggest that you clean up in the CAD model.

Cheers
