Crash Test of Standard FSAE IA

Project Support
1

Hello,

I am trying to do a dynamic simulation of Standard FSAE IA for this year’s project. The simulation was successful, however, while playing animation, the IA is not showing any displacement as well as I am not getting any negative acceleration in acceleration graph which should be shown while impacting. I tried following the Simscale guide to the same simulation but turns out the problem is the same. Can someone help me with this?

Thanks in advance!

Link to my project: https://simscale.com/workbench/?pid=3731050616585259837&mi=spec%3Aa08c8a6f-6795-4f75-8d89-211c4c665cb2%2Cservice%3ASIMULATION%2Cstrategy%3A93

Link to Simscale guide I followed: Crash Test of FSAE Impact Attenuator | Tutorial | SimScale

1 Like
2

Hi there, thank you for using the forum!
There are a few inconsistencies compared to the original tutorial:

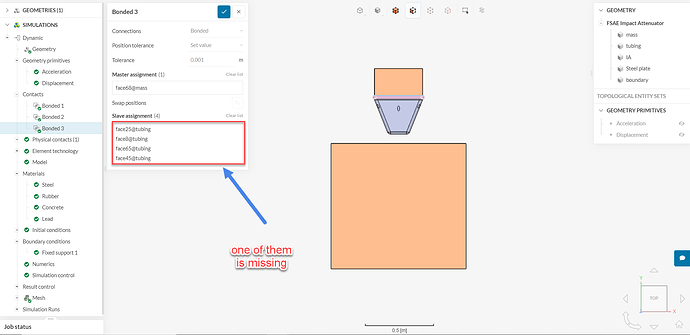

bonded contacts
bonded contacts1919×933 90.3 KB

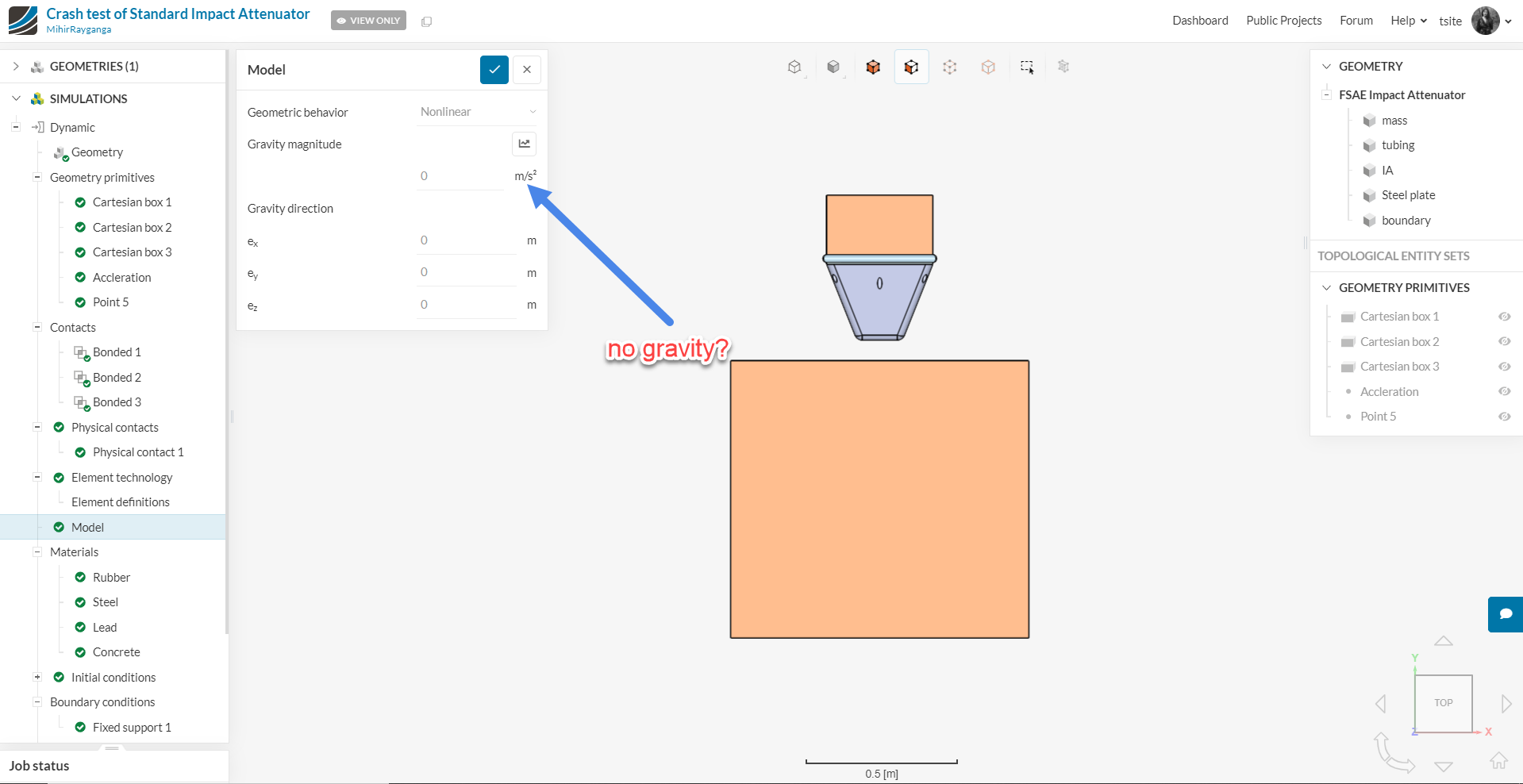

gravity
gravity1919×988 92.2 KB

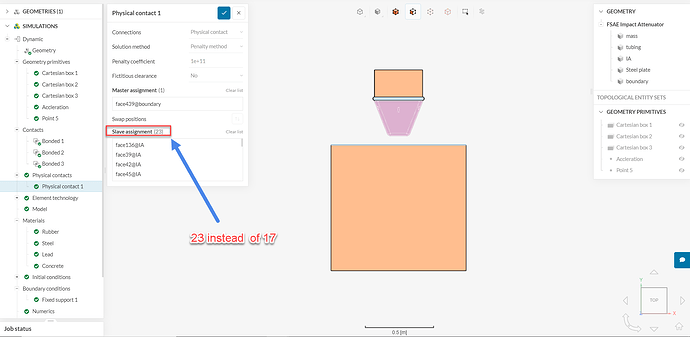

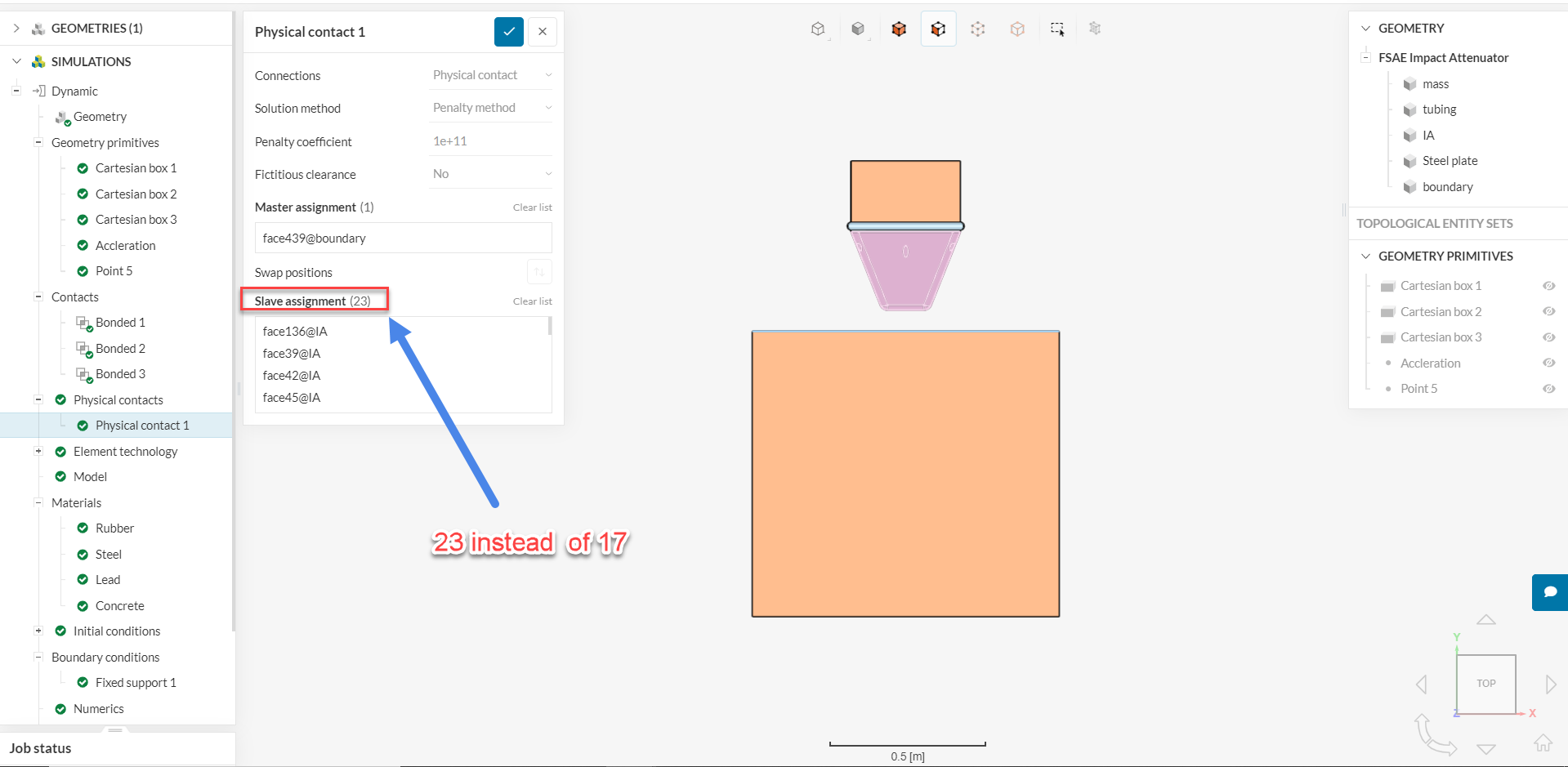

slave
slave1919×939 95.6 KB

Also, you used different material properties for Steel and Rubber, and you are using a different maximum time step length.

I suggest you try these and check the results again.

By the way, I can see the displacement magnitude, isn’t this what you want to check?

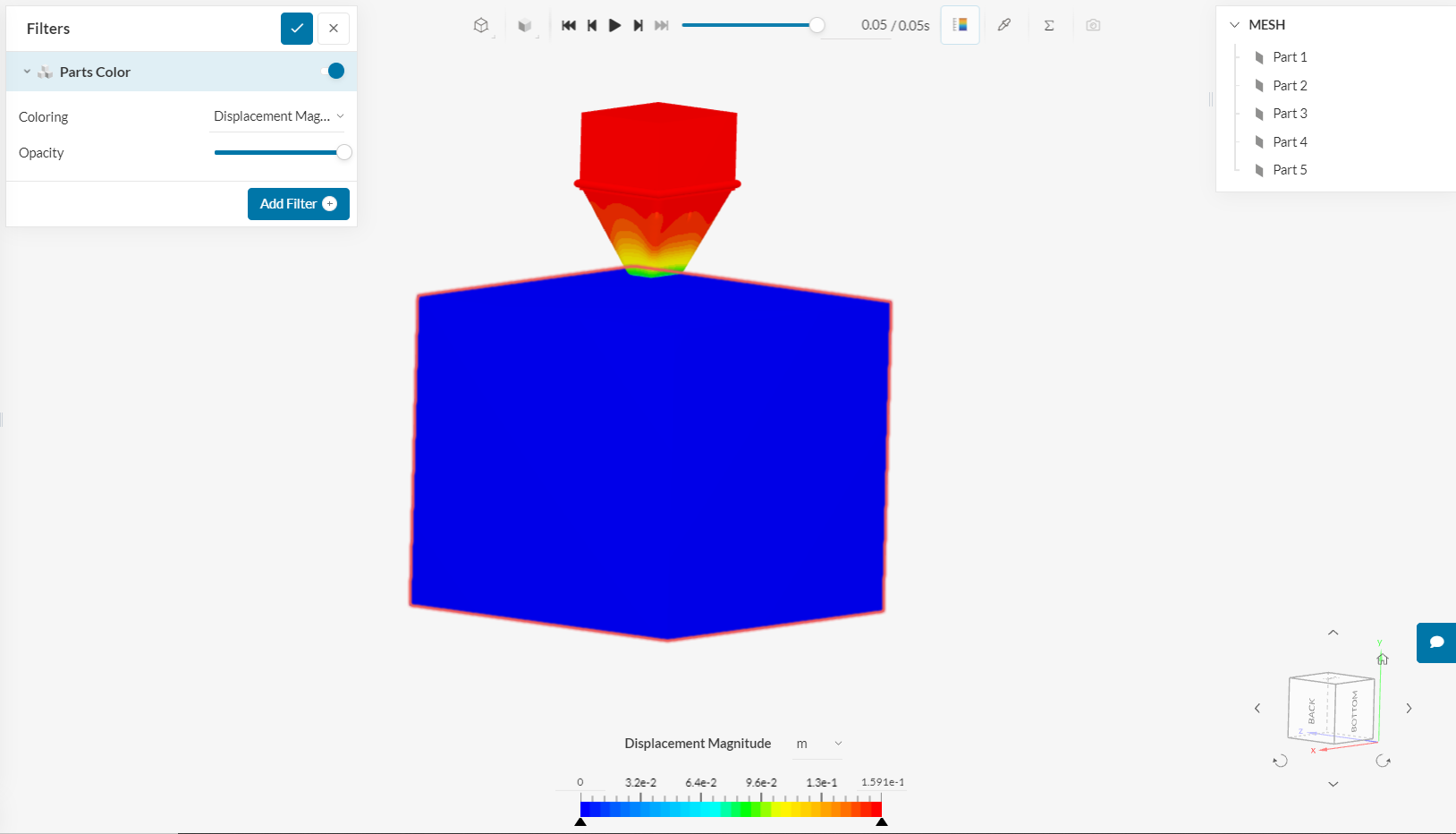

displacement
displacement1628×932 61.6 KB

Best regards,
Fillia
