1

I come from the Fluent world. Just trying to run your CHT gas/water heat exchanger tutorial. Conjugate Heat Transfer in U-Tube Heat Exchanger | SimScale

I got to the point where I assign the air and water fluids to the volumes.

Now when I select the fluid (e.g., water, air) the extracted volumes (geometry) disappear. I tried in Chrom and Edge browsers.

I searched the forum. I would appreciate any tips you make have.

2

Hi @dapaulsen, thanks for posting on the forum and welcome to the SimScale Community :handshake:

Looking at your project, it seems you didn’t save the geometry after generating the flow volume:

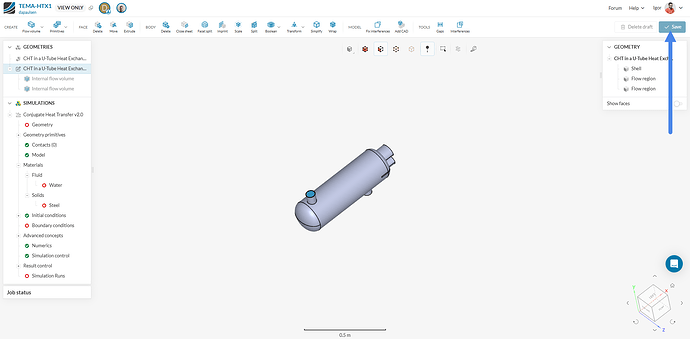

image1920×945 102 KB

After that, you just need to select the geometry and click on “Create Simulation”, and you should be good to go!


Make sure to reach out if you have any follow-up questions.

Cheers
Igor
