Air Intake Simulation

Project Support
1

Hey

I am not a professional, but i want to take a look on what is happening in the engine bay of my car. I redesigned the original intake system and i like to simulate it. But i always get an error. Perhaps somebody can help me, what i have done wrong.

Thx

Heiko

2

Hi Heiko, thanks for using the forum!

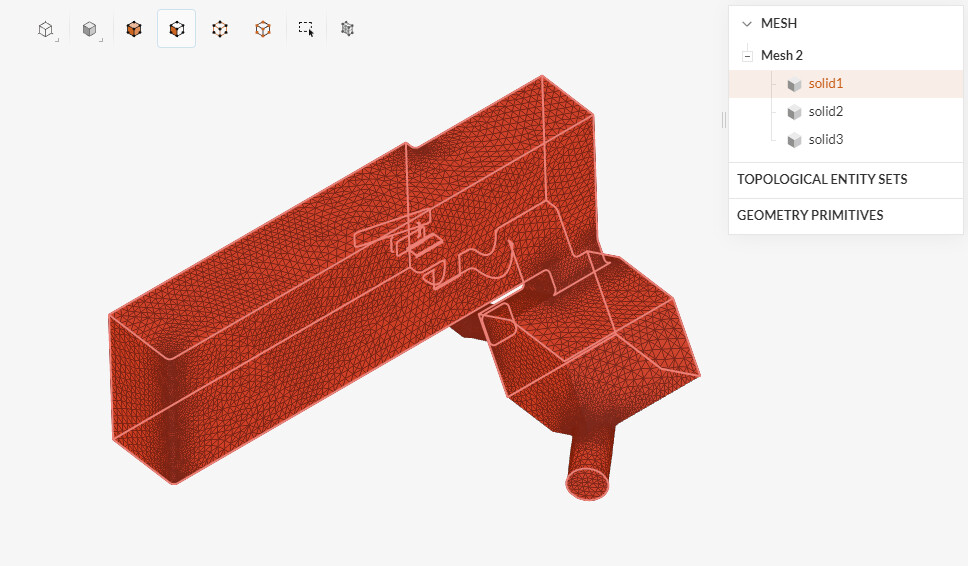

I can see that your model has three parts, but it looks to me that only one is the relevant for simulation:

image968×566 135 KB

You can delete the additional two parts using the CAD Edit mode:

1 Like
