A multi-region mesh was assigned - this analysis-type requires a single-region mesh

emagro · February 16, 2020, 2:59pm

Hello,

I keep receiving this error:
A multi-region mesh was assigned - this analysis-type requires a single-region mesh.

Could anyone advise me on how to fix this so that i can run my simulation?
This is my project.
https://www.simscale.com/projects/emagro/worst_case_2/

Thank you in advance

Retsam · February 16, 2020, 3:41pm

Hi @emagro: Your current geometry is composed of 3 solids.

Internal CFD needs one volume (internal one) for flow simulation. So you can use ‘Add geometry operation’ in SimScale to get that volume or you do the Boolean join in your CAD and import that device agan.

Cheers,

Restam

emagro · February 16, 2020, 4:41pm

Hello Retsam!

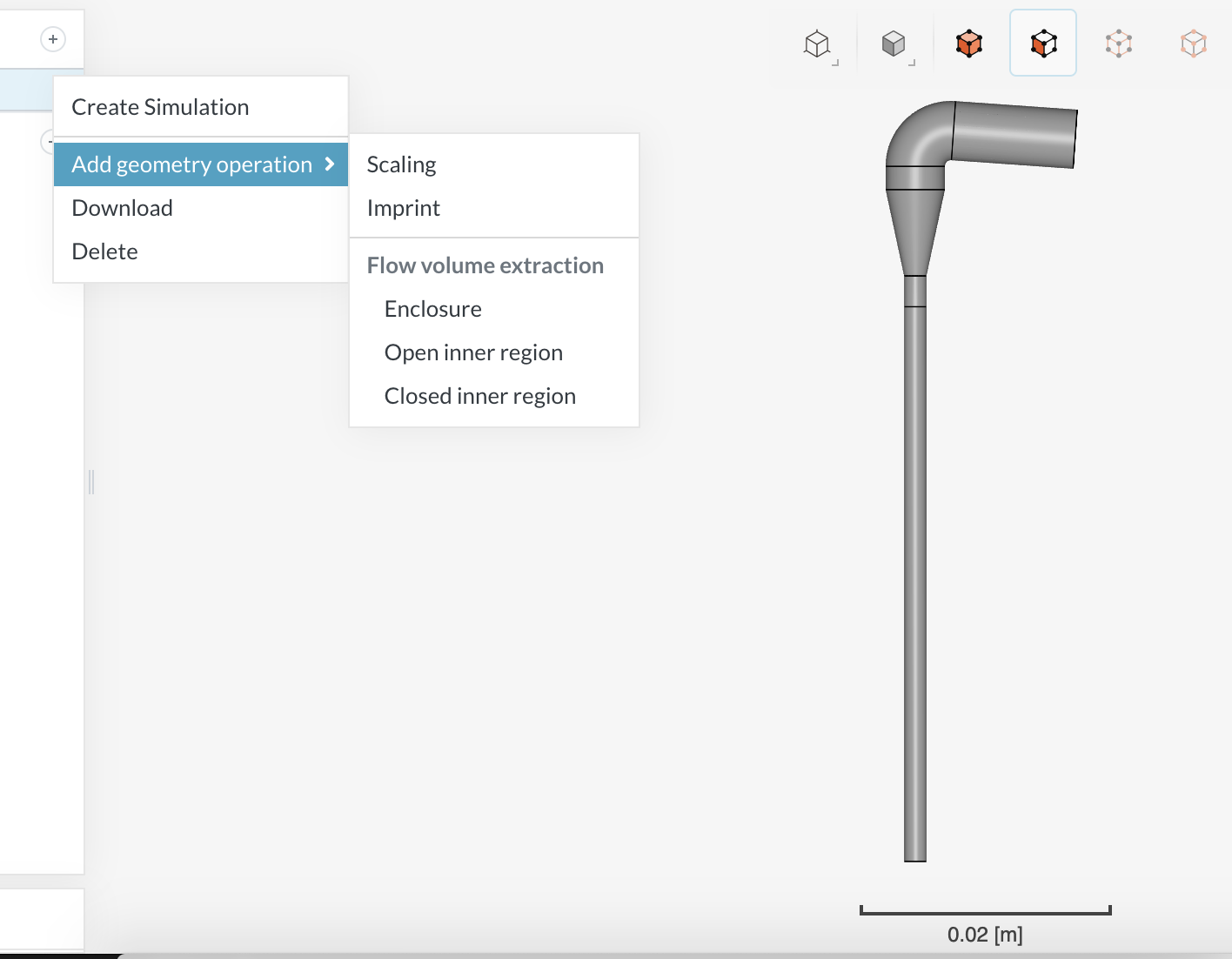

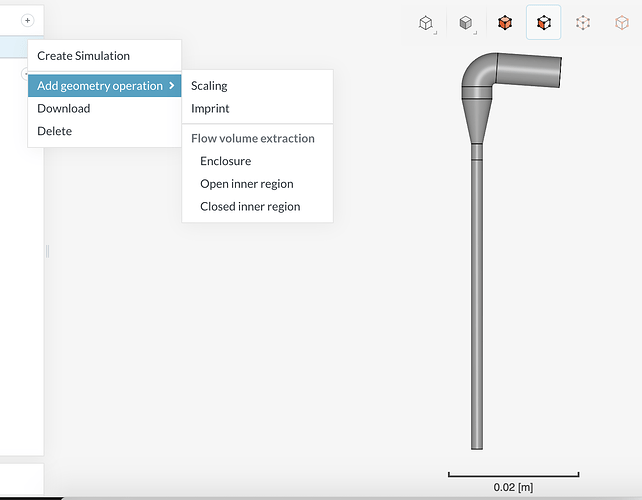

thank you for the reply! can i ask what i should do with the 'Add geometry operation’, as I get a few options.

Could you advise me on what I should choose?

Thank you

Retsam · February 16, 2020, 5:08pm

For internal CFD you need ‘Closed inner region’.
