Y plus value


#1

https://www.simscale.com/workbench/?pid=533448612645742653#tab_1-0
I wanted to obtain y+ value but I saw there was an error in the log
can anyone suggest a way to fix this


#2

Hi @sjay,

Your inflation layers show up in the meshing log. What seems to be the issue?

Cheers.

Regards,
Barry


#3

i want to find the y plus value from the control results


#4

Hi @sjay,

Your Y+ can be obtained under the result control I believe. Do take a look there.

Cheers.

Regards,
Barry


#5

i used it but i didnt get any reading for it . please have a look on my simulation


#6

Hi @sjay,

There are results but you need to change the range since it is large, Y+ values for your simulation are in the order of 1e2 to 1e4.

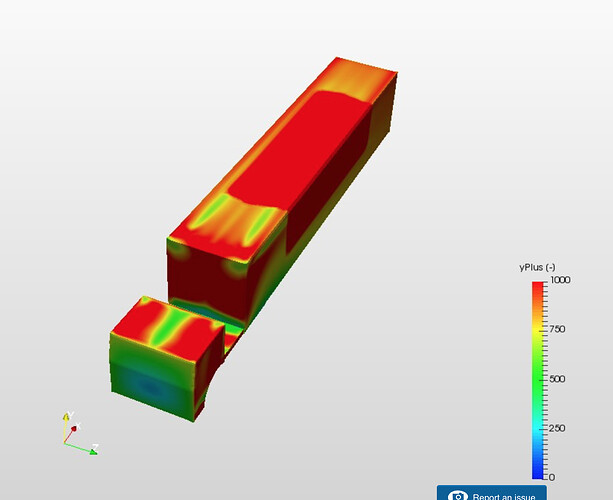

Here is with scale 0 to 1000:

Hope this helps,
Darren


#7

how did you get this ?


#8

how can i change this


#10

Hi @sjay,

you can replicate my view first by hiding all the mesh zones except the surfaces:


By selecting the surfaces under mesh regions (excluding internal mesh and bounding box faces)

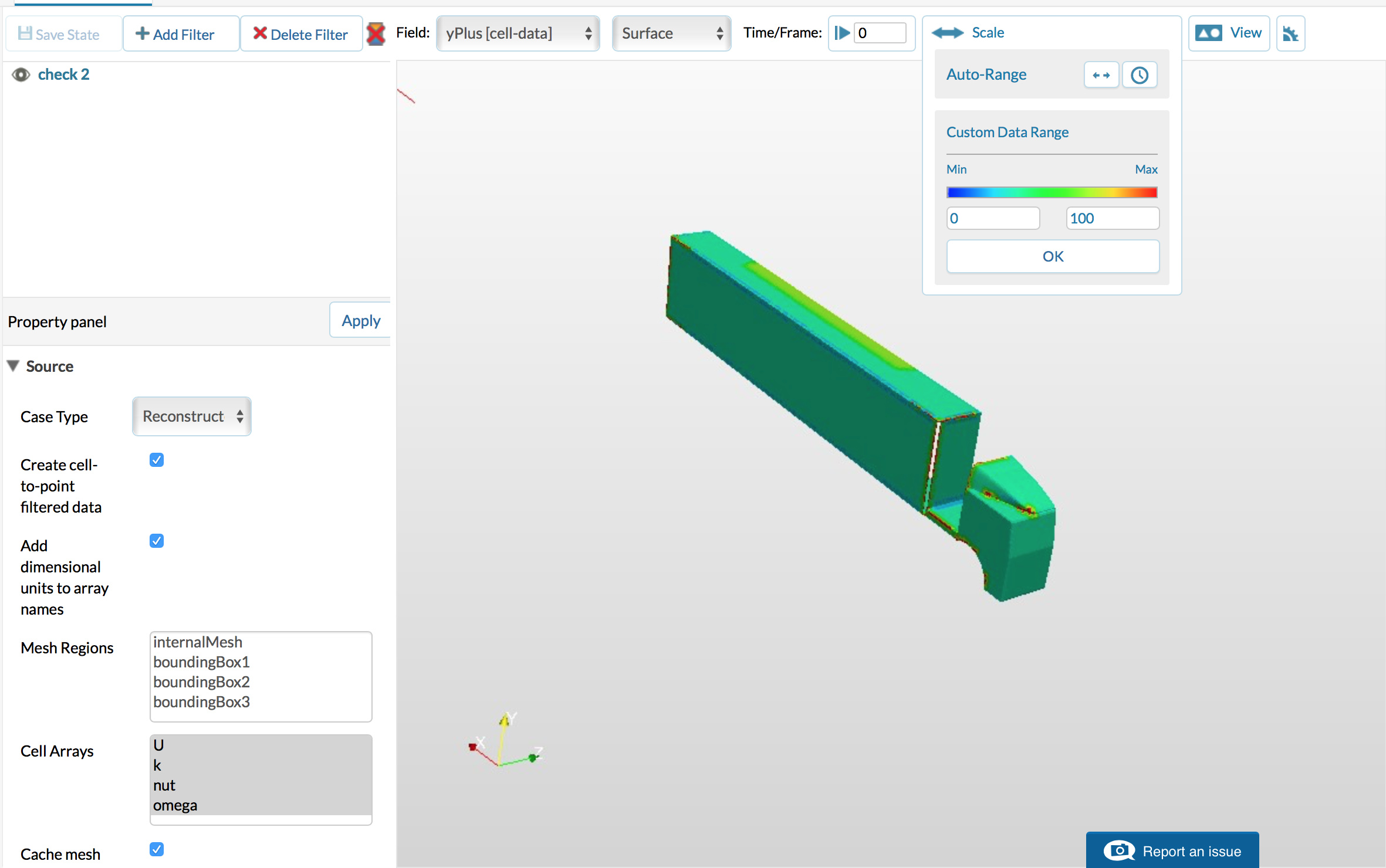

then change the field to y+ cell and change the range:

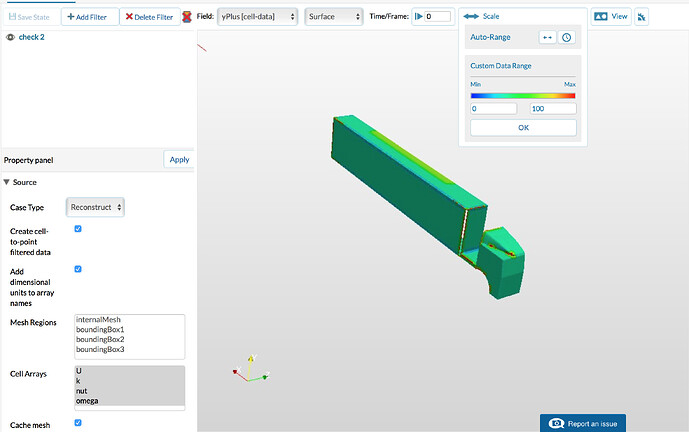

For your later simulation, I used a range of 0 to 100 to visualise.

Hope this helps!
Darren


#12

how can i get the y plus value between 30 and 300


#13

Hi @sjay,

Think this will help:
