Hi I was going to improve my meshes by adding more refinements to my model but I dont understand what the grids in simscale are can someone please explain?
Thank you for your time and help,
Frank
Lucci
Hey Frank! Could you elaborate what do you mean by grids? I assume you are referring to the framework that defines the mesh. If you came across this term while checking a page, feel free to share it so we see what this is about
Best regards,
Fillia
Hi I was trying to see if the results were accurate and someone brought up mesh refinements and grids I did understand mesh refinements but I didnt under stand what grids they were talking about could you please explain them?
Thank you,
Frank
Lucci
The grid is practically a composition of lines that intersect, create volumes, and eventually form the mesh of the domain.
Quoting from this page:
The simplest definition of mesh or grid is " the process of dividing the domain in small sub domains" . We can imagine the smallest sub domain as equivalent to a control volume used in the derivations of fluid dynamics and heat transfer equations. The small sub domains are referred as cells or elements in CFD community.

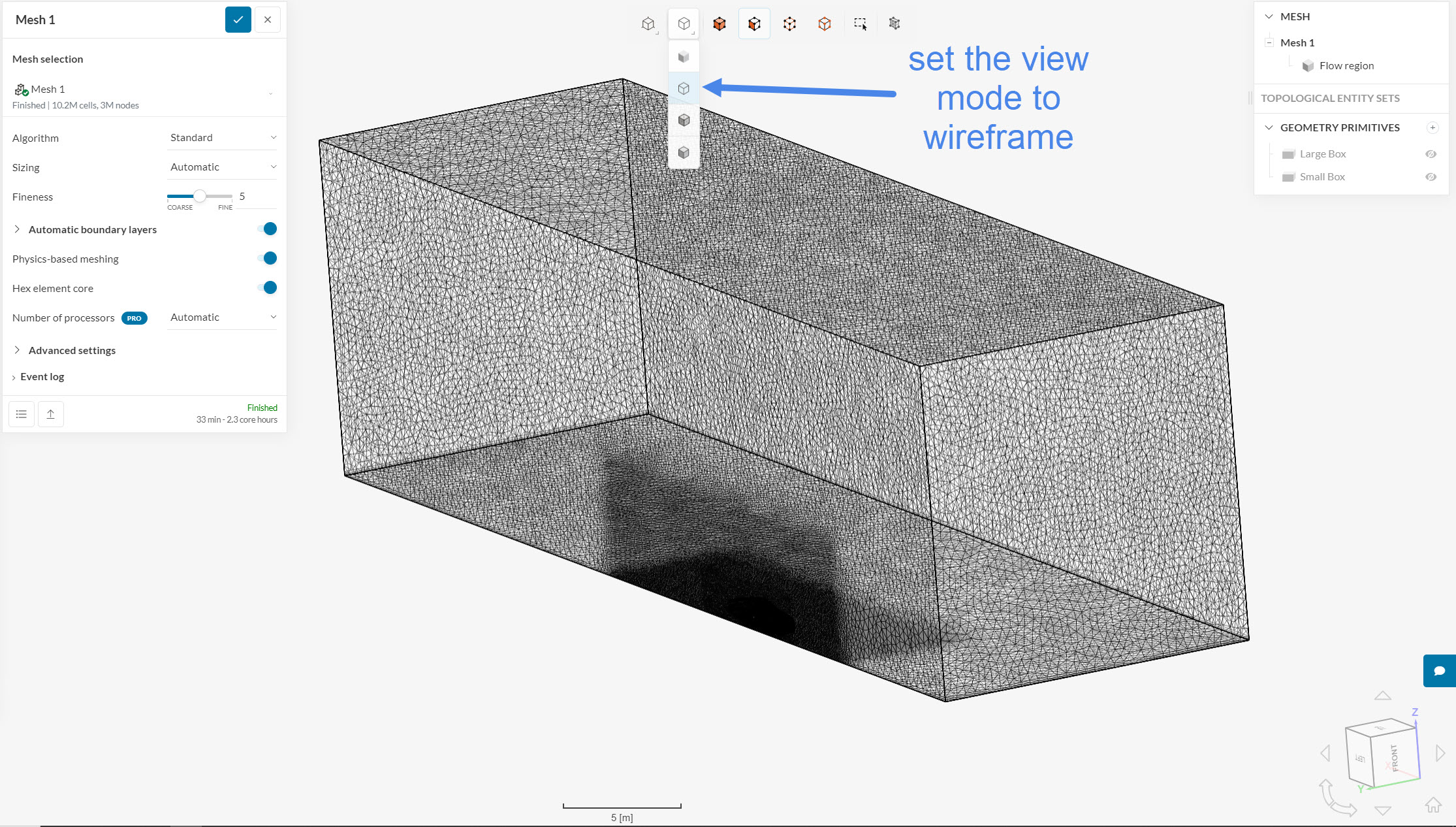

You can check the mesh grid by changing the render mode to ‘Wireframe’:
1 Like
