'WBHFrame' simulation project by plhebert

#1

I created a new simulation project called 'WBHFrame':

FEA_WBH15


More of my public projects can be found here.

#2

@plhebert - I had a quick look at your CAD model. I lately had troubles with the IGES format as it sometimes contained “illegal” faces that the mesher could not cope with. Any chance you could export the model in STEP format and give it a shot that way? Generally, I’d recommend using STEP on SimScale as it turns out to be the more robust CAD data exchange format.

#3

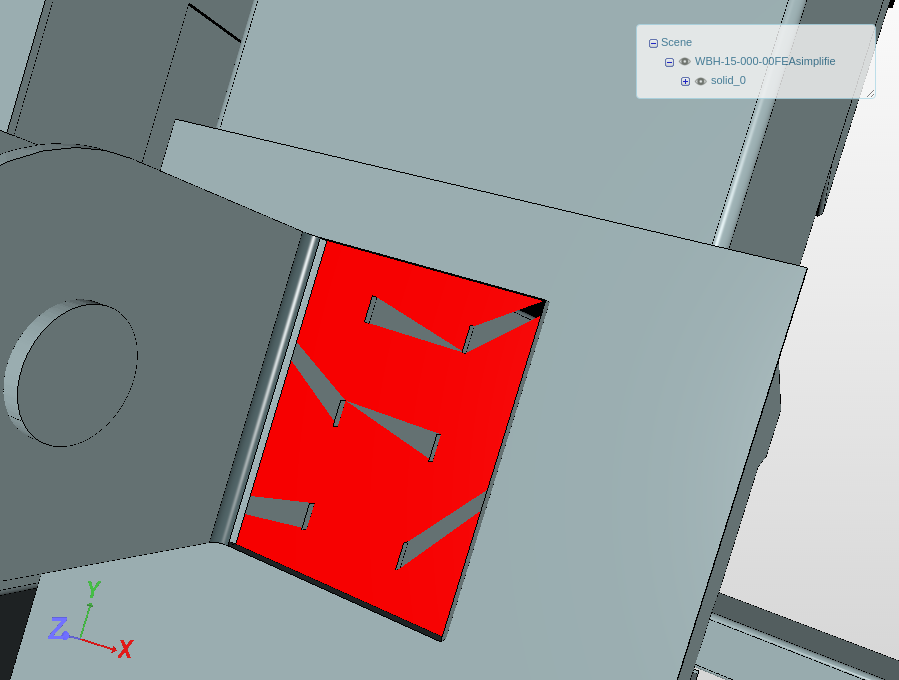

@dheiny, I guess you are talking about faces like this:

illegal_face.png899x680 45.6 KB

It would be interesting to know which software was used to create/simplify the CAD model.

#4

inventor 2016

#5

@plhebert - could you export it in STEP format and try to mesh it?
