I created a new simulation project called 'Tutorial-Frequency':

This analysis shows a use case for the frequency analysis on the SimScale platform.


More of my public projects can be found here.

2

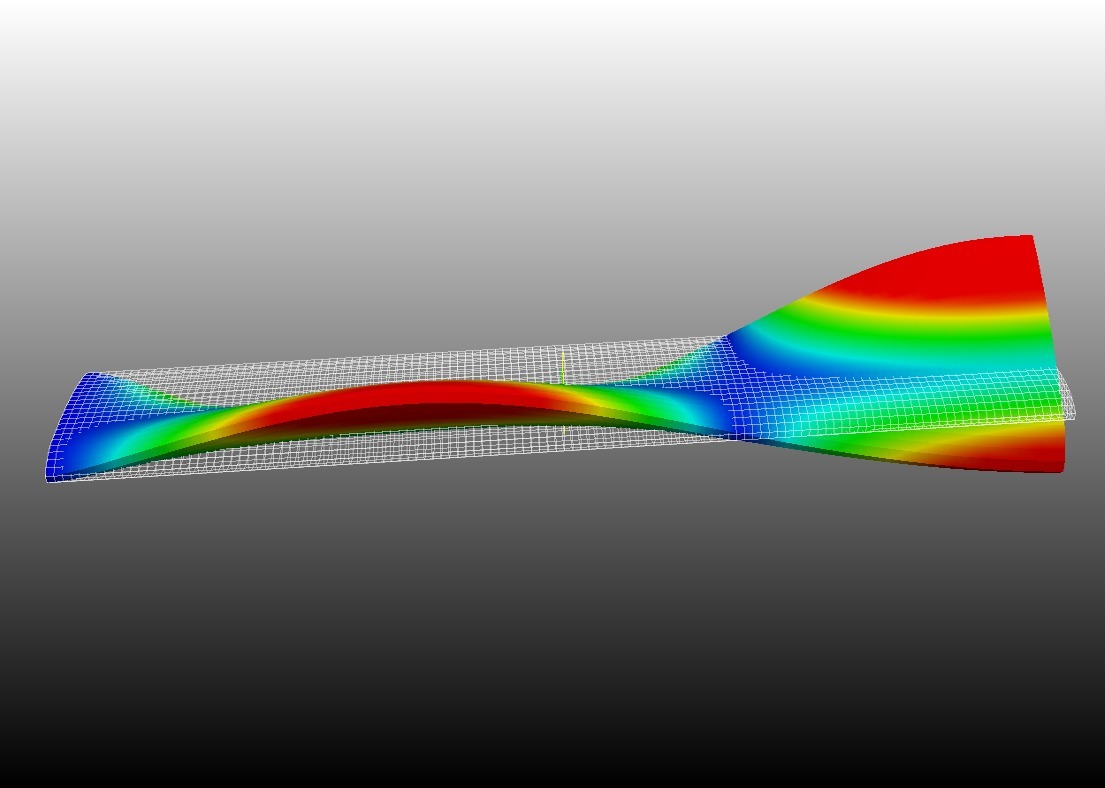

frequency-airfoil_result.jpg1105×788 82.8 KB

The mesh was uploaded and assigned to a simulation on SimScale. The figure above shows the warped displacement field of the eight eigenmode of the airfoil.
