Thermal Shock Analysis of a Globe Valve


#1

Dear SimScalers,

in this week’s Project Spotlight we will have a look at the Thermal Shock analysis by @ahmedhussain18.

Type of analysis: Thermostructural Analysis - Uncoupled thermomechanical analysis (advanced)

Solver: Code_Aster

Transient or steady-state: Transient

Static or dynamic: Static

Nonlinear Analysis: True

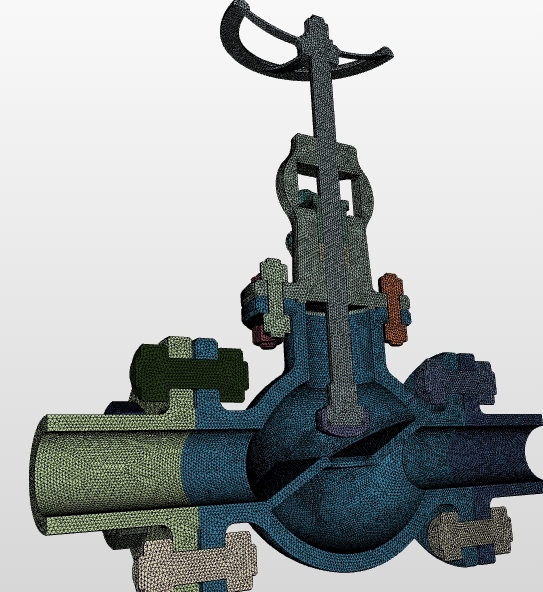

Mesh Type: Tet-dominant

Number of cores used for the simulation: 32

Computation time: The analysis ran for a total simulation interval of 468 sec. (7.8 min.) on a 32 core machine and took around 323 min. to complete.

Post-Processing Evaluation

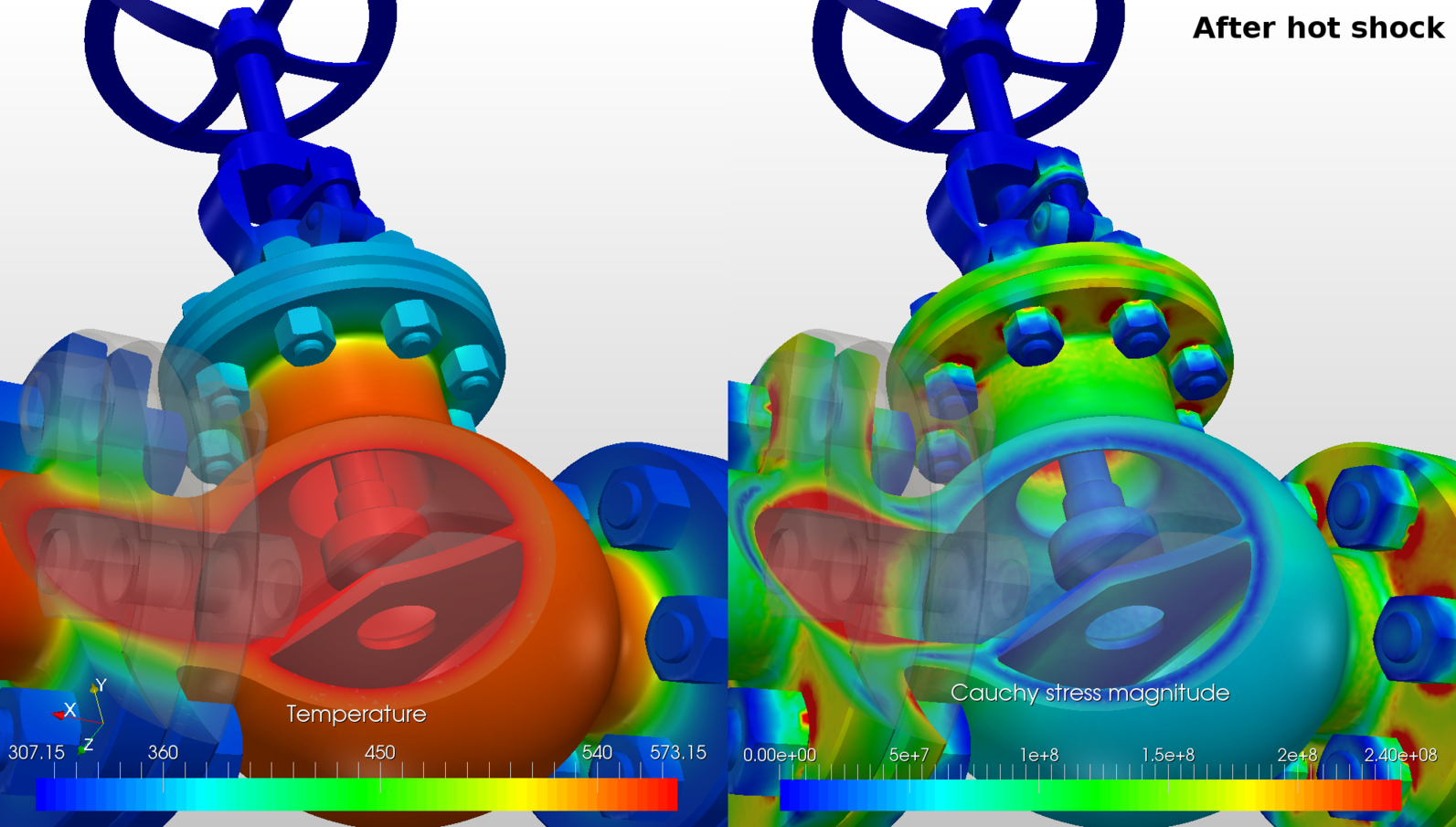

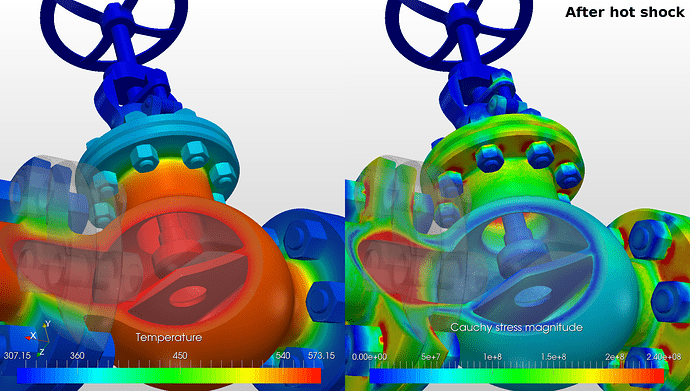

Post-Processing - Temperature and Cauchy-Stress After Hot Shock

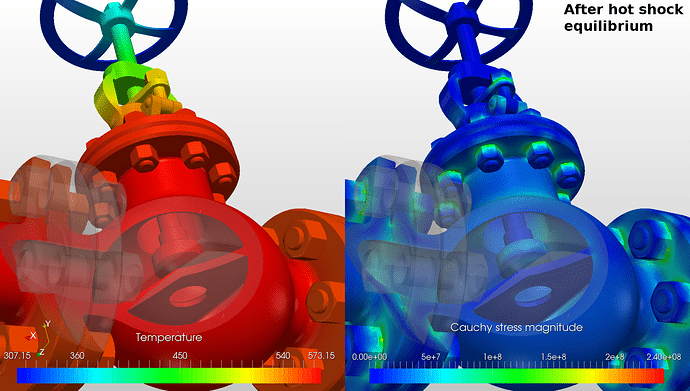

Post-Processing - Temperature and Cauchy-Stress After Hot Shock Equilibrium

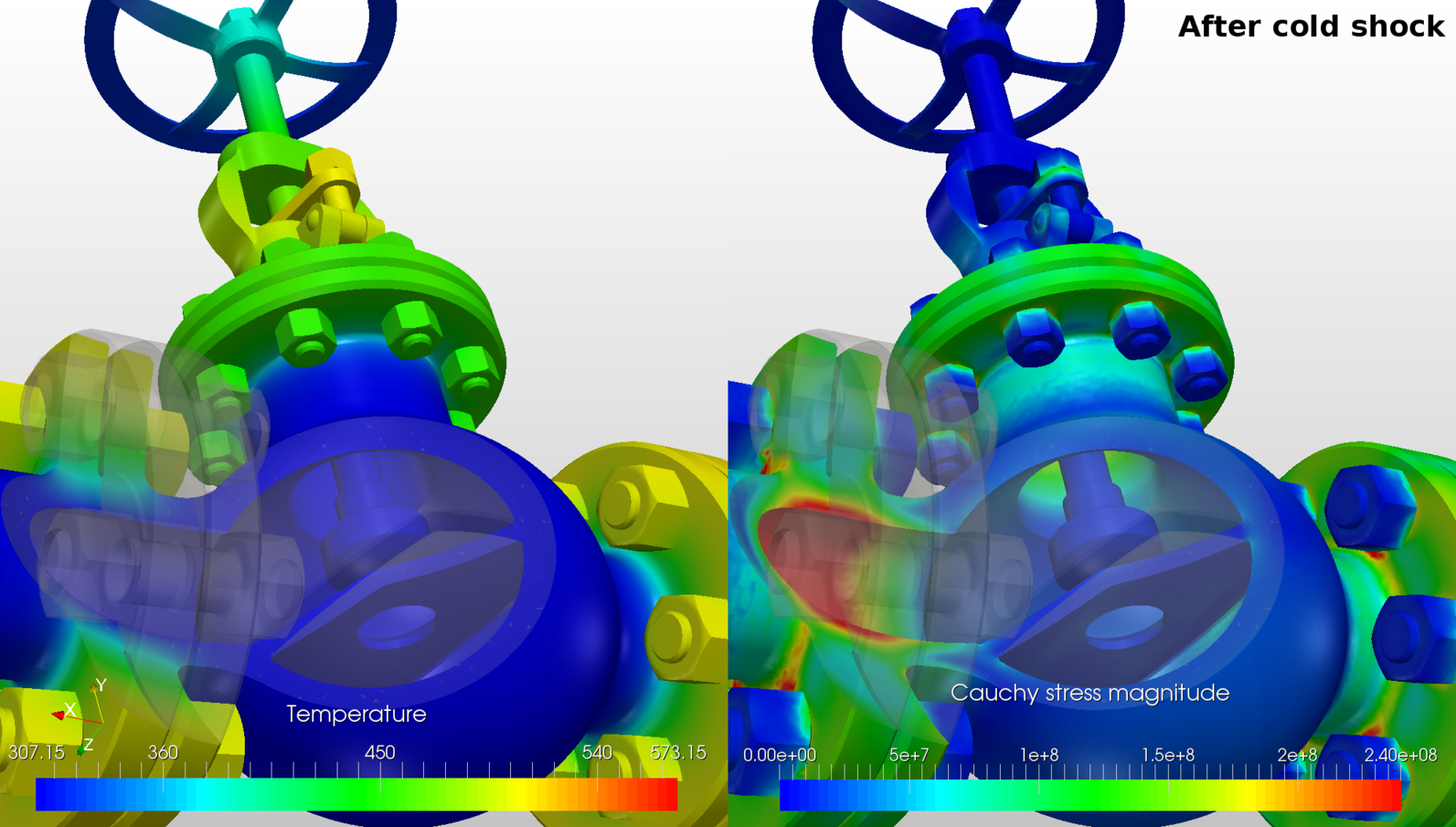

Post-Processing - Temperature and Cauchy-Stress After Cold Shock

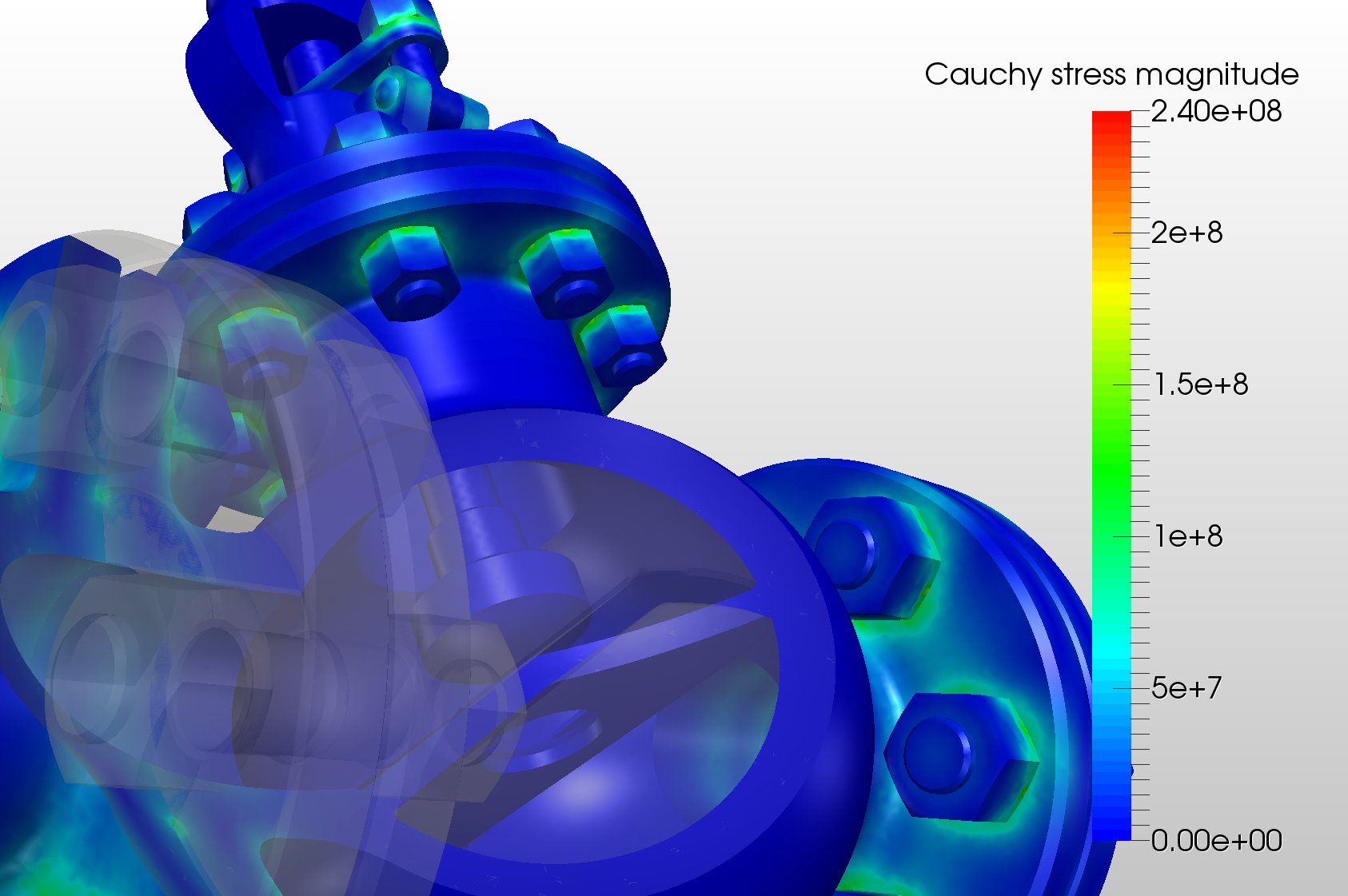

Animation of the Post-Processing



For a full documentation of this project and the results of the Thermal Shock on the bolt reaction forces, please visit: Thermal Shock Analysis of a Globe Valve


\underline{\textbf{Visit our SimWiki by clicking on the picture}}
