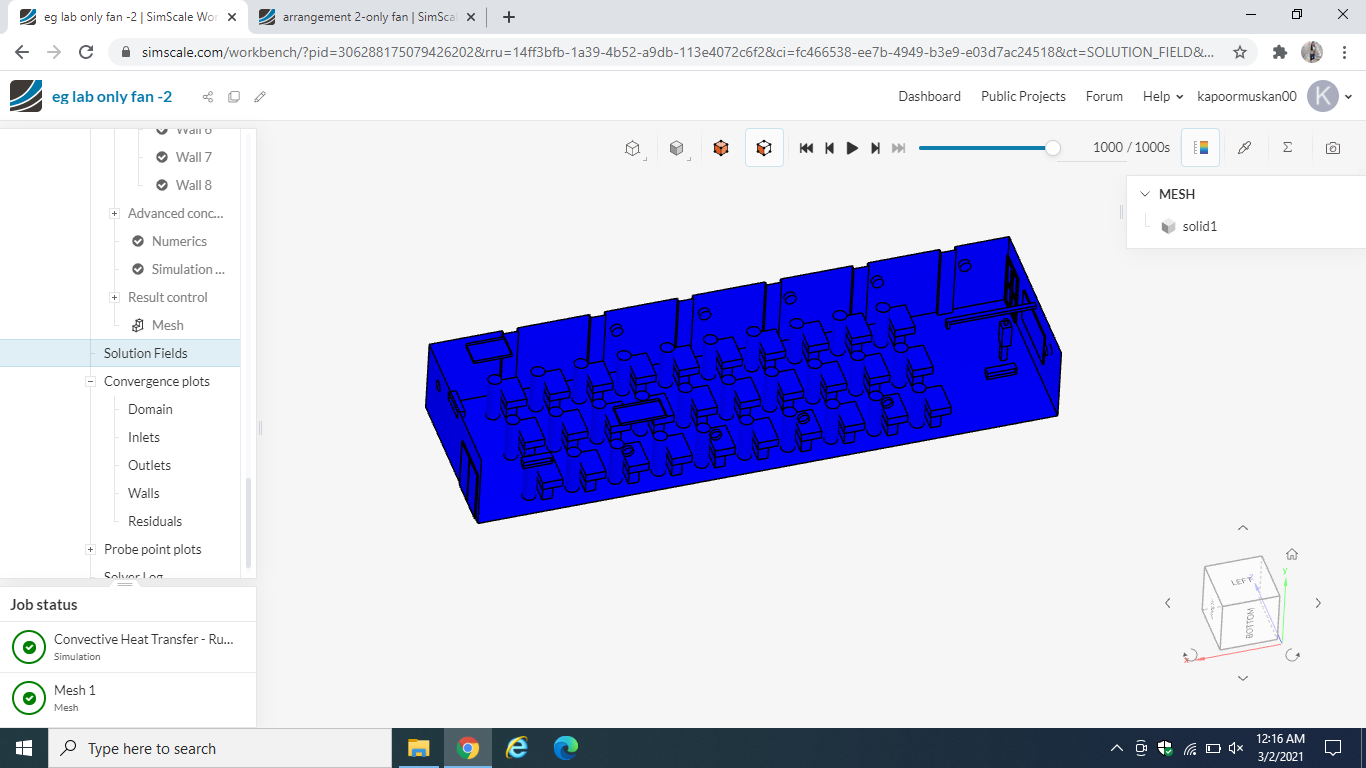

how can I get ppd and pmv values because option is not coming in result generated! image|690x387
Hi!

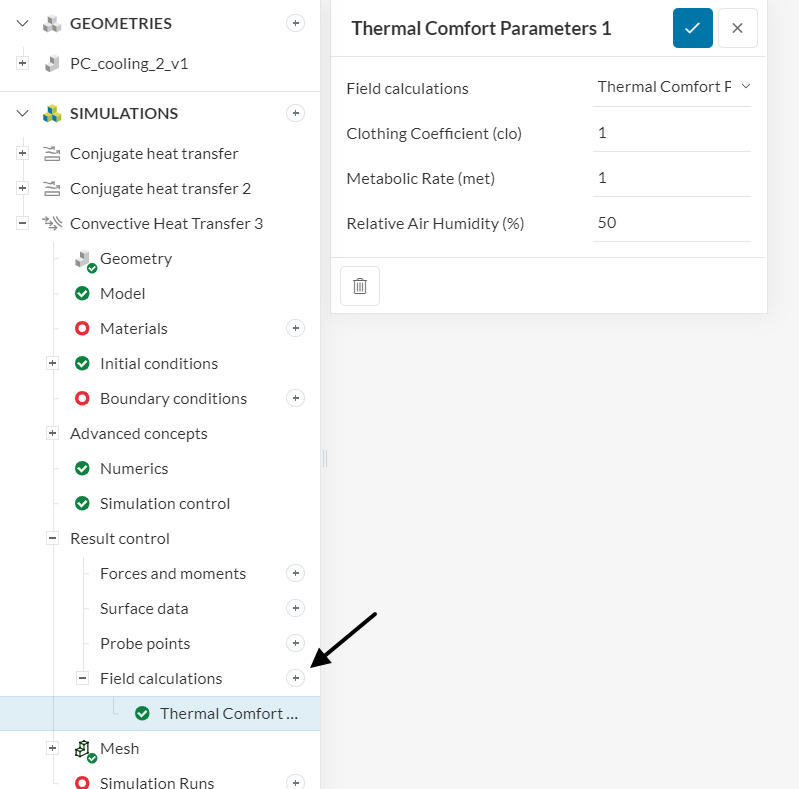

The PMV/PPD parameters will only be available in the post-processor if you create an appropriate result control, under Result control > Field calculations > Thermal Comfort Parameters:
This way, PMV and PPD will be listed with the other scalars (velocity, pressure, etc) in the post-processor.
Cheers
