Thermal analysis problems

Hello everyone,
I’ve been trying to do a simple thermal analysis on a SNPB metal foam beam, and I don’t know what to do. I get the “Your analysis does not contain a sufficient set of constraints and would likely fail” error and I don’t know what to do.
Here is a link to the project.
Thank you!
https://www.simscale.com/workbench/?pid=2436299708073695601&mi=spec%3A4668967f-0188-4e89-8664-2940b2a261f5%2Cservice%3ASIMULATION%2Cstrategy%3A22

Hi there!

Maybe this post helps you: I'm not able to start simulation - just make sure your system has enough constraints.

Cheers,

Jousef

I saw the post, but i don’t know what constraints should i add.
Can you help me with that?

Hi @balberto,

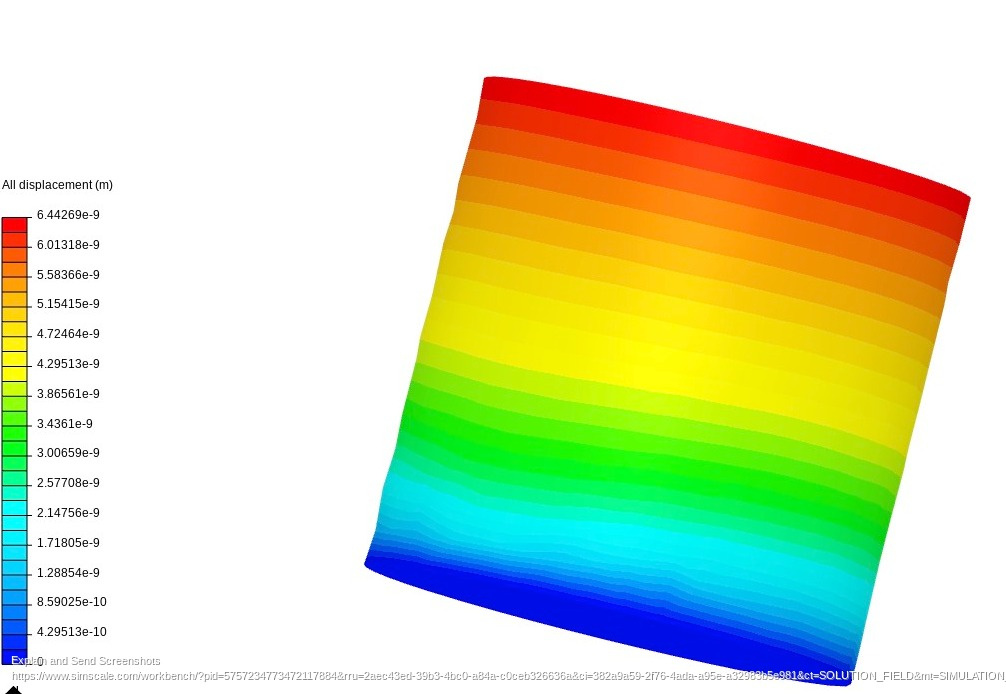

Since this is a thermal mechanical problem you also need to constrain the model in 3D space. I fixed one of the circular faces and the model ran without any issue.

https://www.simscale.com/workbench/?pid=5757234773472117884&rru=2aec43ed-39b3-4bc0-a84a-c0ceb326636a&ci=382a9a59-2f76-4ada-a95e-a32983b5e981&ct=SOLUTION_FIELD&mt=SIMULATION_RESULT

I hope this helps!
Christopher
